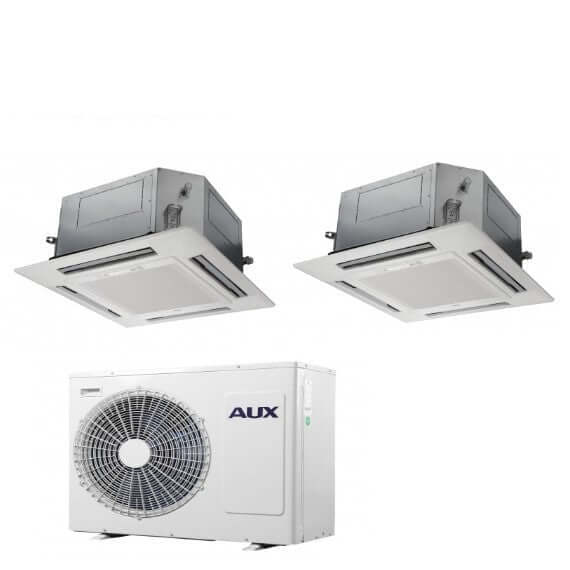

Air Conditioner Aux Dual Split Cassette 12+12 With Am3-H24 R-410 12000+12000

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features

INDOOR UNITS

Model:

  • Catalog number: 2 x AUX AMCA-H12/4R1
  • Power: 12000 btu/h

Performance:

  • Cooling Capacity (kW) : 3.5
  • Heating Capacity (kW) : 4.5
  • Dimensions HxWxD (mm): 615 x 615 x 263

OUTDOOR UNIT

Model:

  • Catalog code : AM3-H24/4DR1
  • Gas : R410A
  • Max indoor units that can be combined: 2

Energy efficiency:

  • Nominal efficiency EER (W/W): 3.36 ; COP (W/W): 3.54
  • Seasonal efficiency SEER (W/W) : 6.15 ; SCOP (W/W): 4.08
  • Energy Efficiency Class (Cool) : A++
  • Energy Efficiency Class (Heating) : A+

Performance:

  • Cooling Capacity (kW) : 5.0
  • Heating Capacity (kW) : 5.7
  • Liq-Gas piping diameter (mm): 6.35/10.9
  • Maximum Absorbed Power: 3100W
  • Outdoor Unit Sound Pressure (dB(A)) : 56

Dimensions and weight

  • Outdoor Unit HxWxD (mm) : 822 x 302 x 655

General characteristics

The multi AUX system has been specifically designed to create a comfortable climate. The system can include up to five indoor units of different powers and a single outdoor unit which allows you to maintain maximum comfort and a pleasant facade of the building. AUX offers a wide range of indoor units: wall mounted, ducted, cassette, floor/ceiling with a cooling power from 2.1 to 5.6 kW.
The system allows you to customize the operation of each indoor unit individually, which allows you to create a comfortable microclimate in any room, regardless of other rooms.

Elegant design

The look of the Nexura floor standing unit is functional and elegant at the same time. Its refined design and soft lines make it easy to integrate with modern furnishings.

Ultra thin

The AUX cassette air conditioner can be installed in confined spaces thanks to its height of only 250mm. Spiral vents reduce energy consumption.

AMCA-H12 / 4R1 AUX spiral blades

Built-in condensate pump

The condensate pump is incorporated and lifts the condensed water to a height of 1200mm above the tank, which thanks to the advanced lamination method and the use of foam insulation, will not leak anywhere. Furthermore, the indoor unit is able to operate in cooling mode down to an outdoor temperature of -5°C.

CONDENSATION

Digital display

The panel shows which mode the split is currently in.

DISPLAY

Characteristics

Silent

Model of heat exchanger with six segments

Built-in condensate drain pump

Digital display

Independent split control

Cooling at low ambient temperature


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Air Conditioner Aux Dual Split Cassette 12+12 With Am3-H24 R-410 12000+12000

Product form

Technical features INDOOR UNITS Model: Catalog number: 2 x AUX AMCA-H12/4R1 Power: 12000 btu/h Performance: Cooling Capacity (kW) : 3.5... Read more

€1.564,00 Incl. VAT

    Description

    Technical features

    INDOOR UNITS

    Model:

    • Catalog number: 2 x AUX AMCA-H12/4R1
    • Power: 12000 btu/h

    Performance:

    • Cooling Capacity (kW) : 3.5
    • Heating Capacity (kW) : 4.5
    • Dimensions HxWxD (mm): 615 x 615 x 263

    OUTDOOR UNIT

    Model:

    • Catalog code : AM3-H24/4DR1
    • Gas : R410A
    • Max indoor units that can be combined: 2

    Energy efficiency:

    • Nominal efficiency EER (W/W): 3.36 ; COP (W/W): 3.54
    • Seasonal efficiency SEER (W/W) : 6.15 ; SCOP (W/W): 4.08
    • Energy Efficiency Class (Cool) : A++
    • Energy Efficiency Class (Heating) : A+

    Performance:

    • Cooling Capacity (kW) : 5.0
    • Heating Capacity (kW) : 5.7
    • Liq-Gas piping diameter (mm): 6.35/10.9
    • Maximum Absorbed Power: 3100W
    • Outdoor Unit Sound Pressure (dB(A)) : 56

    Dimensions and weight

    • Outdoor Unit HxWxD (mm) : 822 x 302 x 655

    General characteristics

    The multi AUX system has been specifically designed to create a comfortable climate. The system can include up to five indoor units of different powers and a single outdoor unit which allows you to maintain maximum comfort and a pleasant facade of the building. AUX offers a wide range of indoor units: wall mounted, ducted, cassette, floor/ceiling with a cooling power from 2.1 to 5.6 kW.
    The system allows you to customize the operation of each indoor unit individually, which allows you to create a comfortable microclimate in any room, regardless of other rooms.

    Elegant design

    The look of the Nexura floor standing unit is functional and elegant at the same time. Its refined design and soft lines make it easy to integrate with modern furnishings.

    Ultra thin

    The AUX cassette air conditioner can be installed in confined spaces thanks to its height of only 250mm. Spiral vents reduce energy consumption.

    AMCA-H12 / 4R1 AUX spiral blades

    Built-in condensate pump

    The condensate pump is incorporated and lifts the condensed water to a height of 1200mm above the tank, which thanks to the advanced lamination method and the use of foam insulation, will not leak anywhere. Furthermore, the indoor unit is able to operate in cooling mode down to an outdoor temperature of -5°C.

    CONDENSATION

    Digital display

    The panel shows which mode the split is currently in.

    DISPLAY

    Characteristics

    Silent

    Model of heat exchanger with six segments

    Built-in condensate drain pump

    Digital display

    Independent split control

    Cooling at low ambient temperature


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
