icon Ariston Nuos Split 80 Wh Heat Pump Water Heater With 80 Liters Storage Class A | CaldaieMurali

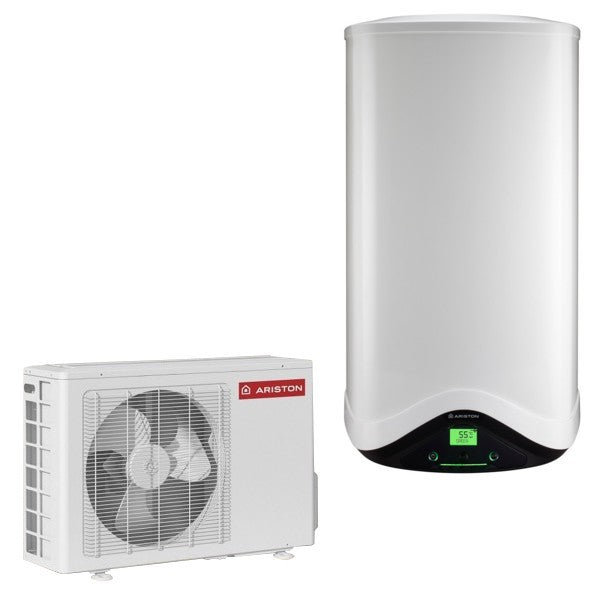

Ariston Nuos Split 80 Wh Heat Pump Water Heater With 80 Liters Storage Class A

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features
  • Product code: 3623242
Energy label specifications according to the European ErP directive
  • Energy efficiency: Class A
  • Load profile: M profile
Characteristics of heating/DHW operation:
  • Monobloc wall mounted water heater
  • COP air 7°C* 2.04
  • Heating time* h:min 3:11
  • Min/max air temperature °C -5/42
  • Sound power (IU) db(A) 15
  • Sound power (EU) dB(A) 57
  • Average absorbed electrical power W 510
  • Maximum quantity of hot water at 40°C* l 99
  • Nominal accumulation capacity lt: 80
  • Maximum working pressure bar 8
  • Maximum absorbed voltage/power V/W 220-240/1950
  • Empty mass (IU) kg 32
  • IP24 electrical protection
  • Insulation thickness mm 41
  • Diameter of water connections " 1/2 M
  • Minimum storage room temperature °C 1
  • Thermal dispersions (Pes)* W 20
Outdoor unit:
  • Coolant connections diameter 1/4 - 3/8 with flare
  • Empty mass (EU) kg 27
  • Standard air flow m3 /h 1100
  • Refrigerant circuit max pressure (low pressure side) bar 12
  • Refrigerant circuit max pressure (high pressure side) bar 27
  • IPX4 degree of protection
  • Maximum distance between storage tank and outdoor unit m 8
  • Maximum height difference between storage tank and outdoor unit m 3

For more information CLICK HERE

General characteristics

Nuos SPLIT 80-110 WH



The Nuos Split water heater is a guarantee of comfort even in the smallest spaces. It stands out for its high energy saving capacity, since it allows you to consume 70% less energy than traditional water heaters . Super compact and silent, it is easy to install and easily transported. Thanks to the technology with which it is equipped, it allows you to easily program five different modes of use, to always have maximum comfort and hot water in large quantities.

  • Working range of the Nuos Split in heat pump with air temperatures from - 5 to 42°C.
  • Ecological gas R134A allows to reach water temperatures up to 62°C in heat pump.
  • Condenser wrapped around the boiler (not immersed in water)
  • Low noise (outdoor unit)
  • Titanium enamelled steel boiler
  • Supplementary electrical resistance
  • Active anode (ProTech) + magnesium anode
  • LCD display
  • Functions: green, boost, boost 2, auto, hourly programming of voyage and anti-legionella samples.
Green function

Function that maximizes energy savings. The water heater works exclusively in heat pump mode, heating domestic water up to 62°C

Boost function

Function that reduces the heating times of the water heater to a minimum, increasing sanitary comfort. The machine works simultaneously in heat pump and electrical resistance, speeding up the heating of the water. Once the maximum operating temperature of the heat pump has been exceeded, the electrical resistance continues to heat up to the water set-point temperature.

Auto mode

Function that allows the best compromise between comfort and savings. The machine optimizes the heat pump and resistance activation logic.

Anti-legionella function

This function provides for automatic disinfection cycles. On a monthly basis, the machine starts a check and, if necessary, heats the sanitary water up to 65°C, keeping it at this temperature until any bacterial proliferation in the tank is destroyed.

Hourly scheduling of withdrawals

This is the function that allows you to program times and water temperatures to your liking. The water heater will reach the pre-set temperature at the preferred time (up to two times can be programmed): the process will give priority to heating via the heat pump and, only if necessary, will take place via the electric heaters.


Nuos Range: Heat pump water heater

Ariston presents NUOS: the widest and most complete range of ecological heat pump water heaters on the market, with high efficiency and energy saving.

Ariston has long since chosen the path of ecology and for this reason has been investing for years now in the most advanced technology existing in the sector.
The new NUOS heat pump water heaters were therefore born from research: efficient and capable of heating a large quantity of water using very little electricity, as they absorb the heat directly from the outside air.

The NUOS range of heat pump water heaters is available in both monobloc and split versions (i.e. with outdoor unit), which can be installed on the wall or on the floor and with capacities ranging from 80 to 300 litres. In new buildings the NUOS range can also be used as an alternative to solar thermal as a source of renewable energy.

Heat pump technology

The NUOS range uses a thermodynamic cycle to heat the water contained in the storage tank through the air sucked in by the heating unit, reversing the natural flow of heat. A refrigerant fluid (R134A), through changes of state and compression and expansion cycles, takes the heat contained in the air at a lower temperature and transfers it to the sanitary water at a higher temperature. This mechanism is the reverse of the one used in refrigerators. The electrical energy required by the product is only that necessary to operate the fan which captures the air and the compressor which circulates the refrigerant fluid in the circuit.

As required by national law, in new buildings it is necessary to satisfy at least 50% of the energy requirement used to heat sanitary water with renewable sources. (Legislative Decree n. 28 of 3 March 2011 based on the RES directive 2009/28/CE). The technology used in NUOS heat pump water heaters is an ideal choice to satisfy these legal obligations, representing an advantageous alternative to solar thermal . It is a valid answer even where there are installation limits due to a building that is not well exposed to the sun.

IRPEF tax relief

The search for thermal efficiency that distinguishes the NUOS range, as well as allowing immediate savings in terms of low consumption, allows our customers to have the possibility of tax deductions. For more information CLICK HERE

Thermal Energy Account

As an alternative to tax breaks, again in the event of replacing an electric water heater, the end user can request the incentive provided for by the Thermal Energy Bill, as a capital contribution. The incentive is paid by the GSE (Energy Services Manager) through bank transfer and corresponds to 40% of the expenses incurred for the purchase and expenses related to the installation, up to a maximum of € 400 in a single solution for the replacement of an electric water heater with a heat pump one with a capacity of up to 150 litres; for capacities exceeding 150 liters, the reimbursement is in one year if the value of the incentive is less than €600, in two years if it is greater than €600 (the maximum value of the incentive is €700). For more information CLICK HERE

Economic saving

Considering the profiles of European regulatory requirements, it has been estimated that the annual energy consumption dedicated to the production of domestic hot water of a family of 3 is equal to 1,550 kWh /year.

Affordable investment

An efficient product consumes less; it follows that, compared to an electric water heater of the same volume, there is an energy saving ed
cheap up to 75%. NUOS is therefore an ideal investment that generally pays for itself in about 3 years. Furthermore, for those who take advantage of the tax breaks, the recovery times of the investment are considerably reduced.

Energy saving

The air is full of heat, a free and renewable energy that comes from the heating of the sun. NUOS manages to extract clean energy from the air and uses it to heat water while consuming only 30% of the electricity required compared to a traditional water heater. It has been estimated that the installation of a NUOS 80 heat pump water heater allows for a reduction of 480 kg/year of CO2 linked to the electricity production processes. The same effect would be obtained by the absorption of CO2 by 40 trees.

Renewable energy

The great innovations are often hidden in what surrounds us on a daily basis. The air, for example, is full of heat, a free and renewable energy that comes from the heating of the sun. NUOS manages to extract clean energy from the air and use it to heat water.

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Ariston Nuos Split 80 Wh Heat Pump Water Heater With 80 Liters Storage Class A

Product form

Technical features Product code: 3623242 Energy label specifications according to the European ErP directive Energy efficiency: Class A Load profile:... Read more

€1.050,00 Incl. VAT

    Description

    Technical features
    • Product code: 3623242
    Energy label specifications according to the European ErP directive
    • Energy efficiency: Class A
    • Load profile: M profile
    Characteristics of heating/DHW operation:
    • Monobloc wall mounted water heater
    • COP air 7°C* 2.04
    • Heating time* h:min 3:11
    • Min/max air temperature °C -5/42
    • Sound power (IU) db(A) 15
    • Sound power (EU) dB(A) 57
    • Average absorbed electrical power W 510
    • Maximum quantity of hot water at 40°C* l 99
    • Nominal accumulation capacity lt: 80
    • Maximum working pressure bar 8
    • Maximum absorbed voltage/power V/W 220-240/1950
    • Empty mass (IU) kg 32
    • IP24 electrical protection
    • Insulation thickness mm 41
    • Diameter of water connections " 1/2 M
    • Minimum storage room temperature °C 1
    • Thermal dispersions (Pes)* W 20
    Outdoor unit:
    • Coolant connections diameter 1/4 - 3/8 with flare
    • Empty mass (EU) kg 27
    • Standard air flow m3 /h 1100
    • Refrigerant circuit max pressure (low pressure side) bar 12
    • Refrigerant circuit max pressure (high pressure side) bar 27
    • IPX4 degree of protection
    • Maximum distance between storage tank and outdoor unit m 8
    • Maximum height difference between storage tank and outdoor unit m 3

    For more information CLICK HERE

    General characteristics

    Nuos SPLIT 80-110 WH



    The Nuos Split water heater is a guarantee of comfort even in the smallest spaces. It stands out for its high energy saving capacity, since it allows you to consume 70% less energy than traditional water heaters . Super compact and silent, it is easy to install and easily transported. Thanks to the technology with which it is equipped, it allows you to easily program five different modes of use, to always have maximum comfort and hot water in large quantities.

    • Working range of the Nuos Split in heat pump with air temperatures from - 5 to 42°C.
    • Ecological gas R134A allows to reach water temperatures up to 62°C in heat pump.
    • Condenser wrapped around the boiler (not immersed in water)
    • Low noise (outdoor unit)
    • Titanium enamelled steel boiler
    • Supplementary electrical resistance
    • Active anode (ProTech) + magnesium anode
    • LCD display
    • Functions: green, boost, boost 2, auto, hourly programming of voyage and anti-legionella samples.
    Green function

    Function that maximizes energy savings. The water heater works exclusively in heat pump mode, heating domestic water up to 62°C

    Boost function

    Function that reduces the heating times of the water heater to a minimum, increasing sanitary comfort. The machine works simultaneously in heat pump and electrical resistance, speeding up the heating of the water. Once the maximum operating temperature of the heat pump has been exceeded, the electrical resistance continues to heat up to the water set-point temperature.

    Auto mode

    Function that allows the best compromise between comfort and savings. The machine optimizes the heat pump and resistance activation logic.

    Anti-legionella function

    This function provides for automatic disinfection cycles. On a monthly basis, the machine starts a check and, if necessary, heats the sanitary water up to 65°C, keeping it at this temperature until any bacterial proliferation in the tank is destroyed.

    Hourly scheduling of withdrawals

    This is the function that allows you to program times and water temperatures to your liking. The water heater will reach the pre-set temperature at the preferred time (up to two times can be programmed): the process will give priority to heating via the heat pump and, only if necessary, will take place via the electric heaters.


    Nuos Range: Heat pump water heater

    Ariston presents NUOS: the widest and most complete range of ecological heat pump water heaters on the market, with high efficiency and energy saving.

    Ariston has long since chosen the path of ecology and for this reason has been investing for years now in the most advanced technology existing in the sector.
    The new NUOS heat pump water heaters were therefore born from research: efficient and capable of heating a large quantity of water using very little electricity, as they absorb the heat directly from the outside air.

    The NUOS range of heat pump water heaters is available in both monobloc and split versions (i.e. with outdoor unit), which can be installed on the wall or on the floor and with capacities ranging from 80 to 300 litres. In new buildings the NUOS range can also be used as an alternative to solar thermal as a source of renewable energy.

    Heat pump technology

    The NUOS range uses a thermodynamic cycle to heat the water contained in the storage tank through the air sucked in by the heating unit, reversing the natural flow of heat. A refrigerant fluid (R134A), through changes of state and compression and expansion cycles, takes the heat contained in the air at a lower temperature and transfers it to the sanitary water at a higher temperature. This mechanism is the reverse of the one used in refrigerators. The electrical energy required by the product is only that necessary to operate the fan which captures the air and the compressor which circulates the refrigerant fluid in the circuit.

    As required by national law, in new buildings it is necessary to satisfy at least 50% of the energy requirement used to heat sanitary water with renewable sources. (Legislative Decree n. 28 of 3 March 2011 based on the RES directive 2009/28/CE). The technology used in NUOS heat pump water heaters is an ideal choice to satisfy these legal obligations, representing an advantageous alternative to solar thermal . It is a valid answer even where there are installation limits due to a building that is not well exposed to the sun.

    IRPEF tax relief

    The search for thermal efficiency that distinguishes the NUOS range, as well as allowing immediate savings in terms of low consumption, allows our customers to have the possibility of tax deductions. For more information CLICK HERE

    Thermal Energy Account

    As an alternative to tax breaks, again in the event of replacing an electric water heater, the end user can request the incentive provided for by the Thermal Energy Bill, as a capital contribution. The incentive is paid by the GSE (Energy Services Manager) through bank transfer and corresponds to 40% of the expenses incurred for the purchase and expenses related to the installation, up to a maximum of € 400 in a single solution for the replacement of an electric water heater with a heat pump one with a capacity of up to 150 litres; for capacities exceeding 150 liters, the reimbursement is in one year if the value of the incentive is less than €600, in two years if it is greater than €600 (the maximum value of the incentive is €700). For more information CLICK HERE

    Economic saving

    Considering the profiles of European regulatory requirements, it has been estimated that the annual energy consumption dedicated to the production of domestic hot water of a family of 3 is equal to 1,550 kWh /year.

    Affordable investment

    An efficient product consumes less; it follows that, compared to an electric water heater of the same volume, there is an energy saving ed
    cheap up to 75%. NUOS is therefore an ideal investment that generally pays for itself in about 3 years. Furthermore, for those who take advantage of the tax breaks, the recovery times of the investment are considerably reduced.

    Energy saving

    The air is full of heat, a free and renewable energy that comes from the heating of the sun. NUOS manages to extract clean energy from the air and uses it to heat water while consuming only 30% of the electricity required compared to a traditional water heater. It has been estimated that the installation of a NUOS 80 heat pump water heater allows for a reduction of 480 kg/year of CO2 linked to the electricity production processes. The same effect would be obtained by the absorption of CO2 by 40 trees.

    Renewable energy

    The great innovations are often hidden in what surrounds us on a daily basis. The air, for example, is full of heat, a free and renewable energy that comes from the heating of the sun. NUOS manages to extract clean energy from the air and use it to heat water.

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
