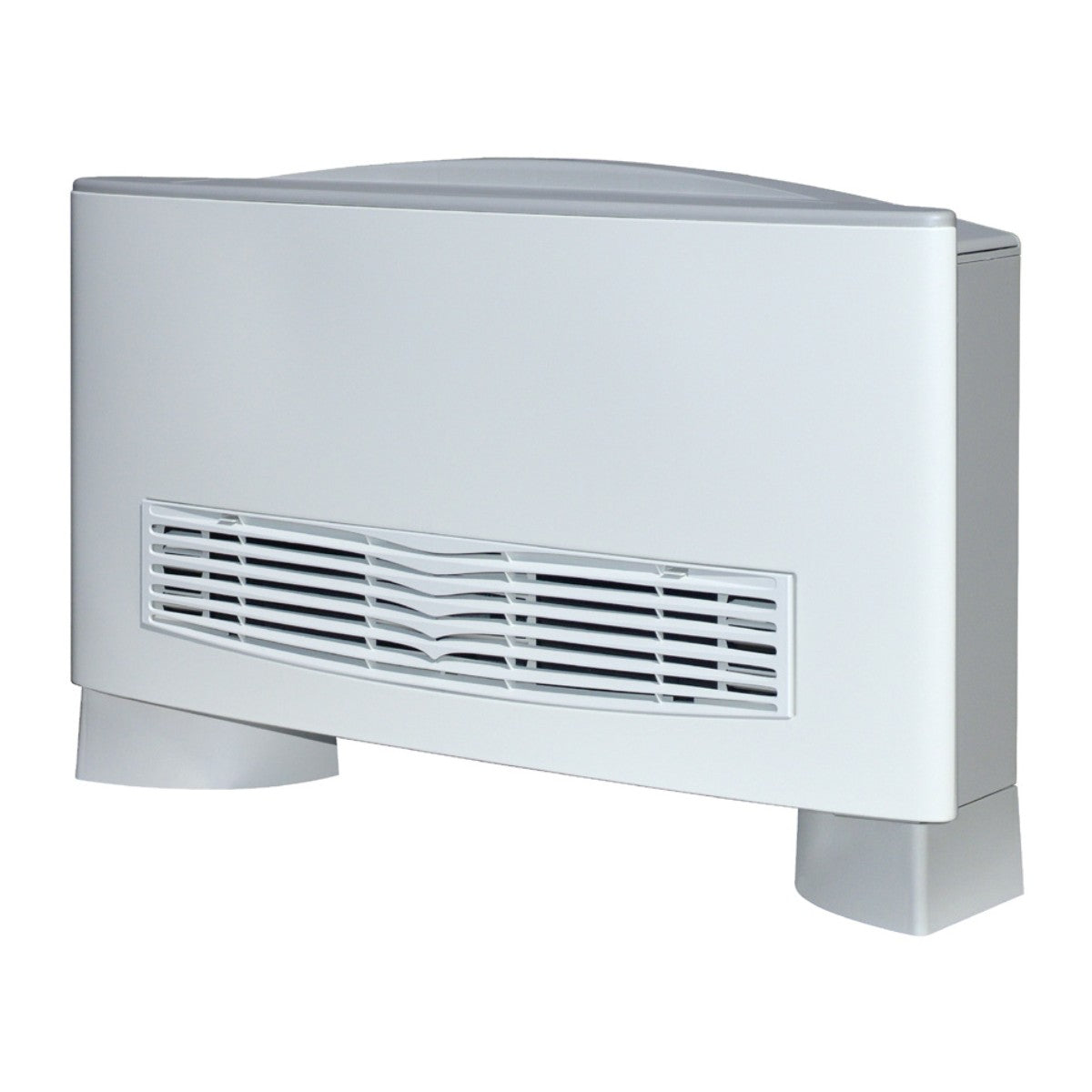

Fan Coil Fan Coil Aermec Omnia Hl 36pc With Control Included

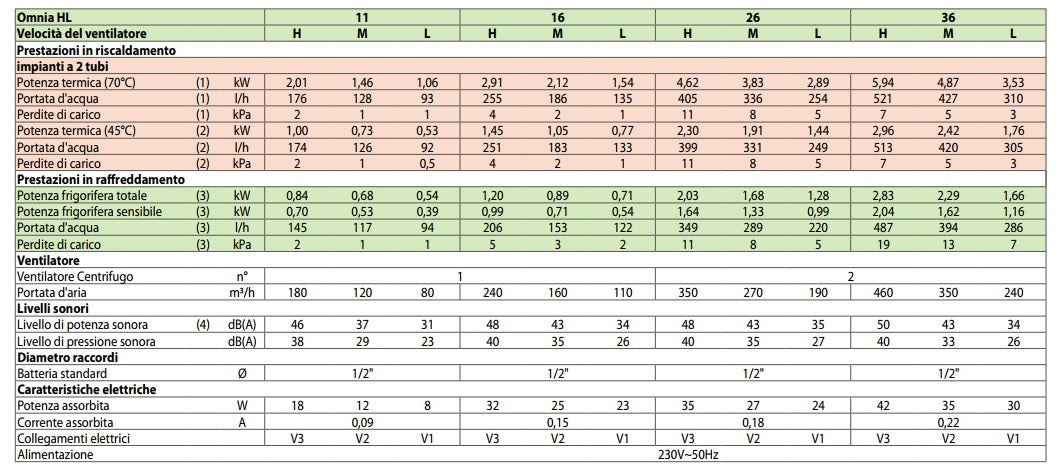

Technical features

• Model : Omnia HL 36PC
• White color
• Vertical and horizontal installation

Heating performance 70°C

• Heating power : 3.53 ~ 4.87 ~ 5.94 kW
• Water flow rate : 310 ~ 427 ~ 521 l/h
• Pressure drop : 3 ~ 5 ~ 7 kPa

Heating performance 50°C

• Heating power : 2.08 ~ 2.86 ~ 3.54 kW
• Water flow rate : 286 ~ 394 ~ 487 l/h
• Pressure drop : 6 ~ 11 ~ 16 kPa

Heating performance 45°C

• Heating power : 1.76 ~ 2.42 ~ 2.96 kW
• Water flow rate : 305 ~ 420 ~ 513 l/h
• Pressure drop : 3 ~ 5 ~ 7 kPa

Cooling performance

• Total cooling capacity : 1.66 ~ 2.29 ~ 2.83 kW
• Sensible cooling capacity: 1.16~1.62~2.04kW
• Water flow rate : 286 ~ 394 ~ 487 l/h
• Pressure drop : 7 ~ 13 ~ 19 kPa

Characteristics

• Fan : Centrifugal/2
• Air flow rate : 240 ~ 350 ~ 460 m ³ /h
• Sound power level : 34 ~ 50 dB(A)
• Sound pressure level : 26 ~ 40 dB(A)

Size and weight

• Dimensions (HxWxD): 513x1200x173 mm
• Weight : 19.5Kg

Aermec OMNIA HL-PC fan coil Residential use, exclusive design and wide choice of versions

The units of the OMNIA HL (High Line) series are fan coil units suitable for air conditioning. Available in various configurations, they can be installed on the floor or on the ceiling and are characterized by multi-speed motors, three of which are selectable. They have fans in ABS material with an impeller equipped with airfoil fins and an inspectable cochlea. This feature gives the machine a clear reduction in the level of noise emitted, as well as a reduction in the electrical absorption of the motor, compared to traditional fans with a metal structure. The HL unit, in the PC and PCM version, is standard equipped with the PLASMACLUSTER ionizing filter. The units can be equipped with multiple accessories and can be integrated into the VMF - Aermec centralized hydronic management system.

HL (High Line) fan coils for both horizontal and vertical installation 4 sizes and 10 versions:

• HL: white cabinet with switch
• HL M: gray cabinet with switch
• HL N: white cabinet with VMF electronic thermostat
• HL NM: gray cabinet with VMF electronic thermostat
• HL L: white cabinet with self-closing flap and electronic thermostat
• HL LM: gray cabinet with self-closing flap and electronic thermostat
• HL PC: white cabinet with electronic thermostat and Plasmacluster filter (can be installed on site only)
• HL PCM: gray cabinet with electronic thermostat and Plasmacluster filter (can be installed on site only)
• HL S: white cabinet without controls. Compatible with the VMF System
• HL SM: gray cabinet without controls. Compatible with the VMF system

On/off fan coils for universal installation for residential use, for heating, cooling and dehumidification, which can be combined with any heat generator.

• 3-speed centrifugal fan group
• Maximum silence
• High design aesthetics with rounded lines
• New adjustable air distribution grille
• Automatic switch-off of the fan coil by closing the air distribution grille
• Small dimensions
• Electronic temperature regulation, automatic speed change on the fan, automatic season change and automatic on - off (version with thermostat)
• Reversibility of the hydraulic connections during installation
• Low pressure drop in the heat exchange coils
• Electric motors with permanently inserted capacitors
• Ease of installation and maintenance
• Full compliance with accident prevention regulations

• peso: 35.0 kg
• marca: Aermec
• modello: OMNIA HL 36PC_1
• potenza in kw: 3
