Description
Description
COMPLETE WITH SWITCH

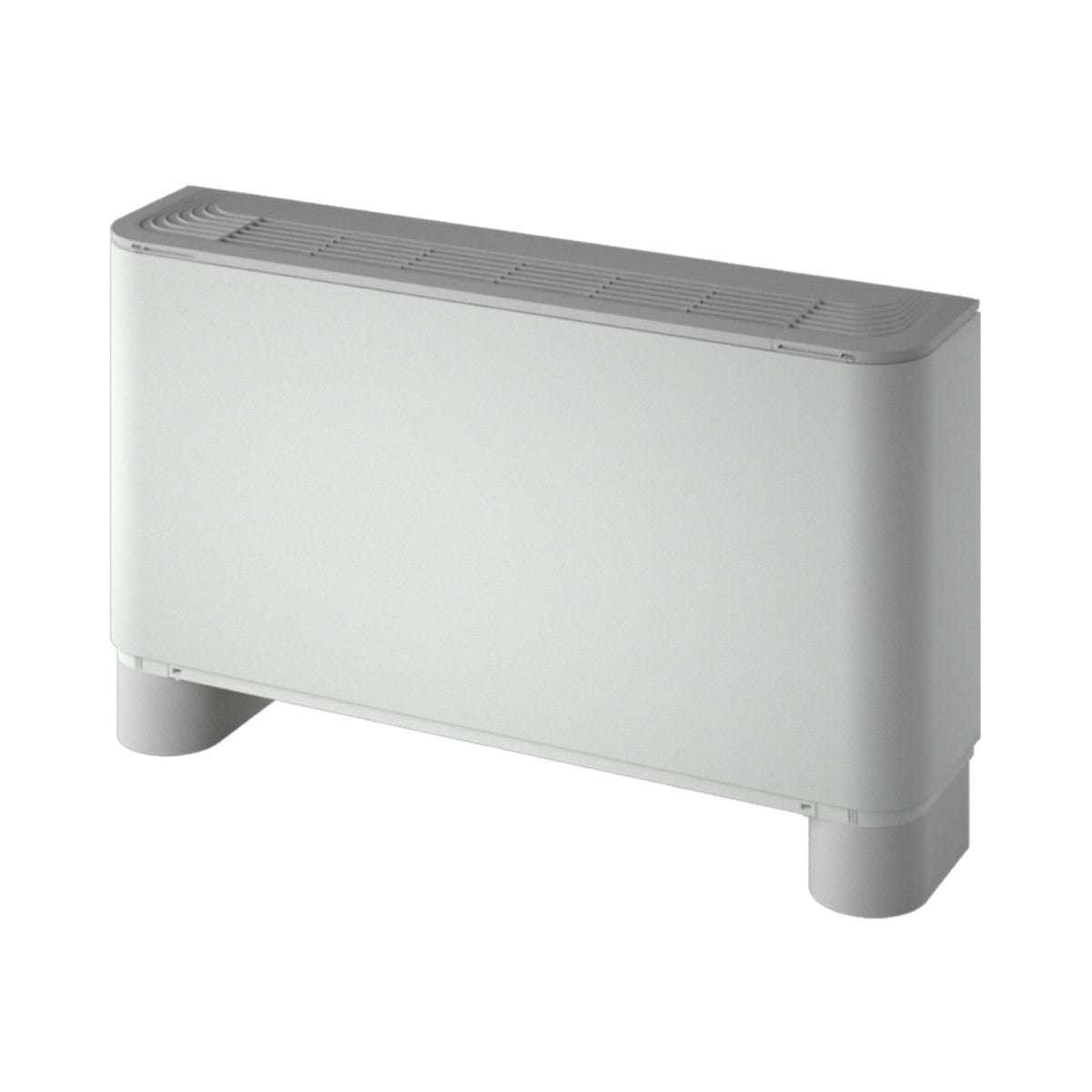

AERMEC FAN COIL FAN COIL model FCZ-ACT 100 with electronic control
Technical features
- version with electronic thermostat
- vertical installation only - for two-pipe systems
- Hot-cold kW (High) : 2.00 - 0.84
- Dimensions with feet (HxWxD): 586 x 640 x 220 (mm)
- Weight without feet: 13 kg
- White color
- - Coat RAL 9003
- - Headboard and Plinths RAL 7047
General characteristics
Aermec FCZ fan coils
Taking advantage of the exceptional experience gained with fan coil units, Aermec presents the new FCZ series where elegant design marries state-of-the-art performance in terms of sound level and energy consumption. They can be installed in any type of 2/4 pipe system and in combination with any heat generator even at low temperatures and thanks to the availability of various versions and configurations, it is easy to choose the optimal solution for any need.
FCZ series fan coils are suitable for air conditioning. These machines with a renewed design are available in various configurations according to the installation position, with the possibility also of being ducted. They are characterized by multi-speed motors coupled to ABS fans with an impeller equipped with airfoil fins and an inspectable auger. This feature gives the machine a clear reduction in the level of noise emitted, as well as a reduction in the electrical absorption of the motor, compared to traditional fans with a metal structure. The unit equipped with a 3 or 4-row coil can have an additional 1 or 2-row secondary coil for 4-pipe system configurations. T-touch thermostat, available as an accessory, equipped with NFC technology to control the fan coil with smartphone. FCZ are compatible with the VMF management system. (Features vary by model)
Cooling capacity: 1 ÷ 6.81 kW
Thermal power: 2.4 ÷ 15.52 kW
Cooling and heating
Floor installation
Wall installation
Ceiling installation
Touch control (Option)
Centralized control (Option)
Compatible with VMF (Variable Multi Flow) system (Option)
For two-pipe systems
For four-pipe systems
Characteristics:
- RAL9003 shell, RAL 7047 head
- Three speed centrifugal fan.
- Electric motors with permanently inserted capacitors
- Protective metal cabinet with anti-corrosion polyester paint
- Adjustable air distribution grille for U version. When the grille closes, the fan coil switches off automatically
- Low pressure drop in the heat exchange coils
- Ease of installation and maintenance
- G2 class air filter for all versions, easy to remove and clean. In the APC versions, air purification is ensured by the Plasmacluster purifier
- Extractable and inspectable augers for easy and effective cleaning
- Reversibility of the water connections during installation only for units with main, standard or oversized coil (Non-reversible for units with secondary coil).
- In the units with the T-Touch electronic thermostat and the ThermApp application, it is possible to simply place the smart device on the fan coil to set the operating modes and the weekly time programming. Using the graphical interface of the App, it is also possible to access numerous other information such as the alarm list, the nearest satellite, etc. Available for Android operating systems
Versions Without on-board control Vertical and horizontal installation:
FCZ_U
FCZ_UA
Vertical installation
FCZ_DS
FCZ_AS
Versions With on-board control Vertical installation only:
FCZ_D
FCZ_A
FCZ_ACT
FCZ_APC
Product Guarantee
All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 35.0 kg
- marca: Aermec
- modello: Ventil_FCZ-ACT-100
- potenza in kw: 1
