Built-in Aermec Fan Coil Fan Coil Mod. Omnia Ul 11p

Description

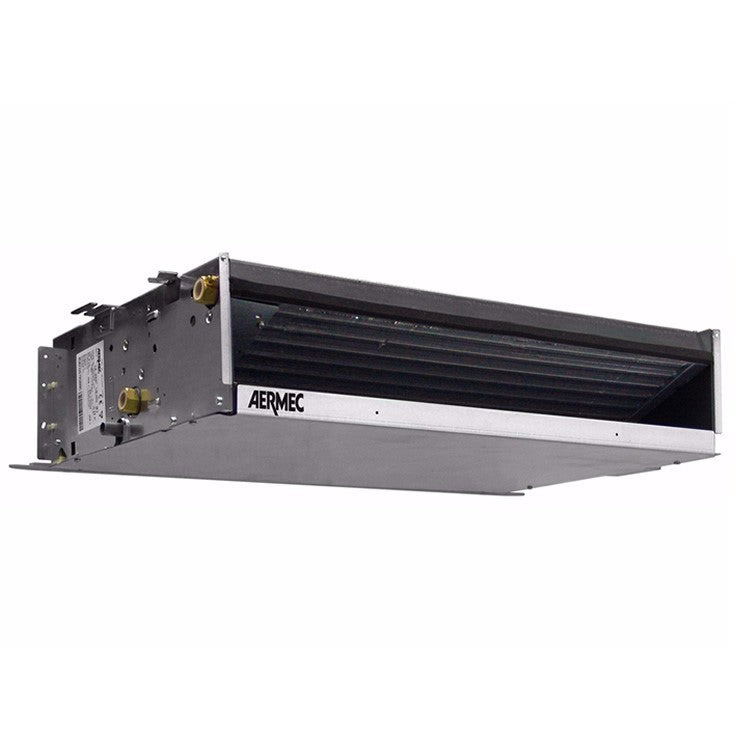

Built-in AERMEC Fan Coil fan coil mod. OMNIA UL 11P


  • UL listed fan coil units for both horizontal and vertical installation
  • UL-P : hanging version without furniture
  • Model: OMNIA UL 11 P
  • Cooling capacity: 0.84 - 0.54 kW
  • Thermal power: 2.01 - 1.06 kW
  • Water content: 0.4 litres
  • Dimensions (HxWxD): 465 x 420.5/360.5 x 171 (mm)
  • Weight: 10.2 kg


General characteristics


AERMEC OMNIA UL


Fan coils for universal installation for residential use, for heating, cooling and dehumidification, which can be combined with any heat generator.

  • Cooling and heating
  • Suspended installation for residential use
  • Centrifugal fan
  • Centralized control
  • Compatible with VMF (Variable Multi Flow) system
  • For two-pipe systems

The units of the OMNIA UL (Universal Line) series are fan coil units suitable for air conditioning. Available in various configurations depending on the installation position, with the possibility of being ducted, they are characterized by multi-speed motors. They have fans in ABS material with an impeller equipped with airfoil fins and an inspectable cochlea. This feature gives the machine a clear reduction in the level of noise emitted, as well as a reduction in the electrical absorption of the motor, compared to traditional fans with a metal structure. The UL unit, in the PC version, is equipped as standard with the PLASMACLUSTER ionizing filter, while the RADIANT version is equipped with a radiant plate with on/off motor or inverter. The units can be equipped with multiple accessories and can be integrated into the VMF - Aermec centralized hydronic management system.

Versions:

  • UL-S: version without controls, with cabinet. Compatible with the VMF System
  • UL: version with switch and cabinet
  • UL-C: version with electronic thermostat and cabinet
  • UL-P: wall unit without cabinet.

Characteristics:

  • Cleaning the fan: With Omnia fan coils you can easily clean the fan blades. Now, in fact, it is possible to open the cochlea of ​​the fan (the casing that encloses the blades) and proceed with their periodic cleaning.
  • Cleaning the condensate tray: Thanks to a new fixing system for the condensate collection tray, now, with Omnia fan coils, it can be cleaned easily. This important solution avoids, in the long term, the formation of bacteria, germs and molds in the basin itself, due to the condensation of the humidity present in the air
  • Electrostatically precharged filter: Omnia fan coils are equipped, as standard, with electrostatically precharged air filters. These filters, thanks to their particular construction, absorb and retain suspended dust: the ideal system to ensure healthy air for the whole family.
  • Silent operation : Thanks to the adoption of special centrifugal fans, the Omnia fan coils have extremely silent ventilation which takes these new fan coils to the top of acoustic comfort thanks to the absence of noise peaks

UL-P fan coils for suspended installation for residential use

  • EUROVENT certification
  • 3-speed centrifugal fan group
  • Maximum silence
  • Small dimensions
  • Reversibility of the hydraulic connections during installation
  • Low pressure drop in the heat exchange coils
  • Electric motors with permanently inserted capacitors
  • Ease of installation and maintenance
  • Easy to remove and clean air filter

Ventilcassaforma is available as an accessory


VentilCassaforma is a template in galvanized sheet metal which allows a space to be created directly in the wall to house the Omnia UL-P fan coil.

The template facilitates the masonry work during the construction of the niche where the fan coil will be installed. When the work is completed, this fan coil will be completely hidden from view. VentilCassaforma was created to meet the need to rationalize spaces according to the criteria of modern interior architecture.

4 sizes available, corresponding to the 4 different sizes of the Omnia UL-P fan coil.

VentilCassaforma consists of several parts:

  • 1. Back box
  • 2. Closing panel.
  • 3. External frame with baffle.
  • 4. Covering plinths, crosspieces, lids.

Product Guarantee
All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Built-in Aermec Fan Coil Fan Coil Mod. Omnia Ul 11p

Product form

Built-in AERMEC Fan Coil fan coil mod. OMNIA UL 11P UL listed fan coil units for both horizontal and vertical... Read more

€245,00 Incl. VAT

    Description

    Built-in AERMEC Fan Coil fan coil mod. OMNIA UL 11P


    • UL listed fan coil units for both horizontal and vertical installation
    • UL-P : hanging version without furniture
    • Model: OMNIA UL 11 P
    • Cooling capacity: 0.84 - 0.54 kW
    • Thermal power: 2.01 - 1.06 kW
    • Water content: 0.4 litres
    • Dimensions (HxWxD): 465 x 420.5/360.5 x 171 (mm)
    • Weight: 10.2 kg


    General characteristics


    AERMEC OMNIA UL


    Fan coils for universal installation for residential use, for heating, cooling and dehumidification, which can be combined with any heat generator.

    • Cooling and heating
    • Suspended installation for residential use
    • Centrifugal fan
    • Centralized control
    • Compatible with VMF (Variable Multi Flow) system
    • For two-pipe systems

    The units of the OMNIA UL (Universal Line) series are fan coil units suitable for air conditioning. Available in various configurations depending on the installation position, with the possibility of being ducted, they are characterized by multi-speed motors. They have fans in ABS material with an impeller equipped with airfoil fins and an inspectable cochlea. This feature gives the machine a clear reduction in the level of noise emitted, as well as a reduction in the electrical absorption of the motor, compared to traditional fans with a metal structure. The UL unit, in the PC version, is equipped as standard with the PLASMACLUSTER ionizing filter, while the RADIANT version is equipped with a radiant plate with on/off motor or inverter. The units can be equipped with multiple accessories and can be integrated into the VMF - Aermec centralized hydronic management system.

    Versions:

    • UL-S: version without controls, with cabinet. Compatible with the VMF System
    • UL: version with switch and cabinet
    • UL-C: version with electronic thermostat and cabinet
    • UL-P: wall unit without cabinet.

    Characteristics:

    • Cleaning the fan: With Omnia fan coils you can easily clean the fan blades. Now, in fact, it is possible to open the cochlea of ​​the fan (the casing that encloses the blades) and proceed with their periodic cleaning.
    • Cleaning the condensate tray: Thanks to a new fixing system for the condensate collection tray, now, with Omnia fan coils, it can be cleaned easily. This important solution avoids, in the long term, the formation of bacteria, germs and molds in the basin itself, due to the condensation of the humidity present in the air
    • Electrostatically precharged filter: Omnia fan coils are equipped, as standard, with electrostatically precharged air filters. These filters, thanks to their particular construction, absorb and retain suspended dust: the ideal system to ensure healthy air for the whole family.
    • Silent operation : Thanks to the adoption of special centrifugal fans, the Omnia fan coils have extremely silent ventilation which takes these new fan coils to the top of acoustic comfort thanks to the absence of noise peaks

    UL-P fan coils for suspended installation for residential use

    • EUROVENT certification
    • 3-speed centrifugal fan group
    • Maximum silence
    • Small dimensions
    • Reversibility of the hydraulic connections during installation
    • Low pressure drop in the heat exchange coils
    • Electric motors with permanently inserted capacitors
    • Ease of installation and maintenance
    • Easy to remove and clean air filter

    Ventilcassaforma is available as an accessory


    VentilCassaforma is a template in galvanized sheet metal which allows a space to be created directly in the wall to house the Omnia UL-P fan coil.

    The template facilitates the masonry work during the construction of the niche where the fan coil will be installed. When the work is completed, this fan coil will be completely hidden from view. VentilCassaforma was created to meet the need to rationalize spaces according to the criteria of modern interior architecture.

    4 sizes available, corresponding to the 4 different sizes of the Omnia UL-P fan coil.

    VentilCassaforma consists of several parts:

    • 1. Back box
    • 2. Closing panel.
    • 3. External frame with baffle.
    • 4. Covering plinths, crosspieces, lids.

    Product Guarantee
    All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 49.0 kg
    • marca: Aermec
    • modello: Ventil_OMNIA_UL11P
    • potenza in kw: 11
