Grundfos  |  SKU: SCALA1_3_45

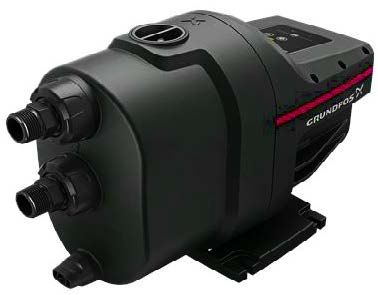

Self-priming Grundfos booster set with Bluetooth connection Scala1 3-45 99530405

€445,00 VAT included
Tax included Shipping calculated at checkout.
Costi di spedizione calcolati in fase di checkout

How shipping works

Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:

  • Standard Shipping: Estimated delivery within 2 to 5 business days
  • Premium Shipping: Guaranteed delivery within 24 business hours
  • Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours

    See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.

    For more details on Premium Shipping, please visit the Premium Shipping page.

Customer service

Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.

Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.

Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.

Description

Self-priming grundfos booster set with bluetooth connection SCALA1 3-45 99530405

General characteristics

  • Brand: Grundfos
  • Supplied model: SCALE1 3-45
  • Supplied model number: 99530405

Data sheet

  • Nominal flow rate: 3.59 m³/h
  • Head: 25 m
  • Max head: 44 m
  • Mechanical seal type: BVBP
  • Approvals: CE, EAC, AAA
  • Potable Water Approvals: WRAS,ACS
  • Curve tolerance: ISO9906:2012 3B
  • Model: A
  • Starting pressure: 2.2 bar

Material

  • Pump body: Composite
  • Impeller: Composite

Installation

  • Ambient temperature limit: 0 .. 55 °C
  • Max operating pressure: 8 bar
  • Max suction pressure: 3 bar
  • Input connection type: R
  • Send type: R
  • Input connection size: 1 inch
  • Size of the outlet connection: 1 inch
  • Nominal pressure of the connection: PN 8

Liquid

  • Pumped liquid: Water
  • Liquid temperature range: 0 .. 45 °C
  • Liquid temperature during operation: 20°C
  • Density: 998.2 kg/m³

Electrical data

  • Max P1: 910W
  • Rated power - P2: 0.58 kW
  • Network frequency: 50Hz
  • Rated Voltage: 1 x 230V
  • Maximum current consumption: 4.1A
  • Protection class (IEC 34-5): X4D
  • Insulation class (IEC 85): F
  • Cable length: Electric: 1.5m
  • Socket Type E/F (CEE7/7)
  • Power plug: Schuko

Other

  • Net weight: 12kg
  • Gross weight: 14kg
  • Packaging volume: 0.046 m³
  • Storage temperature range: -40 .. 70 °C
Description

Useful to

  1. Pressure Boost - Commercial Buildings
  2. Collection of groundwater for domestic use
  3. Increased water pressure for domestic use

Rainwater harvesting for domestic buildings
Grundfos SCALA1 is a compact, self-priming, fully integrated, all-in-one water system designed for pressure boosting in domestic and light commercial applications, such as garden irrigation or pressure boosting for detached and detached houses and flats .

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 12 months from the date of purchase.

Technical Data Sheet
  • peso: 10.0 kg
  • marca: Grundfos
  • modello: SCALA1_3_45_1
