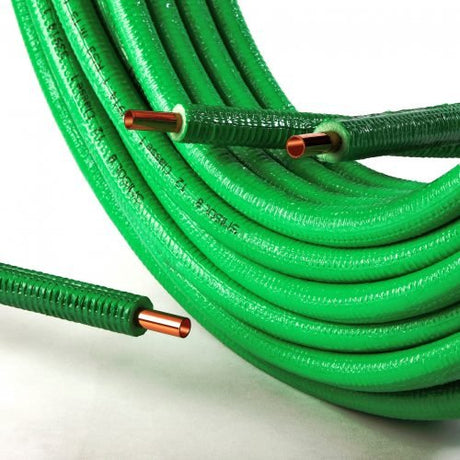

Technical Features Dimensions External Diameter: 16 mm Thickness: 2mm Roll Length: 50m Coating Thickness : 6mm Operating Pressure: 32 bar Water content: 0.113 l/m Minimum Bending Radius with Bending Machine: 64 mm Minimum Manual Bending Radius: 96 mm Technical Features of the Tube Internal Contact Material: Cu-DHP Copper (Cu:99.9% min. P: 0.015 ÷ 0.040%) according to DM 174/04 (Regulation concerning materials in contact with drinking water) Inner surface roughness: 1.5 μm Outer layer: PE-RT Maximum Operating Temperature: 95°C continuous Unit load at break: R. min. ≥ 220 Mpa (N/mm2) Percentage elongation: (A5 min.) : 40% Technical Characteristics of Insulation Insulating material: Closed-cell expanded cross-linked polyethylene (PE-X) Thermal conductivity of the insulation (λ): 0.039 W/mK Average density of insulation: 30 kg/m3 Resistance to water vapour diffusion (μ): > 9000 Fire behaviour: Class 1 (DM 26/06/84) Chemical Resistance : Very Good (ASTM 543-56 T) Sound absorption: ~60% (DIN 4109 300-2500Hz) SMISOL® Layer To give you more we put our heart and soul into it A noble, safe, high-performance, tested, hygienic, bacteriostatic soul, a Copper soul. Strato represents the evolution of pipes for the transport of drinking water and for radiator heating. A product that combines the lightness and ease of installation of traditional multilayer with the unique performance of copper pipes in terms of resistance to pressure and high temperatures, hygiene and bacteriostaticity, low pressure drops and reduced internal roughness . Strato is manufactured according to the UNI 11342 standard: "Seamless composite copper and polyethylene pipes for fluid supply", obtained through the coextrusion of a specific reduced thickness copper pipe with an indissoluble polyethylene layer. It is then insulated externally with an insulating coating of closed-cell expanded polyethylene compliant with Law 10/91, implementing decree DPR 412/93 and subsequent updates. The quality of the raw material used and the characteristics of the coating make the product particularly suitable for the distribution of drinking water (in compliance with DM 174/04) and for high-temperature radiator heating systems. Ease of installation and bending, absence of memory effect , lightness, excellent quality/price ratio , wide choice of fittings to match, reliability and safety, make Strato the truly innovative solution among the latest generation of pipes for hydrothermal sanitary uses. Fields of Use Drinking water distribution Radiator heating Chilled water distribution In compliance with and within the limits set by the regulations Advantages Resistance to pressure and high temperatures: Strato does not fear sudden increases in pressure, since its metallic nature gives it very high mechanical resistance. Hygiene and bacteriostaticity: It is totally hygienic and fights bacterial proliferation. It complies with DM 174/04: drinking water comes into contact only with the copper surface, guaranteeing the absence of odors and flavors No welding: The copper tube contained inside is obtained through a continuous drawing process, unlike traditional multilayers which involve the longitudinal union of the aluminium layer through different technologies. Total impermeability and 100% oxygen barrier: Its metal core makes it impermeable to gases: there is no risk of leaks and/or contamination from the inside to the outside and vice versa. In heating systems, the presence of oxygen that can attack boilers, pump impellers or other metal parts is avoided Flexibility and workability: Strato can be bent by hand even with small bending radii and does not undergo any memory effect, maintaining the acquired shape. Low linear thermal expansion coefficient: Unlike plastic pipes, thermal expansion is extremely limited, thus ensuring dimensional stability even when the temperature of the transported fluid varies Low pressure drops: Strato has an extremely low internal roughness (1.5μm compared to 7μm of traditional multilayers). This means lower pressure drops and a lower tendency to suffer from limescale encrustations. Joining Technology Strato is compatible with all fittings produced according to the EN 1254-8 standard normally used with multilayer pipes. The peculiarity of Strato is that it offers an “open” solution and therefore is not tied to any specific fitting. Different combinations are available, compatible with the most important brands of fittings on the market, including those with full bore. This last solution allows the use of smaller pipe sections, with a saving both in terms of the cost of the pipe and of masonry work. Different types of mechanical fittings can be used (press-fit, quick-fit, tightening) Installation Cutting to Size : Cutting, calibrating and deburring can be performed with commonly available accessories. Bending : Strato tube can be easily bent by hand or with a standard copper tube bender. Joint : Different types of mechanical fittings (press-fit, quick-fit, compression) available on the market can be used. Coating Features Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Roll Size : 30 Meters Diameter : 16mm Manufactured in white soft PVC (RAL 9010) with a smooth internal surface and a spiral external surface. Recommended for applications outside the wall or in trunking.

Read more less

Technical features Dimensions External Diameter: 14 mm Thickness : 2mm Roll length : 50m Coating Thickness : 6 mm Operating Pressure : 35 bar Water Content: 0.079 l/m Minimum Bending Radius with Bending Machine: 56 mm Minimum Manual Bending Radius: 84 mm Technical characteristics of the tube Internal Contact Material: Copper Cu-DHP (Cu:99.9% min. P: 0.015 ÷ 0.040%) according to DM 174/04 (Regulation concerning materials in contact with drinking water) Inner surface roughness: 1.5 μm Outer layer : PE-RT Maximum Operating Temperature: 95 °C continuously Breaking load: R. min. ≥ 220 Mpa (N/mm2 ) Percent elongation: (A5 min.) : 40% Technical Characteristics Of Insulation Insulating material : Closed-cell expanded cross-linked polyethylene (PE-X). Thermal conductivity of the insulation (λ) : 0.039 W/mK Average density of the insulation : 30 kg/m3 Resistance to water vapor diffusion (μ) : > 9000 Behavior in fire : Class 1 (DM 26/06/84) Resistance to chemical agents : Very Good (ASTM 543-56 T) Acoustic absorption : ~60% (DIN 4109 300-2500Hz) SMISOL® Strato To give you more we put our soul into it A noble, safe, performing, tested, hygienic, bacteriostatic core, a copper core. Strato represents the evolution of pipes for the transport of drinking water and for heating radiators. A product that combines the lightness and ease of installation of traditional multilayer with the unique performance of copper pipes in terms of resistance to pressure and high temperatures, hygiene and bacteriostatic properties, low pressure drops and reduced internal roughness . Strato is manufactured according to the UNI 11342 standard: "Seamless copper and polyethylene composite pipes for fluid adduction", it is obtained through the co-extrusion of a specific reduced thickness copper pipe with an indissoluble polyethylene layer. It is then externally insulated with an insulating covering in closed cell expanded polyethylene in compliance with Law 10/91, implementing decree DPR 412/93 and subsequent updates. The quality of the raw material used and the characteristics of the coating make the product particularly suitable for the distribution of drinking water (in compliance with DM 174/04) and for heating systems with high temperature radiators. Ease of installation and bending, absence of memory effect , lightness, excellent quality/price ratio , wide choice of fittings to combine, reliability and safety, make Strato the truly innovative solution among the latest generation pipes for plumbing and sanitary uses. Fields of Use Drinking water distribution Radiator heating Chilled water distribution In compliance with and within the limits established by the regulations Advantages Resistance to pressure and high temperatures : Strato is not afraid of sudden increases in pressure, since its metallic nature gives it very high mechanical resistance Hygiene and bacteriostatic : It is totally hygienic and fights bacterial proliferation. It complies with DM 174/04: drinking water comes into contact only with the copper surface, guaranteeing the absence of odors and flavors Absence of welds: The copper tube contained inside is obtained through a continuous drawing process, unlike traditional multilayers which involve the longitudinal union of the aluminum layer through different technologies Total impermeability and 100% barrier to oxygen: Its metal core makes it impermeable to gases: there is no risk of leaks and/or contamination from inside to outside and vice versa. In heating systems, the presence of oxygen which can attack boilers, pump impellers or other metal parts is avoided Flexibility and workability: Strato can be bent by hand even with reduced bending radii and does not undergo any memory effect, maintaining the acquired shape Low linear thermal expansion coefficient: Unlike plastic pipes, thermal expansion is extremely limited, thus guaranteeing dimensional stability even when the temperature of the fluid transported varies Low pressure drops: Strato has an extremely low internal roughness (1.5μm compared to 7μm of traditional multilayers). This means lower load losses and a lower tendency to suffer limescale deposits Junction Technology Strato is compatible with all fittings produced according to the EN 1254-8 standard normally used with multilayer pipes. The peculiarity of Strato is that of offering an "open" solution and therefore not being bound to any specific connection. Different combinations are available, compatible with the most important brands of fittings on the market, including full bore ones. The latter solution makes it possible to adopt smaller pipe sections, with savings both in terms of pipe cost and masonry work. Different types of mechanical fittings can be used (press, quick fit, tighten) Installation Cut to Size : Cutting, calibration and deburring can be performed with accessories commonly on the market. Bending : The Strato tube can be easily bent by hand or with a normal copper tube bender. Junction : Different types of mechanical fittings (press fit, quick fit, compression) available on the market can be used. Coating Features Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Dimensions External Diameter: 26 mm Thickness : 3mm Roll length : 25m Coating Thickness : 9 mm Operating Pressure : 25 bar Water Content: 0.314 l/m Minimum Bending Radius with Bending Machine: 104 mm Minimum Manual Bending Radius: 156 mm Technical characteristics of the tube Internal Contact Material: Copper Cu-DHP (Cu:99.9% min. P: 0.015 ÷ 0.040%) according to DM 174/04 (Regulation concerning materials in contact with drinking water) Inner surface roughness: 1.5 μm Outer layer : PE-RT Maximum Operating Temperature: 95 °C continuously Breaking load: R. min. ≥ 220 Mpa (N/mm2 ) Percent elongation: (A5 min.) : 40% Technical Characteristics Of Insulation Insulating material : Closed-cell expanded cross-linked polyethylene (PE-X). Thermal conductivity of the insulation (λ) : 0.039 W/mK Average density of the insulation : 30 kg/m3 Resistance to water vapor diffusion (μ) : > 9000 Behavior in fire : Class 1 (DM 26/06/84) Resistance to chemical agents : Very Good (ASTM 543-56 T) Acoustic absorption : ~60% (DIN 4109 300-2500Hz) SMISOL® Strato To give you more we put our soul into it A noble, safe, performing, tested, hygienic, bacteriostatic core, a copper core. Strato represents the evolution of pipes for the transport of drinking water and for heating radiators. A product that combines the lightness and ease of installation of traditional multilayer with the unique performance of copper pipes in terms of resistance to pressure and high temperatures, hygiene and bacteriostatic properties, low pressure drops and reduced internal roughness . Strato is manufactured according to the UNI 11342 standard: "Seamless copper and polyethylene composite pipes for fluid adduction", it is obtained through the co-extrusion of a specific reduced thickness copper pipe with an indissoluble polyethylene layer. It is then externally insulated with an insulating covering in closed cell expanded polyethylene in compliance with Law 10/91, implementing decree DPR 412/93 and subsequent updates. The quality of the raw material used and the characteristics of the coating make the product particularly suitable for the distribution of drinking water (in compliance with DM 174/04) and for heating systems with high temperature radiators. Ease of installation and bending, absence of memory effect , lightness, excellent quality/price ratio , wide choice of fittings to combine, reliability and safety, make Strato the truly innovative solution among the latest generation pipes for plumbing and sanitary uses. Fields of Use Drinking water distribution Radiator heating Chilled water distribution In compliance with and within the limits established by the regulations Advantages Resistance to pressure and high temperatures : Strato is not afraid of sudden increases in pressure, since its metallic nature gives it very high mechanical resistance Hygiene and bacteriostatic : It is totally hygienic and fights bacterial proliferation. It complies with DM 174/04: drinking water comes into contact only with the copper surface, guaranteeing the absence of odors and flavors Absence of welds: The copper tube contained inside is obtained through a continuous drawing process, unlike traditional multilayers which involve the longitudinal union of the aluminum layer through different technologies Total impermeability and 100% barrier to oxygen: Its metal core makes it impermeable to gases: there is no risk of leaks and/or contamination from inside to outside and vice versa. In heating systems, the presence of oxygen which can attack boilers, pump impellers or other metal parts is avoided Flexibility and workability: Strato can be bent by hand even with reduced bending radii and does not undergo any memory effect, maintaining the acquired shape Low linear thermal expansion coefficient: Unlike plastic pipes, thermal expansion is extremely limited, thus guaranteeing dimensional stability even when the temperature of the fluid transported varies Low pressure drops: Strato has an extremely low internal roughness (1.5μm compared to 7μm of traditional multilayers). This means lower load losses and a lower tendency to suffer limescale deposits Junction Technology Strato is compatible with all fittings produced according to the EN 1254-8 standard normally used with multilayer pipes. The peculiarity of Strato is that of offering an "open" solution and therefore not being bound to any specific connection. Different combinations are available, compatible with the most important brands of fittings on the market, including full bore ones. The latter solution makes it possible to adopt smaller pipe sections, with savings both in terms of pipe cost and masonry work. Different types of mechanical fittings can be used (press, quick fit, tighten) Installation Cut to Size : Cutting, calibration and deburring can be performed with accessories commonly on the market. Bending : The Strato tube can be easily bent by hand or with a normal copper tube bender. Junction : Different types of mechanical fittings (press fit, quick fit, compression) available on the market can be used. Coating Features Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Article code : 602.130.00.2 External diameter : 20 mm Inner diameter : 15mm Thickness : 2.5mm Roll length : 100m Material : PE-RT II/Al/PE-RT II Surface roughness : 7 µm Thermal expansion : 0.026 mm/(m K) Pipe Thermal Conductivity : 0.43 W/(m K) Geberit Mepla multilayer pipe, in rolls Intended use For cold and hot drinking water For heating water For cooling water without antifreeze For cooling water with antifreeze For rainwater with a pH value > 6.0 For sea water For fire water (wet) For fire water (wet/dry, dry) For chemicals and technical fluids For compressed air (oil purity class 0–3) For depression For inert gases (e.g. nitrogen) For civil systems, industry and shipbuilding Property Shape stability Foldable by hand Impervious to oxygen diffusion Black outer surface Tube end with transparent protective cap Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Article code : 603.110.00.1 External diameter : 26 mm Inner diameter : 20mm Thickness : 3mm Roll length : 50m Material : PE-RT II/Al/PE-RT II Surface roughness : 7 µm Thermal expansion : 0.026 mm/(m K) Pipe Thermal Conductivity : 0.43 W/(m K) Geberit Mepla multilayer pipe, in rolls Intended use For cold and hot drinking water For heating water For cooling water without antifreeze For cooling water with antifreeze For rainwater with a pH value > 6.0 For sea water For fire water (wet) For fire water (wet/dry, dry) For chemicals and technical fluids For compressed air (oil purity class 0–3) For depression For inert gases (e.g. nitrogen) For civil systems, industry and shipbuilding Property Shape stability Foldable by hand Impervious to oxygen diffusion Black outer surface Tube end with transparent protective cap Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Dimensions External Diameter: 20 mm Thickness : 2mm Roll length : 50m Coating Thickness : 6 mm Operating Pressure : 25 bar Water Content: 0.201 l/m Minimum Bending Radius with Bending Machine: 80 mm Minimum Manual Bending Radius: 120 mm Technical characteristics of the tube Internal Contact Material: Copper Cu-DHP (Cu:99.9% min. P: 0.015 ÷ 0.040%) according to DM 174/04 (Regulation concerning materials in contact with drinking water) Inner surface roughness: 1.5 μm Outer layer : PE-RT Maximum Operating Temperature: 95 °C continuously Breaking load: R. min. ≥ 220 Mpa (N/mm2 ) Percent elongation: (A5 min.) : 40% Technical Characteristics Of Insulation Insulating material : Closed-cell expanded cross-linked polyethylene (PE-X). Thermal conductivity of the insulation (λ) : 0.039 W/mK Average density of the insulation : 30 kg/m3 Resistance to water vapor diffusion (μ) : > 9000 Behavior in fire : Class 1 (DM 26/06/84) Resistance to chemical agents : Very Good (ASTM 543-56 T) Acoustic absorption : ~60% (DIN 4109 300-2500Hz) SMISOL® Strato To give you more we put our soul into it A noble, safe, performing, tested, hygienic, bacteriostatic core, a copper core. Strato represents the evolution of pipes for the transport of drinking water and for heating radiators. A product that combines the lightness and ease of installation of traditional multilayer with the unique performance of copper pipes in terms of resistance to pressure and high temperatures, hygiene and bacteriostatic properties, low pressure drops and reduced internal roughness . Strato is manufactured according to the UNI 11342 standard: "Seamless copper and polyethylene composite pipes for fluid adduction", it is obtained through the co-extrusion of a specific reduced thickness copper pipe with an indissoluble polyethylene layer. It is then externally insulated with an insulating covering in closed cell expanded polyethylene in compliance with Law 10/91, implementing decree DPR 412/93 and subsequent updates. The quality of the raw material used and the characteristics of the coating make the product particularly suitable for the distribution of drinking water (in compliance with DM 174/04) and for heating systems with high temperature radiators. Ease of installation and bending, absence of memory effect , lightness, excellent quality/price ratio , wide choice of fittings to combine, reliability and safety, make Strato the truly innovative solution among the latest generation pipes for plumbing and sanitary uses. Fields of Use Drinking water distribution Radiator heating Chilled water distribution In compliance with and within the limits established by the regulations Advantages Resistance to pressure and high temperatures : Strato is not afraid of sudden increases in pressure, since its metallic nature gives it very high mechanical resistance Hygiene and bacteriostatic : It is totally hygienic and fights bacterial proliferation. It complies with DM 174/04: drinking water comes into contact only with the copper surface, guaranteeing the absence of odors and flavors Absence of welds: The copper tube contained inside is obtained through a continuous drawing process, unlike traditional multilayers which involve the longitudinal union of the aluminum layer through different technologies Total impermeability and 100% barrier to oxygen: Its metal core makes it impermeable to gases: there is no risk of leaks and/or contamination from inside to outside and vice versa. In heating systems, the presence of oxygen which can attack boilers, pump impellers or other metal parts is avoided Flexibility and workability: Strato can be bent by hand even with reduced bending radii and does not undergo any memory effect, maintaining the acquired shape Low linear thermal expansion coefficient: Unlike plastic pipes, thermal expansion is extremely limited, thus guaranteeing dimensional stability even when the temperature of the fluid transported varies Low pressure drops: Strato has an extremely low internal roughness (1.5μm compared to 7μm of traditional multilayers). This means lower load losses and a lower tendency to suffer limescale deposits Junction Technology Strato is compatible with all fittings produced according to the EN 1254-8 standard normally used with multilayer pipes. The peculiarity of Strato is that of offering an "open" solution and therefore not being bound to any specific connection. Different combinations are available, compatible with the most important brands of fittings on the market, including full bore ones. The latter solution makes it possible to adopt smaller pipe sections, with savings both in terms of pipe cost and masonry work. Different types of mechanical fittings can be used (press, quick fit, tighten) Installation Cut to Size : Cutting, calibration and deburring can be performed with accessories commonly on the market. Bending : The Strato tube can be easily bent by hand or with a normal copper tube bender. Junction : Different types of mechanical fittings (press fit, quick fit, compression) available on the market can be used. Coating Features Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Dimensions External Diameter: 32 mm Thickness : 3mm Roll length : 25m Coating Thickness : 9 mm Operating pressure : 23 bar Water Content: 0.531 l/m Minimum Bending Radius with Bending Machine: 128 mm Minimum Manual Bending Radius: 192 mm Technical characteristics of the tube Internal Contact Material: Copper Cu-DHP (Cu:99.9% min. P: 0.015 ÷ 0.040%) according to DM 174/04 (Regulation concerning materials in contact with drinking water) Inner surface roughness: 1.5 μm Outer layer : PE-RT Maximum Operating Temperature: 95 °C continuously Breaking load: R. min. ≥ 220 Mpa (N/mm2 ) Percent elongation: (A5 min.) : 40% Technical Characteristics Of Insulation Insulating material : Closed-cell expanded cross-linked polyethylene (PE-X). Thermal conductivity of the insulation (λ) : 0.039 W/mK Average density of the insulation : 30 kg/m3 Resistance to water vapor diffusion (μ) : > 9000 Behavior in fire : Class 1 (DM 26/06/84) Resistance to chemical agents : Very Good (ASTM 543-56 T) Acoustic absorption : ~60% (DIN 4109 300-2500Hz) SMISOL® Strato To give you more we put our soul into it A noble, safe, performing, tested, hygienic, bacteriostatic core, a copper core. Strato represents the evolution of pipes for the transport of drinking water and for heating radiators. A product that combines the lightness and ease of installation of traditional multilayer with the unique performance of copper pipes in terms of resistance to pressure and high temperatures, hygiene and bacteriostatic properties, low pressure drops and reduced internal roughness . Strato is manufactured according to the UNI 11342 standard: "Seamless copper and polyethylene composite pipes for fluid adduction", it is obtained through the co-extrusion of a specific reduced thickness copper pipe with an indissoluble polyethylene layer. It is then externally insulated with an insulating covering in closed cell expanded polyethylene in compliance with Law 10/91, implementing decree DPR 412/93 and subsequent updates. The quality of the raw material used and the characteristics of the coating make the product particularly suitable for the distribution of drinking water (in compliance with DM 174/04) and for heating systems with high temperature radiators. Ease of installation and bending, absence of memory effect , lightness, excellent quality/price ratio , wide choice of fittings to combine, reliability and safety, make Strato the truly innovative solution among the latest generation pipes for plumbing and sanitary uses. Fields of Use Drinking water distribution Radiator heating Chilled water distribution In compliance with and within the limits established by the regulations Advantages Resistance to pressure and high temperatures : Strato is not afraid of sudden increases in pressure, since its metallic nature gives it very high mechanical resistance Hygiene and bacteriostatic : It is totally hygienic and fights bacterial proliferation. It complies with DM 174/04: drinking water comes into contact only with the copper surface, guaranteeing the absence of odors and flavors Absence of welds: The copper tube contained inside is obtained through a continuous drawing process, unlike traditional multilayers which involve the longitudinal union of the aluminum layer through different technologies Total impermeability and 100% barrier to oxygen: Its metal core makes it impermeable to gases: there is no risk of leaks and/or contamination from inside to outside and vice versa. In heating systems, the presence of oxygen which can attack boilers, pump impellers or other metal parts is avoided Flexibility and workability: Strato can be bent by hand even with reduced bending radii and does not undergo any memory effect, maintaining the acquired shape Low linear thermal expansion coefficient: Unlike plastic pipes, thermal expansion is extremely limited, thus guaranteeing dimensional stability even when the temperature of the fluid transported varies Low pressure drops: Strato has an extremely low internal roughness (1.5μm compared to 7μm of traditional multilayers). This means lower load losses and a lower tendency to suffer limescale deposits Junction Technology Strato is compatible with all fittings produced according to the EN 1254-8 standard normally used with multilayer pipes. The peculiarity of Strato is that of offering an "open" solution and therefore not being bound to any specific connection. Different combinations are available, compatible with the most important brands of fittings on the market, including full bore ones. The latter solution makes it possible to adopt smaller pipe sections, with savings both in terms of pipe cost and masonry work. Different types of mechanical fittings can be used (press, quick fit, tighten) Installation Cut to Size : Cutting, calibration and deburring can be performed with accessories commonly on the market. Bending : The Strato tube can be easily bent by hand or with a normal copper tube bender. Junction : Different types of mechanical fittings (press fit, quick fit, compression) available on the market can be used. Coating Features Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less
