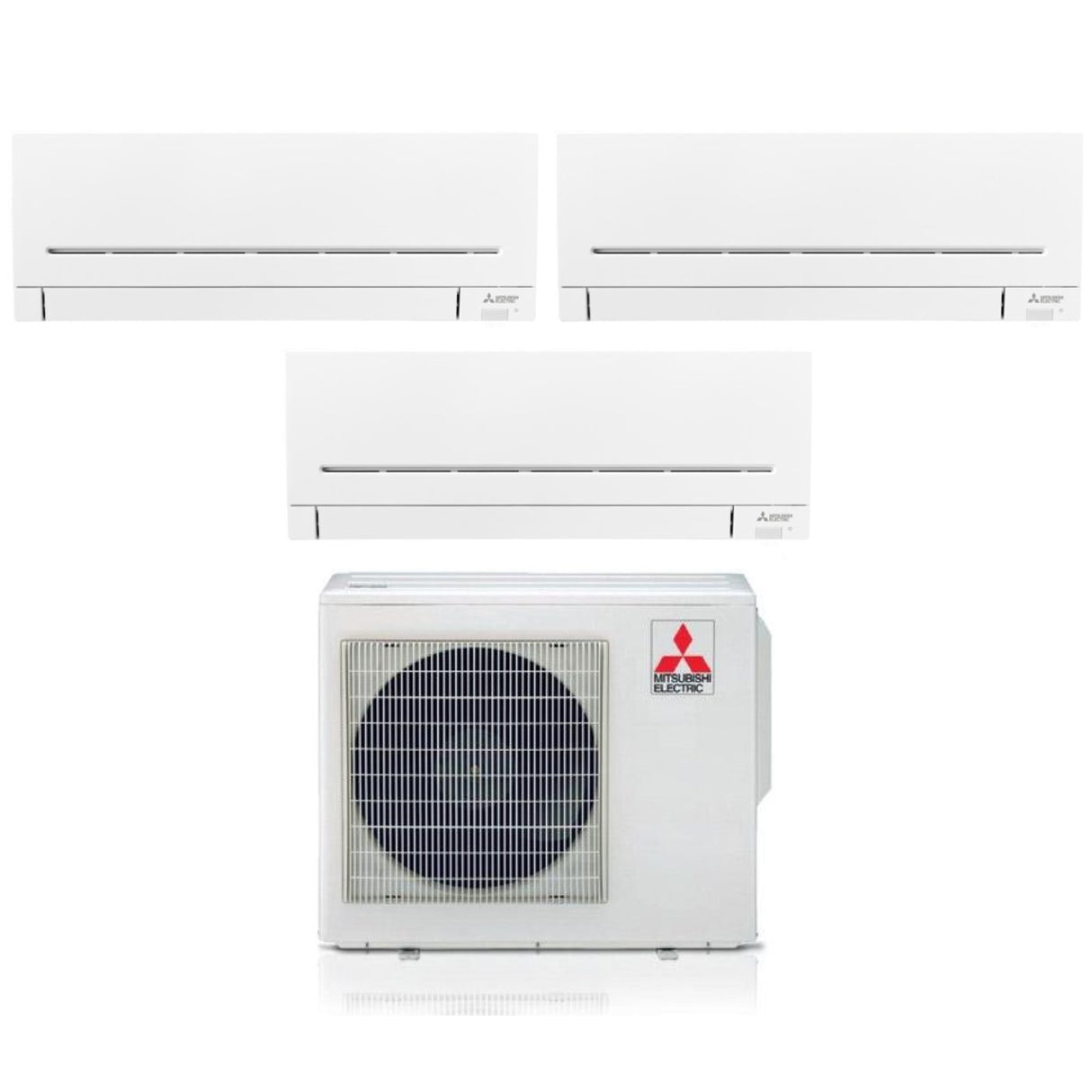

Air Conditioner Mitsubishi Electric Trial Split Inverter Series Ap-Vgk 7+7+7 With Mxz-3f68vf2 R-32 Integrated Wi-Fi 7000+7000+7000

Technical features

Indoor units

Model:

Outdoor Unit

Model:

• Catalog code Outdoor Unit : MXZ-3F68VF2/3
• Max indoor units: up to 3 indoor units

Energy efficiency:

• SEER: 7.96
• SCOP: 4.12
• Energy Efficiency Class in Cooling : A++
• Heating Energy Efficiency Class: A+
• Annual energy consumption in Cooling : 299 kWh/a
• Annual energy consumption in Heating : 2312 kWh/a

Performance:

• Cooling Capacity: 6.8 kW
• Heating Capacity: 8.6 kW
• Cooling absorption: 1.84 kW
• Heating absorption: 1.91 kW
• Sound power level : 63 dB(A)
• Sound pressure level : 48~53 dB(A)

Characteristics:

• Power (V/Hz/Φ) : 220~240/50/1
• Refrigerant gas : R-32
• Guaranteed temperature range:
• - Cooling: -10° ~ 46°C
• - Heating: -15° ~ 24° C

Dimensions:

• External Unit Dimensions (HxWxD): 710x840x330 mm
• Weight of Outdoor Unit: 58.0 Kg

Compact design and size

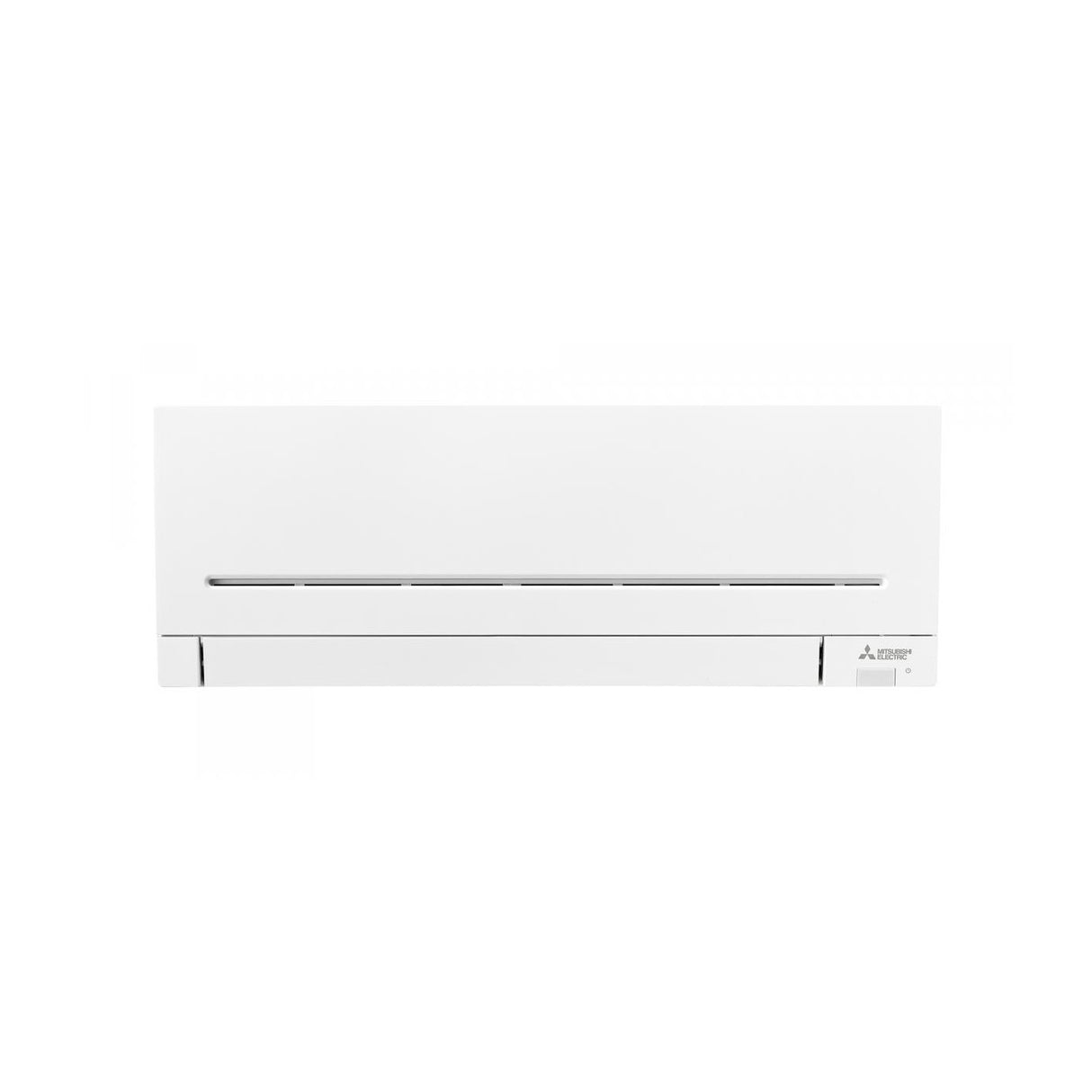

The MSZ-AP units are characterized by ultra-compact dimensions , with only 2 dimensional levels for 6 different powers

Integrated MELCloud

The new MSZ-AP (in the VGK version) offers the user experience of MELCloud integrated into the machine. Ready to be configured and used, it allows the user to remotely manage all the air conditioner functions thanks to the Wi-Fi controller.

Efficiency

Thanks to careful planning and the introduction of R32 refrigerant , the efficiency of the new MSZ-AP units has significantly increased, reaching class A+++ in cooling (sizes 25 and 35) and A++ in heating across the entire lineup.

Air distribution

Thanks to the presence of the motorized louver, it is possible to direct the air flow to achieve maximum comfort in the room in any operating mode (sizes 25-50). Furthermore, the horizontal flow eliminates annoying drafts towards the occupants.

New backlit remote

The backlit remote control allows easy viewing even at night

Silent operation

For sizes 25/35 the sound emission of the indoor unit is only 19dB when operating at minimum speed, guaranteeing maximum acoustic comfort inside the room

Night Mode

By activating the Night Mode function from the remote control, it is possible to set the air conditioner for night-time operation:

• LED dimming
• Deactivation of "beep" sound
• 3dB reduction of outdoor unit sound emission.

Advanced filtration

Thanks to the air purifying filter in the internal unit, the new MSZ-AP model guarantees the removal of dust and bad odours. Furthermore, for sizes 25-50, it is possible to provide the optional silver ion air purifying filter, which captures bacteria, pollen and other allergens.

Energy monitoring

The new MSZ-AP model supports the energy consumption monitoring function thanks to the Cloud MELCloud remote control system.

Efficiency

Thanks to careful planning and the introduction of R32 refrigerant, the efficiency of the new multi-split outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.

Connectivity

The extraordinary connectivity available with the new external units allows to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to most of the indoor unit range of the Residential and Commercial Line, whether they are wall mounted, ceiling cassette or ducted.

Quietness

The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing the sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

R32: reduced environmental impact

Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tons of CO2 into the environment.

Automatic noise reduction mode

By setting this function, it is possible to automatically decrease the noise level of the external unit as the internal loads to be satisfied decrease, such as for example during night cooling.

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 75.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A++
• gas: R-32
• marca: MITSUBISHI ELECTRIC
• modello: AP-VGK 7+7+7 68
• potenza btu: 7000+7000+7000
• superficie riscaldabile mq: 20/20/20
