Technical features

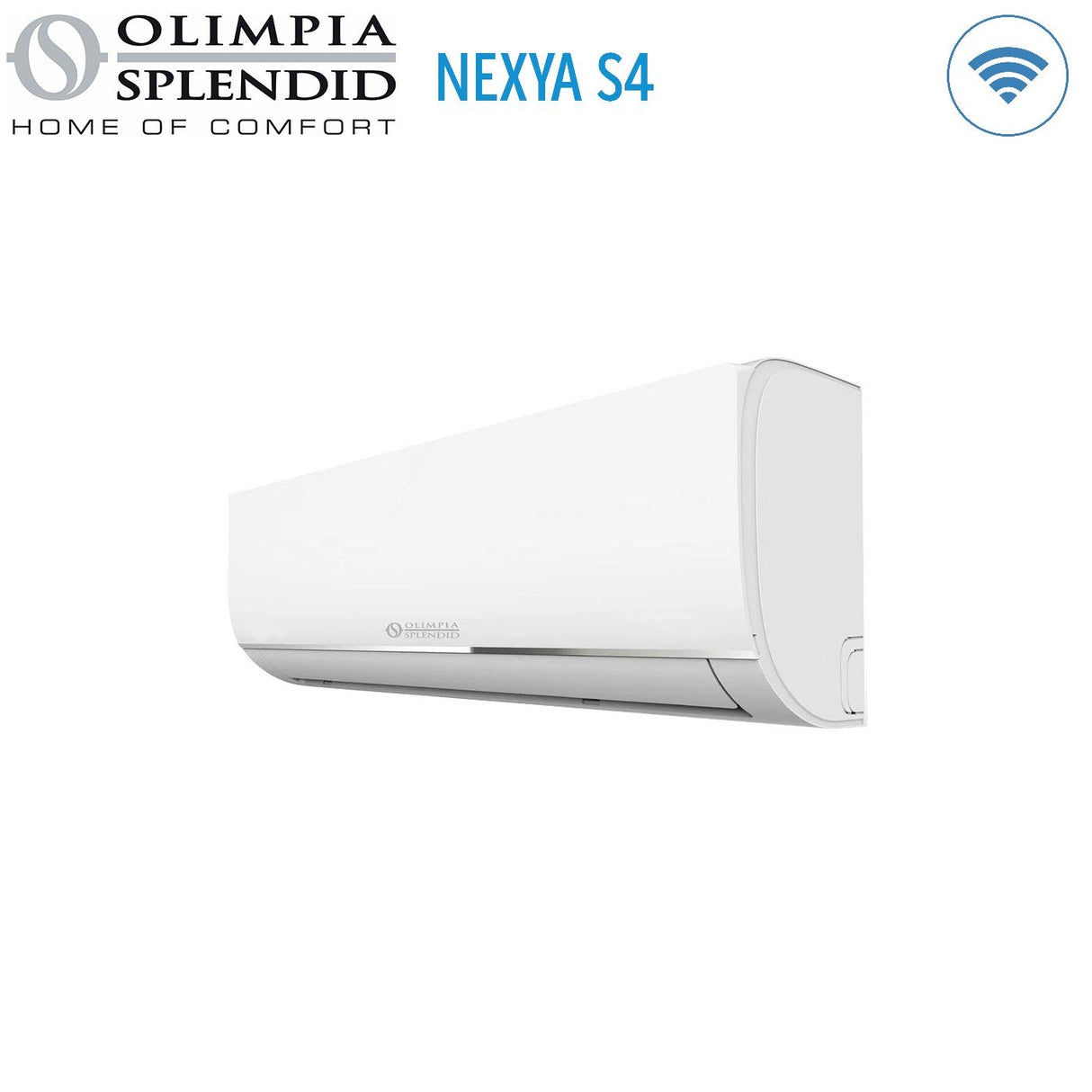

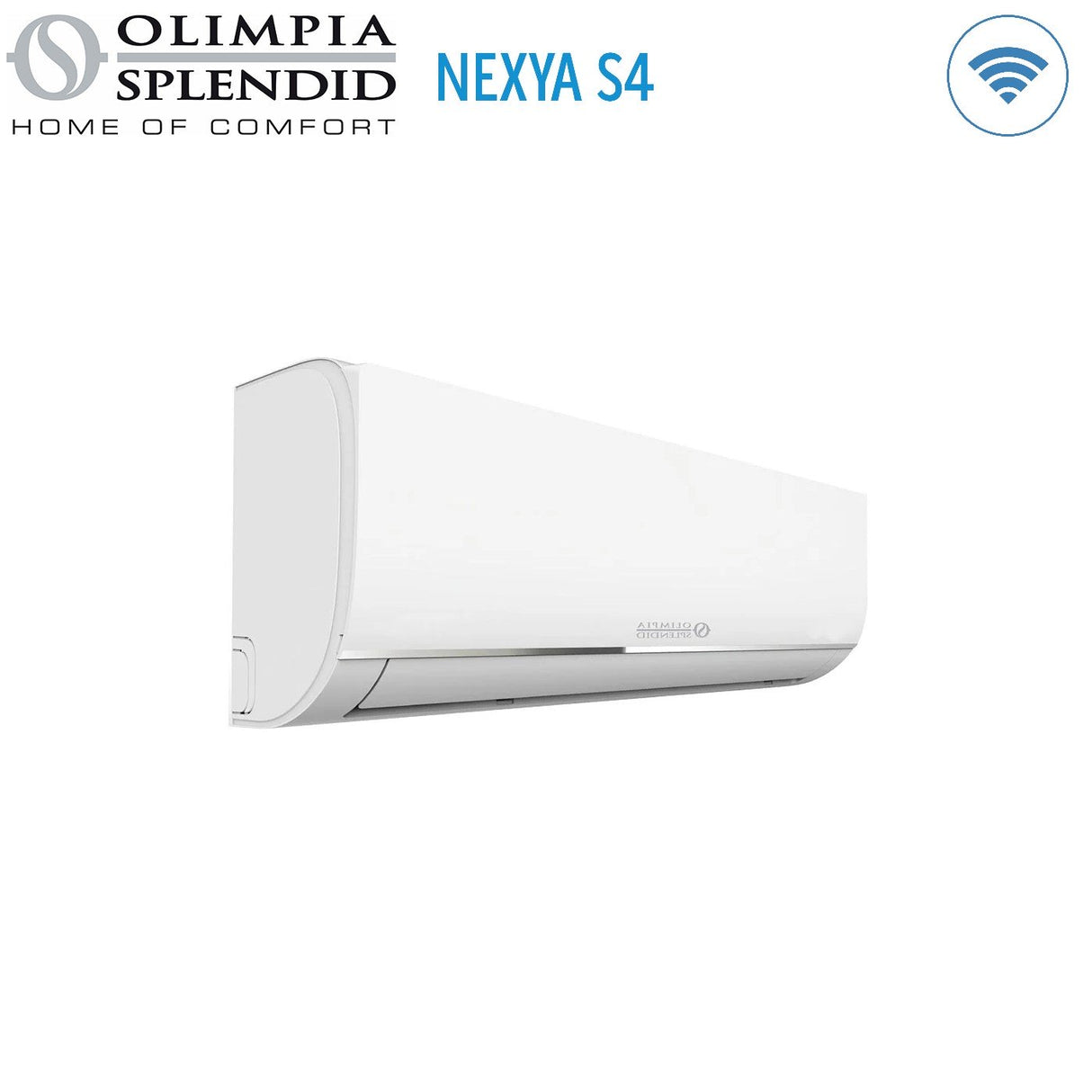

Indoor Units
1) Model
-
Indoor Unit OS-SENEH09EI
- Sound Pressure (Silent-Min-Med-Max) dB(A) 21-26-30-40
- Dimensions (LPA) mm 805X194X285
-
Wi-Fi Optional ( Code B1016 )
2) Model
-
Indoor Unit OS-SENEH12EI
- Sound Pressure (Silent-Min-Med-Max) dB(A) 22-26-34-40
- Dimensions (LPA) mm 805X194X285
-
Wi-Fi Optional ( Code B1016 )
OUTDOOR UNIT
- External Unit Code OS-CEMYH18EI
Cooling down
- Capacity (Min-Nom-Max) kW 2.05 - 5.27 - 6.86
- Absorbed Electric Power W 1630(690-2000)
- SEER 6.1
- Energy efficiency class A++
Heating
- Capacity (Min-Nom-Max) kW 2.34 - 5.57 - 7.24
- Absorbed Electric Power W 1500 (600-1670)
- Scop (zone: medium-warm) 4.0 - 5.1
- Energy efficiency class (zone: medium-hot) A++/A+++
Characteristics
- Sound pressure (Max) dB(A) 56
- Sound power (Max) dB(A) 65
- R32 Refrigerant Type
- Operating limits Outside temperatures Cool.(Min-Max) °C DB -15 / +50
- Outside Temperatures Heating (Min-Max) °C WB -15 / +24
Dimensions
- Dimensions (LPA) mm 800x333x554

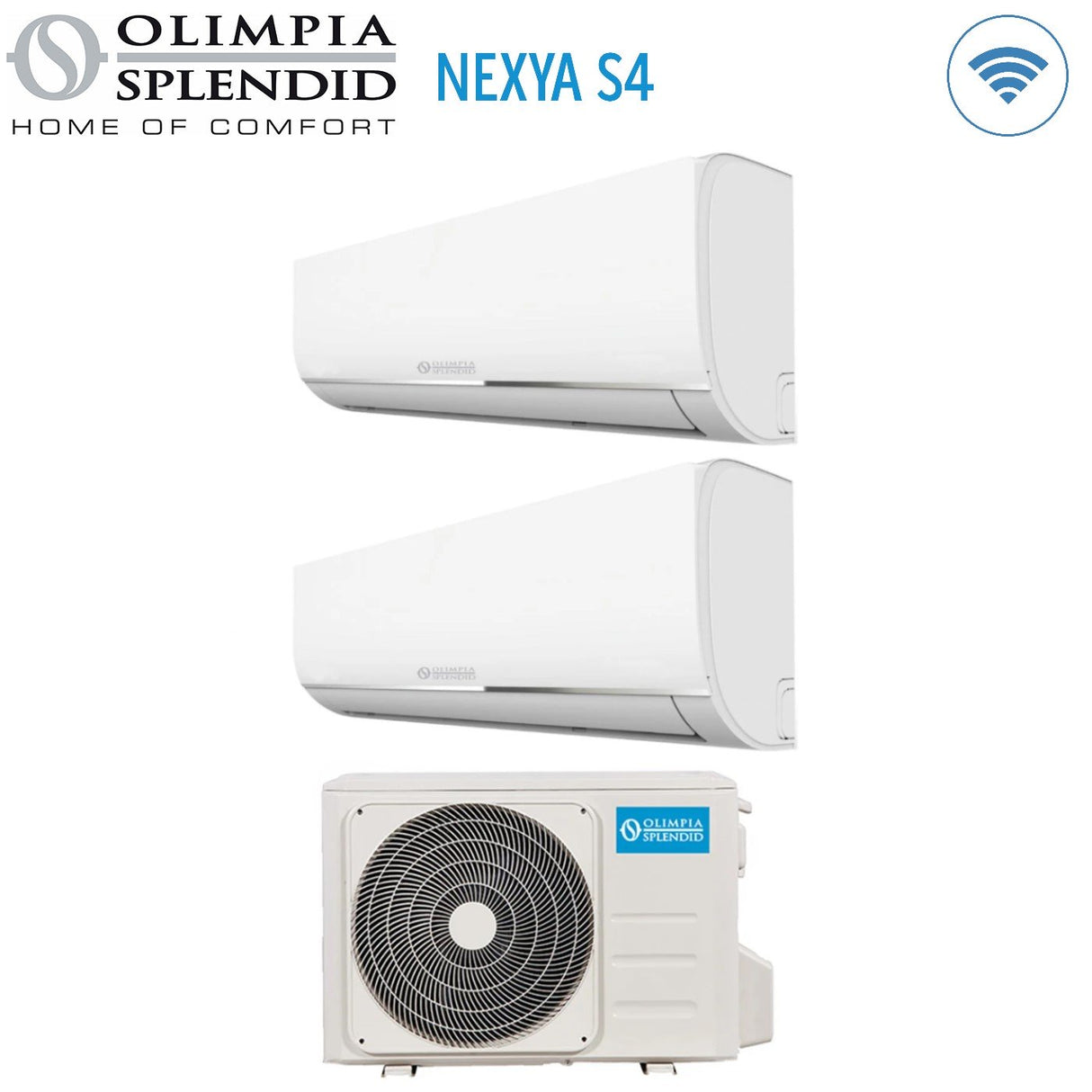

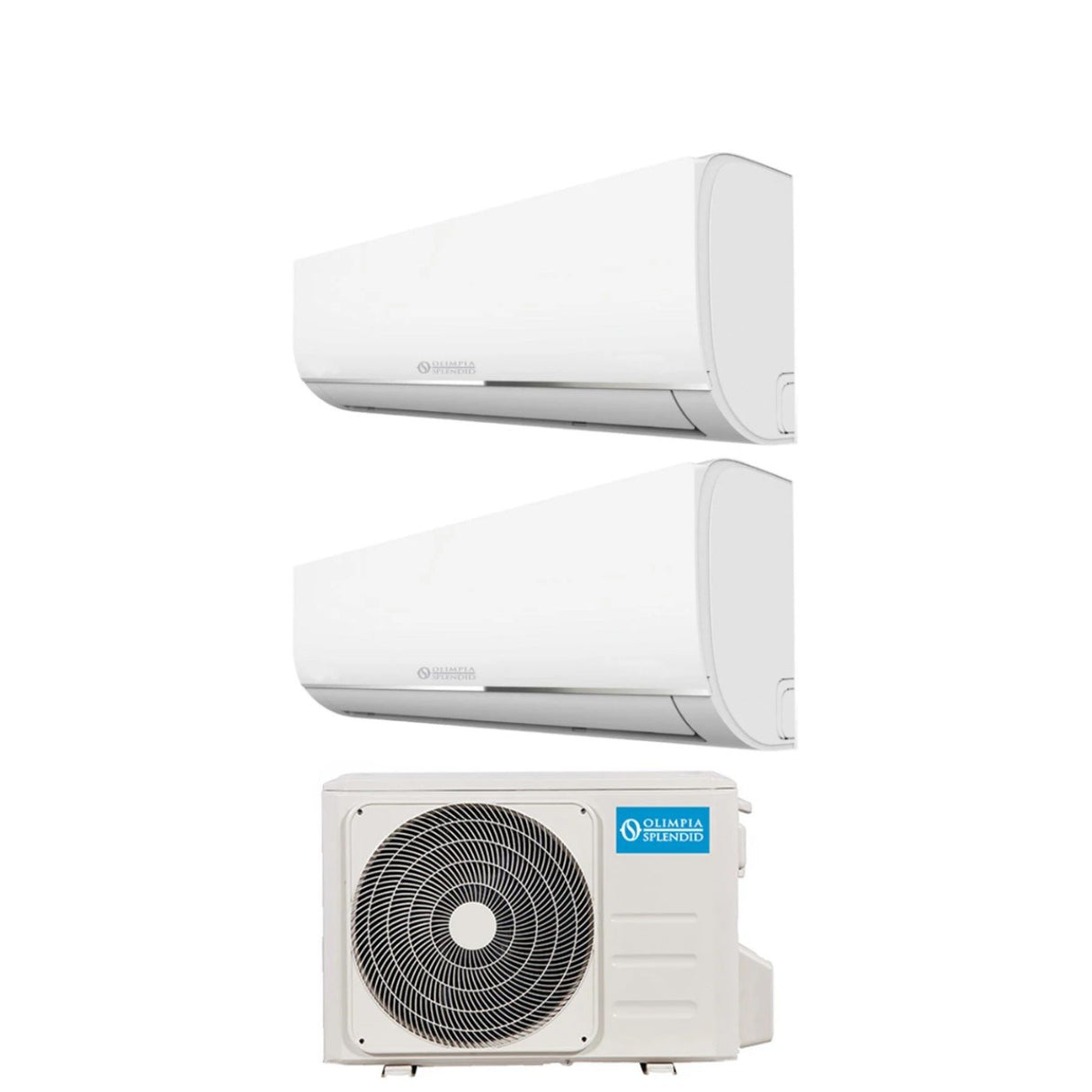

NEXYA Multisplit
Energy efficient multi-split inverter air conditioners
The Nexya S4 E multi-split fixed air conditioners have been designed for maximum installation flexibility : thanks to a single external motor and various combinations of internal units, up to five rooms can be cooled and heated . Available in dual, trial, quadri and penta versions and with the possibility of control via smartphone application.
Nexya S4 E is compatible with the WI-FI Split Kit (B1016). With the Olimpia Splendid Split App you can remotely program, set and manage your Nexya S4 E Inverter fixed air conditioner. Available for download on the Apple Store and Google Play.
With Olimpia Splendid Split you can program, set and manage the fixed air conditioners of the Olimpia Splendid range (Aryal S1 E , Nexya S4 E and Alyas E) with Wi-Fi or 3G/4G connection, wherever you are!
EASY TO SET UP
Simply insert the USB stick into the socket under the front panel
WIFI EASY
Possibility of managing the terminals in Wi-Fi mode, without configuring the router
CLOUD
Remote connection, away from home or wherever you are (3G or 4G network)
Specifications
Possibility to manage one or more air conditioners with Wi-Fi network.
Management even away from home, wherever you are!
Operating modes: heating, cooling, dehumidification, ventilation only, automatic.
Special functions: Turbo, Swing, Eco.
Room temperature display.
Weekly timer with one time slot, fixed modes and set points.
Frost protection: automatic activation of the air conditioning if the ambient temperature is below 8°C.
Sleep setting: possibility to manage the set point for each hour of the day
FUNCTIONS
- Ventilation only function
- Dehumidification only function
- Auto function: modulates the operating parameters in relation to the ambient temperature.
- Sleep function: gradually increases the set temperature and ensures reduced noise for greater well-being at night.
SELECTING MULTISPLITS:
the Multisplit system is modular: mixed systems can be designed using wall-mounted, duct or cassette units, selecting the right size based on the thermal load of the system
HIGH EFFICIENCY TECHNOLOGY
Class A++ in cooling Class A / A+ in heating medium season
Class A++ / A+++ in hot season heating
HEAT PUMP
Heat pump air conditioning. Thanks to this function, it is possible to heat and replace traditional heating in intermediate seasons or boost it. MULTISPLIT Available in dual, trial, quad and penta versions, to air-condition up to five rooms using a single external motor.
GAS R32
Low environmental impact refrigerant gas.
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
