Garanzia Italiana 24 mesi

Classe energetica di riscaldamento: A++

Classe energetica di raffreddamento: A+++

SKU: Gallery 9+9+12 21

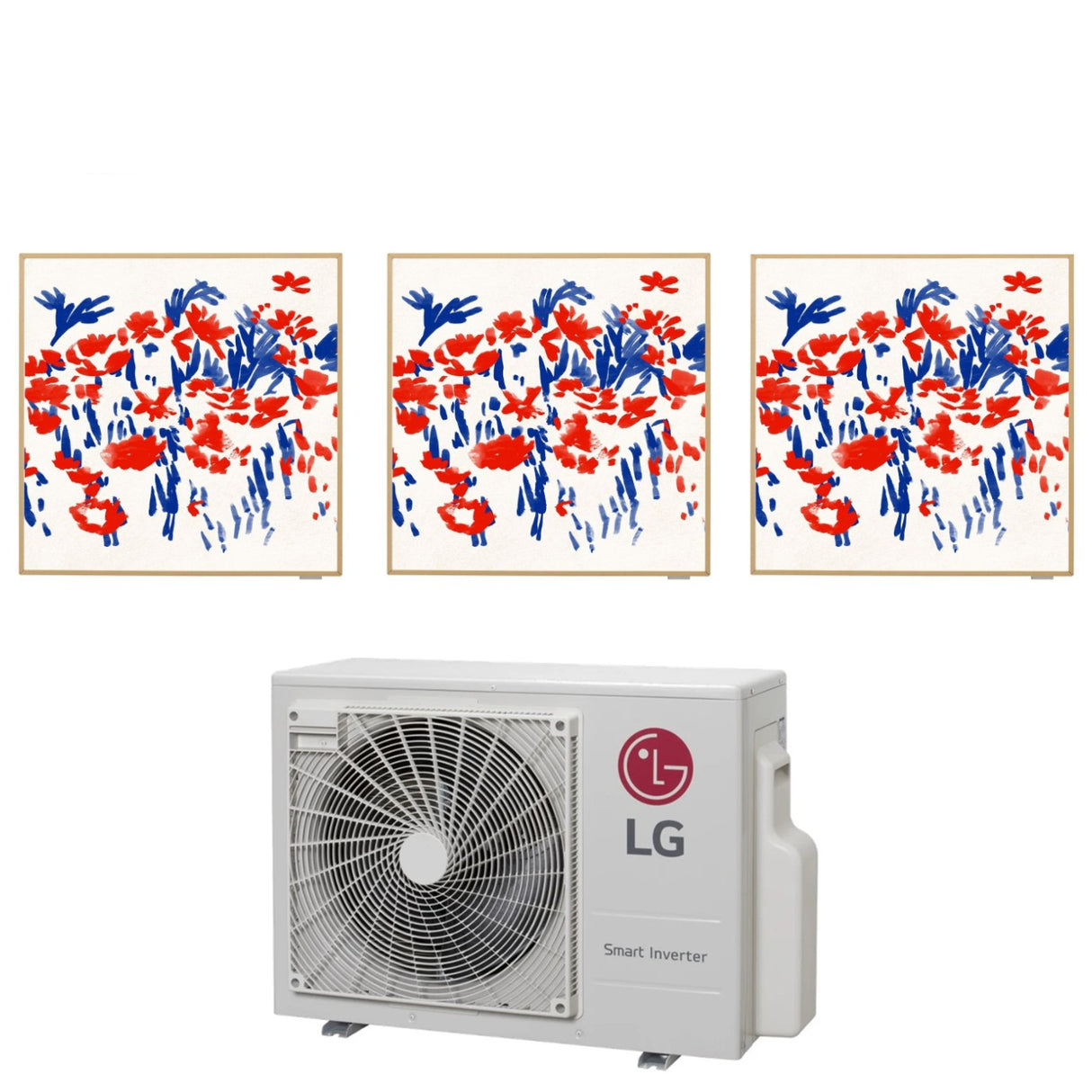

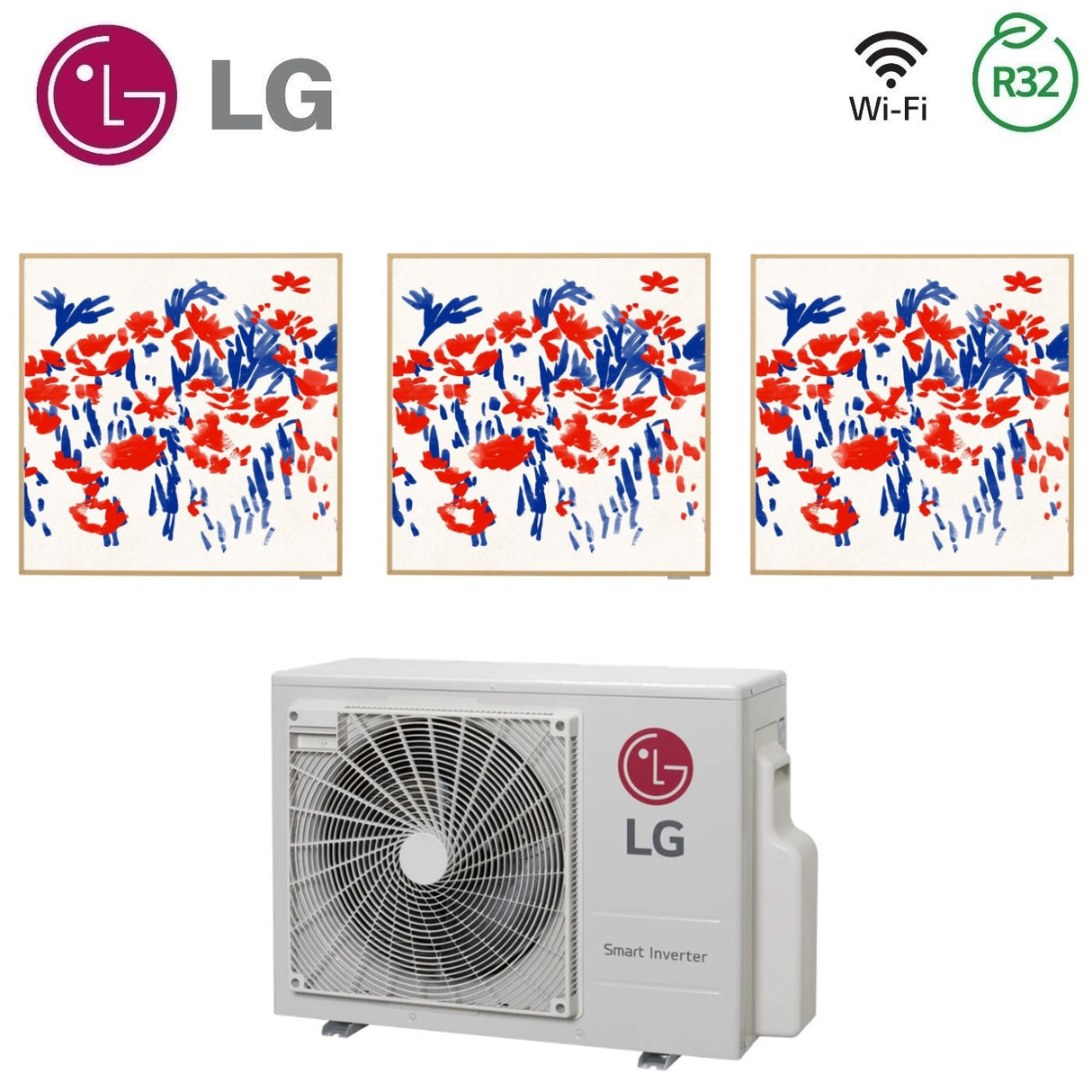

LG Trial Split Inverter Air Conditioner Artcool Gallery Series 9+9+12 With Mu3r21 R-32 Wi-Fi Optional 9000+9000+12000

Name: LG Trial Split Inverter Air Conditioner Artcool Gallery Series 9+9+12 With Mu3r21 R-32 Wi-Fi Optional 9000+9000+12000
Brand: LG
SKU: Gallery 9+9+12 21
Price: 3102.0 EUR
Availability: InStock

€3.102,00 VAT included

Tax included Shipping calculated at checkout.

Costi di spedizione calcolati in fase di checkout

How shipping works

Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:

Standard Shipping: Estimated delivery within 2 to 5 business days
Premium Shipping: Guaranteed delivery within 24 business hours
Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours

See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.

For more details on Premium Shipping, please visit the Premium Shipping page.

Customer service

Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.

Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.

Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.

Description

Technical features

Indoor Units

1) Model

Internal Unit Catalog Code: 2x MA09R NF1
Power : 9000 Btu
Cooling Capacity: 2.6 kW
Heating Capacity: : 2.9 kW
Sound pressure level : 27 ~32 ~ 38 dB(A)
Sound power level : 52 dB(A)
Pipe diameter Liquid : 6.35 mm (1/4")
Gas pipe diameter: 9.52 mm (3/8")
Internal Unit Dimensions (WxHxD): 600x600x145 mm
Indoor Unit Weight: 15.0 Kg

2) Model

Internal Unit Catalog Code: 1x MA12R NF1
Power : 12000 Btu
Cooling Capacity: 3.5 kW
Heating Capacity: : 3.9 kW
Sound pressure level : 32~38~44dB(A)
Sound power level : 54 dB(A)
Pipe diameter Liquid : 6.35 mm (1/4")
Gas pipe diameter: 9.52 mm (3/8")
Internal Unit Dimensions (WxHxD): 600x600x145 mm
Indoor Unit Weight: 15.0 Kg

Outdoor Unit

Indoor Unit Catalog Code: MU3R21 UL0
Max indoor units: up to 3 indoor units

Energy efficiency:

SEER : 8.50 (W/W)
SCOP : 4.21 (W/W)
Energy Efficiency Class (Cooling) : A+++
Energy Efficiency Class (Heating) : A+
Annual energy consumption Cooling/Heating : 253/1629 kWh/a

Performance:

Cooling Capacity: 6.15 kW
Heating Capacity: 7.03 kW
Std cooling absorption: 1.44 kW
Std heating absorption: 1.59 kW
Sound power level : 64 dB(A)
Sound pressure level : 50 dB(A)

Characteristics:

Power (V/Hz/Φ) : 220~240/50/1
Refrigerant gas : R-32
Pipe diameter Liquid : 6.35 mm (1/4") x2
Gas pipe diameter : 9.52 mm (3/8") x2
Guaranteed temperature range:
- Cooling: -10° ~ 48°C
- Heating: -18° ~ 18°C

Dimensions:

External Unit Dimensions (WxHxD): 870x655x320 mm
Weight of Outdoor Unit: 43.8 Kg

LG Multisplit systems

LG is among the world's leading manufacturers of air conditioners.
The MULTISPLIT product range is characterized by high flexibility, very high energy efficiency and low noise levels.
Multisplit solutions make it possible to address both the needs of small residential systems and the needs of commercial spaces.

Quality and Safety Guarantee

LG is extremely attentive to the quality of its products and to environmental issues. LG offers on its air conditioners, in addition to the 24-month statutory warranty, an additional 3-year warranty on the compressors, an exclusive formula to let you choose in full
safety. All LG air conditioners have obtained the most important international quality and safety certifications.
All LG air conditioners are made with environmentally friendly technologies and use R-410A refrigerant which does not produce deleterious effects on the ozone layer. The high energy efficiency that characterizes them helps to reduce CO2 emissions.
LG adheres to collective collection systems that guarantee a completely safe disposal service for end-of-life products.

Seasonal energy efficiency

The outdoor units of the new multi-pipe Multi range are characterized by seasonal energy efficiency levels already in line with the European standards in force since 2014. The SEER level is higher than 6.10 and will allow these products to obtain the A++ classification for their seasonal cooling energy efficiency. The new Multi range with multiple pipes makes it possible to reduce energy consumption by 37% (average) compared to the previous series. Multi outdoor units are characterized by extremely high levels of energy efficiency. Thanks to this premise, they contribute significantly to the reduction of carbon dioxide emissions.

Wide Louver heat exchanger

Thanks to this premise, they contribute significantly to the reduction of carbon dioxide emissions

The heat exchanger with Wide Louver fins is applied to the outdoor units. The special processing of the fins improves the exchange capacity of the radiator by 28% for the same surface area compared to a traditional exchanger.

Wide operating range

The outdoor units of the Multi Pipe range can operate in cooling and heating mode under the most extreme conditions. The presence as standard equipment of the condensation control for the cooling mode makes them compatible with all applications where it is necessary to refresh the air even at low external temperatures (e.g. restaurants, gyms, server rooms).

Pressure controlled operation

The new units in the Multi-pipe range operate with control based on the pressure of the refrigerant in the circuit: this type of control ensures better management of the peripherals contained in the units compared to traditional temperature controls. This control mechanism is more precise and refined, without being negatively affected by external temperature variations. The new technology applied to these products makes it possible to obtain the desired results in shorter times, to better manage the operation of the compressor under partial load conditions, and to make significant reductions in

electric current absorbed.

Wiring error checking function

Thanks to this function, at the end of the installation work it is possible to verify that the electrical and piping connections are correctly associated. Through this control function, which can be activated from the electronic board of the outdoor unit, it is possible to achieve a correct and fully functional installation quickly and easily.

Reduced power consumption in Stand-by

An innovative function allows you to remove the power supply to the system components during the stand-by phase of the system. In this way, the stand-by electricity consumption of the new multi-pipe Multi outdoor units is 90% lower than the previous versions.

Reduced sound level

The adoption of a new fan protection grille and the use of fans with details specifically designed for aerodynamic optimization have allowed a reduction in the noise level of the outdoor units in the order of about 2 dB(A) at nominal conditions of detection.

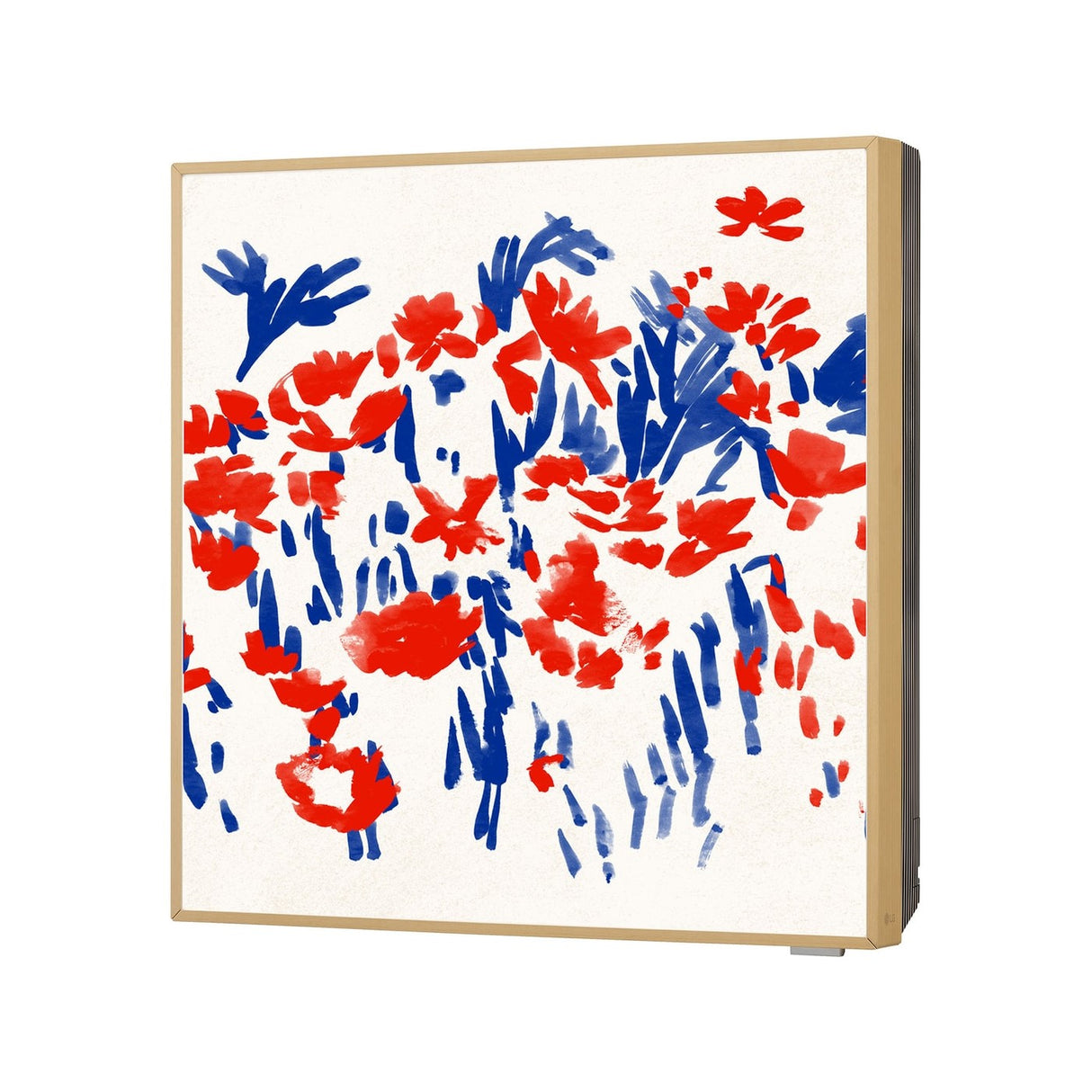

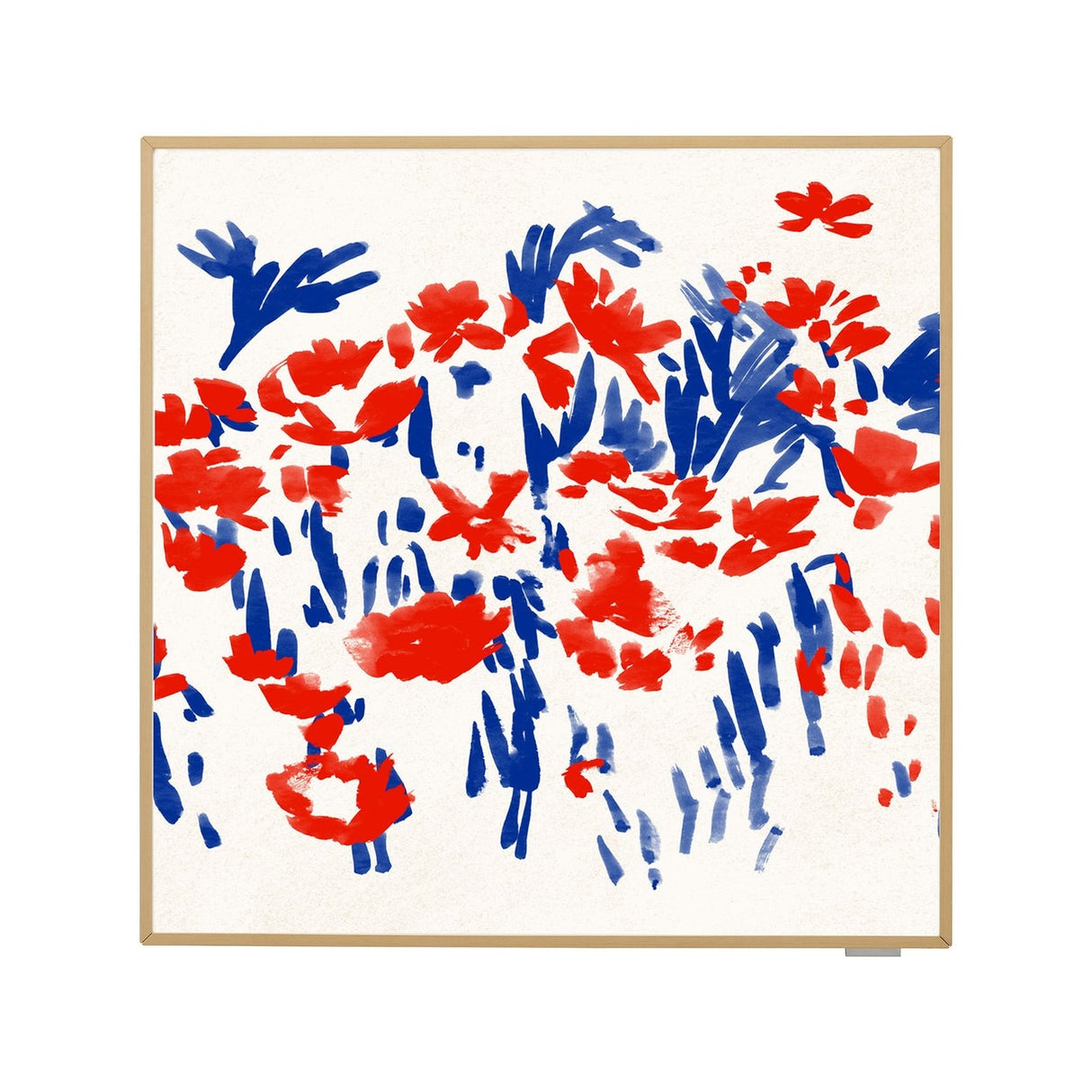

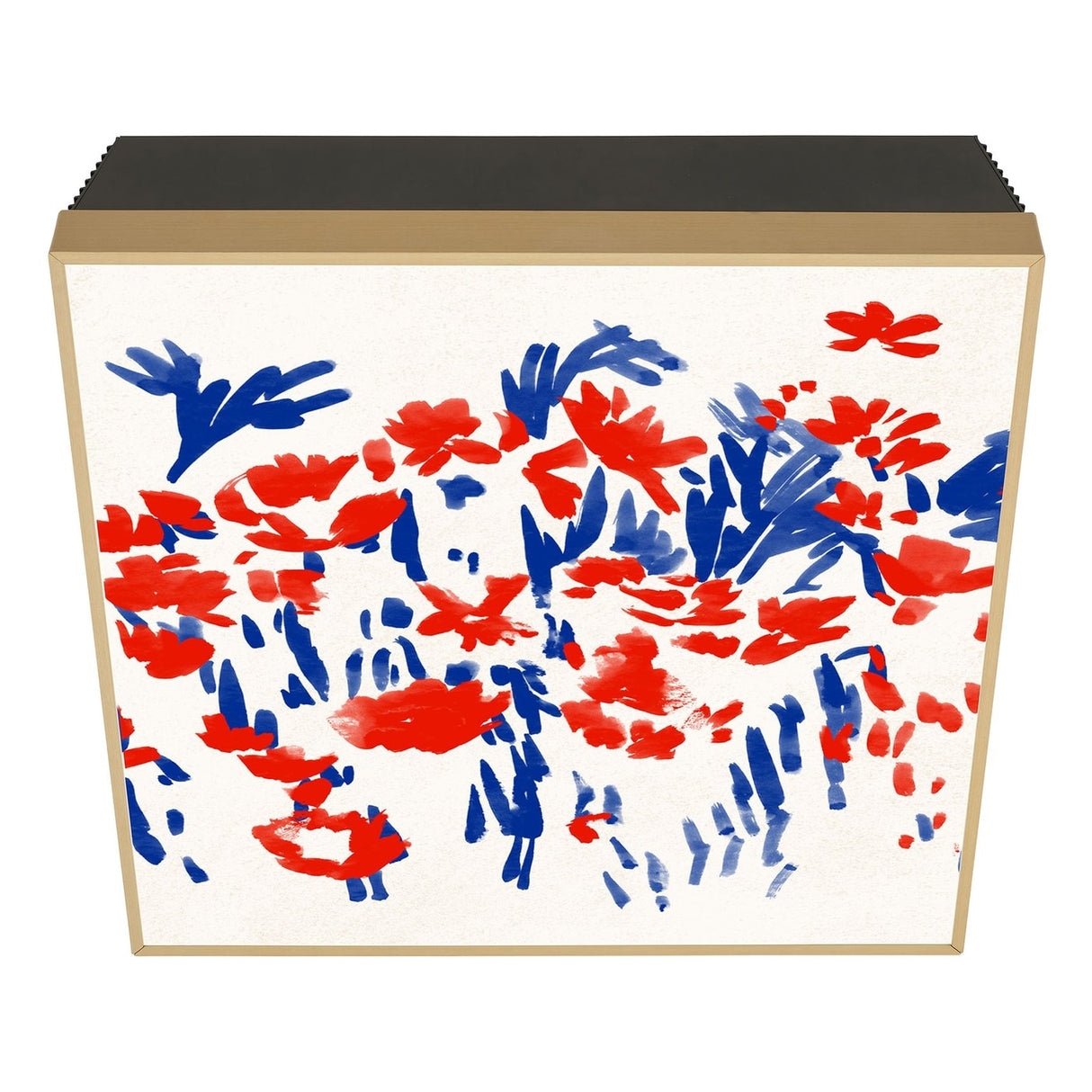

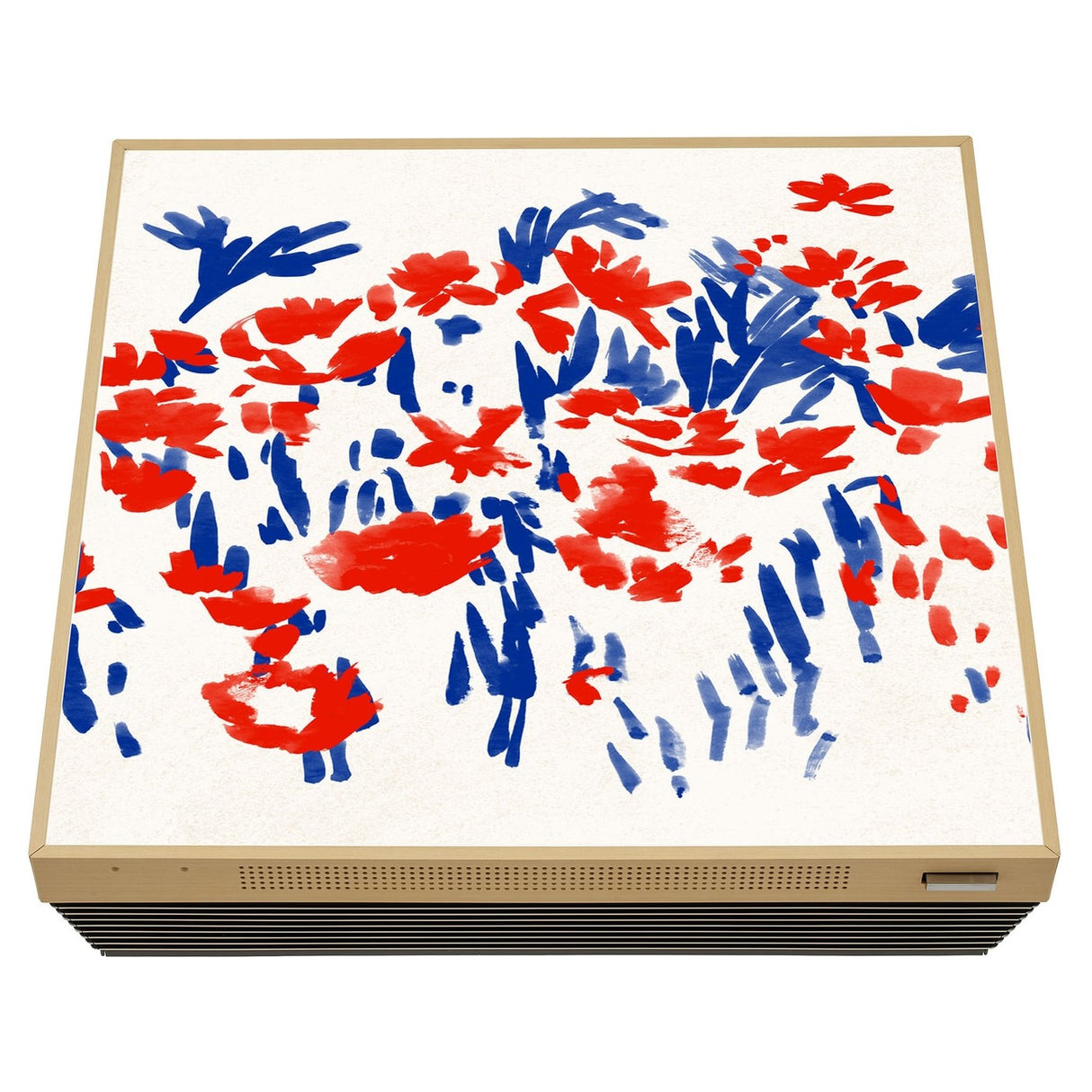

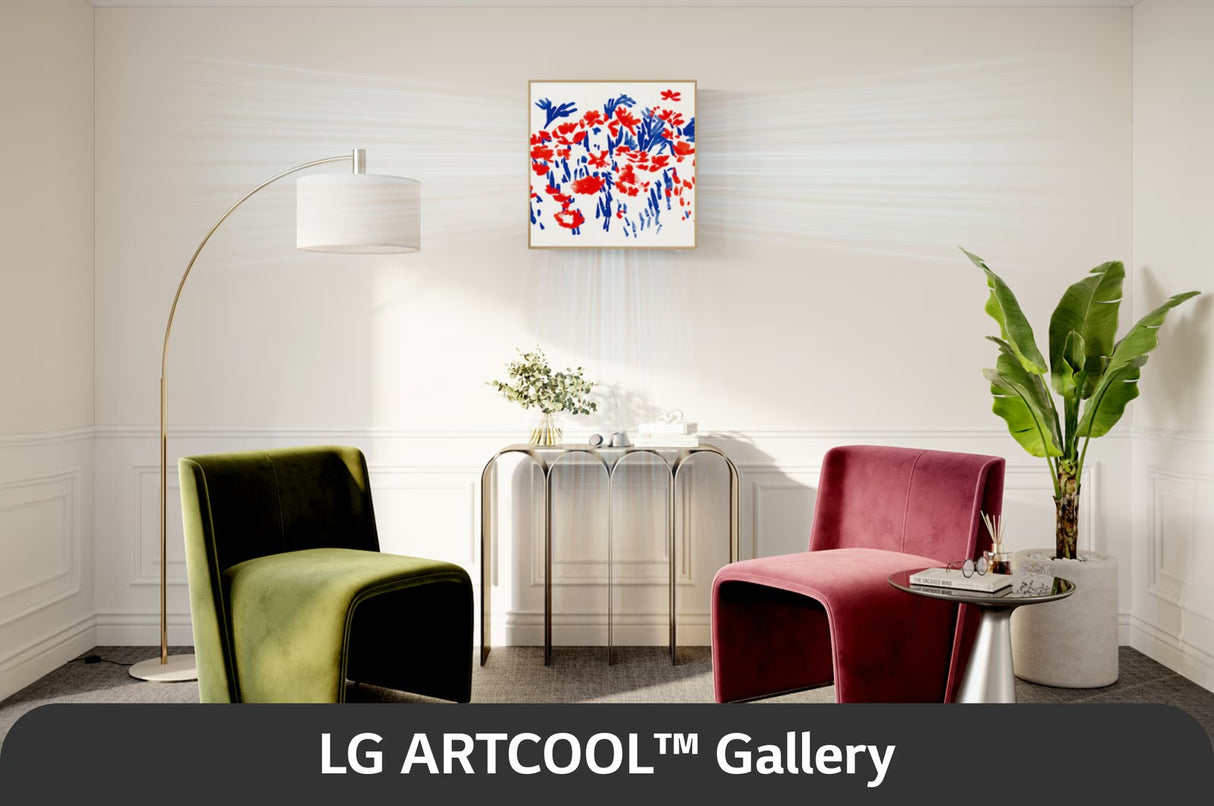

A Unique Design

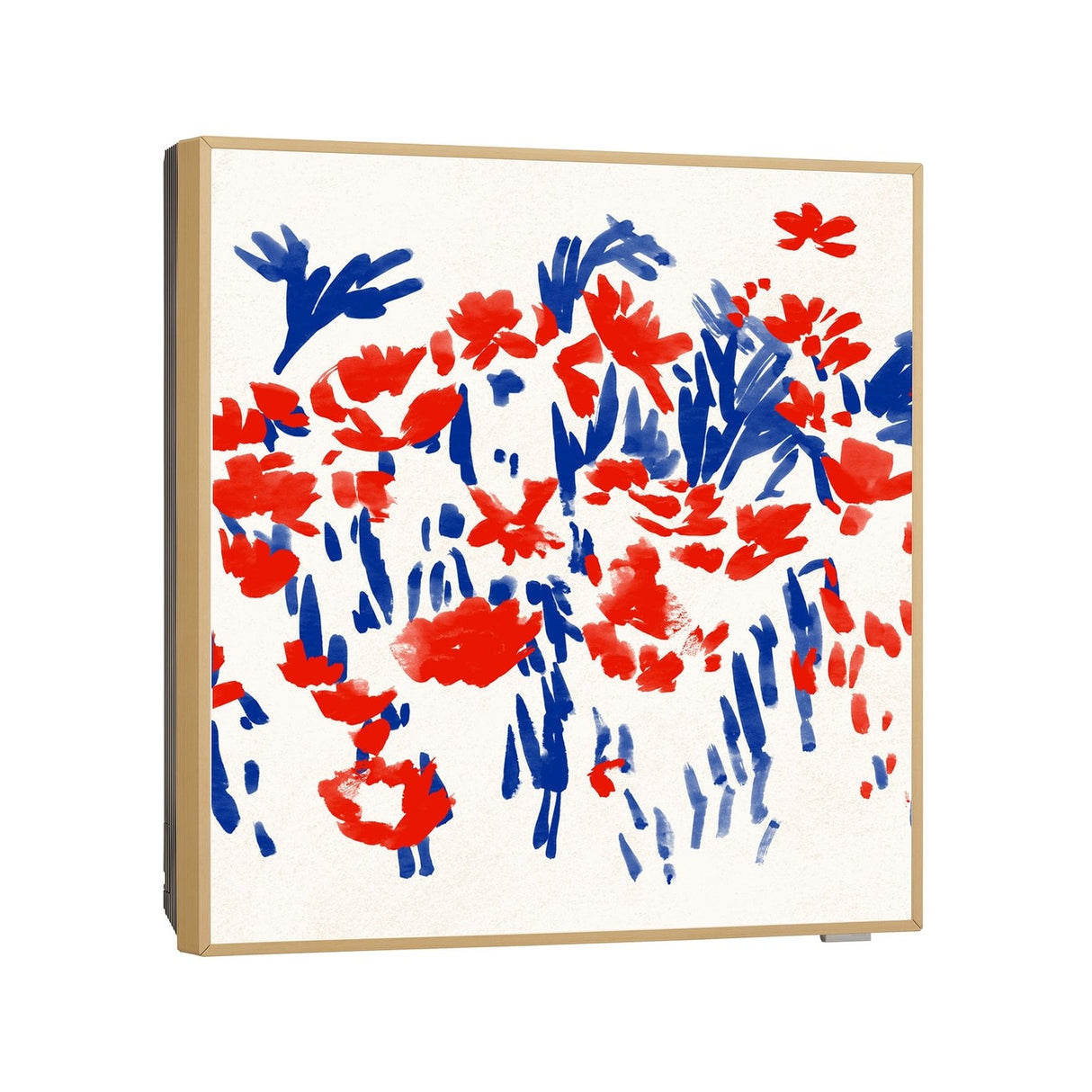

The LG ARTCOOL Gallery air conditioner is designed to blend in with your interior thanks to its elegant and innovative design. You can easily edit the image placed on the front panel to create a space that perfectly matches your tastes and desires

Design

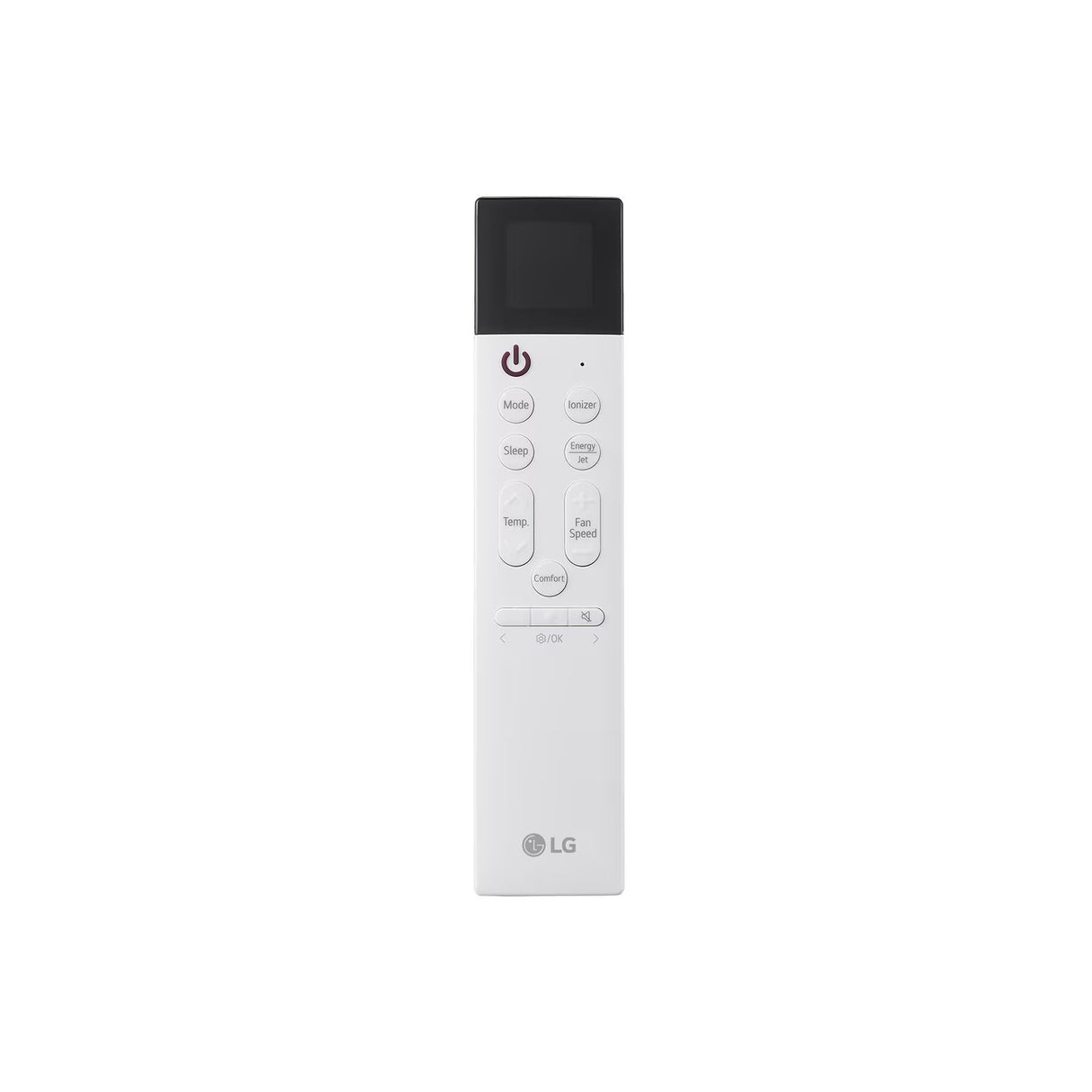

Remote control

Wherever you are, with the LG ThinQ app you can turn the air conditioner on or off, change operating modes and set the desired temperature. You can also use voice commands through Google Assistant.*

ThinQ

Maximum silence

LG air conditioners ensure reduced noise thanks to the special Skew Fan and Inverter compressor, which eliminate unnecessary noise and allow the product to operate as quietly as possible.

Massima silenziosità

Comfortable heating

During the winter season, LG air conditioners keep your home warm, thanks to the compressor with Dual Inverter technology.

Riscaldamento Confortevole

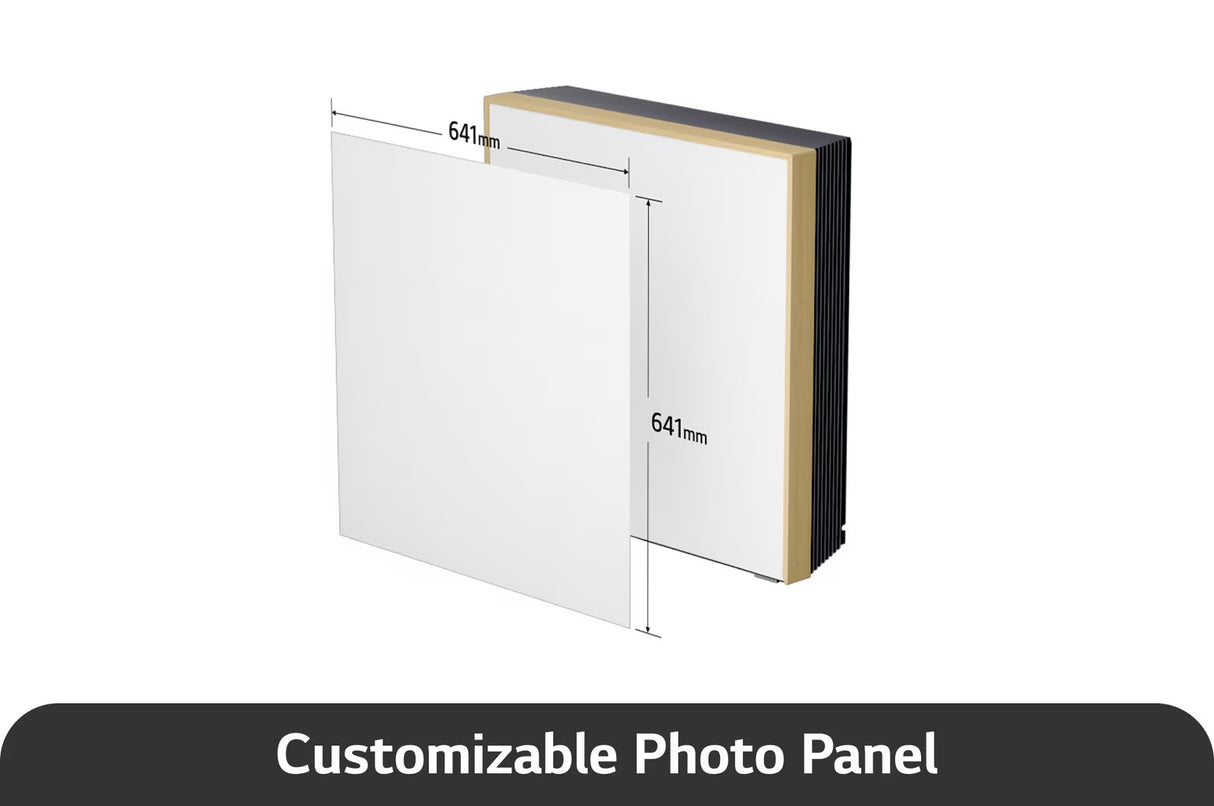

A customizable look

Changing the look of your ARTCOOL Gallery is quick and easy! Display your most beautiful photos, a work of art or an image you hold dear to personalize your spaces.

aspetto personalizzabile
