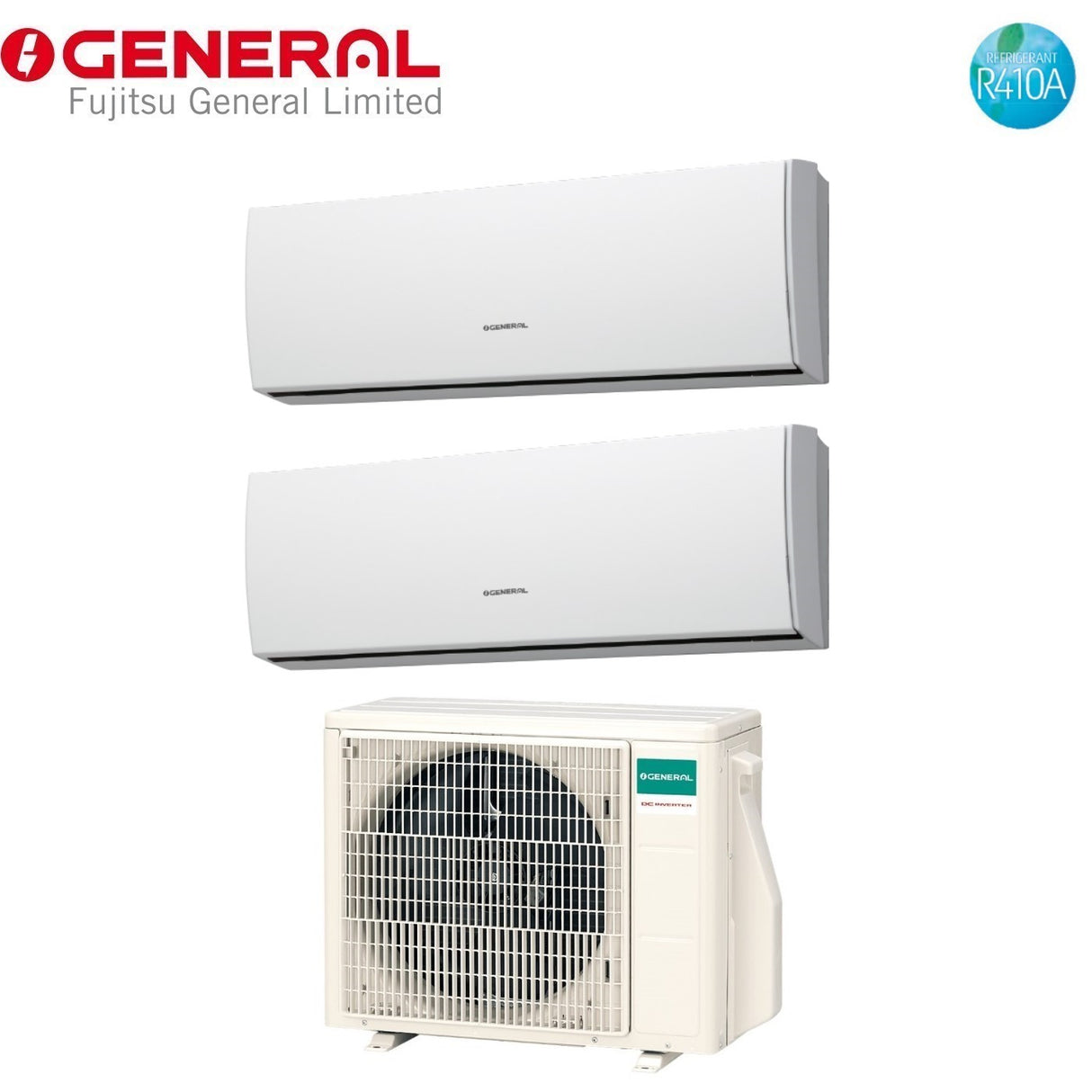

General Fujitsu Air Conditioner Dual Split Inverter Luca Series 9 + 12 With Aohg18lac2 R-410 9000 + 12000

Trustpilot
€1.512,50 VAT included
Tax included Shipping calculated at checkout.

How shipping works

Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:

  • Standard Shipping: Estimated delivery within 2 to 5 business days
  • Premium Shipping: Guaranteed delivery within 24 business hours
  • Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours

    See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.

    For more details on Premium Shipping, please visit the Premium Shipping page.

Customer service

Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.

Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.

Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.

Description

Technical features

Indoor Units

1) Model

  • Product code: 1 x ASHG09LUCA
  • Power 9000 btu
  • Cooling Capacity: 2.5 kW
  • Heating Capacity: 3.2 kW
  • Indoor Unit Dimensions (HxWxD): 282 × 870 × 185 mm
  • Indoor Unit Weight: 9.5 Kg

2) Model

  • Product code: 1 x ASHG12LUCA
  • Power 12000 btu
  • Cooling Capacity: 3.5 kW
  • Heating Capacity: 4.0 kW
  • Indoor Unit Dimensions (HxWxD): 282 × 870 × 185 mm
  • Indoor Unit Weight: 9.5 Kg
Outdoor Unit

Model:
  • Catalog code : AOHG18LAC2
  • Max indoor units: up to 2 indoor units

Energy Efficiency :

  • SEER (W/W) : 6.6
  • SCOP (W/W) : 4.1
  • Energy Efficiency Class (Cooling) : A++
  • Energy Efficiency Class (Heating) : A+
  • annual energy consumption Cooling/Heating [kWh/a] 265/1434

Performance:

  • Nominal cooling power (kW) : 5.0
  • Absorbed cooling power (kW) : 1.56
  • Nominal heating power (kW) : 5.6
  • Absorbed heating power (kW) : 1.41
  • Noise level (Sound pressure) Hi dB: 50
  • Noise level (sound power) Hi dB: 63

Characteristics:

  • Power (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas : R410A
  • Maximum piping length m: 30
  • Maximum pipe height difference m :15
  • operating level [C°]:
    - Cooling from -10 to 46
    - Heating from -15 to 24

Dimensions:

  • External Unit Dimensions (AxLxP): 540 x 790 x 290
  • Weight of Outdoor Unit: 38 Kg

MULTI-PLIT system

The GENERAL Inverter Multisplit systems today represent a range of products that ranks at the top of the category in terms of performance and energy efficiency, especially when they are called upon to operate in heat pump mode, which is why they are also widely used as a primary heating system. The technology of Multisplit Inverter systems is now applied both in the residential sector but also in the commercial and service sector where the variations in the thermal load are continuous and sudden. Thanks to the technology of the new DC inverter compressors, the desired temperature in the room is reached more quickly than conventional models and is maintained with a difference of just 0.5°C.

ASHG-LUCA series

Grande pannello aperto e scambiatore di calore multipiano ad alta densità

Refined design, high efficiency, energy saving, low noise, this represents the range of INVERTER wall units series ASHG__LUCA.

Timer 3 modes (weekly / schedule / sleep)

Operation at low ambient temperature

The weekly timer can be easily set by the wireless remote control. ON, OFF can be set up to 4 times in 1 day and up to 28 times in 1 week. For other modes, you can also select program timer and off timer with one press.

Powerful function

With the “POWERFULL OPERATION” system, the unit works for 20 minutes at maximum air flow and maximum compressor speed, quickly reaching the heating or cooling temperature set in the room.

Operation in 10° Heat mode

The temperature can be kept at 10°C to prevent the room from getting too cold.

Slim and shallow design

The slim design is obtained thanks to the density of the fins and pipes of the exchanger and the high efficiency of the fan.

Noise reduction of the outdoor unit

The "low noise" function can be selected from the remote control, which reduces the noise emission of the outdoor unit by 3dB.

More comfort from optimized airflow

Weekly program

You can make up to 4 daily programming and up to 28 in a week. With Sleep Timer you can manage your schedule with ease.

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

Technical Data Sheet
  • peso: 55.0 kg
  • gas: R-410
  • marca: General Fujitsu
  • metri quadri : 25/35
  • modello: Luca 9+12 18
  • potenza btu: 9000+12000
  • superficie riscaldabile mq: 25/35
