Fujitsu Air Conditioner Cassette 4 Way Series Kv Eco 14000 Btu R-32 Cod. Auxg14kvla A++ - New

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

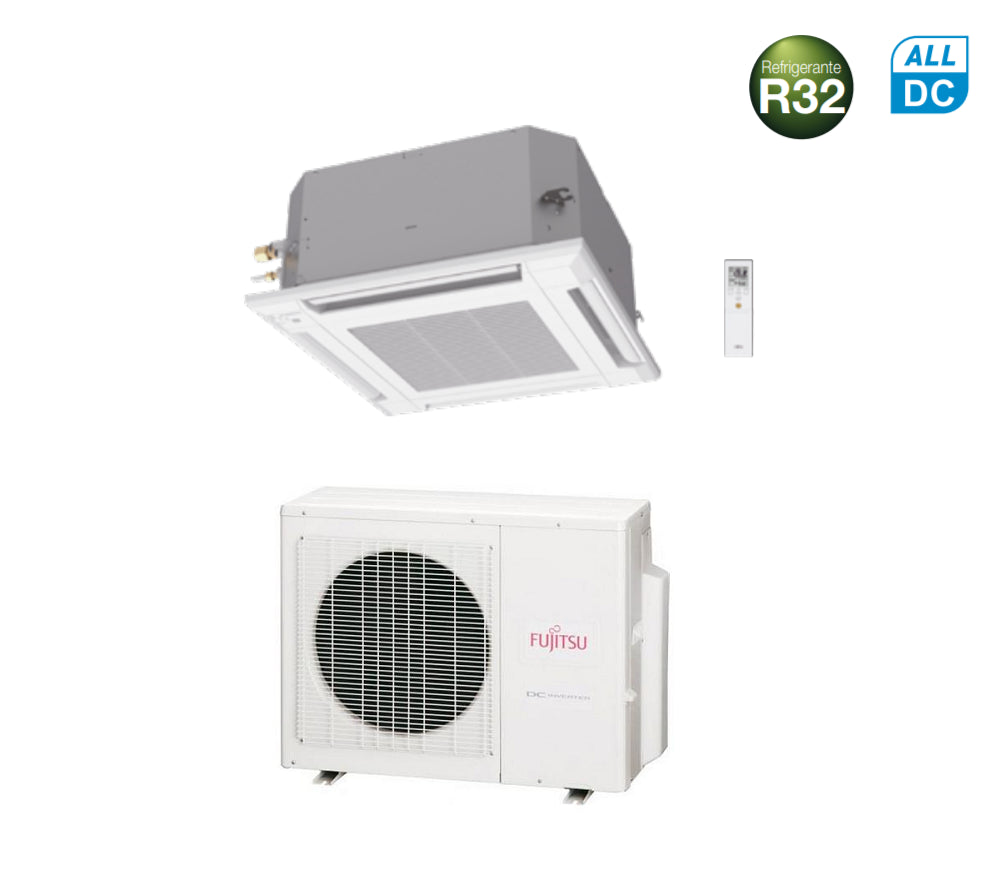

Fujitsu Air Conditioner 4-Way Cassette KV ECO series 14000 Btu R-32 cod. 3NGF88110 A++ - NEW


Model:

  • Indoor unit catalog code : AUXG14KVLA
  • Indoor unit catalog code : AOYG14KATA
  • Kit code: 3NGF88110
  • Remote control and grill included

Energy efficiency:

  • Cold power (kW) 4.3(0.9-4.5)
  • Hot power (kW) 5.0(0.9-5.3)
  • SEER 6.1
  • SCOP 4.0
  • class A++
  • class A+

Performance:

  • Dehumidification l/h: 1.5
  • Absorbed power in cooling/heating (kW): 1.37/1.42
  • Indoor unit sound pressure (Hi/Mi/Lo/Qu) (dB-A): 38/34/30/27
  • Indoor unit sound power dB(A): 50/55
  • External unit sound pressure (max) dB(A): 50/51
  • Outdoor unit sound power (max) dB(A): 63/63

Electrical data:

  • Power supply (V/Hz/Φ) : 230/50/1

Characteristics:

  • Refrigerant gas : R-32
  • Pipes for liquid/gas connections (mm): 6.35 / 9.52
  • Piping Max. length IU/EU: 20 (15)
  • Piping Max height difference: 15 metres
  • Operating Range:
    -Cooling: -10~46°C
    -Heating: -15~24°C

Dimensions:

  • Indoor Unit HxLxP (mm) : 245x570x570 ; 15kg
  • Outdoor Unit HxLxP (mm) : 542×799×290 ; 32kg

KV series

Compact and elegant panel design

The compact and elegant design of the panel fits perfectly into modular suspended ceilings. The dimensions of the grille of 620x620 mm hide the presence of the installed unit in the room.

Easy maintenance

Maintenance is easier by removing the ceiling tile next to the unit. The construction costs can be reduced in the absence of the inspection hatch. The air inlet grille can be installed in various directions for easier cleaning.

Flexible installation

Suitable for modular false ceilings, it has a high degree of freedom of installation, it can be installed next to lighting fixtures or ventilation grilles.

Functions Air conditioning

  • Up-down movement of the flaps Automatic opening and closing of the flaps.
  • Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
  • Standard condensate drain pump.
  • Automatic Restart In the event of a momentary power failure, the air conditioner restarts automatically when the power returns.
  • Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically switches to heating or cooling.
  • 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
  • Energy saving Control system for energy saving.
  • Automatic switch-off Sleep Night comfort is guaranteed by the gradual regulation of the temperature before the programmed switch-off of the air conditioner.
  • Daily timer Four possible selections within 12 hours ON, OFF, ON OFF or OFF ON.
  • Filter status indicator Allows you to check the cleanliness of the filters.

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase
