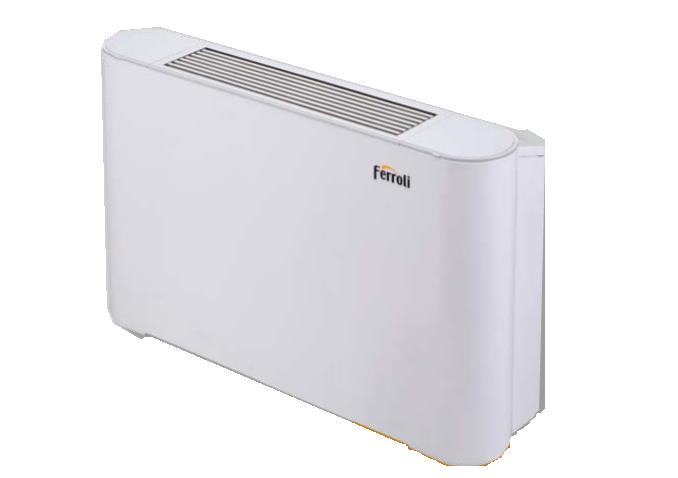

Fan Coil Fan Coil Ferroli Jolly Top 3v 150 Vm150k - New

OPTIONAL SWITCH

Fan Coil Fan Coil Ferroli Jolly Top 3V 150 vm150K - NEW

• Power supply V-ph-Hz 230-1-50
• Total cooling capacity max/med/min kW 1.65/1.22/1.09
• Max/med/min heat output kW 1.85/1.29/1.13 3

JOLLY 3V

New series of fan coils with centrifugal fan with 3-speed AC motor. Characterized by a maximum depth of 200 mm and in the version with casing by a particularly captivating aesthetic line, they are suitable for residential heating and air conditioning applications. Available in 5 sizes with cooling capacities from 1.65 to 6.00 kW and air flow rates from 255 to 1300 m3 /h. In the standard version they are offered with a single 3-row coil which can be combined as an accessory, in the case of 4-pipe systems, with an additional 1-row coil. Available in two versions, VM with cabinet and VN without cabinet for built-in applications. The units can be installed both in vertical and horizontal position.

VM version

Fan coil unit with intake from the bottom Consisting of a sheet metal cover, a delivery grille with doors for access to any control, in thermoplastic material and a regenerable air filter, placed on a metal frame housed on guides obtained in the lower part of the frame.

Construction features

• SUPPORTING STRUCTURE It is made of galvanized sheet metal of adequate thickness. On the back there are slots for fixing the device. For models without a covering casing, a closing panel for the fan group is provided, mounted on the front

• THERMAL EXCHANGE COIL 3-row coil in copper tube and aluminum fins blocked by mechanical expansion of the tubes. The manifolds in the upper part of the battery are equipped with air vents, while in the lower part they have a water drain valve*. * The default hydraulic connection for the coil is on the LEFT. However, it is possible to turn the coil and change it to the RIGHT (see Installation Manual).

• CONDENSATE COLLECTION TRAY optional Made of thermoplastic material to avoid corrosion phenomena, it allows the machine to be installed in both vertical and horizontal positions. In particular, in horizontal installation, its shape makes it possible to collect the drops of condensation that form on the collectors during cold operation. The drain hole is obtained directly from the condensate collection tray and allows it to be eliminated during cold operation. It is present on both sides of the machine to facilitate rotation of the battery

• FAN MOTOR (for version I) The electric motor is of the DC brushless type with high efficiency continuous speed regulation and is directly coupled to the fans and cushioned by elastic supports.

• FAN MOTOR (for 3V version) The electric motor, protected against possible overloads, has three speeds with running capacitor always on, directly coupled to the fans and cushioned by elastic supports. CENTRIFUGAL FAN The fan group consists of double suction centrifugal fans with blades developed in length to obtain high flow rate with reduced number of revolutions.

• AIR FILTER Easily removable and regenerable by simply washing with water.

• COVER (VM only) Partly made of steel sheet painted with epoxy powders to guarantee high resistance to corrosion and partly in anti-UV thermoplastic material to guarantee resistance to ultraviolet rays. The grilles for air diffusion and the door for accessing the control panel are inserted in the upper part, both in anti-UV thermoplastic material.

• HYDRAULIC CONNECTIONS The connections, positioned on the left side, are of the ¾” gas female type. It is possible to rotate the coil which is supplied standard with left side connections, moving the hydraulic connections to the right side.

Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 50.0 kg
• marca: Ferroli
• modello: vm150k
• potenza in kw: 1
