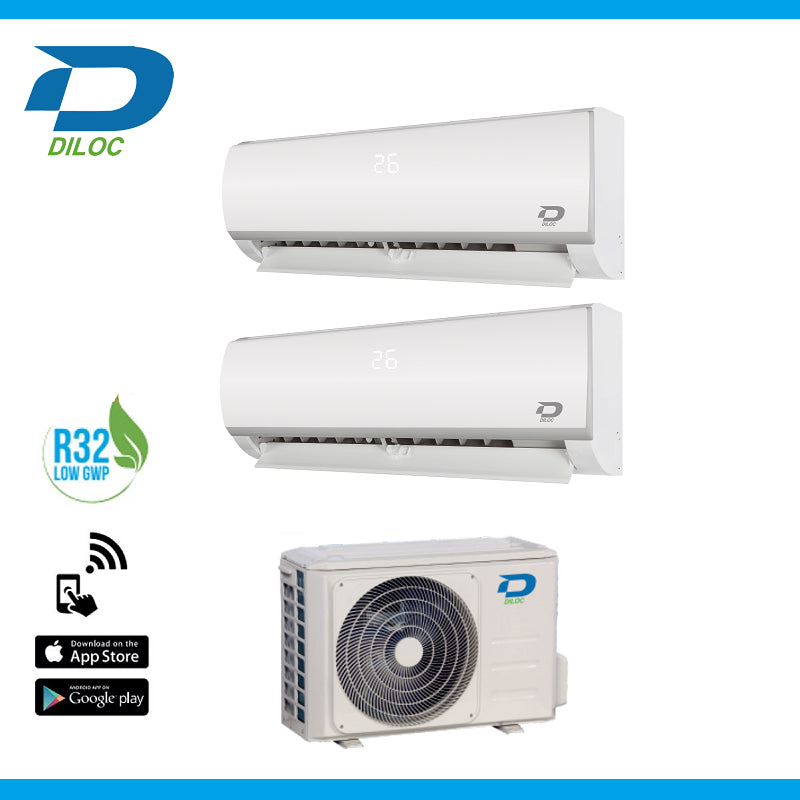

Air Conditioner Diloc Dual Split Iinverter Frozen Series 9+9 With D.Frozen240 R-32 Wi-Fi Optional 9000+9000

Technical features

Indoor Units

1) Model:

• Catalog code : 2 x D.FROZEN109
• Power: 9,000 BTU/hr
• Cooling Capacity: 7.0W
• Heating Capacity: 7.0W
• Air flow: m³/h : 520/460/260
• Sound pressure level dB(A) 40/30/26/21
• Liquid/Gas Pipe Diameter: 1/4-3/8 inch
• Dimensions WxDxH (mm): 805x194x285 ; 7.5kg

Outdoor Unit

Model:

• Catalog code : D.FROZEN240
• Gases : R-32
• 2 indoor units

Energy efficiency:

• SEER 5.6
• SCOP 4.6
• Cooling energy class A+
• Heating energy class A++

Performance:

• Nominal Cooling Capacity (btu/h): 14000
• Nominal Heating Capacity ( btu/h ): 15000
• Nominal cooling absorbed power (W): 1270
• Rated absorbed power in heating (W): 1185
• Max sound pressure level dB(A) 56
• Sound power level (dB(A)) : 64

Electrical data:

• Power supply (V/Hz/Φ) : 220 - 240v ~ ,1P , 50Hz
• Maximum Pipe Length m 40

Dimensions:

• Outdoor Unit HxLxP (mm): 800x333x554
• Weight : 31.6kg

General characteristics

DILOC

Air conditioning systems

DILOC is the division of NAICON that proposes and identifies itself as a PARTNER for your daily well-being and for a better quality of life without losing sight of the environment and energy efficiency. DILOC offers the right solution for residential, commercial and industrial environments by proposing air conditioning systems characterized by high quality standards that offer an excellent quality/price ratio. DILOC offers latest generation models up to 60,000 BTU with low environmental impact, built not only to guarantee maximum comfort and extreme silence but also to reduce electricity consumption and space to a minimum.

Savings of more than 25% are guaranteed with the DILOC DC INVERTER technology and with R410A gas we have achieved high levels of efficiency even in heat pump at low temperatures without penalizing the feeling of well-being.

Save up to 50% on consumption

The DILOC 2016 DC INVERTER range for domestic use has a high energy efficiency capable of saving up to 50% of energy consumption . The whole range is at least in class A both during cooling and in heat pump mode. The level of silence has been further improved according to the new regulations. Attention to detail allows us to offer a product with low environmental impact (R410A ecological gas) and high efficiency. SCOP = > 3.8. The EASY DESIGN model without external motor, with the new regulations guarantees class A+ for a further reduction in consumption. The ideal air conditioner to avoid installing outdoor units outside the home

Wall-I Mono and Multi series

The DC INVERTER DILOC air conditioner produces, already in the ignition phase, the exact power necessary to produce the desired effect: warm in autumn and cool in summer. This feature allows you to reach the set comfort temperature in a quarter of the time required by a conventional air conditioner.

Characteristics:

The Wall-In indoor units can be combined in the 9,000, 12,000 and 18,000 BTU versions with all the mono and multi DC INVERTER Outdoor Units;

Wall-I air conditioners are in class A++ in cold and A+ in heat with SCOP greater than 4.00;

Wall-In indoor units are equipped with an easy-to-use remote control included in the product;

The Wall-Out outdoor units with two, three and four connections guarantee class A++ operation, reducing consumption during operation. In the stand-by phase, consumption is reduced to just 0.5 watts. The compressor uses high efficiency Japanese DC Inverter technology.

Wi-Fi function: the entire Wall-In range can be requested with the Wi-Fi function and the possibility of controlling the air conditioners via tablet, iPad and smartphone. You can manage all the functions of the product.

Wall controller: (OPTIONAL): if you don't want the classic remote control, the Wall-I system allows you to manage the main functions of the air conditioner via a Remote Controller.

Heat pump: Wall-I air conditioners are equipped with the heat pump function for use in the colder months.

Dehumidification: on those very humid days, in autumn and spring, the Wall-I air conditioner allows you to reduce that annoying sense of humidity thanks to an avant-garde system in reducing humidity in closed places.

Sleep function : Wall-I air conditioners modify night-time operation taking into account the reduction of body temperature, as well as increasing the operating silence.

Auto Swing : automatic swing of the air flow management flaps.

5-year warranty : The compressor has a free 5-year warranty extension as evidence of the goodness of the air conditioner engine.

Backlit display: Wall-I air conditioners have a view of the set data with a modern backlit display. For those who want a further reduction of the lighting of the product it is possible to switch off the display.

Product Guarantee

All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 55.0 kg
• classe energetica raffreddamento: A+
• classe energetica riscaldamento: A++
• gas: R-32
• marca: Dilocate
• metri quadri : 25/25
• modello: Frozen 9+9
• potenza btu: 9000+9000
• superficie riscaldabile mq: 25/25
