Wilo  |  SKU: P_A50051328

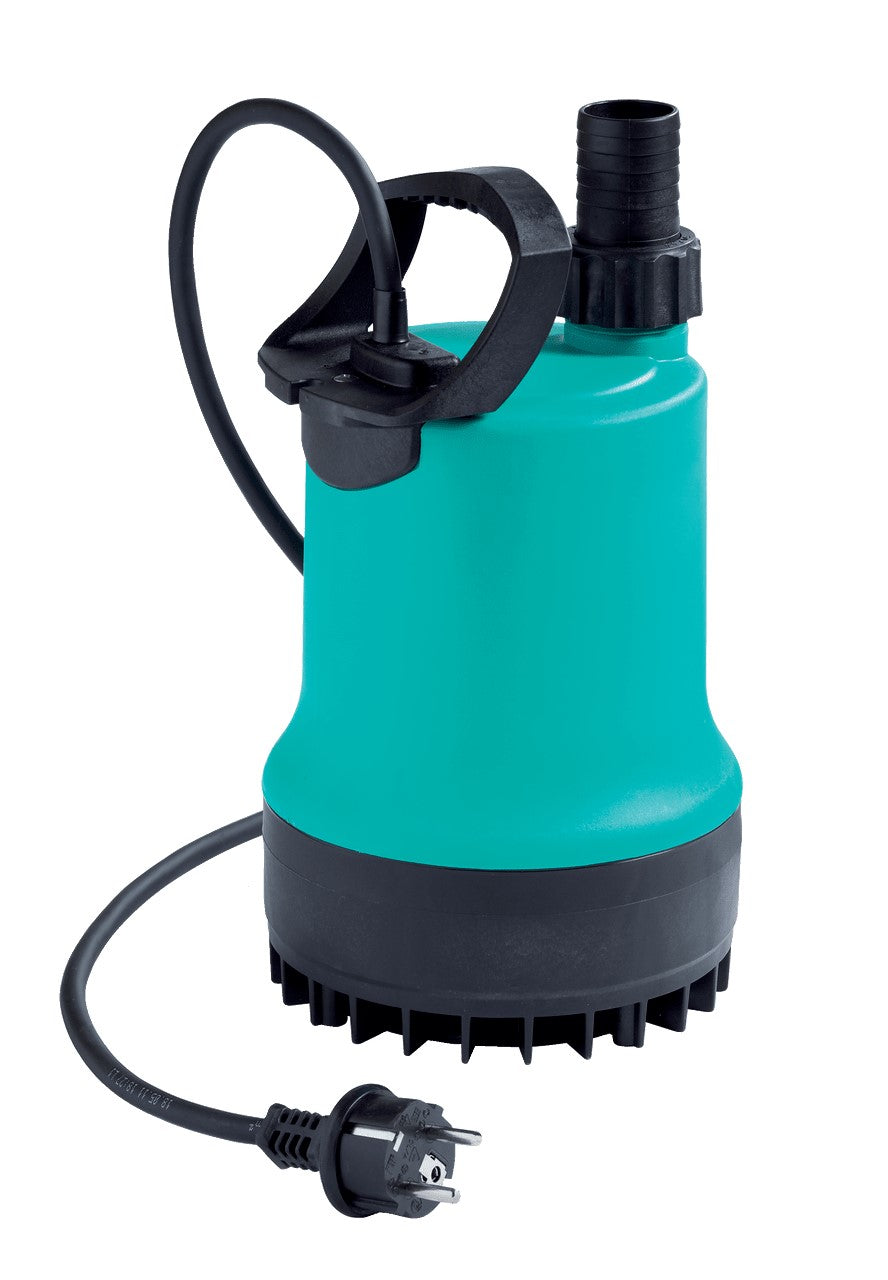

Wilo Submersible Electric Pump For Submerged Installation Mobile Drain Tm 32/8-10m 4048411

€160,00 VAT included
Tax included Shipping calculated at checkout.
Costi di spedizione calcolati in fase di checkout

How shipping works

Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:

  • Standard Shipping: Estimated delivery within 2 to 5 business days
  • Premium Shipping: Guaranteed delivery within 24 business hours
  • Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours

    See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.

    For more details on Premium Shipping, please visit the Premium Shipping page.

Customer service

Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.

Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.

Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.

Description

Wilo submersible electric pump for mobile submerged installation Drain TM 32/8-10M 4048411

General characteristics

  • Brand: Wilo
  • Model: Drain TM 32/8-10M
  • Code: 4048411

Data sheet

  • Hydraulic data
  • Maximum working pressure PN: 2 bar
  • Impeller structure type: Open multi-channel impeller
  • Free spherical passage of the hydraulic system: 10 mm
  • Max. immersion depth: 3 m
  • Fluid temperature min. Tmin: 3 °C
  • max temperature temperature Tmax: 35 °C
  • ambient temperature min. Tmin: 3 °C
  • ambient temperature max. Tmax: 35°C

Engine data

  • Mains power supply: 1~230V, 50Hz
  • Voltage tolerance: ±10%
  • Power factor cos f: 0.98
  • P2 motor rated power: 0.37 kW
  • Power consumption P1 max: 450 W
  • IN Rated Current: 2.2A
  • Inrush current I: 4.8A
  • Connection Type: Direct Online (DOL)
  • Nominal speed n: 2900 1/min
  • frequency max. of starts: t 50 1/h
  • Insulation class: F
  • Degree of protection: IP68
  • Operating mode (immersed): S1
  • Mode of operation (non-submerged): S3-25%

Cable

  • Connection cable length: 10 m
  • Cable type: H07RN-F
  • Cable section: 3G1 mm²
  • Mains plug: Schuko
  • Connection cable type: Non-detachable

Equipment/function

  • Float Switch: No
  • Type of explosion protection: -
  • Motor protector: Bimetal

Materials

  • Pump body: PP-GF30
  • Impeller: PPE/PS-GF20
  • Pump side gasket material: BQ1PFF
  • Engine side gasket material: NBR
  • Seal material: NBR
  • Motor material: Stainless steel

Assembly fee

  • Pipe connection on the pressure side : G 1¼

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Technical Data Sheet
  • alimentazione: Single phase
  • marca: Wilo
  • modello: P_A50051328_1
  • potenza in kw: 0.37
  • tipologia : Submerged
