Wilo  |  SKU: P_A50051342

Wilo Submersible Electric Pump For Gray Domestic Waste Water Initial Waste 16-11 4186549

€135,00 VAT included
Tax included Shipping calculated at checkout.
Costi di spedizione calcolati in fase di checkout

How shipping works

Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:

  • Standard Shipping: Estimated delivery within 2 to 5 business days
  • Premium Shipping: Guaranteed delivery within 24 business hours
  • Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours

    See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.

    For more details on Premium Shipping, please visit the Premium Shipping page.

Customer service

Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.

Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.

Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.

Description

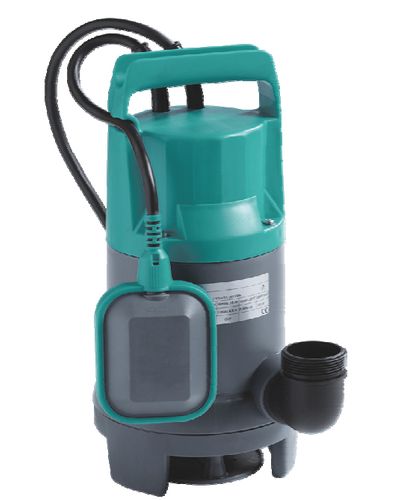

Wilo submersible electric pump for gray domestic wastewater Initial WASTE 16-11 4186549

General characteristics

  • Brand: Wilo
  • Model: Initial WASTE 16-11
  • Code: 4186549

Data sheet

Hydraulic data

  • Maximum working pressure PN: 3 bar
  • Delivery port: Rp 1½
  • Free spherical passage of the hydraulic system: 20 mm
  • Impeller Structure Type:e Impeller
  • Max. immersion depth: 5 m
  • Hopt optimal head: 678.1 kPa
  • Optimal delivery Qopt :10.98 m³/h
  • Fluid temperature min. Tmin: 5 °C
  • max temperature temperature Tmax: 35 °C
  • ambient temperature min. Tmin: 1 °C
  • ambient temperature max. Tmax: 35°C

Engine data

  • Mains power supply: 1~230V, 50Hz
  • Voltage tolerance: ±10%
  • P2 motor rated power: 0.75 kW
  • Power consumption P1 max: 1100 W
  • IN Rated Current: 5A
  • Inrush current I: 0A
  • Rated speed n: 2800 1/min
  • Connection Type: Direct Online (DOL)
  • Number of poles: 2
  • frequency max. of starts t: 60 1/h
  • Insulation class: F
  • Motor protection degree: IP68
  • Operating mode (immersed): S1
  • Mode of operation (non-submerged): –

Cable

  • Connection cable length: 10 m
  • Cable type: H07RN-F
  • Cable section: 3G1 mm²
  • Mains plug: Schuko
  • Connection cable type: Non-detachable

Equipment/function

  • Float Switch: No
  • Crusher: no
  • Type of explosion protection: -
  • Motor protector: PTO
  • Engine leak check: no
  • Sealing chamber leak check: no
  • Leak chamber tightness check: no

Materials

  • Pump body: PP
  • Impeller: PA-GF30
  • Shaft: Stainless steel
  • Shaft seal: BQ1PFF
  • Pump side gasket material: BQ1PFF
  • Engine side gasket material: BQ1PFF
  • Seal material: NBR
  • Motor material: Stainless steel

Assembly fee

  • Hose connection on the suction side: -
  • Pipe connection on the pressure side: Rp 1½

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Technical Data Sheet
  • alimentazione: Single phase
  • marca: Wilo
  • modello: P_A50051342_1
  • potenza in kw: 0.75
  • tipologia : Submerged
