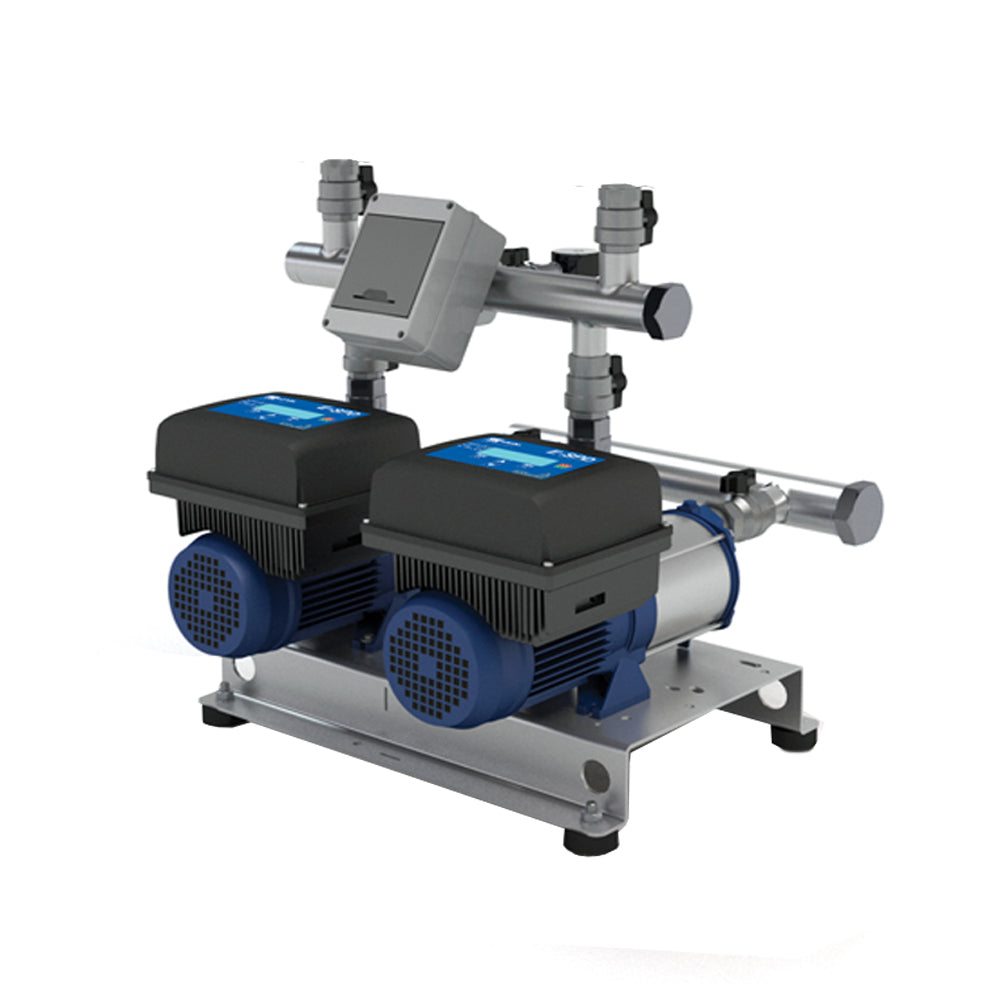

Ebara Pressure Booster Unit With 2 Horizontal Multistage Cast Iron Pumps And Manifolds In Stainless Steel 304 2gpe Compact A12/1 Espm 2001051102 Without Vessel And With Silent Liquid Mounting Arrangement

Ebara booster set with 2 horizontal multistage cast iron pumps and 304 stainless steel manifolds 2GPE COMPACT A12/1 ESPM 2001051102 WITHOUT TANK AND WITH SILENT MONTALIQUIDI ARRANGEMENT

General characteristics

• Brand: Ebara


• Model of the supplied product: 2GPE COMPACT A12/1 ESPM


• Supplied product code: 2001051102

Description

TYPICAL APPLICATIONS
The base of the group is in galvanized steel and so are the manifolds. The
delivery manifold is designed to accommodate 2 tanks a
membrane of the vertical type; 2 pressure switches are mounted on it, the
electrical panel and a pressure gauge. Each electric pump has in
suction a shut-off valve and a non-return valve, with
possibility of connection to an air feeder and is equipped with
another isolating valve in delivery.

TECHNICAL FEATURES
The HERTZ TWIN control panel is an automatic control system
and protection for two centrifugal electric pumps equipped with three-phase motors
induction. The panel power supply can be three-phase or
single phase. The HERTZ TWIN control panels include a
pump control software and allow speed adjustment
of the motor by means of an electronic frequency variator (Inverter)
which powers the pump motor. As the rotation speed varies
pump performance varies in terms of flow rate and head
allowing its optimal use in all conditions while saving energy.

ADVANTAGES
• Energy savings as the controller modulates the pump a
depending on the hydraulic energy demand of the plant with respect to
a direct connection to the network
• Better and faster regulation
• Reduction of water hammering thanks to a start and stop
gradual
• Better comfort in heating, air conditioning and heating systems
pressurization
• Reduced starting current
• Exchange at each restart of the powered pump
• Speed ​​modulation on both pumps for one
optimal adjustment
The typical applications of the GPE series booster sets with i
paintings are:
• Water supply for distribution networks, condominiums,
schools, hotels, hospitals, etc.
• Water supply for industry in general
• Irrigation of gardens, parks and sports fields

Inverter-controlled units with two horizontal multistage pumps.

PUMP CHARACTERISTICS
FIELD OF USE
• Maximum working pressure: 10 bar
• Maximum liquid temperature: 40°C

MATERIALS
• Pump body and support in cast iron
• External jacket in AISI 304
• Technopolymer impeller and diffuser
• Shaft in AISI 416

TECHNICAL DATA
• Self-ventilated 2-pole asynchronous motor
• Class of insulation F
• IP44 degree of protection
• Single-phase voltage 230V ± 10% 50Hz,
three-phase voltage 230/400V ± 10% 50Hz
• Permanently inserted capacitor and protection
thermo-amperometric sensor with built-in automatic reset for the
single-phase motor
• Protection by the user for the three-phase version

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 5.0 kg
• marca: Hebara
• modello: 2001051102
