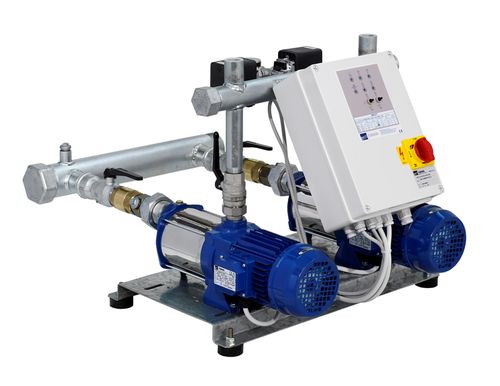

Ebara Pressure Booster Unit With 2 Horizontal Multistage Pumps With Cast Iron Body And 304 Stainless Steel Manifolds 2gp Compact A/15 M 2001050200b Without Vessel And With Silent Liquid Mounting Arrangement

Ebara booster set with 2 horizontal multistage pumps with cast iron body and 304 stainless steel manifolds 2GP COMPACT A/15 M 2001050200B WITHOUT TANK AND WITH SILENT MONTALIQUIDI ARRANGEMENT

General characteristics

• Brand: Ebara


• Model of the supplied product: 2GP COMPACT A/15 M


• Supplied product code: 2001050200B

Data sheet

• Maximum flow rate, m3/h: 9.6


• Maximum pumping height: 86 m


• Maximum working pressure: 8.6 bar


• Maximum liquid temperature: 40°C


• Suction diameter: G1½


• Outlet diameter: G1½


• Electrical connection: 230V, single phase


• Engine power: 1.1 + 1.1 kW


• Motor type: 2 poles

Description

Protection and control panel with CE mark
• Very low voltage auxiliary circuit
• Starting and stopping of the engines are controlled by two
pressure switches
• It is possible to connect to floats, or minimum pressure switch, for
avoid operation under water shortage conditions
aspiration
• There is a device that swaps the starting order of the
pumps at every request
• Diet:
- single-phase 230V, 50Hz
- three-phase 400V, 50Hz
• Direct starting
• Power circuit protection fuses
• Auxiliary circuit protection fuses
• IP 55 degree of protection
• Main disconnect switch with door lock
• Automatic switches - 0 - man. for each pump
• Thermal protection reset
• Indicator LEDs:
- network presence
- engine running
- level alarm (if the optional float is installed)
- motor protection (only for the three-phase version)
• Alarm output setup

Groups with two horizontal multistage pumps.
Units with two horizontal double impeller pumps with stainless steel hydraulics.
TYPICAL APPLICATIONS
The typical applications of the 2GP series booster sets are:
• Water supply for distribution networks inherent in the sector
of the building service
• Water supply for industry in general
• Irrigation of gardens, parks and sports fields

GROUP EQUIPMENT
• Two pumps of the COMPACT series with 2-pole asynchronous motor
self-ventilated, efficiency class IE2 for three-phase motors starting from
0.6 kW
• Control unit: the system is equipped as standard with a control panel
pump alternation control
• Operation of the pumps regulated by pressure switches
• Wetted parts are corrosion resistant
• Base in galvanized steel
• Manifolds in galvanized steel and on request AISI 304, AISI 316. I
collectors are sized according to the total flow rate of the group
pressurization
• Shut-off valve on the suction and discharge sides of each
pump
• Check valve on the suction side of each pump
• Pressure gauge, delivery side
• Prearranged for delivery side hydroaccumulator vessel connection
• Prepared for connecting external air feeders
• Prepared for connection of a device against lack of water

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
