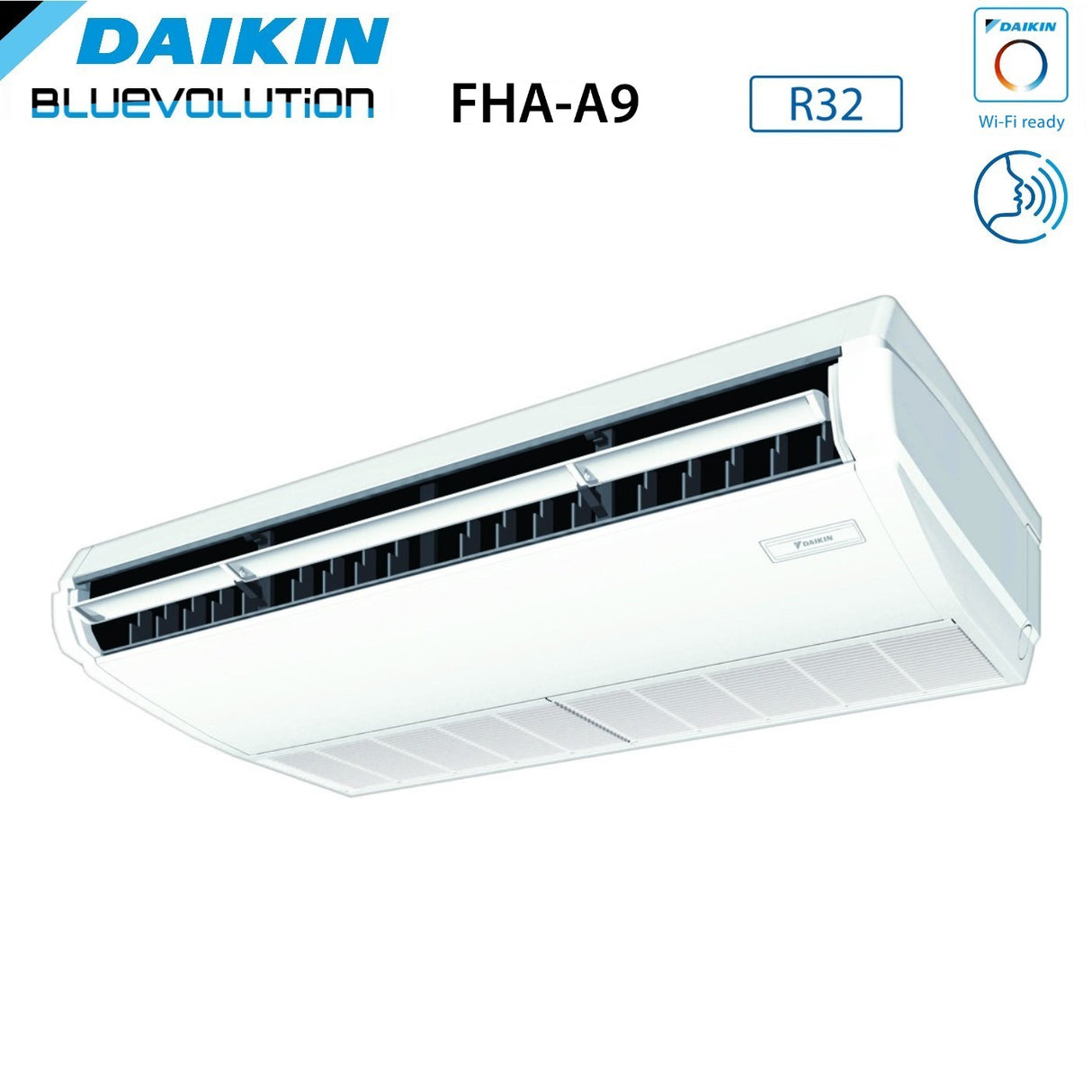

Indoor Unit Daikin Bluevolution Hanging Ceiling 18000 Btu Fha50a R-32 Wi-Fi Optional

Model

• Internal Unit Code: FHA50A
• Power : 18000 Btu
• Cooling capacity : 5.0 kW
• Heating capacity : 6.0 kW
• Air flow : 12.0 m ³ /min
• Sound power level : 54 dB(A)
• Sound Pressure Level : 32 ~ 37 dB(A)
• Pipe diameter Liquid : 6.35 mm (1/4")
• Gas pipe diameter: 12.70 mm (1/2")
• Internal Unit Dimensions (HxWxD): 235x960x690 mm
• Indoor Unit Weight: 25 Kg
• Optional Wi-Fi card ( Code : BRP069A81 )
• Optional infrared remote control ( Code BRC7FA532F )
• Madoka White Wire Control Included ( Code BRC1H519W )
• Optional Madoka Silver Wire Command ( Code BRC1H519S )
• Optional Madoka Black Wire Command ( Code BRC1H519K )

• 2MXM50M9/No
• 2MXM68N
• 3MXM40N
• 3MXM52N
• 3MXM68N
• 4MXM68N
• 4MXM80N
• 5MXM90N

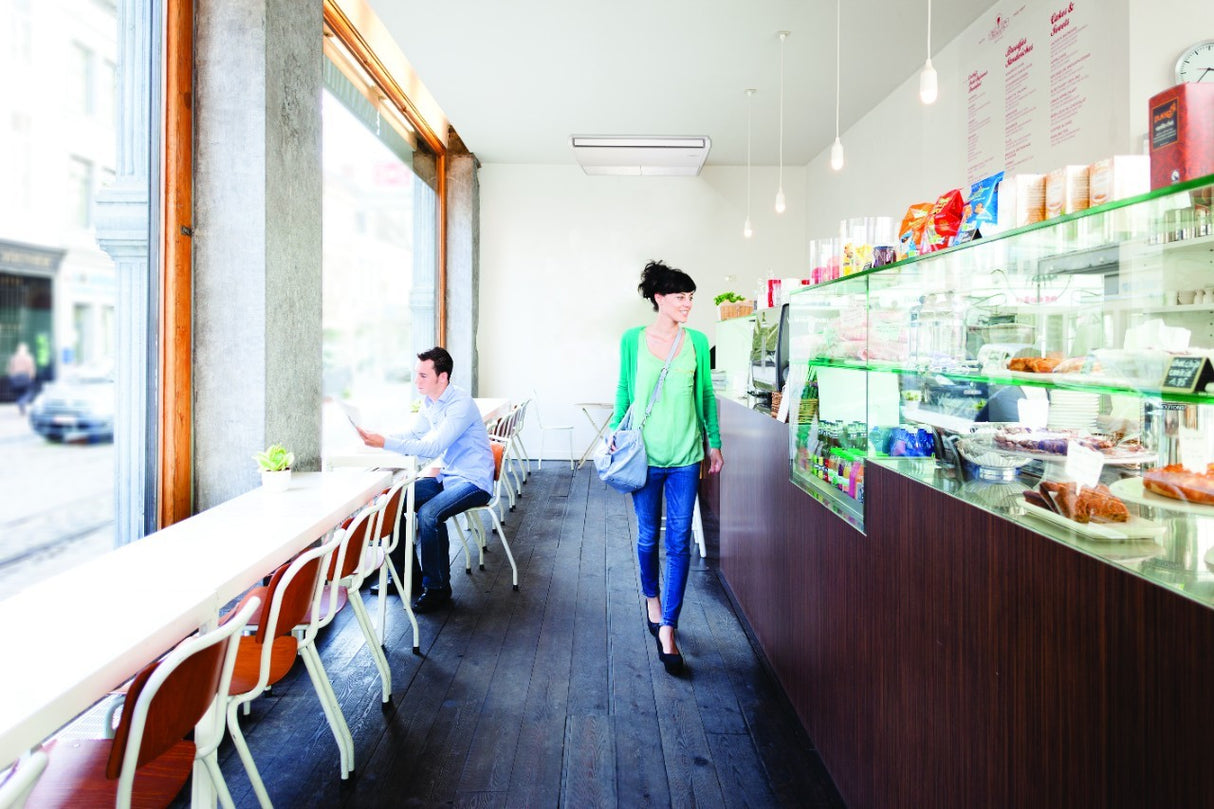

Daikin FHA-A Ceiling Wall Unit For large rooms, without a false ceiling and free floor space

Ideal for comfortable airflow in large rooms thanks to the Coanda effect: discharge angle up to 100°. Choosing an R-32 product reduces the environmental impact by 68% compared to R-410A systems and leads to a direct reduction in energy consumption thanks to the high energy efficiency. Even rooms with ceilings of up to 3.8m in height can be easily heated or cooled without loss of capacity The outdoor units are equipped with a swing-type compressor, known for its low noise and high energy efficiency characteristics. It can be easily installed in both construction and renovation projects. Outdoor units for monosplit applications. The combination with R-32 Bluevolution technology reduces the environmental impact by 68% compared to R-410A systems, involves a direct reduction in energy consumption thanks to the high energy efficiency and has a lower refrigerant charge - up to 16% in less. The lateral clearance of only 30 mm required for maintenance allows the unit to be easily installed in corners and confined spaces. Daikin outdoor units are well-finished and robust and can be easily installed on a roof or terrace, or simply against an external wall. Range of unified indoor units for R-32 and R-410A. Fins of the outdoor unit heat exchanger with anti-corrosion treatment. Low energy consumption with specially designed fan DC motor. There are 5 different fan speeds for maximum comfort. The stylish unit blends in perfectly with any décor. The flaps close completely when the unit is not in operation and the suction grilles are not visible.

Voice Control

The Daikin Residential Controller application is designed for those who live a busy life and want to manage their system via smartphone. To further increase comfort and convenience, the Daikin Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on necessary clicks and allows for faster drive management than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Unit Always Connected

The unit can be managed via the new Daikin Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated in the unit

Programming

Set up a schedule to define system operating times, and create up to six different actions per day

Program the room temperature and operating mode

Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Check system status

Access energy consumption graphs (daily, weekly, monthly)

Check

Customize the system to fit your lifestyle and year-round comfort needs

Change the ambient temperature

Turn on Powerful mode to boost operation

Feature availability depends on system type, configuration, and mode of operation. The app features are only available if both the Daikin system and the app use a reliable internet connection

> "Home Leave" mode: Manages the internal temperature during your absence with energy saving, while still guaranteeing room comfort.

> Outdoor unit Silent function : The "Silent" button on the remote control reduces the operating sound level of the outdoor unit by 3dB(A) so as not to disturb the neighbourhood.

> Automatic vertical oscillation: Possibility of selecting the automatic vertical movement of the delivery deflectors, to make the air flow and temperature distribution uniform throughout the room.

> Ventilation only : The unit can also be used in ventilation only mode, without cooling or heating.

> Automatic operating mode switching : Automatically selects cooling or heating mode to maintain the set temperature

> Fan speed in steps (3 steps) : Allows you to select different fan speed values ​​(2 steps)

> Dehumidification program : Reduces humidity in the air avoiding excessive cooling

> Air filter : Eliminates dust particles dispersed in the air, improving air quality

> Infrastructure cooling : The heat constantly produced by IT equipment and servers can be eliminated reliably, efficiently and flexibly ensuring maximum life and at the same time offering the best return on investment.

> Weekly timer : Can be set to start cooling or heating at any time on a daily or weekly basis.

> Infrared remote control (Optional): Allows remote control of the air conditioner functions

> Wired remote control (Optional) : Allows control of the air conditioner functions

> Centralized remote control (Optional): Allows management of the air conditioner functions from a centralized control.

> Daikin Residential Controller : Possibility of controlling the indoor unit from any location via the app

> Auto restart function : After a power failure, the unit will automatically restart with the original settings.

> Self-diagnostics : Simplifies maintenance by indicating system malfunctions or operating anomalies.

> Drain pump kit (Optional) : Facilitates the evacuation of condensate from the indoor unit.

> Twin/triple/double twin application: Possibility of connecting 2, 3 or 4 indoor units, even if of different capacities, to a single outdoor unit. All indoor units operate in the same mode (cooling or heating), which can be activated using a single remote control.

> Multi application: Possibility of connecting up to 5 indoor units, even if of different capacities, to a single outdoor unit. Each of the indoor units can be operated individually within the same cooling or heating mode.
