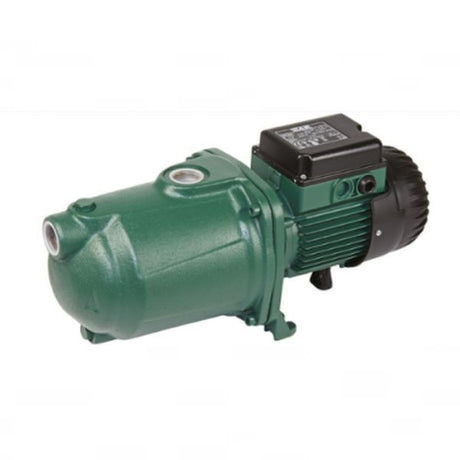

Technical features Model : Euro 50 /50 M single-phase Number of impellers : 4 Power : 1 kW (1.36 HP) Capacitor capacity : 25mF Operating range : Flow rate up to 80 l/min (4.8 m3/h) with heads up to 72 metres. Maximum working pressure : 8 bar (800 kPa) General characteristics Multistage centrifugal EURO electric pump, pump body in cast iron. Multistage centrifugal pump with horizontal axis, characterized by an extremely silent operation suitable for domestic uses for water supply and pressurization, irrigation of orchards and gardens, movement of water in general. Advantages Pump body in 200 UNI ISO 185 cast iron engine mount in die-cast aluminium seal holder cover in AISI 304 steel Mechanical seal in carbon/ceramic Motor shaft in AISI 304 steel Impellers, diffuser bodies and diffusers in technopolymer Stainless steel shim rings Features of the series Motor protection degree : IP 44 Degree of protection of the terminal block: IP 55 Insulation class : F Operating range : From 10 to 120 l/min with head up to 72 metres Pumped liquid: clean, free from solid or abrasive substances, non viscous, non aggressive, non crystallized and chemically neutral, close to the characteristics of water Liquid temperature range : From 0°C to +35°C for domestic use (EN 60335-2-41). From o°C to +40°C for other uses Maximum working pressure : 8 bar (800 kPa) Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Model : Euro 30 /30 M single-phase Code : 102970020 Number of impellers : 4 Power : 0.45 kW (0.6 HP) Capacitor Capacity: 12.5mF Operating range : Flow rate up to 55 l/min (3.3 m3/h) with heads up to 46 metres. Maximum working pressure : 8 bar (800 kPa) General characteristics Multistage centrifugal EURO electric pump, pump body in cast iron. Horizontal axis multistage centrifugal pump, characterized by extremely silent operation, suitable for domestic use for water supply and pressurization, irrigation of orchards and gardens, movement of water in general. Advantages Pump body in 200 UNI ISO 185 cast iron engine mount in die-cast aluminium seal holder cover in AISI 304 steel Mechanical seal in carbon/ceramic Motor shaft in AISI 304 steel Impellers, diffuser bodies and diffusers in technopolymer Stainless steel shim rings Features of the series Motor protection degree : IP 44 Degree of protection of the terminal block: IP 55 Insulation class : F Operating range : From 10 to 120 l/min with head up to 72 metres Pumped liquid: clean, free from solid or abrasive substances, non viscous, non aggressive, non crystallized and chemically neutral, close to the characteristics of water Liquid temperature range : From 0°C to +35°C for domestic use (EN 60335-2-41). From o°C to +40°C for other uses Maximum working pressure : 8 bar (800 kPa) Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

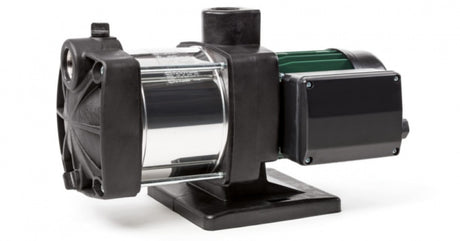

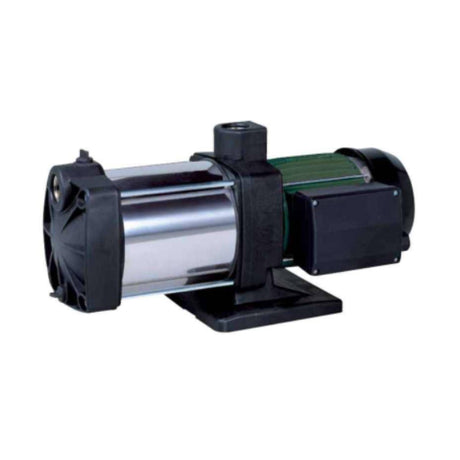

Technical features Model: MULTI INOX 3 Code : 60122692 Number of impellers : 3 Operating range: flow rate up to 90 l/min; head up to 59 m Liquid temperature range: from 0°C to +35°C for domestic use, from 0°C to +40°C for other uses. Pumped liquid: clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallised and chemically neutral. Maximum suction depth: 8 meters Maximum ambient temperature: +40°C Degree of protection: IPX4 Insulation class: F Installation: fixed or portable in horizontal position Special versions on request: other voltages and/or frequencies Packing dimensions : 460 x 230 x 270 Weight 8.8Kg DAB PUMPS There is a name in the electric pump sector that has been synonymous with high technology and reliability all over the world for over 30 years. This name is DAB, a company that has been designing and building electric pumps since 1975 with a very specific viewpoint: that of responding to the increasingly demanding market demands not only with products that attest to the highest levels of quality, but also with an efficient service and versatile. 35 years of experience and innovation Founded in 1975 in Veneto, DAB PUMPS SpA is today an international point of reference in the water handling sector. Its core business concerns the design, production and sale of electric hydraulic pumps able to satisfy any need for any type of domestic and professional application. A network as big as the world During its 35 years of constant growth, DAB PUMPS has also developed a sales network and technical assistance centers which provide widespread coverage of the national and international market. In addition to its 5 production plants located in Italy, the corporate structure is made up of 9 foreign branches and numerous distributors all over the world. The most reliable products With over 2 million pieces produced every year, DAB PUMPS electric pumps have become synonymous with high technology and reliability. DAB has a very wide range of water pumps, suitable for every need, made with cutting-edge materials that make them increasingly resistant to internal and external stresses, capable of guaranteeing high performance, quality and resistance over the long term, limiting the environmental impact. DAB pumps are the result of continuous research and technology, elements that try to offer flexible and easy-to-use solutions in every field of application. The specific attention that the company places on the materials and the homologation procedures to which each line is subjected before the production release, allows DAB PUMPS to simultaneously ensure the highest degree of resistance and the maximum performance of its products. General characteristics Self-priming, multi-impeller pump, ideal for water supply in domestic and garden applications. Very performing and highly silent. Available with 3, 4 and 5 impellers in AISI 304 stainless steel. Anti-corrosion and anti-overheating materials. Double insulation system between motor and hydraulic part. Excellent resistance to low temperatures. Equipped with power cable plus plug. Engine construction features: Stainless steel pump jacket. Pressure body, suction body and motor support in technopolymer. Impellers in AISI 304 steel, diffuser bodies and diffusers in technopolymer. Mechanical seal in carbon/ceramic. Rotor shaft in AISI 304 steel. Continuous service single-phase asynchronous motor. Built-in thermo-amperometric protection and permanently inserted capacitor. APPLICATIONS Multistage centrifugal pump with horizontal axis, self-priming with excellent suction capacity even in the presence of air bubbles, characterized by extremely silent operation suitable for domestic use for water supply and pressurization, irrigation of orchards and gardens, movement of water in general. Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Model : Euro 30 / 50 M single-phase Code : 102970060 Number of impellers : 3 Power : 0.55 kW (0.75 HP) Capacitor Capacity: 12.5mF Operating range : Flow rate up to 80 l/min (4.8 m3/h) with heads up to 42.5 metres. Maximum working pressure : 8 bar (800 kPa) General characteristics Multistage centrifugal EURO electric pump, pump body in cast iron. Horizontal axis multistage centrifugal pump, characterized by extremely silent operation, suitable for domestic use for water supply and pressurization, irrigation of orchards and gardens, movement of water in general. Advantages Pump body in 200 UNI ISO 185 cast iron engine mount in die-cast aluminium seal holder cover in AISI 304 steel Mechanical seal in carbon/ceramic Motor shaft in AISI 304 steel Impellers, diffuser bodies and diffusers in technopolymer Stainless steel shim rings Features of the series Motor protection degree : IP 44 Degree of protection of the terminal block: IP 55 Insulation class : F Operating range : From 10 to 120 l/min with head up to 72 metres Pumped liquid: clean, free from solid or abrasive substances, non viscous, non aggressive, non crystallized and chemically neutral, close to the characteristics of water Liquid temperature range : From 0°C to +35°C for domestic use (EN 60335-2-41). From o°C to +40°C for other uses Maximum working pressure : 8 bar (800 kPa) Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Model: EUROINOX 40/50 M single-phase with pump body in stainless steel N° impellers: 4 Power supply: 1 x 230V~50Hz Power: 0.75kW (1HP) Capacitor capacity: 25mF Operating range: flow rate up to 80 l/min (4.8 m3/h) with heads up to 58 metres. Maximum working pressure : 8 bar (800 kPa) To view more product information (dimensions, absorption) CLICK HERE and consult the attached images. DAB PUMPS There is a name in the electric pump sector that has been synonymous with high technology and reliability all over the world for over 30 years. This name is DAB, a company that has been designing and building electric pumps since 1975 with a very specific viewpoint: that of responding to the increasingly demanding market demands not only with products that attest to the highest levels of quality, but also with an efficient service and versatile. 35 years of experience and innovation Founded in 1975 in Veneto, DAB PUMPS SpA is today an international point of reference in the water handling sector. Its core business concerns the design, production and sale of electric hydraulic pumps able to satisfy any need for any type of domestic and professional application. A network as big as the world During its 35 years of constant growth, DAB PUMPS has also developed a sales network and technical assistance centers which provide widespread coverage of the national and international market. In addition to its 5 production plants located in Italy, the corporate structure is made up of 9 foreign branches and numerous distributors all over the world. The most reliable products With over 2 million pieces produced every year, DAB PUMPS electric pumps have become synonymous with high technology and reliability. DAB has a very wide range of water pumps, suitable for every need, made with cutting-edge materials that make them increasingly resistant to internal and external stresses, capable of guaranteeing high performance, quality and resistance over the long term, limiting the environmental impact. DAB pumps are the result of continuous research and technology, elements that try to offer flexible and easy-to-use solutions in every field of application. The specific attention that the company places on the materials and the homologation procedures to which each line is subjected before the production release, allows DAB PUMPS to simultaneously ensure the highest degree of resistance and the maximum performance of its products. General characteristics EUROINOX Multistage centrifugal electric pumps DOMESTIC WATER SUPPLY Horizontal axis multistage centrifugal pump, characterized by extremely silent operation, suitable for domestic use for water supply and pressurization, irrigation of orchards and gardens, movement of water in general. Series features: Operating range: from 10 to 120 litres/min. with head up to 72 m. Pumped liquid: clean, free from solid or abrasive substances, non viscous, non aggressive, non crystallized and chemically neutral, close to the characteristics of water. Liquid temperature range: from 0°C to +35°C for domestic use (EN 60335-2-41) from 0°C to +40°C for other uses. Maximum ambient temperature: +40°C Maximum working pressure: 8 bar (800 kPa) Installation: fixed or portable in horizontal position. Motor protection degree: IP 44 Degree of protection on the terminal block: IP 55 Insulation class: F Series voltage: single-phase 220/240 V - 50 Hz - 2 poles three-phase 230/400 V - 50 Hz - 2 poles Construction features of the pump: Pump body in stainless steel. Motor support in die-cast aluminium, seal holder cover in AISI 304 steel. Mechanical seal in carbon/ceramic. Rotor shaft in AISI 304 steel. Impellers, diffuser bodies and diffusers in technopolymer. Stainless steel shim rings. Engine construction features: Continuous duty asynchronous motor. Built-in thermo-amperometric protection and capacitor permanently inserted for the single-phase version. Protection by the user for the three-phase version. Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Model : Euro 40 /30 M single-phase Code : 102970040 Number of impellers : 5 Power : 0.55 kW (0.75HP) Capacitor Capacity: 12.5mF Operating range : Flow rate up to 55 l/min (3.3 m3/h) with heads up to 46 metres. Maximum working pressure : 8 bar (800 kPa) General characteristics Multistage centrifugal EURO electric pump, pump body in cast iron. Horizontal axis multistage centrifugal pump, characterized by extremely silent operation, suitable for domestic use for water supply and pressurization, irrigation of orchards and gardens, movement of water in general. Advantages Pump body in 200 UNI ISO 185 cast iron engine mount in die-cast aluminium seal holder cover in AISI 304 steel Mechanical seal in carbon/ceramic Motor shaft in AISI 304 steel Impellers, diffuser bodies and diffusers in technopolymer Stainless steel shim rings Features of the series Motor protection degree : IP 44 Degree of protection of the terminal block: IP 55 Insulation class : F Operating range : From 10 to 120 l/min with head up to 72 metres Pumped liquid: clean, free from solid or abrasive substances, non viscous, non aggressive, non crystallized and chemically neutral, close to the characteristics of water Liquid temperature range : From 0°C to +35°C for domestic use (EN 60335-2-41). From o°C to +40°C for other uses Maximum working pressure : 8 bar (800 kPa) Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

ATTENTION The product will be available on order and will be shipped in 10 working days! Technical features Product Code : DP 82 M Power supply : 1x 220-240V ~ 50Hz Power : 0.6 kW (0.8 HP) Operating range : Up to 4.3 m 3 /h Pumped liquid: clean, free from solid or abrasive substances, non viscous, non aggressive, non crystallized and chemically neutral, close to the characteristics of water Liquid Temperature Range: from 0°C to +35°C for domestic use, from 0°C to +40°C for other uses Maximum Ambient Temperature: +40° C Maximum working pressure: 6 Bar (600 kPa) Installation : Fixed in horizontal position Special Executions on Request: Other voltages and/or frequencies Motor Protection Degree: IP 44 Degree of protection on the terminal block: IP 55 Insulation class : F Applications Self-priming centrifugal pump for suctions up to 27 meters, reached through the use of the ejector to be introduced in wells of 4” or greater diameter. Used for the water supply of farmhouses and small agriculture Construction features of the pump • Pump : Body and motor support in cast iron. Technopolymer impeller and diffuser. Stainless steel shim ring. Mechanical seal in carbon/ceramic • Ejector : Cast iron body. Venturi tube in technopolymer A and brass nozzle. The ejector is available in three models (E 20 - E 25 - E 30) depending on the required performance Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Model : Jetinox 82 M Operating range : Up to 0.4 to 10.5 m3/h with heads up to 62 metres. Pumped liquid: clean, free from solid or abrasive substances, non viscous, non aggressive, non crystallized and chemically neutral. Liquid temperature range : From 0 °C to +35°C for domestic use (EN 60335-2-41) From 0°C to +40°C for other uses. Maximum suction depth: 8 meters Maximum ambient temperature: +50°C Maximum working pressure: 8 bar (800 kPa) Installation: fixed or portable in horizontal position. Special executions on request: other voltages and/or frequencies. Motor protection degree: IP 44 Degree of protection of the terminal block: IP 55 Insulation class: F Series voltages: single-phase 220-240V / 50Hz three-phase 230-400V / 50Hz General characteristics Self-priming centrifugal pump with excellent suction capacity even in the presence of air bubbles. Particularly suitable for water supply in domestic systems, small-scale agriculture, gardening and in general where the self-priming function is required. CONSTRUCTION CHARACTERISTICS OF THE PUMP Pump body, seal holder cover and shim ring in stainless steel. Engine mount in die-cast aluminium; Impeller, diffuser and Venturi tube in technopolymer. Mechanical seal in carbon/ceramic. CONSTRUCTION CHARACTERISTICS OF THE ENGINE Asynchronous type, closed, cooled by external ventilation. Rotor mounted on greased-for-life and oversized ball bearings to guarantee silence and durability. Built-in thermo-amperometric protection and capacitor permanently inserted in the single-phase version. For the protection of the three-phase motor it is recommended to use a motor protection switch in accordance with current standards. Construction according to CEI 2-3 and CEI 61-69 (EN 60335-2-41) standards. Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Model : Euro 40 /80 M single-phase Number of impellers : 4 Power : 1 kW (1.36 HP) Capacitor capacity : 25mF Operating range : Flow rate up to 120 l/min (7.2 m3/h) with heads up to 59 metres. Maximum working pressure : 8 bar (800 kPa) General characteristics Multistage centrifugal EURO electric pump, pump body in cast iron. Horizontal axis multistage centrifugal pump, characterized by extremely silent operation, suitable for domestic use for water supply and pressurization, irrigation of orchards and gardens, movement of water in general. Advantages Pump body in 200 UNI ISO 185 cast iron engine mount in die-cast aluminium seal holder cover in AISI 304 steel Mechanical seal in carbon/ceramic Motor shaft in AISI 304 steel Impellers, diffuser bodies and diffusers in technopolymer Stainless steel shim rings Features of the series Motor protection degree : IP 44 Degree of protection of the terminal block: IP 55 Insulation class : F Operating range : From 10 to 120 l/min with head up to 72 metres Pumped liquid: clean, free from solid or abrasive substances, non viscous, non aggressive, non crystallized and chemically neutral, close to the characteristics of water Liquid temperature range : From 0°C to +35°C for domestic use (EN 60335-2-41). From o°C to +40°C for other uses Maximum working pressure : 8 bar (800 kPa) Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Wilo multistage centrifugal electric pump normally suction version HIMULTI 3-23/1/5/230 4189516 General characteristics Brand: Wilo Model: HIMULTI 3-23/1/5/230 Code: 4189516 Data sheet Description Field of applications: Residential and commercial applications Water pressurization Irrigation Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Wilo single-phase multistage centrifugal electric pump self-priming version HIMULTI 3-45 P/1/5/230 4194284 General characteristics Brand: Wilo Model: HIMULTI 3-45 P/1/5/230 Code: 4194284 Data sheet Description Field of applications: Residential and commercial applications Water pressurization Irrigation Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Ebara horizontal silent multistage centrifugal electric pump with single-phase cast iron body COMPACT AM/12 1480050000 General characteristics Brand: Ebara Model: COMPACT AM/12 Code: 1480050000 Data sheet Maximum flow rate, m3/h: 4.8 Maximum pumping height: 74 m Maximum working pressure: 7.4 bar Maximum liquid temperature: 40°C Suction diameter: G1 Outlet diameter: G1 Electrical connection: 230V, single phase Motor power: 0.9kW Hydraulic seal: Standard (Ceramic/Carbon/NBR) Pump material: Cast iron Motor type: 2 poles Description APPLICATIONS • Domestic pressurization • Pressure increases in general • Small garden irrigation • Vehicle washing • Movement of clean water TECHNICAL FEATURES • Particularly silent • Light and easy to handle PUMP TECHNICAL DATA • Maximum working pressure: 10 bar • Maximum liquid temperature: 40°C • G1 suction connection for COMPACT A, G1¼ for COMPACT B • G1 delivery connection ENGINE TECHNICAL DATA • IE2 and IE3 high efficiency motors starting from 0.75kW • Self-ventilated 2-pole asynchronous motor • Class of insulation F • IP44 degree of protection • Single-phase voltage 230V ± 10% 50Hz, three-phase voltage 230/400V ± 10% 50Hz • Permanently inserted capacitor and protection built-in thermo-amperometric sensor with automatic reset for the motor single phase • Protection by the user for the three-phase version MATERIALS • Pump body and support in cast iron • External jacket in AISI 304 • Impeller and diffuser in PPE+PS reinforced with glass fibers • Stages in PPE+PS reinforced with glass fibres/PTFE • Shaft in AISI 416 • Mechanical seal in Ceramic/Carbon/NBR Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less
