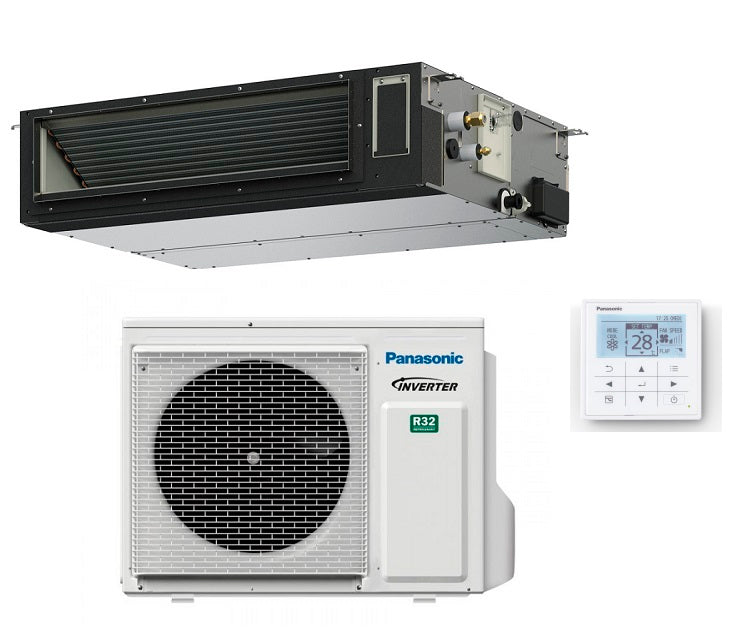

Panasonic Air Conditioner Ducted Ductable Inverter PACi NX Standard 12000 btu medium head S-3650PF3 + U-36PZ3E5 R-32 complete with CZ-RTC5B control

Panasonic Air Conditioner Ducted Ductable Inverter PACi NX Standard 12000 btu medium head S-3650PF3 + U-36PZ3E5 R-32 complete with CZ-RTC5B control

• PACi NX Standard series, flexible ducted unit Inverter+ - R32 SINGLE-PHASE
• Kit KIT-50PF3Z5
• CZ-RTC5B command
• Capacity in cooling (Nominal) kW 5.0
• Capacity in cooling (Min) kW 1,5
• Capacity in cooling (Max) kW 5.3
• EER (Nominal) (1) W/W 2.78
• SEER/ηsc (2) % 6.5 A++
• Theoretical capacity in cooling. - Pdesign kW 5.0
• Cooling consumption (Nominal) kW 1.8
• Annual consumption in cooling (3) kWh/a 267
• Heating capacity (Nominal) kW 5.0
• Heating capacity (Min) kW 1,5
• Heating capacity (Max) kW 5.9
• COP (Nominal) (1) W/W 3.62
• SCOP/ηsc (2) % 4.0 A+
• Heating consumption (Nominal) kW 1.38
• Annual consumption in heating (3) kWh/a 1,303

OUTDOOR UNIT

• Indoor unit S-3650PF3E
• External static pressure (Nominal) (4) Pa 30
• External static pressure (Min) (4) Pa 10
• External static pressure (Max) (4) Pa 150
• Dehumidification capacity L/h 16.0
• Air flow rate (Hi) m³/min 15.0
• Air flow (Med) m³/min 12.0
• Air flow (Lo) m³/min 1.9
• Internal sound pressure (Hi) (5) dB(A) 34
• Internal sound pressure (Med) (5) dB(A) 30Internal sound pressure (Lo) (5) dB(A) 25
• Internal sound power (Hi) dB(A) 57
• Internal sound power (Med) dB(A) 53
• Internal sound power (Lo) dB(A) 48
• Internal unit dimensions (Height) mm 250
• Indoor unit dimensions (width) mm 800
  Internal unit dimensions (Depth) mm 730
• Net weight kg 25
• Supply voltage V 220 - 230 - 240
• Air flow rate (Cool) m³/min 32.7
• Air flow (Heating) m³/min 31.9
• External sound pressure (Cool -Hi) dB(A) 46
• External sound pressure (Heating -Hi) dB(A) 46
• External sound power (Raff -Hi) dB(A) 64
• External sound power (Heat-Hi) dB(A) 64
• External unit dimensions (Height) mm 619
• External unit dimensions (Width) mm 824
• External unit dimensions (Depth) mm 299
• Net weight kg 35
• Connecting pipe (Liquid side) Inch (mm) 1/4 (Ø6.35)
• Connection pipe (Gas side) Inch (mm) 1/2 (Ø12.7)
• Length of connection pipes m 3 - 20

PACi NX - The new generation has arrived

The NX series with R32 refrigerant has been developed to meet the need to simplify renovation works using a 3-wire communication mode. It is integrated with IoT solutions and nanoe™ technology.

PACi NX Series - Standard range: a solution that is easy to integrate into refurbishment projects

The new series has been developed with a 3-wire communication mode. This simplifies the replacement of older systems where 3-wire wiring is prevalent

Better indoor air quality

nanoe™ X technology has the potential to inhibit a wide variety of bacteria, viruses and pollutants. This patented technology is designed to improve air quality in both residential and commercial settings.

Key points of the range

PACi: Commercial air-to-air range. The compact and highly efficient solution for shops, restaurants, offices or for residential applications Great savings and greater comfort. Panasonic has developed a wide range of highly efficient commercial air conditioners. This range confirms our commitment
for the environment. Inverter compressors optimize performance, consequently reducing energy costs.

Energy saving

R32 refrigerant gas. Our heat pumps containing R32 refrigerant show a drastic reduction in the value of the heating potential
global (GWP).28%
Econavi. intelligent sensors of the Econavi system (human activity sensor and brightness sensor) automatically adjust the power of the airflow, thus allowing you to save money efficiently.

Natural comfort for your interior spaces nanoe™ X, technology based on the benefits of hydroxyl radicals.

Nowadays we are concerned with leading a healthy and balanced life. We make sure we carry out adequate physical activity, we pay attention to what we eat, what we touch, not always the air we breathe and technology supports us in improving the air quality in living spaces.

Abundant in nature, hydroxyl radicals (also known as OH- radicals) have the ability to inhibit pollutants, certain types of viruses and bacteria to improve and deodorize the environment. nanoe™ X technology can bring these incredible benefits within the spaces we live in, such as within a home or workplace or in hotels, shops and restaurants, consequently improving the surrounding environment by making it cleaner and more pleasant.

A natural process

Hydroxyl radicals are unstable molecules that react with other elements such as hydrogen, capturing it. Thanks to this reaction, hydroxyl radicals have the potential to inhibit the development of various pollutants such as bacteria, viruses, molds and odours, neutralizing their unpleasant effects. This natural process has important advantages as it helps to improve the quality of indoor environments.

The PF3 units have been completely redesigned to ensure better flexibility. It is now possible to install the units also in vertical position with a relevant external static pressure (maximum 150 Pa).

Selectable air inlet position

The position of the incoming air can be chosen by means of a removable panel, to allow rear or lower entry, depending on the duct installation.

• peso: 35.0 kg
• classe energetica raffreddamento: A+
• classe energetica riscaldamento: A+
• gas: R-32
• marca: Panasonic
• metri quadri : 40-50 sq m
• modello: S-3650PF3E+U-36PZ3E5+CZ-RTC5B
• potenza btu: 18000
• superficie riscaldabile mq: 50
