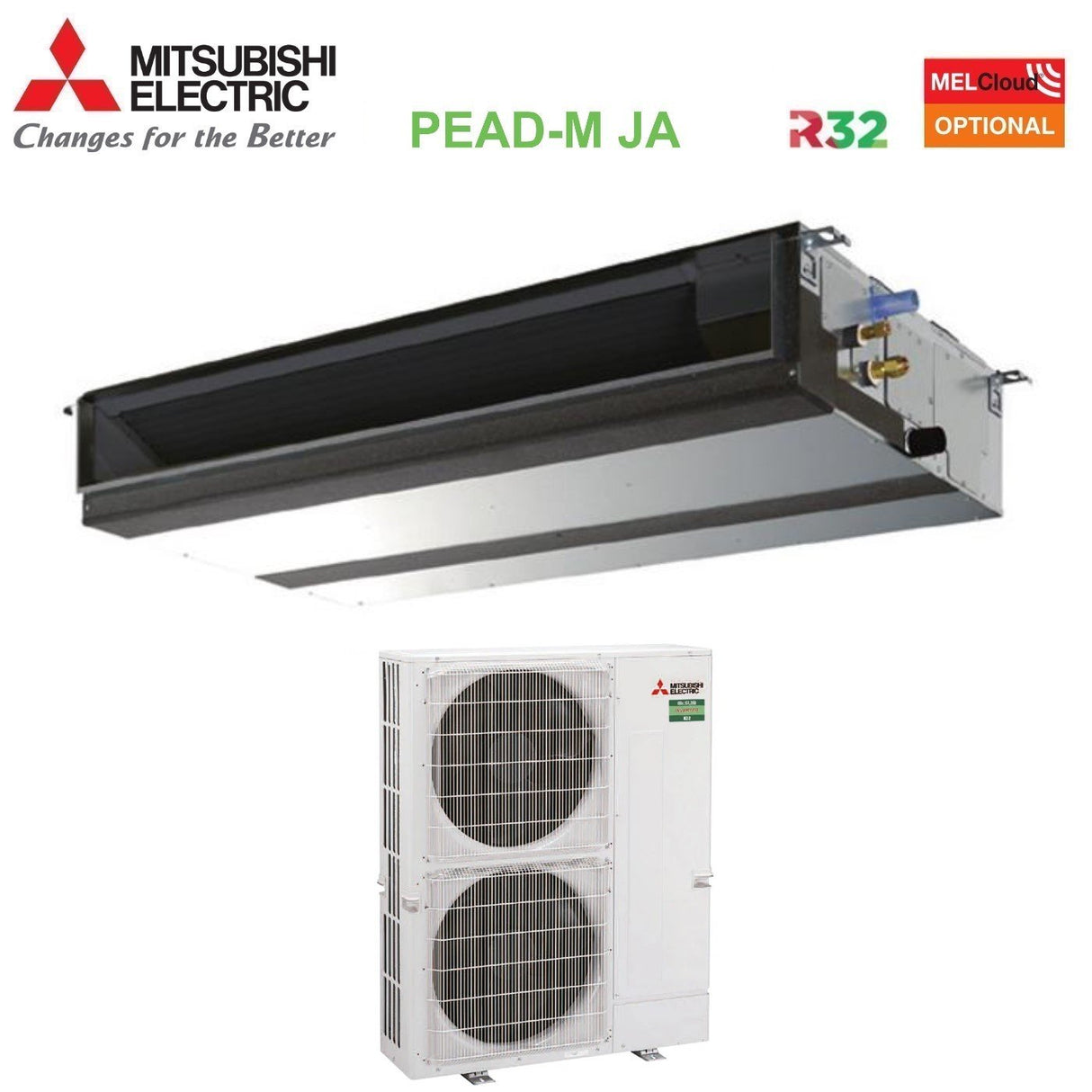

Mitsubishi Electric Ducted Inverter Air Conditioner Medium Prevalence 34000 Btu PEAD-M100JA + PUZ-M100VKA Single Phase R-32 Wi-Fi Optional
Mitsubishi Electric Ducted Inverter Air Conditioner Medium Prevalence 34000 Btu PEAD-M100JA + PUZ-M100VKA Single Phase R-32 Wi-Fi Optional is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:
- Standard Shipping: Estimated delivery within 2 to 5 business days
- Premium Shipping: Guaranteed delivery within 24 business hours
- Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours
See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.
For more details on Premium Shipping, please visit the Premium Shipping page.
Customer service
Customer service
Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.
Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.
Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.
Description
Description
The Product Is Available To Order
Technical Features
- Indoor unit catalog code: PEAD-M100JA
- Outdoor unit catalog code: PUZ-M100VKA
- Power: 34000 btu
- Optional Wi-Fi card: MAC-567IF-E
- Optional remote control: PAR-FL32MA-E
- Optional Infrared Receiver: PAR-FA32MA-W
- Optional Simplified Wired Control: PAC-YT52CRA-K
- Optional Deluxe Wired Control: PAR-40MAA
- SEER : 5.4
- SCOP : 4.0
- Energy Efficiency Class in Cooling: A
- Energy Efficiency Class in Heating: A+
- Annual Energy Consumption in Cooling: 613 kWh/a
- Annual Energy Consumption in Heating: 2795 Kwh/a
- Cooling capacity: 9.5 kW
- Heating capacity: 11.2 kW
- Cooling Power Consumption: 2.87 kW
- Heating absorption: 2.94 kW
- Treated Air Indoor Unit: 24~34 m 3 /min
- Sound Power Level Indoor Unit: 62 dB(A)
- Sound Power Level Outdoor Unit: 70 dB(A)
- Sound pressure level Indoor unit : 29~38 dB(A)
- Sound pressure level Outdoor unit: 51 dB(A)
Electrical Data
- Power supply (V,Hz,Ø) : 220~240/50/1
- Refrigerant gas: R32
- Operating range
- - Cooling: -15° ~ 46° C
- - Heating: -15° ~ 21° C
- Liquid Pipe Diameter: 9.52 mm (3/8")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum length of pipes: 55 m
- Maximum height difference between internal unit and external unit: 30 m
Dimensions and Weight
- Internal Unit Dimensions (HxWxD): 250x1400x732 mm
- Internal Unit Weight: 39 Kg
- External Unit Dimensions (HxWxD): 981x1050x330 mm
- External Unit Weight: 76 Kg

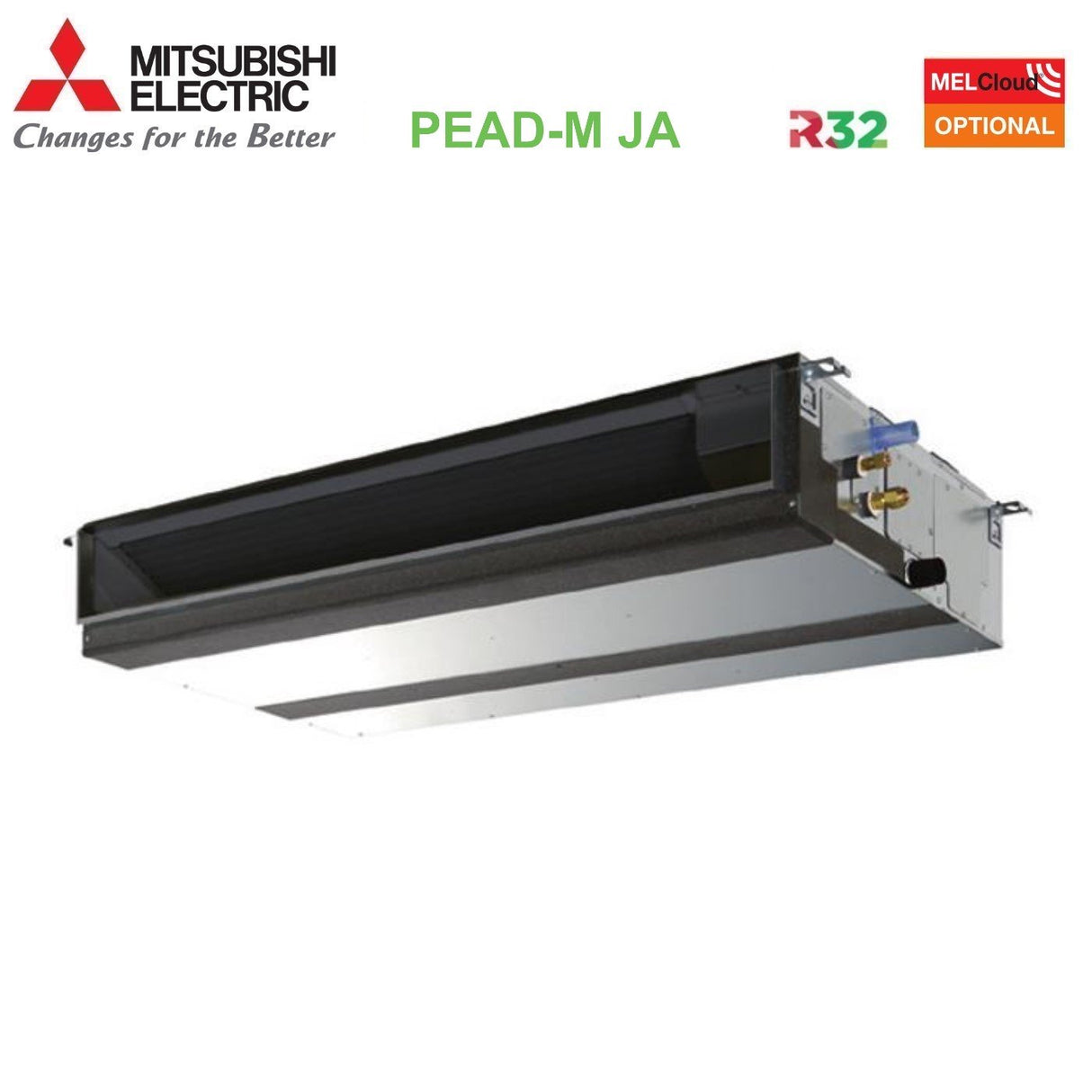

Mitsubishi Electric Ducted Medium Head PEAD-M JA
Cost-effectiveness and Installation Flexibility
The low-profile, ceiling-concealed indoor units of this air conditioning series are the perfect solution for air conditioning requirements where ceiling installation space is very limited and external static pressure values are subject to wide variations. Energy efficiency has been optimised, electricity consumption is reduced and the operating costs of the appliance are therefore lower.
The ultra-thin indoor unit is characterized by particularly silent operation. It is equipped with a direct expansion battery. It is suitable for ducted recessed installation. A height of only 250 mm guarantees economy and flexibility of installation
Extremely Quiet Operation
In addition to the innovative silent features already present on other Mitsubishi Electric air conditioners, the PEAD series uses a sirocco type fan with extremely silent operation.
Condensate Drain Pump Included
The PEAD series units are not only easy to install but also The provision of a drain pump with a head of 550 mm facilitates the drainage of condensate water even in critical conditions.
DC Inverter Fan
The PEAD units are equipped with a DC Inverter fan that allows the modulation of the number of revolutions, guaranteeing, in addition to silence, optimal comfort and energy savings.
Static Pressure Adjustable
External static pressure can be adjusted to suit system configuration and installation conditions. Static pressure settings can be increased to suit all duct types, with 5 steps from 35 Pa up to 150 Pa
Various Installation Possibilities
The PEAD series units are not only easy to install but also very versatile. It is possible to vary the position for the air intake, rear or lower , to optimize the available space.
MELCloud, the Wi-Fi control
MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. Using the support of the cloud, the “Cloud”, to transmit and receive information and the optional dedicated Wi-Fi interface MAC-567IF-E, you can easily control your system wherever you are via your PC, tablet or smartphone; all you need is an internet connection. The MELCloud service has been designed to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.
One word is enough for you!
MELCloud is compatible with Google Home. Saying "Hey Google!" or "Ok Google!" gives you full control of your air conditioning system. MELCloud is compatible with Amazon Alexa. Just one word is enough to freely manage your air conditioning units
Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Technical Data Sheet
Technical Data Sheet
- peso: 199.0 kg
- classe energetica raffreddamento: A
- classe energetica riscaldamento: A+
- gas: R-32
- marca: MITSUBISHI ELECTRIC
- metri quadri : 130 - 160 m2
- modello: PEAD-M100JA + PUZ-M100VKA
- potenza btu: 34000
