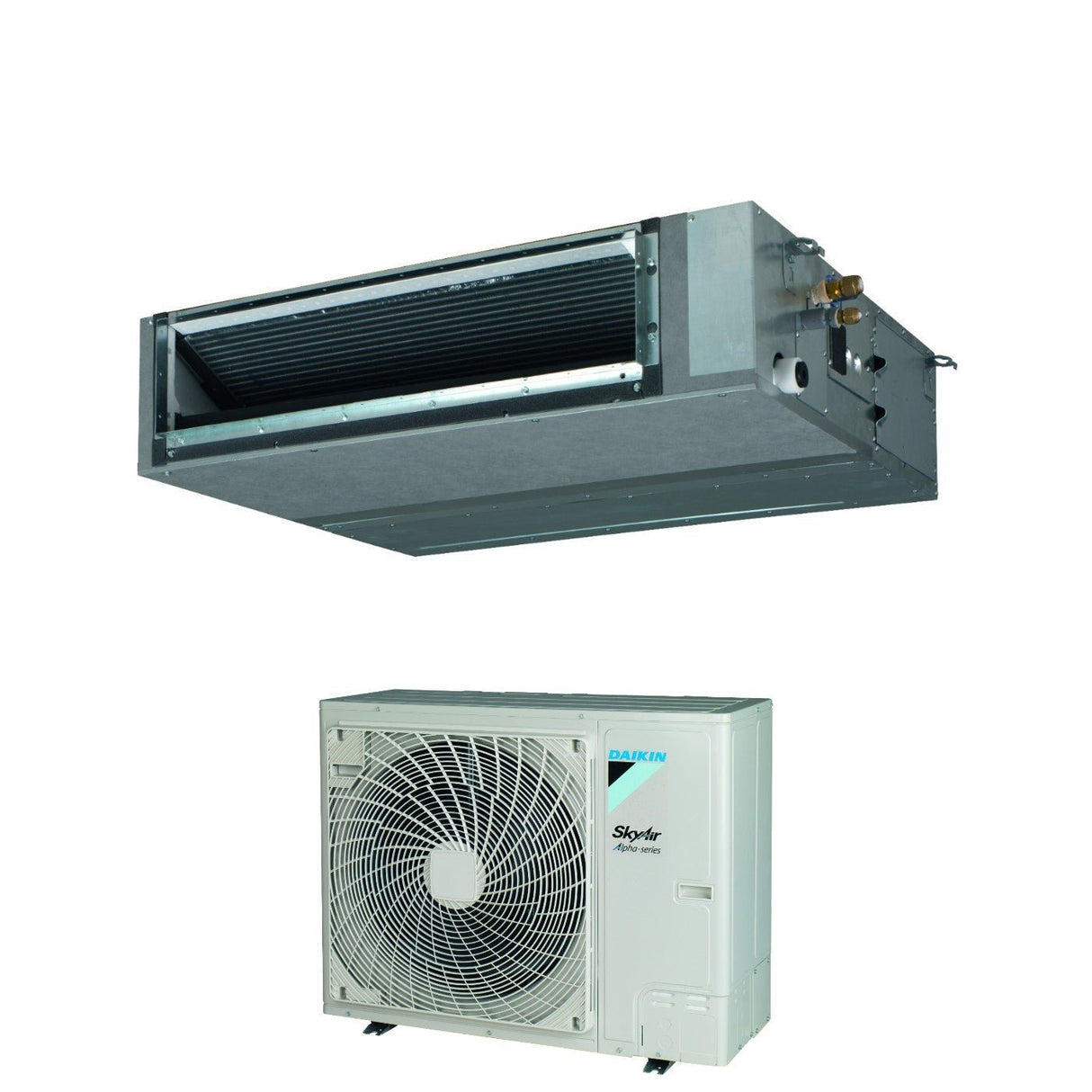

Air Conditioner Daikin Bluevolution Ducted Ductable Medium Prevalence 48000 Btu FBA140A + RZAG140NY1 Three Phase R-32 Wi-Fi Optional

Technical features

• Indoor unit catalog code: FBA140A
• Outdoor unit catalog code: RZAG140N1
• Power: 48000 Btu

Optional accessories

• Wi-Fi Card : BRP069A81
• Modoka White Wired Control: BRC1H52W
• Modoka silver wired remote control: BRC1H52S
• Modoka black wired remote control: BRC1H52K
• Infrared remote control : BRC4C65

Energy efficiency

• SEER: 6.42
• SCOP : 4.34
• Energy efficiency class in cooling: A++
• Energy efficiency class in heating: A+
• Annual energy consumption in cooling: 1252 kWh/a
• Annual energy consumption in heating: 3070 kWh/a

Performance

• Cooling capacity: 13.4 kW
• Heating capacity: 15.5 kW
• Indoor unit air flow rate: 29 ^m3 /min
• Sound power level indoor unit: 62 dB(A)
• Sound power level of outdoor unit : 70~71 dB(A)
• Indoor unit sound pressure level : 32~38 dB(A)
• Outdoor unit sound pressure level : 50~52 dB(A)

Characteristics

• Power supply (V/Hz/F) : 380~415/50/3
• Refrigerant gas: R-32
• Operating range
• - Cooling: -20°C ~ 52°C
• - Heating: -20°C ~ 18°C

• Liquid pipe diameter: 9.52 mm (3/8")
• Gas pipe diameter: 15.88 mm (5/8")
• Maximum pipe length: 85 m
• Maximum height difference between internal unit and external unit: 30 m

Dimensions and weight

• Internal unit dimensions (HxWxD): 245x1400x800 mm
• Internal unit weight: 46.0 Kg
• External unit dimensions (HxWxD): 870x1100x460 mm
• External unit weight: 94.0 Kg

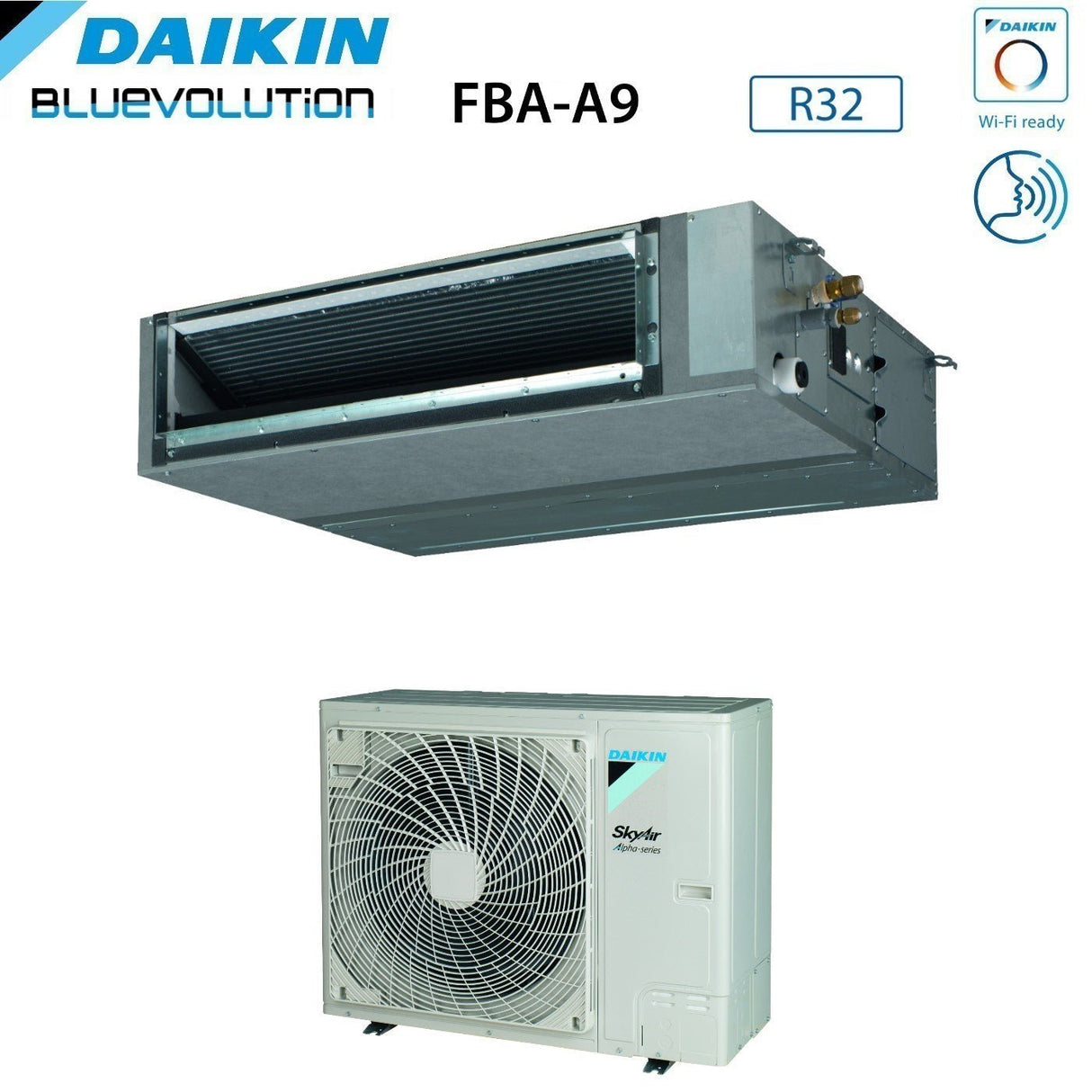

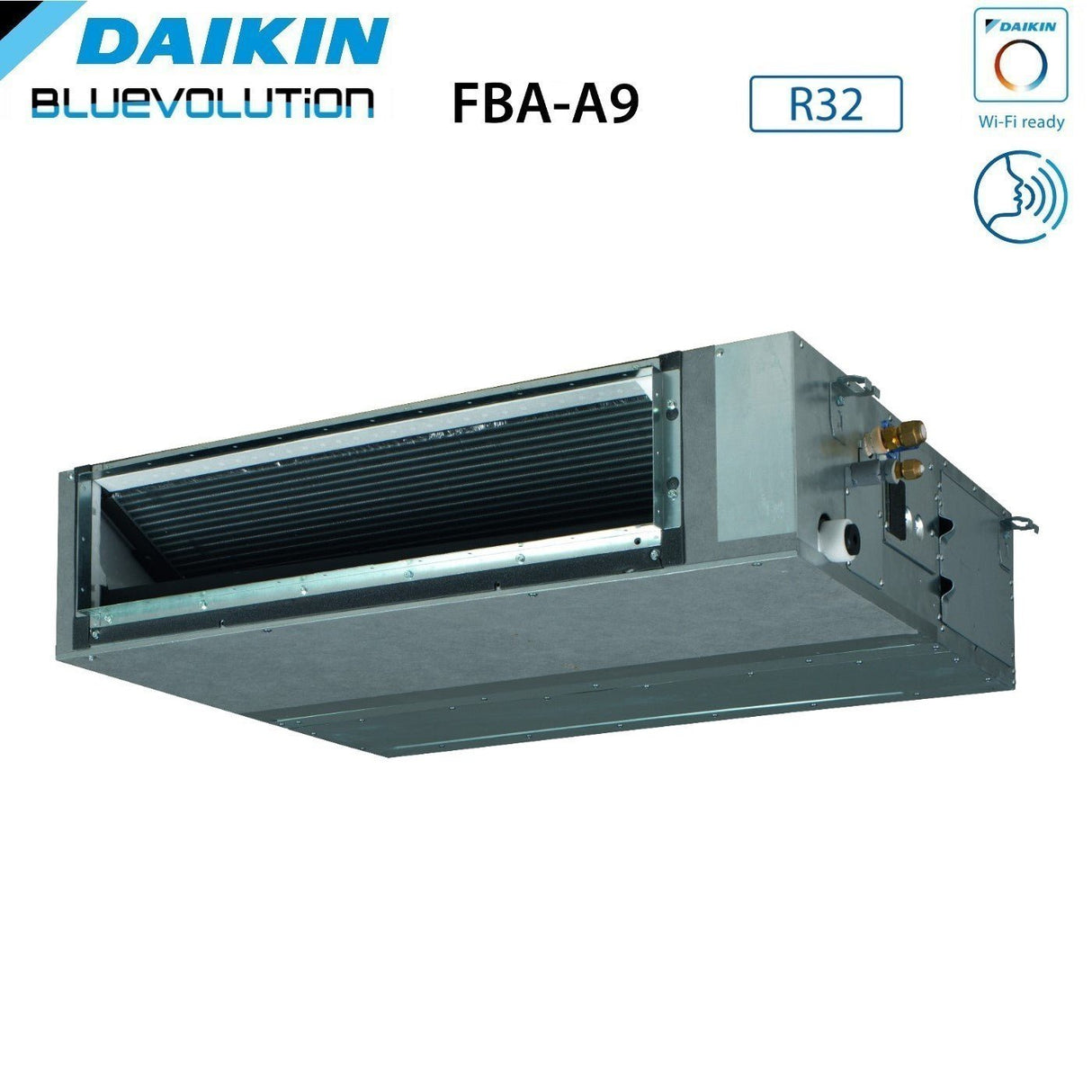

Daikin FBA-A Ducted Ceiling Unit Medium static pressure

The most compact unit with the most powerful medium head on the market.

" Daikin BLUEVOLUTION redefines market standards for efficiency, silence, pure air and consumption control , with particular attention to environmental impact. "

Discover the well-being of the future

When you choose Daikin for your home, you simply choose the best. Today, Daikin has taken comfort to a whole new level, reinventing the environment with its Bluevolution range . By choosing Daikin technologies, you can enjoy maximum efficiency, silence and pure air. High seasonal efficiency levels ensure the best atmosphere in both summer and winter, while minimising consumption. The new R-32 refrigerant is more environmentally friendly than standard refrigerants. Daikin's vast experience and wide range of products mean reliable, long-lasting systems that are perfect for your home. And even when you're not at home, you can control and adjust the temperature in the rooms and the operating mode via an easy-to-use smartphone app. Let Daikin guide you to create the perfect atmosphere.

Ductable for false ceiling with inverter-driven fan

• High energy efficiency unit: up to energy class A

• Reduction of energy consumption thanks to inverter-controlled fans

• It adapts perfectly to any type of furniture. Only the intake and delivery grilles are visible

• Greater comfort thanks to 3-step airflow control

• The prevalence of up to 150 Pa allows the use of the unit with flexible ducts of various lengths: ideal for medium-sized shops and offices

• The possibility of modifying the prevalence via wired remote control allows you to optimise the flow of air introduced

• Extremely quiet operation: sound pressure reduced to 29 dBA

• Simplified installation thanks to the automatic flow adjustment and the height of only 245 mm

• The standard air filter removes airborne dust particles, ensuring a constant supply of clean air.

• The integrated condensate drain pump included in the standard equipment increases the reliability of the drainage system

• No optional adapter is required for DIII connection

Onecta App Full control, wherever you are

Not at home? With the Onecta app, this is not a problem. The app gives you instant access to all functions. You can easily adjust the settings of your Daikin Emura via your smartphone, anywhere and anytime.

• Check all the features of your Daikin Emura air conditioner

• Create different programs and operating modes

• Monitor energy consumption on a daily, weekly or yearly basis

• Identify the room in your home to easily control different units

Simply connect to the WLAN network and download the Onecta app to start creating the perfect climate for your home.

The Onecta app allows you to connect Daikin to your Wi-Fi network and control your air conditioning system from anywhere, using Apple or Android devices. Even when you are not at home, you can turn on, off, set the cooling or heating operation , adjust the room temperature and the air flow of the air conditioner . It's very simple

Voice Control

To further enhance your comfort and convenience, the Daikin Onecta - Residential Controller app is now available with voice control. The ability to control the application hands-free eliminates the need for clicking and allows for faster unit management than ever before. Cross-platform and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Always Connected Unit

The unit can be managed via the new Daikin Onecta App - Residential Controller and is compatible with Amazon Alexa and Google Home voice assistants. Wi-Fi connection is guaranteed thanks to the SD card integrated into the unit

Programming

Set a schedule to define when the system will run, and create up to six different actions per day

Program the room temperature and operating mode

Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Check system status

Access energy consumption graphs (daily, weekly, monthly)

Check

Customize your system to fit your lifestyle and year-round comfort needs

Change the room temperature

Activate Powerful mode to enhance operation

Availability of features depends on the system type, configuration and operation mode. App features are only available if both the Daikin system and the app use a reliable internet connection.

Daikin Sk Air Alpha Series Outdoor Unit Industry-leading technology for commercial applications and also for technical rooms

› Maximum efficiency: Energy classes up to A++ in both cooling and heating and the compressor offers substantial improvements in efficiency

› Perfect balance between efficiency and comfort thanks to the variable refrigerant temperature function: seasonal efficiency maximized during most of the year and rapid adjustment on the hottest days

› Suitable for highly sensitive infrastructure cooling applications

› Replacement of existing systems with R32 technology without having to replace the pipes

› Ensures operation in heating and cooling mode down to -20 °C

› Reliable and guaranteed cooling with electronic board cooled with refrigerant, not influenced by the ambient temperature

› External units for monosplit, twin, triple, double twin configurations

Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 130.0 kg
• alimentazione: Three-phase
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A++
• gas: R-32
• marca: Daikin
• metri quadri : 160 - 180 m2
• modello: FBA140A + RZAG140NY1_1
• potenza btu: 48000
• superficie riscaldabile mq: 140
