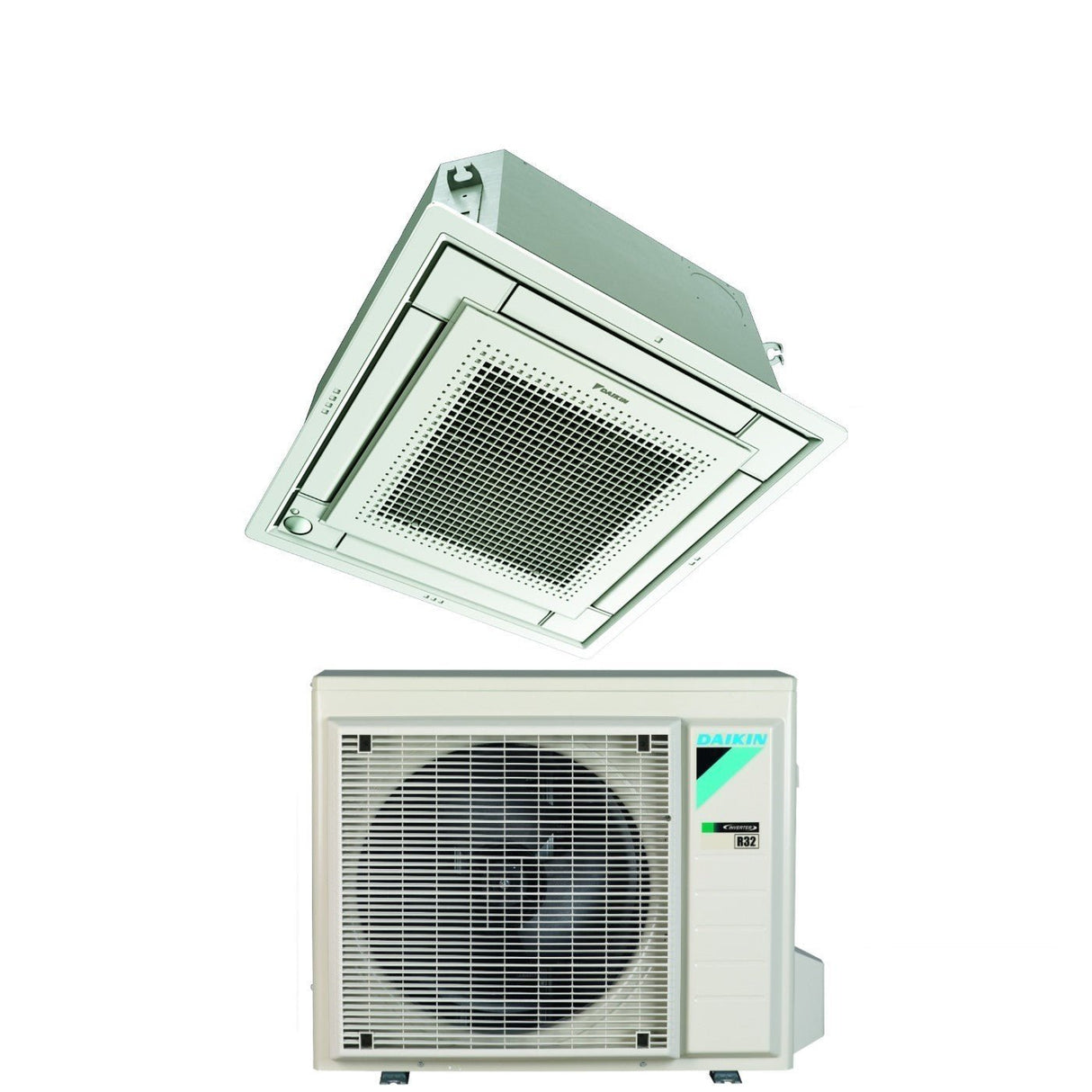

Daikin Cassette Air Conditioner Fully Flat 9000 Btu Ffa25a9 R-32 Wi-Fi Optional With Grid Included Class A++/A+ - Italian Warranty

Technical features

Model:

• Indoor unit catalog code: FFA25A9
• Outdoor unit catalog code: RXM25N/R9
• Decorative Panel Code : BYFQ60CW
• Power : 9000 Btu

• Optional Wi-Fi card : BRP069A81 )

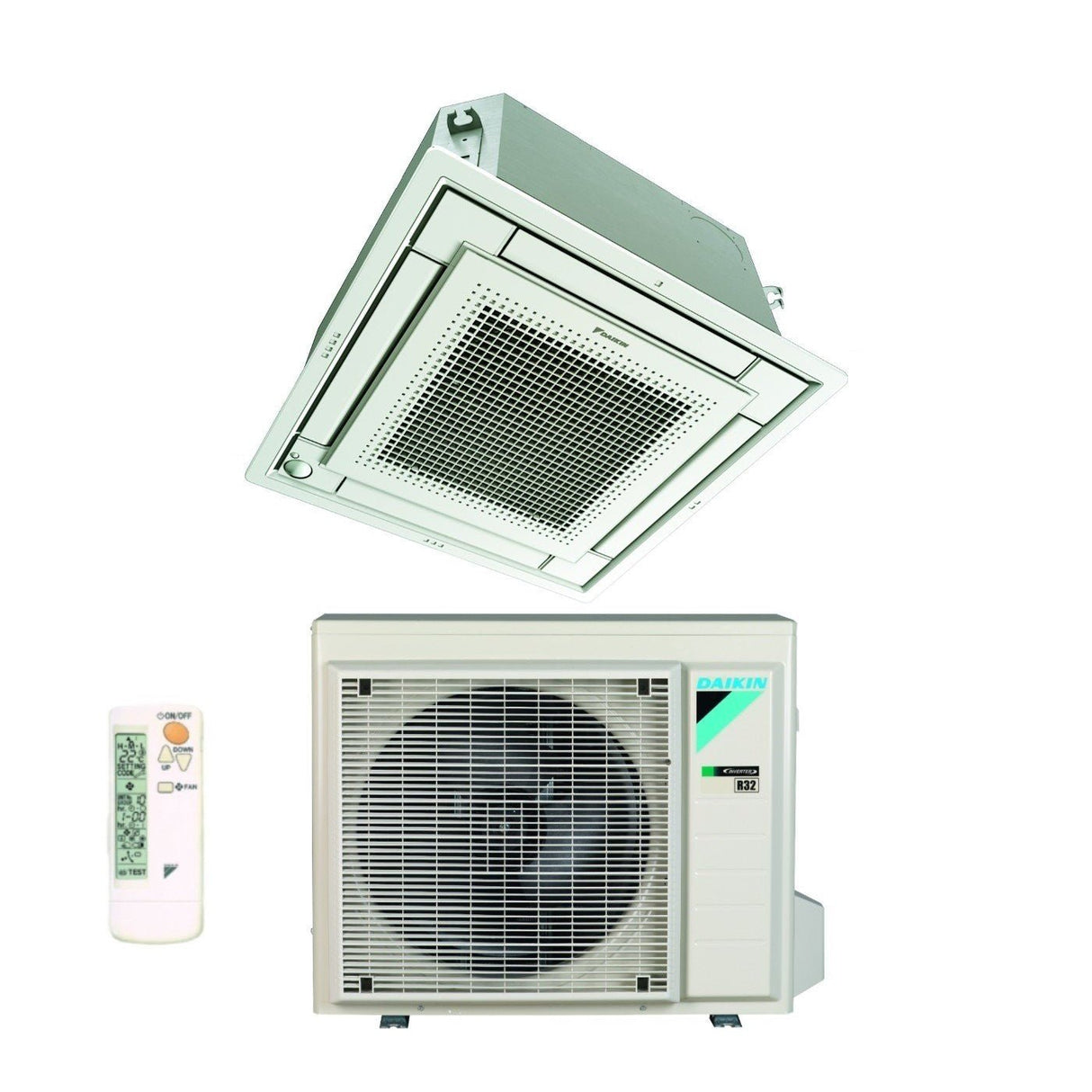

• Infrared remote control : BRC7F530W/S

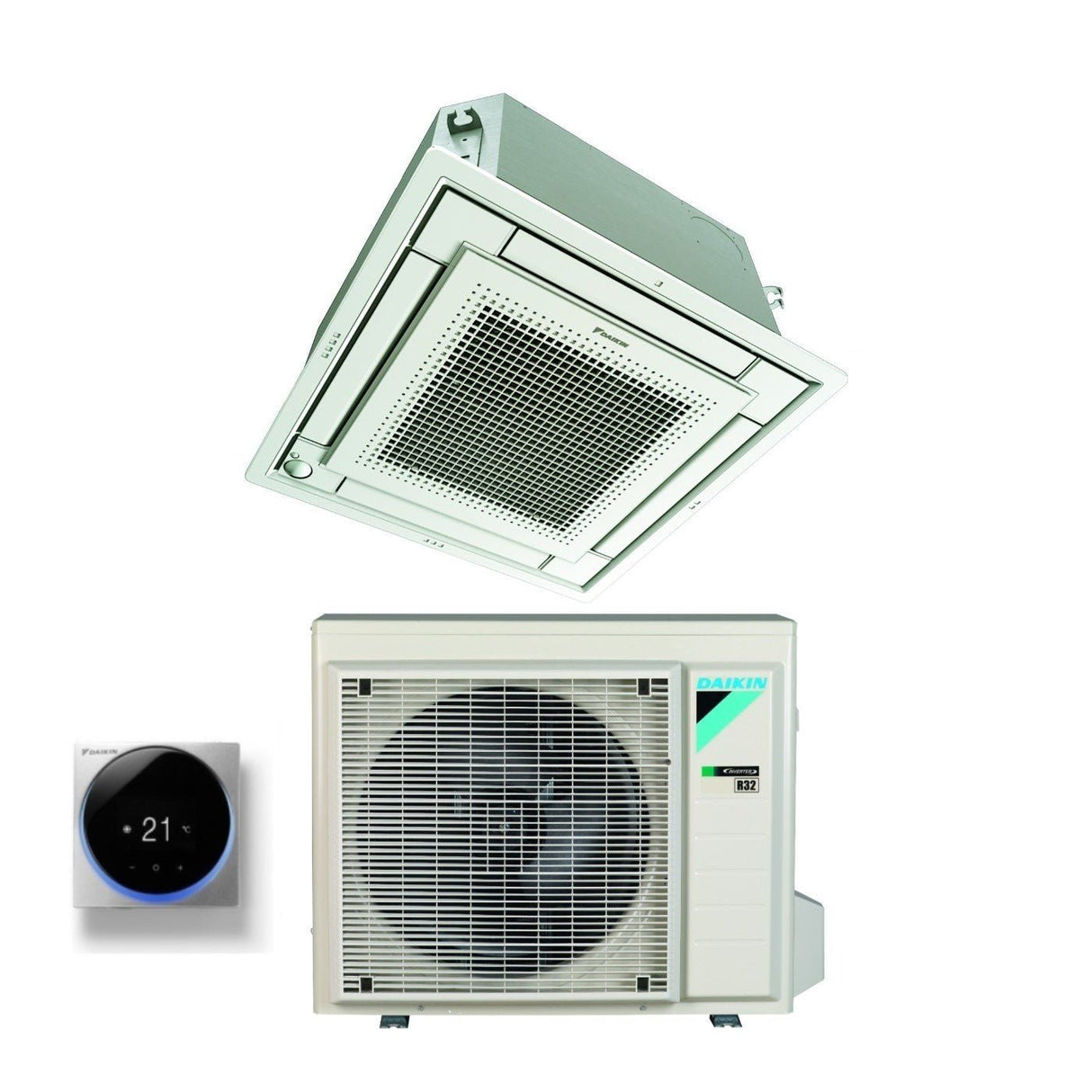

• White Modoka Wire Control : BRC1H519W
• Modoka Silver Wire Control : BRC1H519S

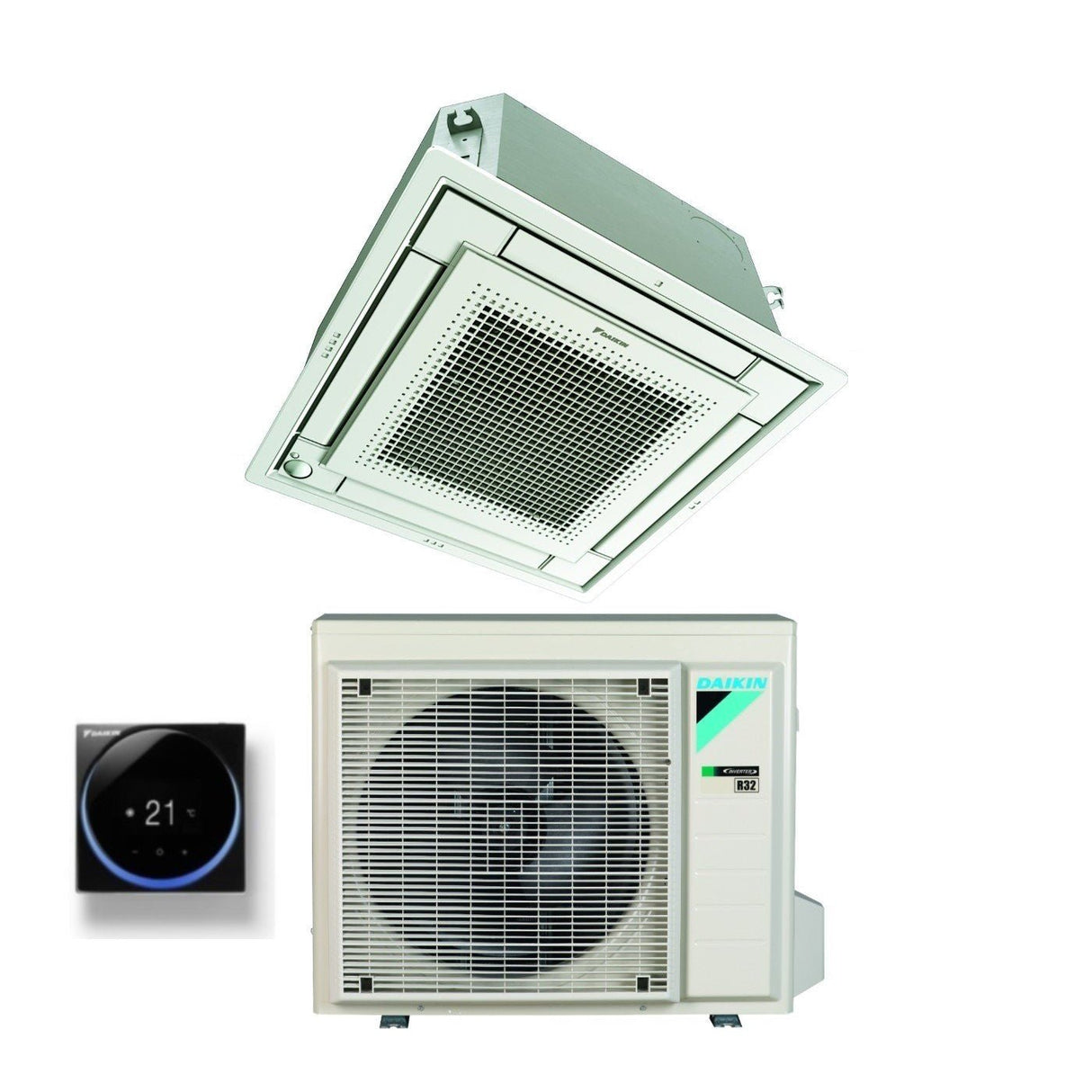

• Black Modoka Wire Control : BRC1H519K

Energy efficiency

• SEER: 6.17
• SCOP : 4.10
• Energy Efficiency Class in Cooling : A++
• Heating Energy Efficiency Class: A+
• Annual Energy Consumption in Cooling : 142 kWh/a
• Annual Energy Consumption in Heating: 979 kWh/a

Performance

• Cooling Capacity: 2.5 kW
• Heating Capacity: 3.2 kW
• Cooling absorption: 0.55 kW
• Heating absorption: 0.82 kW
• Indoor Unit Air Flow : 6,5 ~ 9 m ³ /min
• Sound Power Level Indoor Unit : 48 dB(A)
• External Unit Sound Power Level: 58 dB(A)
• Sound Pressure Level Indoor Unit : 25~31 dB(A)
• Sound Pressure Level Outdoor Unit: 46 dB(A)

Characteristics:

• Power (V/Hz/F) : 220~240/50/1
• Refrigerant gas : R-32
• Operating range
• - Cooling: -10° ~ 50°C
• - Heating: -20° ~ 24°C

• Pipe diameter Liquid : 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Maximum piping length: 20 m
• Maximum difference in height indoor unit / outdoor unit: 15 m

Dimensions and weight

• Internal Unit Dimensions (HxWxD): 260x575x575 mm
• Indoor Unit Weight: 16 Kg
• Panel dimensions (AxLxP): 46x620x620 mm
• Panel Weight: 2.8 Kg
• External Unit Dimensions (HxWxD): 552x828x350 mm
• Weight of Outdoor Unit: 32 Kg

Kizuna 2+2 guarantee

The Daikin Italia guarantee can be activated within 1 month from the date of purchase at the address https://standbyme.daikin.it/it/

---

FFA-A ultra-flat cassette Unique design on the market that allows installation perfectly flush in the ceiling

Optional smart sensors detect the presence of people and direct the air away from them to eliminate cold drafts. The system automatically switches to energy saving mode or turns off the unit when it does not detect people in the environment. An additional floor sensor checks that the temperature remains constant from floor to ceiling.

Exclusive award-winning design

Designed in Europe for Europe , Daikin's Fully Flat cassette integrates seamlessly into standard ceiling tiles. The compact design protrudes only 8 mm from the ceiling. Fully Flat received the Universal Design Award in 2014 and the German Design Award Special in 2016. The discreet design of the Fully Flat Cassette, available in white and silver, makes it ideal for any environment.



Individual flap controls

The remote controlled adjustable discharge louvres allow you to create different airflow distribution screens to allow installation in corners, on walls and even in irregularly shaped rooms . This feature is particularly useful when rearranging rooms as it allows you to change the airflow without moving the unit .

Quiet operation At just 25 dB(A) , the Fully Flat Cassette is the quietest unit on the market today

Onecta App Full control, wherever you are

Are not you at home? Thanks to the Onecta app, this isn't a problem. The app allows instant access to all functions. You can easily adjust Daikin Emura settings via smartphone, anywhere, anytime.

• Check all the functions of your Daikin Emura air conditioner

• Create different schedules and operating modes

• Monitor energy usage on a daily, weekly or yearly basis

• Identify the room in your home to easily control the different units

Simply connect to the WLAN network and download the Onecta app to start creating the perfect climate for your home

The Onecta app allows you to connect Daikin to the Wi-Fi network and control the air conditioning system from anywhere, using Apple or Android devices. Even when you're not at home, you can turn it on and off, set cooling or heating operation , adjust the room temperature and the air flow of the air conditioner. It's that simple

Voice Control

To further increase comfort and convenience, the app Daikin Onecta - Residential Controller it is now available with voice control. The ability to control the application hands-free cuts down on necessary clicks and allows for faster drive management than ever before. Transversal and multilingual, the voice control can be combined with smart speakers, such as Google Assistant And Amazon Alexa

Unit Always Connected

The unit can be managed via the new Daikin Onecta App - Residential Controller and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated in the unit

Programming

Set up a schedule to define system operating times, and create up to six different actions per day

Program the room temperature and operating mode

Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Check system status

Access energy consumption graphs (daily, weekly, monthly)

Check

Customize the system to fit your lifestyle and year-round comfort needs

Change the ambient temperature

Turn on Powerful mode to boost operation

Feature availability depends on system type, configuration, and mode of operation. The app features are only available if both the Daikin system and the app use a reliable internet connection

---



Product Features

• Fits perfectly flush with standard ceiling tiles, leaving only 8mm

• The choice of an R-32 product reduces the environmental impact by 68% compared to R-410A systems and involves a direct reduction in energy consumption thanks to the high energy efficiency

• Unique combination of design and technology, with elegant white or silver and white finishes

• The outdoor units are equipped with a swing type compressor known for its low noise and high energy efficiency characteristics

• The combination with R-32 Bluevolution technology reduces the environmental impact by 68% compared to R-410A systems, involves a direct reduction of energy consumption thanks to the high energy efficiency and has a lower refrigerant charge - up to 16 % in less

• Outdoor units for monosplit applications

• Two optional smart sensors improve energy efficiency and comfort

• Individual flap control - Flexibility to match the interior layout of any room without having to move the unit!

• Daikin outdoor units are neat and robust and can be easily installed on a roof or terrace, or simply against an external wall

• Range of unified indoor units for R-32 and R-410A

• Fins of the outdoor unit heat exchanger with anti-corrosion treatment

• Reduced energy consumption thanks to specially designed small diameter tube heat exchanger, DC fan motor and drain pump

• Optional external air intake

• Supply branch allows you to optimize the air distribution in irregularly shaped rooms or to supply air to small adjoining rooms

• Standard drain pump with 630mm lift increases installation flexibility and speed

---

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: Daikin
• metri quadri : 15-25 sq m
• modello: FFA25A + RXM25
• potenza btu: 9000
• superficie riscaldabile mq: 25
