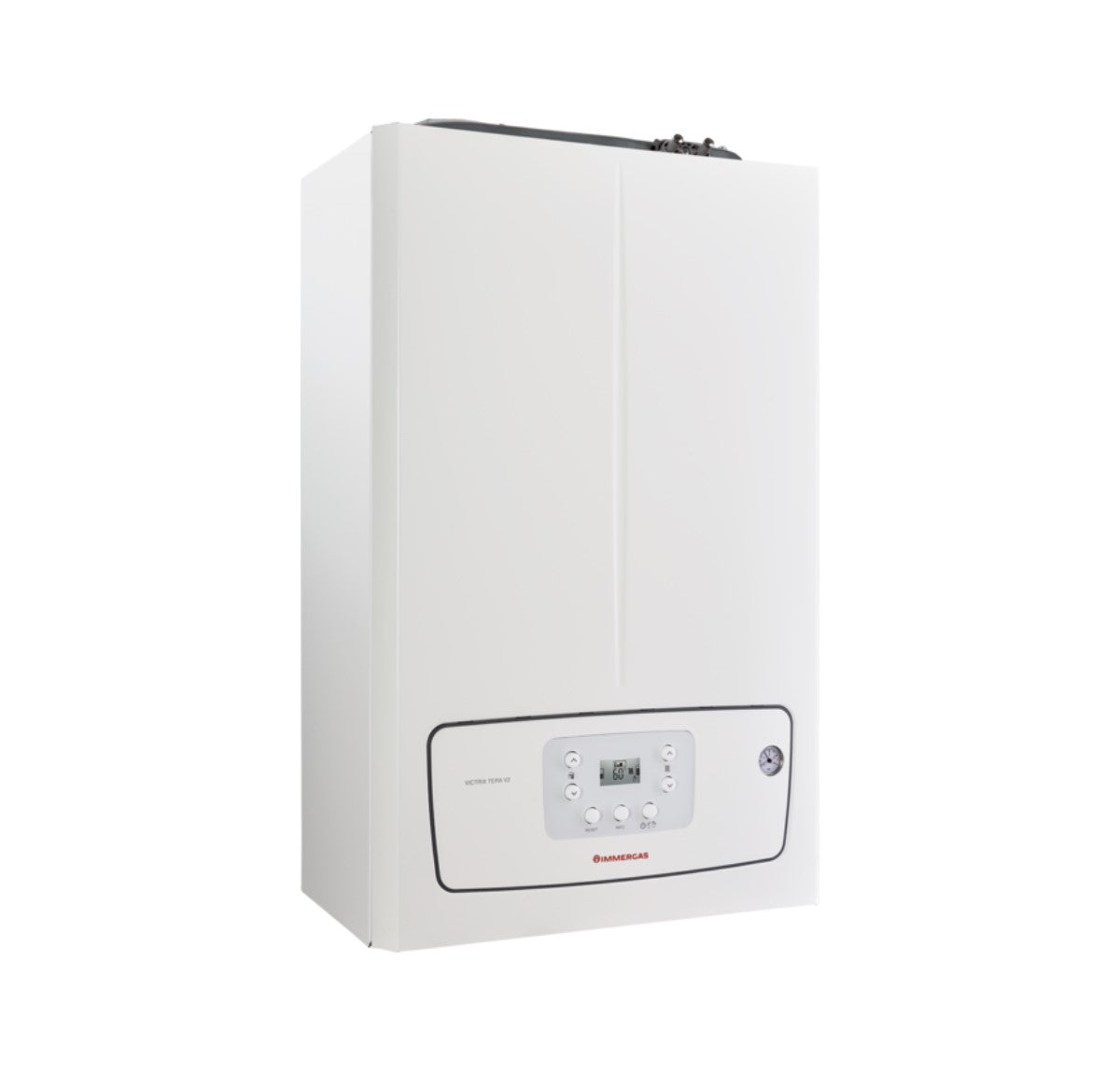

Immergas Condensing Gas Boiler Victrix Tera 24 Plus Methane Heating Only Complete With Smoke Exhaust Kit

THE PRODUCT IS AVAILABLE ON ORDER

Technical features

• Model : Victrix Tera 24 Plus
• Product code : 3.027373
• Maximum nominal heat input in DHW: 28.8 kW
• Maximum nominal heat input in heating mode: 24.6 kW
• Minimum nominal heat input: 4.5 kW
• Maximum useful thermal power in DHW: 28.3 kW
• Maximum useful thermal power in heating: 24.1 kW
• Minimum useful thermal power: 4.3 kW
• Useful thermal efficiency at 100% Pn (80 / 60 °C): 97.8%
• Useful thermal efficiency at 30% of the nominal load. (80 / 60 °C) : 102.3%
• Useful thermal efficiency at 100% Pn (40 / 30 °C) : 106%
• Useful thermal efficiency at 30% of the nominal load. (40 / 30 °C) : 108.2%
• Minimum gas flow rate to the burner: 0.48 m ³ /h
• Maximum gas flow rate to the burner: 3.05 m ³ /h
• Weighted CO : 20 mg/kWh
• Weighted NO _X : 35 mg/kWh
• Power supply: methane
• NO _x class : 6
• Minimum suction/exhaust head available: 2 Pa
• Maximum suction/exhaust available head: 240 Pa
• Nominal heating expansion vessel capacity: 8 litres
• Electrical protection degree : IPX5D

Dimensions and weight

• Dimensions (HxWxD): 748x440x256 mm
• Empty weight: 33.8 kg

Immergas Victrix Tera Plus Mural compact and instant built-in and for heating only

VICTRIX TERA 24 PLUS can be used as a boiler for room heating only or connected via an optional kit to a boiler unit for the production of domestic hot water

Ideal for multiple withdrawals of domestic hot water

For large domestic hot water needs or for multiple simultaneous withdrawals, the combination with the separate storage tank unit is possible with models from 80 to 2000 liters

Combinations with solar thermal systems

Storage tank units with a capacity of 120 liters or higher are designed for the combination of forced circulation thermal solar systems, including the UB INOX SOLAR 200 V2 version equipped with an integrated solar circuit. The VICTRIX TERA 24 PLUS boiler can be connected to the entire range of Immergas Solar Solutions

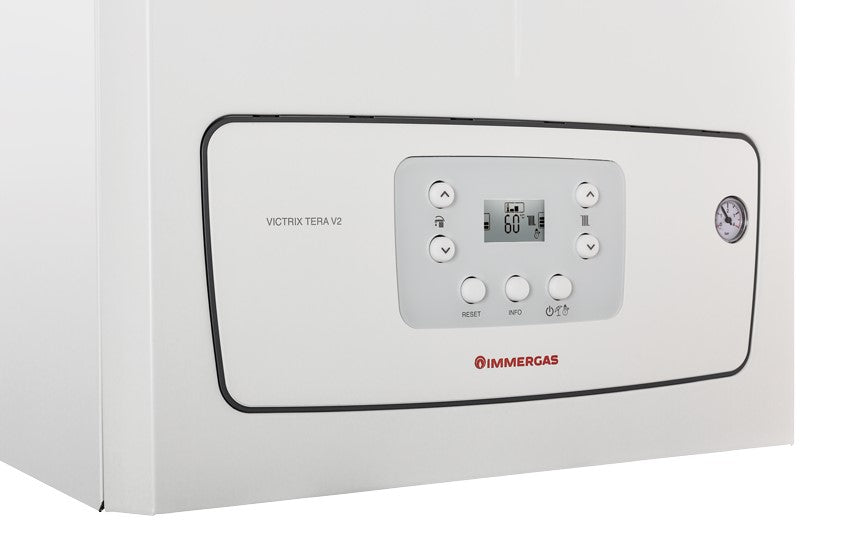

Simplicity of commands

The controls are simple, the LCD display is clear, and the selection buttons for adjustments and settings work quickly.

Condensing module with stainless steel coil

Low consumption in Stand-By, less than 6 W

Class A circulator

The low-consumption circulator allows considerable savings in electricity compared to a traditional circulator and adjusts its performance based on the variations in the hydraulic flow rate of the system, for example in the presence of thermostatic valves or zone valves

Indoor/outdoor and recessed installation

The range is approved for operation outside the home with top cover kit for installation in partially protected places (3.027263). An electric resistance kit is available to increase the antifreeze protection from -5 °C to -15 °C (3.017324)

Recessed installation

The built-in installation in the OMNI CONTAINER (3.016991) allows the boiler to be positioned outside in a niche and thus recover living space. To insert the boiler inside the OMNI CONTAINER it is necessary to use the optional support bracket (3.027129)

Remote adjustment

The boiler can be connected to the CAR ^V2 , the modulating chronothermostat which allows you to control the boiler comfortably from inside the home . The SMARTECH PLUS wireless chronothermostat with Bluetooth technology is also available: it allows you to adjust the heating temperature even with a smartphone via a dedicated app

Solutions for compact hybrid systems

The VICTRIX TERA range can be installed in TRIO V2/TRIO MONO V2 systems. Prepared for the combination of the condensing boiler with the AUDAX heat pumps and the use of solar thermal, they allow to increase the energy performance of the building and to exploit renewable energies by reducing harmful emissions . The TRIO V2 compact hybrid systems are ideal for small apartments but also single-family houses . They can be installed flush-mounted or in specific technical cabinets and allow for the reduction of installation space for plant engineering

Installation flexibility with trio

In applications with TRIO V2/TRIO MONO V2, the models of the VICTRIX TERA range can be installed in the SOLAR CONTAINER or in the DOMUS CONTAINER. The boiler support bracket is inserted as standard with the accessory kit for combination with AUDAX and instantaneous boiler and with the accessory kit for combination with AUDAX and PLUS boiler.

Formula Comfort 10

It benefits from the most comprehensive maintenance program lasting 10 years with no activation costs , with the possibility of extending it up to 15 years . In collaboration with the Immergas Authorized Service Centre, it can be activated during the initial check

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe efficienza energetica: A
• classe energetica riscaldamento: A
• gas: Methane
• marca: Immergas
• metri quadri : 120
• modello: Tera_24_Plus_Met
• potenza in kw: 24
• potenza nominale: 24
• superficie riscaldabile mq: 120
