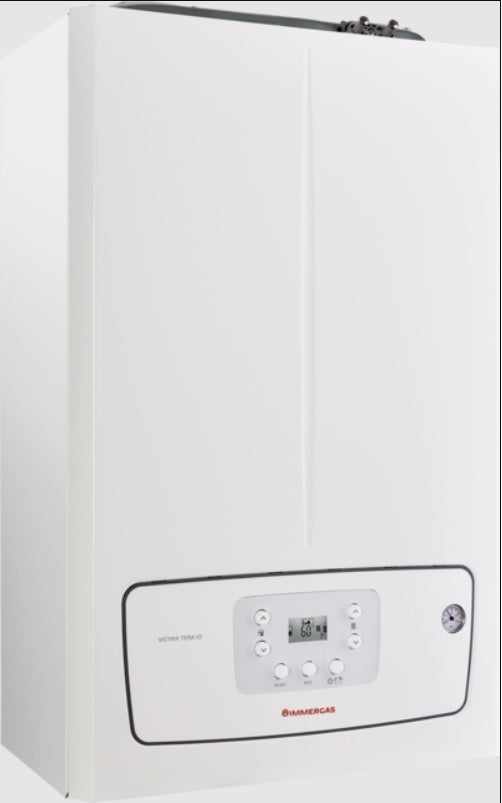

Immergas VICTRIX TERA 28 V2 Low Nox LPG Condensing Boiler Complete with Flue Gas Exhaust Kit

The VICTRIX TERA range of condensing boilers is renewed with a step forward in technology and design . The aesthetics are now more refined in detail, it can also work with 20% hydrogen mixtures and the seasonal efficiency rises to 94% for higher efficiency. There are several technical elements that enhance the performance of the TERA V2 versions starting with the new very high efficiency exchanger in stainless steel which increases the seasonal efficiency and allows to reach the A+ classification when the boiler is associated with advanced thermoregulation. The TERA range is already known for its considerable installation flexibility thanks to its small overall dimensions: it can in fact be placed inside homes, outside in partially protected places or built-in or in technical cabinets even in hybrid configurations. There are two instantaneous versions of 24 and 28 kW, one of 24 kW for heating only which can be combined with domestic boilers of various capacities. The new range allows the recovery of old chimneys with particularly small diameters and, thanks to the safety devices provided and with the help of a specific optional kit, it can be connected to collective flues designed by professionals in positive pressure. The VICTRIX TERA V2 boilers fall into class 6 , the most ecological in the European classification, for low emissions of nitrogen oxides.

Maximum flexibility

VICTRIX TERA V2 boilers have obtained the Hydrogen Ready certification . The new VICTRIX TERA V2 can now operate on methane, LPG, propane air and a mixture of up to 20% hydrogen .

Hydrogen The solution to reduce CO ₂ and greenhouse gas emissions in the environment

While natural gas emits carbon dioxide into the atmosphere when burned in a boiler, hydrogen does not. Since the heating industry is responsible for the majority of carbon emissions, this new technology could be a key weapon in the fight to achieve net-zero carbon emissions.

To give an idea of ​​the environmental benefits, consider that the introduction of the 20% hydrogen blend worldwide would save about 6 million tons of carbon dioxide emissions per year and reduce greenhouse gases by 7% . If the boilers were completely fueled by hydrogen the results would be extraordinary.

Stainless steel primary exchanger

Highly efficient condensation module made with a single-tube stainless steel exchange coil. The absence of manifolds and parallel circuits guarantees maximum reliability over time: there are no welds. The single stainless steel spiral without constriction allows for a perfectly balanced hydraulic circuit, significantly reducing load losses . The large and constant internal section allows for limited deposits, reducing the risk of clogging in the event of impurities in the water .

New aesthetics

White dashboard aesthetic cover with grey border and glossy user interface, glass effect, equipped with buttons for making adjustments and central display for viewing the boiler operating parameters. Silver grey silkscreens and symbols. The lower grille for covering the connections is standard

New technical solutions highlighted

The new TERA V2 range allows for large flue gas exhaust extensions, all 24 kW models can be installed up to 20 m of flexible ducting ø 50, the 28 kW models reach 15 metres. Furthermore, thanks to the clapet valve kit, installation in collective flues in positive pressure is permitted.

Remote control

VICTRIX TERA V2 can be connected to CAR ^V2 , CAR ^V2 WIRELESS, CRD PLUS or MINI CRD, modulating chronothermostats that allow you to control the boiler comfortably from inside the home. The SMARTECH PLUS wireless chronothermostat with Bluetooth technology is also available: it allows you to adjust the heating temperature even with a smartphone through a dedicated app.

Combination with solar systems

In the case of integration with solar systems, the wide modulation range guarantees maximum sanitary comfort even with pre-heated incoming water. In the instantaneous versions, the solar function inhibits the ignition of the circulator and burner for a time equal to the sanitary delay value set in the parameters. This function is even more efficient with the aid of the solar inlet probe kit that allows the detection of the temperature of the water entering the boiler, coming from a solar boiler. If this temperature is equal to or higher than that set on the selector, the burner and the circulator are kept off for the entire duration of the withdrawal.
