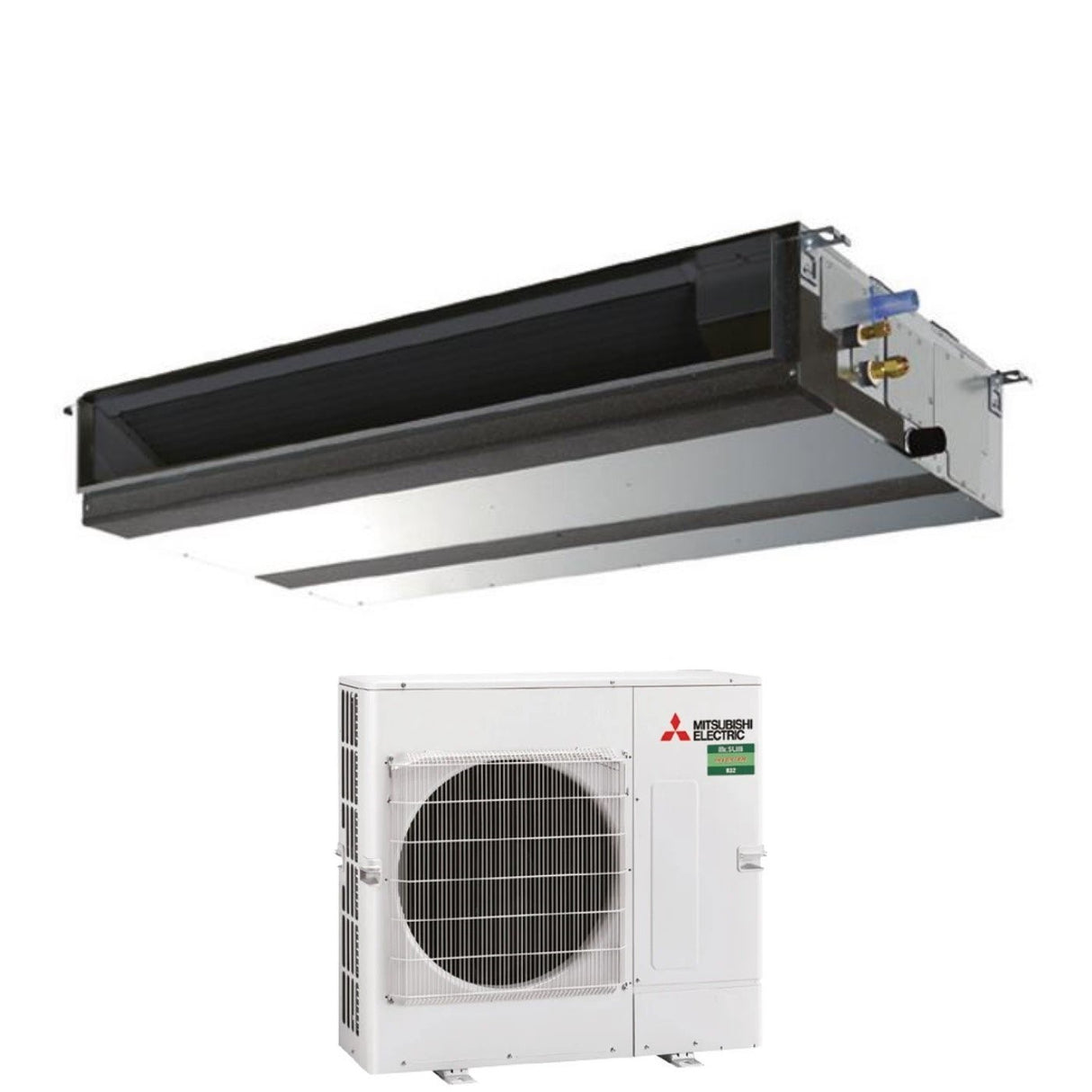

Air Conditioner Mitsubishi Electric Ducted Ductable Inverter Medium Prevalence 42000 Btu Pead-Sm125jal + Puz-Sm125yka Three-phase R-32 Wi-Fi Optional
Air Conditioner Mitsubishi Electric Ducted Ductable Inverter Medium Prevalence 42000 Btu Pead-Sm125jal + Puz-Sm125yka Three-phase R-32 Wi-Fi Optional is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:
- Standard Shipping: Estimated delivery within 2 to 5 business days
- Premium Shipping: Guaranteed delivery within 24 business hours
- Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours
See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.
For more details on Premium Shipping, please visit the Premium Shipping page.
Customer service
Customer service
Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.
Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.
Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.
Description
Description
Technical features
- Indoor unit catalog code : PEAD-SM125JAL
- Outdoor unit catalog code : PUZ-SM125YKA
- Power: 42000 btu
- Optional Wi-Fi card : MAC-567IF-E
- Optional remote control : PAR-FL32MA-E
- Optional Infrared Receiver: PAR-FA32MA-W
- Optional Simplified Wired Control : PAC-YT52CRA-K
- Optional Deluxe Wire Control : PAR-40MAA
- SEER : 191.1%
- SCOP: 150.7%
- Energy Efficiency Class in Cooling : -
- Heating Energy Efficiency Class : -
- Annual Energy Consumption in Cooling : -
- Annual Energy Consumption in Heating : -
- Cooling Capacity: 12.1 kW
- Heating Capacity: 13.5 kW
- Cooling absorption: 4.17 kW
- Heating absorption: 3.85 kW
- Treated Air Indoor Unit : 29,5~42 m 3 /min
- Sound Power Level Indoor Unit : 66 dB(A)
- Sound Power Level Outdoor Unit: 72 dB(A)
- Sound Pressure Level Indoor Unit : 33~40 dB(A)
- Sound Pressure Level Outdoor Unit : 54 dB(A)
Electrical data
- Power supply (V,Hz, Ø) : 380~415/50/3
- Refrigerant gas : R32
- Operating range
- - Cooling: -15° ~ 46° C
- - Heating: -10° ~ 21° C
- Pipe diameter Liquid : 9.52 mm (3/8")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum piping length: 40 m
- Maximum height difference Indoor Unit / Outdoor Unit: 30 m
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 250x1400x732 mm
- Indoor Unit Weight: 39 Kg
- External Unit Dimensions (HxWxD): 981x1050x330 mm
- Weight of Outdoor Unit: 84 Kg

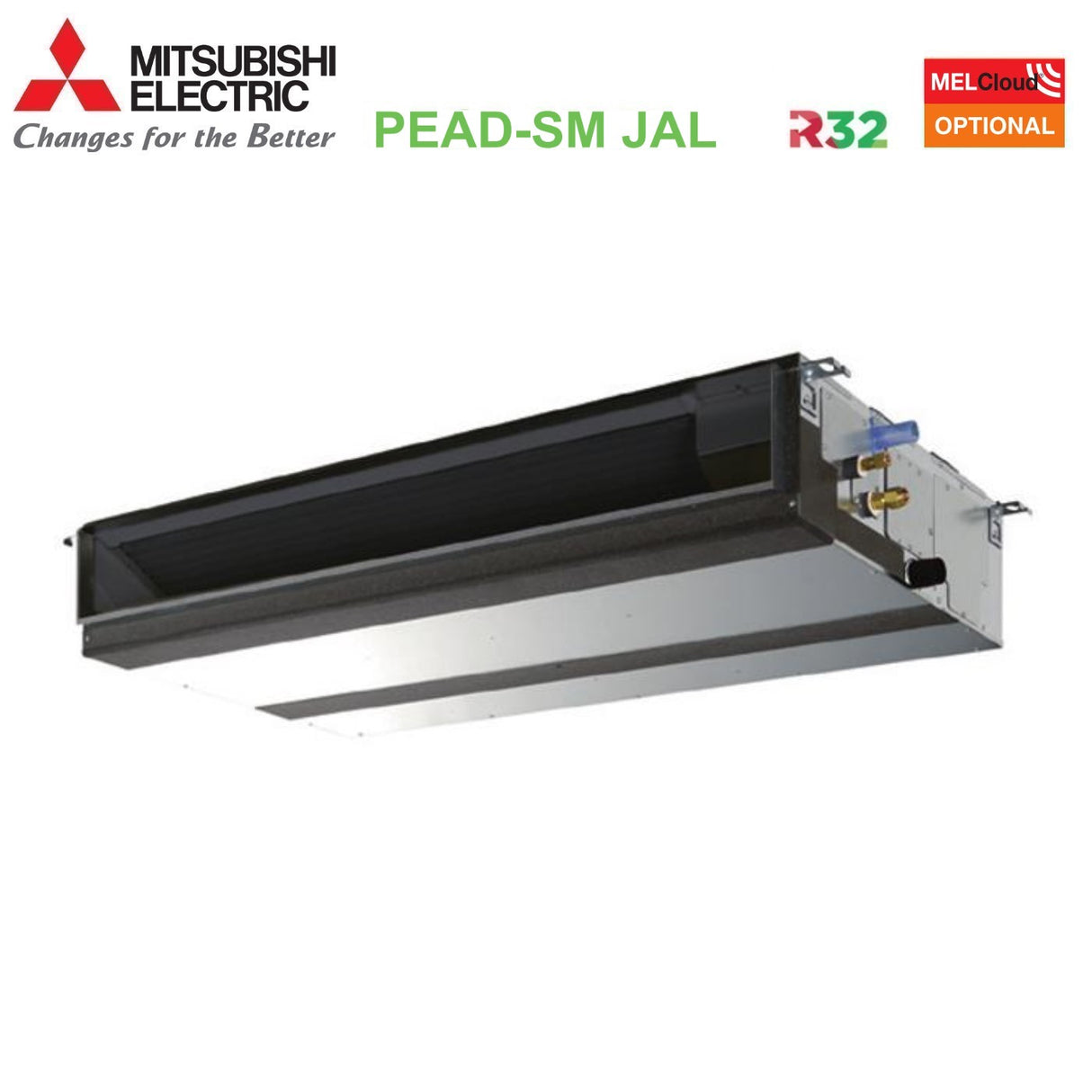

Mitsubishi Electric Ducted Medium Prevalence Built- in Indoor Unit, slim and perfect for small spaces
Slim and concealed built-in indoor units are the perfect solution for building air conditioning needs with minimized indoor unit installation on the ceiling and wider outdoor static pressure
Compact indoor units
With a reduced height of about 250mm, ceiling installation of these units is possible even where space is extremely limited
Static pressure External
External static pressure conversion can be set to five levels. It is possible to set a maximum level of 150 Pa, the units are versatile and can be used in any type of building
MELCloud, the Wi-Fi control
MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. Taking advantage of the support of the cloud, the "Cloud", to transmit and receive information and the optional dedicated MAC-567IF-E Wi-Fi interface, you can easily control your system wherever you are via PC, tablet or smartphone ; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, tablets and smartphones thanks to dedicated apps or via a web browser.
One word is enough for you!
MELCloud is compatible with Google Home. Saying «Hey Google!», or «Ok Google!» you have full control of the climate system. MELCloud is compatible with Amazon Alexa. A word will be enough to freely manage your air conditioning units
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
Technical Data Sheet
Technical Data Sheet
- peso: 130.0 kg
- gas: R-32
- marca: MITSUBISHI ELECTRIC
- metri quadri : 160 - 180 m2
- modello: PEAD-SM125JAL + PUZ-SM125YKA
- potenza btu: 42000
