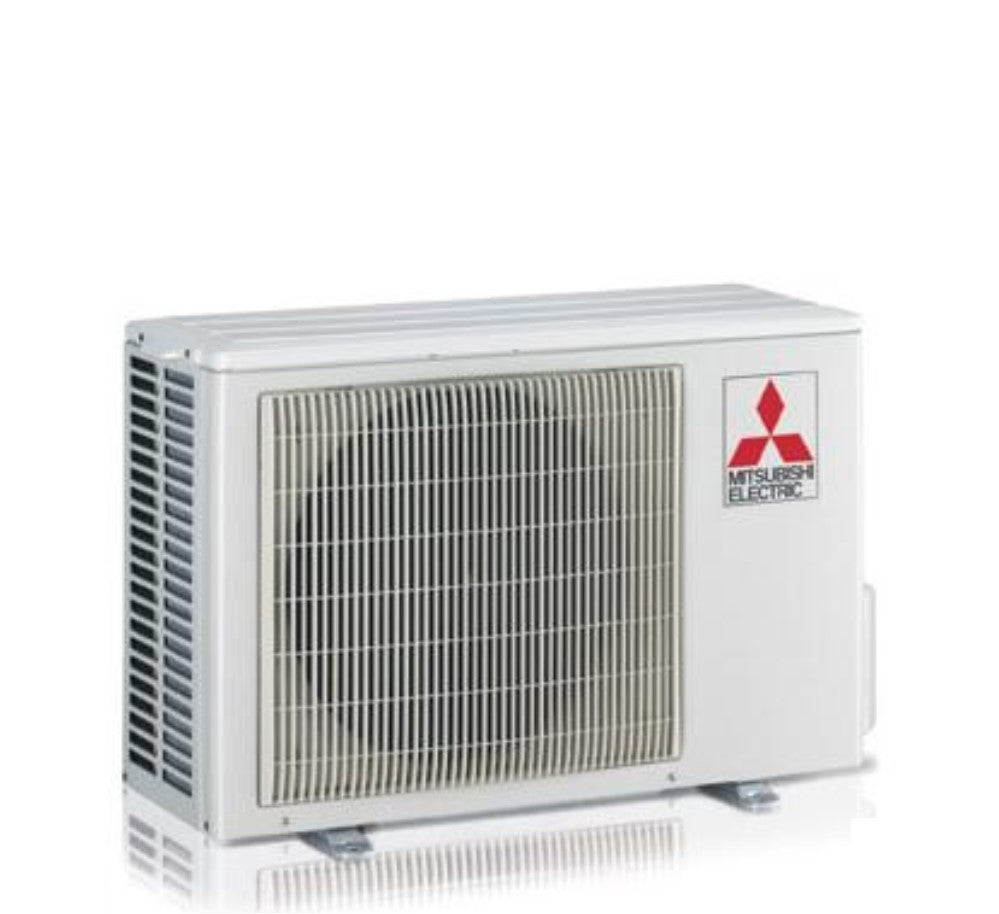

Mitsubishi Electric Outdoor Unit Multisplit Motor 2f42vf Dual Split R-32

External Unit Technical Features:

Model:

• Indoor unit catalog code : MXZ2F42VF

Energy efficiency:

• SEER/SCOP (W/W): 8.54/4.62
• Energy Efficiency Class (cooling) : A+++
• Energy Efficiency Class (heating): A++

Performance:

• Nominal cooling capacity (kW): 4.2
• Nominal heating capacity (kW): 4.5
• Power absorbed in cooling (kW): 0.97
• Absorbed power in heating (kW): 1.022
• Min-max outdoor unit sound pressure (dB-A): 44/49
• Nominal sound power dB(A): 59

Characteristics:

• Power supply (V/Hz/Φ) : 230/50/1
• Refrigerant gas : R-32
• Guaranteed operating range:
  - Cooling °C: -10 ~ +46
  - Heating °C: -15 ~ +24

Dimensions:

• HxWxD (mm) : 550X800X285

Multi-split DC Inverter

The Inverter system is an electronic device that allows the speed of the compressor to be varied efficiently and, consequently, the power supplied by the air conditioner, based on the cooling or heating demand.

Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying sudden changes, to the full advantage of comfort and electricity consumption.

High seasonal efficiency

Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) achieves high efficiency values ​​even on a seasonal basis.

Maximum Silence for Maximum Comfort

The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).

Compactness and Versatility

The dimensions of the outdoor unit are extremely compact so as not to occupy the space on the terrace or in the garden of the house. The wide development of the pipes allows a vast choice of installation site.

New MXZ outdoor unit

R32: reduced environmental impact

Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tons of CO2 into the environment.

Auto-correct links

It is enough to press a button (MXZ-3E/F to MXZ-6D) or activate only one indoor unit (MXZ-2E/F) to ensure the correct connection between indoor and outdoor units. In the event of a connection error, the system will automatically correct it.

Efficiency

Thanks to careful planning and the introduction of R32 refrigerant, the efficiency of the new multi-split outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54,3F68,4F72) and A++ (sizes 2F42,2F53 ,3F54) in heating.

Quietness

The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing the sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

Energy monitoring

The new MXZ-F model supports the energy consumption monitoring function thanks to the MELCloud remote control system, even in Multisplit R32 configuration.

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 40.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A++
• gas: R-32
• marca: Mitsubishi Electric
• metri quadri : 25/42
• modello: 2F42VF
• potenza btu: 9000+15000
• superficie riscaldabile mq: 25/42
