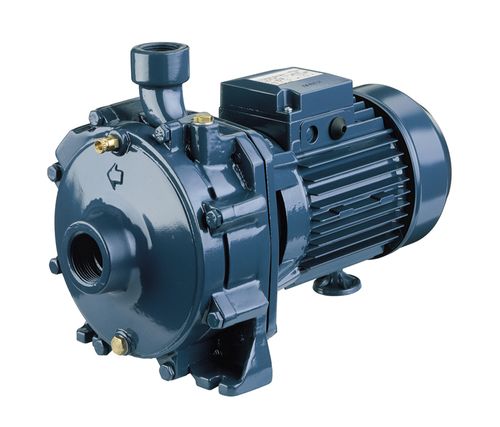

Ebara double impeller centrifugal electric pump with single-phase cast iron body CDA 100 M 1210100000
General characteristics
- Brand: Ebara
- Model: CDA 100M
- Code: 1210100000
Data sheet
- Maximum flow rate, m3/h: 5.4
- Maximum pumping height: 42m
- Maximum working pressure: 4.2 bar
- Maximum liquid temperature: 40°C
- Suction diameter: G1
- Outlet diameter: G1
- Electrical connection: 230V, single phase
- Motor power: 0.75kW
- Hydraulic seal: Standard (Ceramic/Carbon/NBR)
- Pump material: Cast iron
- Motor type: 2 poles
Description
APPLICATIONS
• Pressurization of domestic systems
• Small irrigation
• Handling of non-aggressive liquids for civil and industrial use
• Washing plants
• Vehicle washing
TECHNICAL FEATURES
• Available with brass impeller (CDA 0.75 M GO, CDA 1.00 M/T GO)
• They can be inserted in machinery for industrial use
PUMP TECHNICAL DATA
• Maximum working pressure: 6 bar for CDA 0.75 - 1.00,
10 bars for the rest of the range
• Maximum liquid temperature: 40°C for CDA 0.75 - 1.00,
90°C for the rest of the range
• Suction connection: G1 for CDA 0.75 - 1.00,
G1¼ for CDA 1.50 - 2.00 - 3.00, G1½ for CDA 4.00 - 5.50
• Delivery connection: G1 for CDA 0.75 - 1.00 - 1.50 - 2.00 - 3.00,
G1¼ for CDA 4.00 - 5.50
ENGINE TECHNICAL DATA
• IE3 high energy efficiency motors for powers from 0.75kW
• Self-ventilated 2-pole asynchronous motor
• Class of insulation F
• IP44 degree of protection
• Single-phase voltage 230V ± 10% 50Hz,
three-phase voltage 230/400V ± 10% 50Hz
• Permanently inserted capacitor and protection
built-in thermo-amperometric sensor with automatic reset for the motor
single phase
• Protection by the user for the three-phase version
MATERIALS
• Pump body in cast iron
• Mechanical seal in Ceramic/Carbon/NBR
• Impeller in PPE+PS reinforced with glass fibers for CDA 0.75 - 1.00,
in brass for the rest of the range
• Shaft in AISI 303 for CDA 0.75 - 1.00 - 1.50 - 2.00 - 3.00,
in AISI 304 for CDA 4.00 - 5.50
• Support in aluminum for CDA 0.75 - 1.00, in cast iron for the rest of the
range
• Seal holder disc in AISI 304 for CDA 0.75 - 1.00, in integrated cast iron
on the engine mount for the rest of the range
Description
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
Technical Data Sheet
Technical Data Sheet
- alimentazione: Single phase
- marca: Hebara
- modello: 1210100000
- potenza in kw: 0.75
- tipologia : Centrifuge
