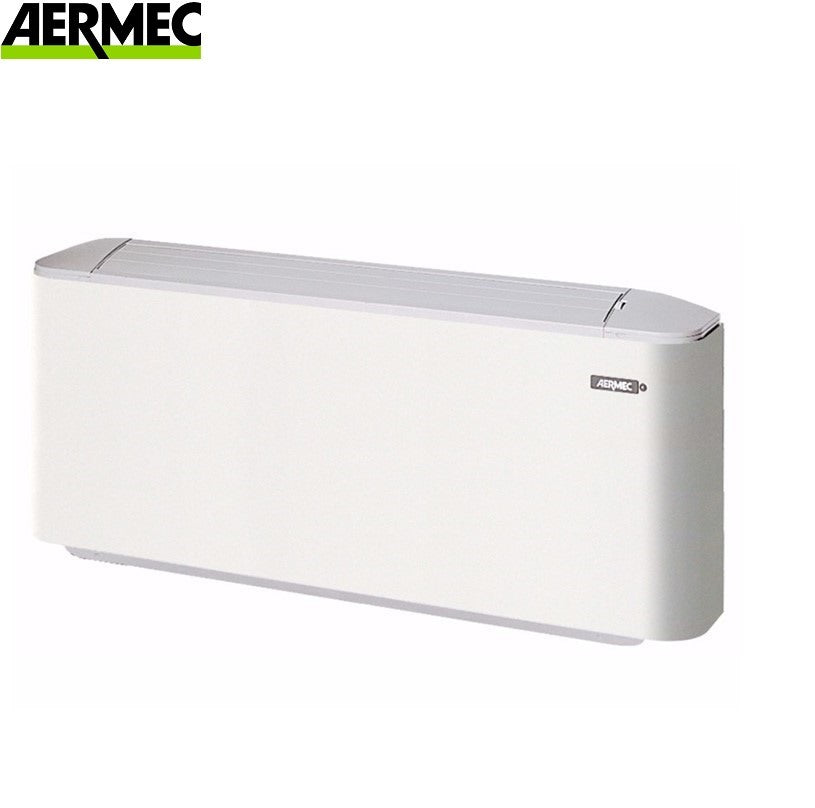

Aermec Fan Coil Fan Coil Mod. Omnia Ul 36 Switch Included

FAN COIL FAN COIL AERMEC mod. OMNIA UL 36 with switch included

• Model: OMNIA UL 36
• Cooling capacity: 2.8 - 1.6 kW
• Thermal power: 5.9 - 3.5 kW
• Water content: 1.1 litres
• Dimensions (HxWxD): 513 x 1200 x 173 (mm)
• Plinth Height: 93 (mm)
• Weight: 19.5 kg
• White color
• - Coat RAL 9002
• - Headboard and Plinths RAL 7044

General characteristics

AERMEC OMNIA UL

Fan coils for universal installation for residential use, for heating, cooling and dehumidification, which can be combined with any heat generator.

• Cooling and heating
• Wall installation
• Floor installation
• Centrifugal fan
• Centralized control
• Compatible with VMF (Variable Multi Flow) system
• For two-pipe systems

The units of the OMNIA UL (Universal Line) series are fan coil units suitable for air conditioning. Available in various configurations depending on the installation position, with the possibility of being ducted, they are characterized by multi-speed motors. They have fans in ABS material with an impeller equipped with airfoil fins and an inspectable cochlea. This feature gives the machine a clear reduction in the level of noise emitted, as well as a reduction in the electrical absorption of the motor, compared to traditional fans with a metal structure. The UL unit, in the PC version, is equipped as standard with the PLASMACLUSTER ionizing filter, while the RADIANT version is equipped with a radiant plate with on/off motor or inverter. The units can be equipped with multiple accessories and can be integrated into the VMF - Aermec centralized hydronic management system.

Versions:

UL-S: version without controls, with cabinet. Compatible with the VMF system
UL: version with switch and cabinet
UL-C: version with electronic thermostat and cabinet
UL-PC: version with electronic thermostat, Plasmacluster filter (can be installed on site only) and mobile

Characteristics:

Cleaning the fan: With Omnia fan coils you can easily clean the fan blades. Now, in fact, it is possible to open the cochlea of ​​the fan (the casing that encloses the blades) and proceed with their periodic cleaning.
Cleaning the condensate tray: Thanks to a new fixing system for the condensate collection tray, now, with Omnia fan coils, it can be cleaned easily. This important solution avoids, in the long term, the formation of bacteria, germs and molds in the basin itself, due to the condensation of the humidity present in the air
Electrostatically precharged filter: Omnia fan coils are equipped, as standard, with electrostatically precharged air filters. These filters, thanks to their particular construction, absorb and retain suspended dust: the ideal system to ensure healthy air for the whole family.
Silent operation: Thanks to the adoption of special centrifugal fans, the Omnia fan coils have extremely silent ventilation which takes these new fan coils to the top of acoustic comfort thanks to the absence of noise peaks

UL listed fan coil units for wall or floor installation

• EUROVENT certification
• 3-speed centrifugal fan group
• Maximum silence
• High design aesthetics with rounded lines
• Adjustable air distribution grille
• Automatic switch-off of the fan coil by closing the air distribution grille
• Small dimensions
• Electronic temperature regulation, automatic speed change on the fan, automatic season change and automatic on - off (version with thermostat)
• Reversibility of the hydraulic connections during installation
• Low pressure drop in the heat exchange coils
• Electric motors with permanently inserted capacitors
• Ease of installation and maintenance
• Easy to remove and clean air filter
• Electrostatically preloaded filter

Product Guarantee
All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 49.0 kg
• marca: Aermec
• modello: Ventil_OMNIA_UL36
• potenza in kw: 2
