Technical features
Energy label specifications according to the European ErP directive
- DHW sanitary energy efficiency: Class A
- Declared load profile: XXL
- Annual consumption of electricity (kWh/annum) and fuel (GJ/annum) 14 -17
Characteristics of heating/DHW operation:
- Code: REU-KM2635WD-NG
- Condensing - Forced Flow - Type A3
- Electronic ignition without pilot flame
- Can be combined with: solar panels/recirculation/accumulation max lt 1000
- Can be combined in cascade, max 25 luminaires
- Standard antifreeze down to -20°C
- Installation: Outdoor - Villa - Apartment with multifunctional shower/whirlpool and professional installations
- Dimensions: mm 654x470x257 - 29 Kg
- Natural gas heat input Min/Max (kW) 2.5/43
- Water flow Δt 25°C Min/Max (l/min) 26 l/min
- Max operating temperature (°C) 85
- Minimum activation pressure (bar) 0.1
- Min/Max nominal operating pressure (bar) 2/10
- Electricity consumption normal / stand-by / antifreeze (W) 44 / 2.4 / 170
- IPX5D protection
- Class NOx5
- METHANE version
RINNAI GAS WATER HEATER: INFINITY infinite savings and comfort
Rinnai Infinity is the line of instantaneous GAS* water heaters, with high efficiency forced flow, for domestic and professional indoor and outdoor use, capable of guaranteeing:
- Unlimited hot water without sudden changes in temperature
- Temperature selection per degree via the standard remote control
- Energy saving
- Simplicity of design and installation
- Compact size
- Superior performance and absolute security
Furthermore, the external range, thanks to its unique characteristics, ensures total protection from:
- Wind (up to 90 km/h)
- Water coming from any direction (even horizontally, with IPX5D protection factor)
- Corrosion and rust, with the enamelled galvanized steel shell
- Frost, thanks to the standard antifreeze on all appliances (including indoors)
The STANDARD remote control allows the user to select the desired water temperature with accuracy to the degree, directly from the point of use (when the tap is opened).
RESULT:
no need to mix for maximum COMFORT and absolute PROTECTION from the risk of burns.
Energy saving: Rinnai Infinity eliminates any useless waste and ensures real savings:
- Gas operation guarantees considerably lower costs than electric operation.
- Compared to a traditional boiler, subject to heat loss and energy consumption to constantly heat the water, Infinity produces it instantly at the moment of the real request and exactly at the desired temperature.
- The advanced technology of the continuously modulating gas valve, which regulates combustion with the utmost precision, guarantees a more efficient and cleaner regime, with a consequent net cut in consumption and polluting emissions.
- The detection of the inlet water temperature also allows Infinity to work in perfect synergy with solar systems, heating cookers or other heat generators, modulating, only when needed and only as much as needed, to reach the set temperature
Condensing range: Superior performance in small denominations
Condensation technology is today among the most modern and ecological in existence. The heat developed by the exhaust fumes that traditional appliances disperse into the environment is exploited by this technology to pre-heat the incoming water. The water, passing through the fumes, recovers part of the heat to reach the burner already preheated, thus significantly reducing its intervention.
The advantage is double and clear:
- ECONOMICAL: reduction of fuel consumption (up to one kW less for each m3 of gas)
- ENVIRONMENTAL: NOx and CO emission up to 70% less
General characteristics

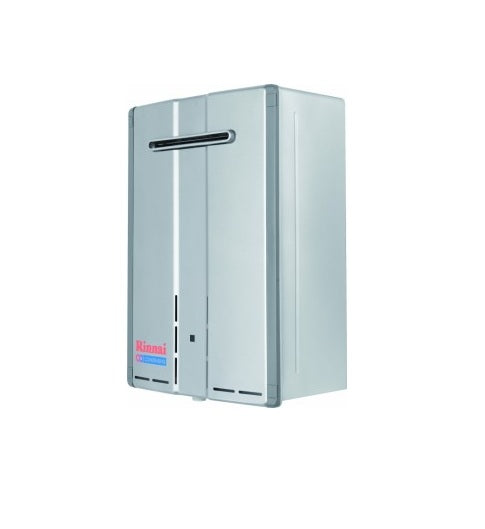

INFINITY K26e
Infinity 26 External condensing is an instantaneous domestic hot water producer for external installation with electronic temperature management and water flow control.
Anti-corrosion enamelled galvanized steel casing and standard electronic control with temperature management and self-diagnosis function. Max operating temperature equal to 85° C
DHW circuit connection:
- Cold water: R 3/4" male shut-off valve;
- Hot water: R 3/4" male shut-off valve;
Gas connection and electricity supply:
- Gas: R 3/4" male shut-off valve;
- Power supply: AC 220V 50Hz.
Exhaust duct:
The condensing models can be installed in cascade with the preassembled Rinnai Modus modules equipped with water and gas side predispositions, inail kit inserted.
ErP Ready
Rinnai's commitment is aimed at an eco-sustainable future. For this reason all our products are "ERP Ready" or already in line with the European classification legislation in force since 26 September 2015. ErP, acronym of Energy related Products (products connected to the use of energy), identifies the Directive 2009/ 125/EC aimed at reducing the energy consumption of products through eco-compatible design.
The Directive establishes very precise reference points for the manufacture of eco-compatible products and defines the minimum mandatory requirements of energy and environmental performance for instruments that use energy.
The goal is to reach the famous 20-20-20 by 2020. This repetition of the number 20 serves to more easily remind everyone of the three central focuses:
- -increase the energy efficiency of energy-consuming machines by 20%
- - reduce carbon dioxide (CO2) emissions into the atmosphere by 20%
- -reach a percentage of renewable energies on final consumption of 20%
Since 26 September 2015, appliances for winter air conditioning and domestic hot water production have been accompanied by an energy label.
ELD directive: all clear on the label
The European Union has made the new energy labeling system mandatory to allow consumers to immediately understand the level of environmental compatibility of individual products. The ELD or Labeling Directive ( 2010/30/CE ) in fact provides that each item subject to the ErP Directive is equipped with a label to highlight not only the energy efficiency class but also other performances such as sound power, use, thermal power.
Rinnai actively participates in these adjustments, happy to make its contribution to a more eco-sustainable world
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
