Technical features
Indoor units

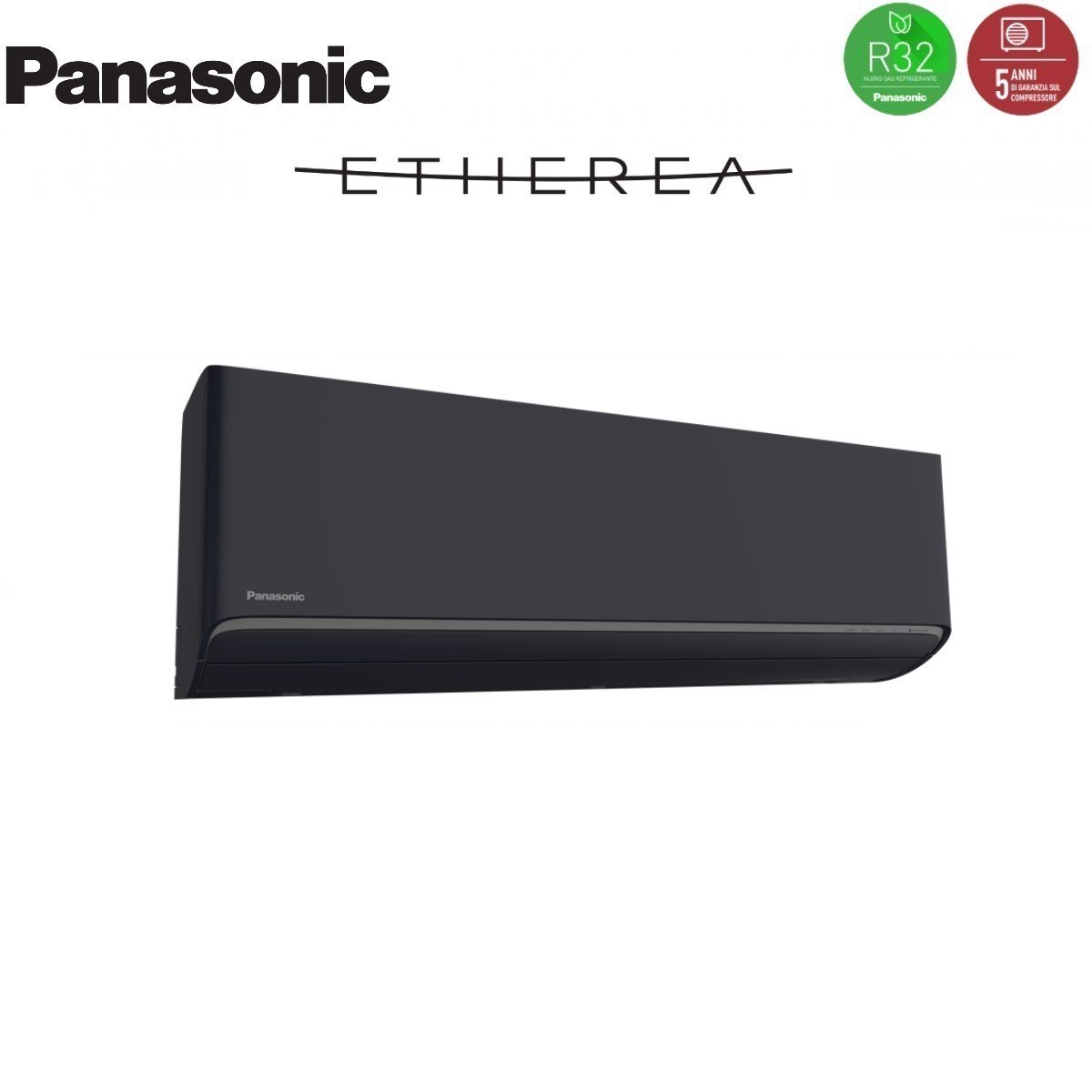

1) Model
- Indoor Unit Catalog Code : 2x CS-XZ25XKEW-H
- Series : Etherea Dark
- Color : Graphite Grey
- Power: 9000 btu/h
- Cooling Capacity : 2.50 kW
- Heating Capacity : 3.40 kW
- Treated Air Internal Unit: 12.7 m 3 /min
- Sound Power Level : 55 dB(A)
- Sound pressure level : 19~41 dB(A)
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 295x870x229 mm
- Indoor Unit Weight: 10 Kg
- Integrated Wi-Fi
- Optional Wire Control ( Code CZ-RD514C )
2) Model
- Indoor Unit Catalog Code : 1x CS-XZ35XKEW-H
- Series : Etherea Dark
- Color : Graphite Grey
- Power: 12000 btu/h
- Cooling Capacity : 3.50 kW
- Heating Capacity : 4.00 kW
- Treated Air Internal Unit: 12.7 m 3 /min
- Sound Power Level : 58 dB(A)
- Sound pressure level : 19~43 dB(A)
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 295x870x229 mm
- Indoor Unit Weight: 11 Kg
- Integrated Wi-Fi
- Optional Wire Control ( Code CZ-RD514C )
Outdoor Unit
Model:
- Catalog code Outdoor Unit : CU-3Z68TBE
- Maximum number of combinable indoor units: 3
Energy efficiency:
- SEER : 8.00
- SCOP : 4.20
- Energy Efficiency Class in Cooling : A++
- Heating Energy Efficiency Class: A+
- Annual energy consumption Cooling : 298 kWh/a
- Annual energy consumption Heating : 1733 kWh/a
Performance:
- Cooling Capacity: 6.80 kW
- Heating Capacity: 8.50 kW
- Cooling absorption: 1.86 kW
- Heating absorption: 2.15 kW
- Sound Pressure Level : 51~52 dB(A)
Characteristics:
- Power (V/Hz/F) : 220~240/50/1
- Refrigerant gas : R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46°C
- - Heating: -15° ~ 24° C
Installation data:
- Pipe diameter Liquid : 6.35 mm (1/4") x3
- Gas pipe diameter : 9.52 mm (3/8") x3
- Maximum piping length: 60 m
- Maximum height difference Indoor Unit / Outdoor Unit: 15 m
Dimensions:
- External Unit Dimensions (HxWxD): 795x875x320 mm
- Weight of Outdoor Unit: 71.0 Kg
5 year warranty on the compressor
5 year guarantee on outdoor unit compressors for the whole range for five years
Panasonic offers the widest range of Multi Split systems
2 types of Multi Split from 3.5 to 9.0 kW for 5 indoor units connected to a single outdoor unit. If the air conditioning requirements exceed the scope of a single room, Panasonic offers a very wide range of models with the possibility of connecting up to 5 indoor units to a single outdoor unit
Complete flexibility up to 9.0 kW and up to 5 rooms with a wide range of indoor units including high performance Etherea indoor units, energy efficiency class up to A+++ / A++
Because a Multi Split is a better solution than multiple separate units
- One compact outdoor unit
- Greater comfort in the home since each room is equipped with its own internal unit for heating
- Much more powerful than a single unit
- More efficient as the drives always run at full capacity
- Possibility of connecting all types of indoor units, such as wall-mounted, console models, according to individual needs
Solution with Multi Split
Up to five indoor units can be connected with one outdoor unit. Each room or area is equipped with an indoor unit. Extreme increase in comfort levels. Only one outdoor unit is installed on the roof.
Panasonic Etherea Residential Air Solutions
An intelligent solution to improve air quality and make your home comfortable and welcoming. The new Etherea models are equipped with nanoe™ X technology based on the benefits of hydroxyl radicals. With advanced control options, high performance, an elegant design and intelligent functions, Etherea is designed to make your home comfortable, cleaner and the ideal place to live.
Never before, Panasonic has studied a range of products able to satisfy multiple needs of the private user. The range offers a rich choice of products capable of conditioning rooms of all sizes, always with maximum efficiency and unparalleled ease of installation.
Panasonic Environment Vision 2050 Efficiency. Respect for the environment. Healthy air.
To achieve “a better life” and a “sustainable society” Panasonic will work towards the creation and more efficient use of energy that exceeds the amount of energy used, aiming for a clean energy society and a more comfortable lifestyle
A small gesture for the future
Not everyone is ready for change. Panasonic, on the other hand, believes that with technological development people's lives can be improved. For this reason, a new line of air conditioners has been designed in R32, an absolutely innovative refrigerant: it is easy to install, has a low environmental impact and saves energy. The result? Greater well-being for people and the planet. Welcome R32!
Performance Etherea maximum energy class. Benefit from lower bills while contributing to the protection of the environment
Nanoe TM X Better air quality for life The technology developed by Panasonic for better air quality based on the benefits of hydroxyl radicals
Abundant in nature, hydroxyl radicals, also known as OH- radicals, have the ability to inhibit viruses and bacteria to improve and deodorize the environment. nanoe™ X technology can bring these incredible benefits within the spaces we live in, such as within a home or workplace or in hotels, shops and restaurants, consequently improving the surrounding environment by making it cleaner and more pleasant. Let Panasonic take care of indoor air quality thanks to nanoe™ X, the technology that inhibits a wide variety of bacteria, viruses, pollutants and preserves and neutralizes the environment. This patented technology is designed to improve air quality in both residential and commercial settings
What makes nanoe™ X technology unique?
Hydroxyl radicals inhibit certain types of pollutants, viruses and bacteria and deodorize the environment. Even tightly woven fabrics can be treated with nanoe™ X technology, as well as curtains, blinds, carpets and furniture, including the most difficult surfaces and of course the air we breathe too
> At one billionth of a meter in size, nanoe™ X particles are much smaller than vapor and can penetrate deep into tissue.
> Being composed of water, nanoe™ X particles have a longer life span and can spread more easily into the surrounding environment
> The nanoe™ X Mark 2 device produces 9.6 trillion hydroxyl radicals per second. Greater quantities of hydroxyl radicals contained in water, thanks to nanoe™ X, lead to a greater performance on the inhibition of pollutants
> No maintenance or replacement is required. nanoe™ X is a filterless solution that does not require maintenance, since its electrodes, the most stressed parts, are coated in Titanium
7 benefits of nanoe™ X Unique technology from Panasonic
Nanoe™ X, a technology tested in independent laboratories worldwide
The effectiveness of nanoe™ X technology has been tested by third-party laboratories in several countries, such as Germany, Denmark, Malaysia and Japan. The performance of nanoe™ X will vary depending on room size, internal conditions and usage and it may take several hours to get the full effect. nanoe™ X is not a medical device. Local building design regulations and the principles of national health legislation must be followed
Nanoe™ X improves air quality 24/7
Actively cleans the air and inhibits certain types of pollutants throughout the day. nanoe™ X works independently of the normal heating and cooling functions when you are at home and can continue to operate even in your absence. Give your air conditioner the opportunity to enhance the security of your home with nanoe™ X technology and convenient control via the Panasonic Comfort Cloud App
Improve indoor air quality even when you're away from home
Leave the nanoe™ mode active to inhibit certain types of pollutants and deodorize the environment before returning home
Improve your environment when you are at home
Enjoy a cleaner and more comfortable space with your loved ones
Panasonic Comfort Cloud App Advanced remote control
Whether you are at home, in the office or at the head of a company, Panasonic Comfort Cloud allows you to easily control and access all functions remotely anytime, anywhere
The Panasonic Comfort Cloud application allows you to conveniently manage and monitor multiple units from one device. In addition, thanks to energy monitoring, operating costs can be further reduced.
• Possibility of managing up to 200 units with only 1 device
• Compatible for both residential and commercial applications
Smart Control Check the temperature anytime, anywhere
• Control multiple units through a single device up to 10 sites, 20 units per site
• Simultaneous management of multiple units
Comfort Smart Easy management of comfort and air quality
• Access all functions remotely
• Activate nanoe™ X 1) 24 hours a day
• Preheat or cool spaces
Smart efficiency More comfort and less energy waste
• Energy consumption analysis
• Analysis of unit energy consumption history for better budget planning
Support Smart Fault Notification
• Control privilege for users
• Effortless troubleshooting
Compatibility with voice control systems
Unlimited control, full access to the functionality of your air conditioners. Improving your comfort is now child's play with our Panasonic Comfort Cloud enabled air conditioner and Voice Control
Operate the air with your voice Enjoy the convenience of accessing these four basic operations with just your voice
Turn the air conditioning on and off Improve your sleep with greater control. Turn on / off the air conditioning with ease when preparing a comfortable space for the little ones
Switch modes Get some extra help during a hectic day. Conveniently switch the air conditioning operation mode to cooling and heating or auto when your hands are full
Adjust the temperature Simple and immediate control at any time Adjust the temperature with a simple voice command
Check the current status Hands-free comfort for the whole family. Easy access for the elderly to check the settings and current working status of the air conditioning
Manage more with your voice Streamline your day's routines by grouping them into individual actions
Set up your routine with a custom command. With the routine function, you can customize voice commands and control multiple devices, including our network-enabled air conditioners
Technology designed for maximum comfort. Aerowings 2.0 function
Panasonic's Aerowings feature incorporates two independent flaps that concentrate the airflow to heat or cool the room in the shortest possible time while helping to distribute cool air evenly throughout the room. Thanks to the new wider secondary vane (72 mm), more than double the size of other conventional models, the control over the direction of the air flow has been further improved.
Aerowings 2.0 is equipped with a new cooling function which allows the air flow to be directed towards the ceiling to guarantee homogeneous air distribution and greater comfort without being subjected to direct exposure to an air flow Freddo
In heating mode, the Aerowings 2.0 function directs the air flow from top to bottom to obtain an effect similar to underfloor heating. The flow rises and ensures a homogeneous distribution of the air in the room
Elegant design with easy-to-use wireless control
Panasonic has carefully designed a new chassis for the Etherea indoor unit that fits perfectly into any style. Its elegant design and solid structure, together with a large air discharge area, allow you to achieve high performance
The easy-to-use remote control features an ergonomic design with a tapered rear housing for a more comfortable grip. The new design of the wireless control, with five quick access keys to key functions, ensures simple and intuitive control of settings. In addition, the control features a minimalist design with less frequently used keys hidden under a sliding cover
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
