Technical Features
- Indoor unit catalog code: CS-Z71VKEW
- Outdoor unit catalog code: CU-Z71VKE
- Power: 24000 Btu
- Built-in Wi-Fi
- Optional Wired Control (Code CZ-RD514C)
Energy Efficiency
- SEER : 6,50
- SCOP : 4.20
- Energy Efficiency Class in Cooling: A++
- Energy Efficiency Class in Heating: A+
- Annual Energy Consumption in Cooling: 382 kWh/a
- Annual Energy Consumption in Heating: 1833 kWh/a
Performance
- Cooling capacity: 7.10 kW
- Heating capacity: 8.60 kW
- Treated Air Internal Unit: 19.8 m3 /min
- Sound pressure level Indoor unit : 30~47 dB(A)
- Sound pressure level Outdoor unit: 52 dB(A)
Electrical Data
- Power supply (V,Hz,Ø) : 220~240/50/1
- Refrigerant gas: R32
- Operating range
- - Cooling: -10° ~ 43°C
- - Heating: -15° ~ 24°C
Installation Data
- Liquid Pipe Diameter: 6.35mm (1/4")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum length of pipes: 30 m
- Maximum height difference between internal unit and external unit: 20 m
Dimensions and Weight
- Internal Unit Dimensions (HxWxD): 302x1120x236 mm
- Internal Unit Weight: 13 Kg
- External Unit Dimensions (HxWxD): 695x875x320 mm
- External Unit Weight: 50 Kg
5 Years Compressor Warranty
5 year warranty on the compressors of the outdoor unit of the entire range for five years
Panasonic Etherea Efficiency. Respect for the environment. Healthy air.
Built-in Wi-Fi
The new Etherea indoor units have been designed with an integrated wireless LAN module, compatible with the Panasonic Comfort Cloud APP . Remote control of your system:
• Turning the indoor unit on and off
• Heating and cooling operating modes
• Weekly timer setting (up to 6 events per day, 42 in a week)
• Error code notification
• Advanced functions (e.g. nanoe™ X function)
Compatibility with voice control systems
Unlimited control, full access to the features of your air conditioners. Improving your comfort is now a breeze thanks to our Panasonic Comfort Cloud and Voice Control enabled air conditioner
Performance Etherea maximum energy class. Benefit from lower bills while contributing to environmental protection

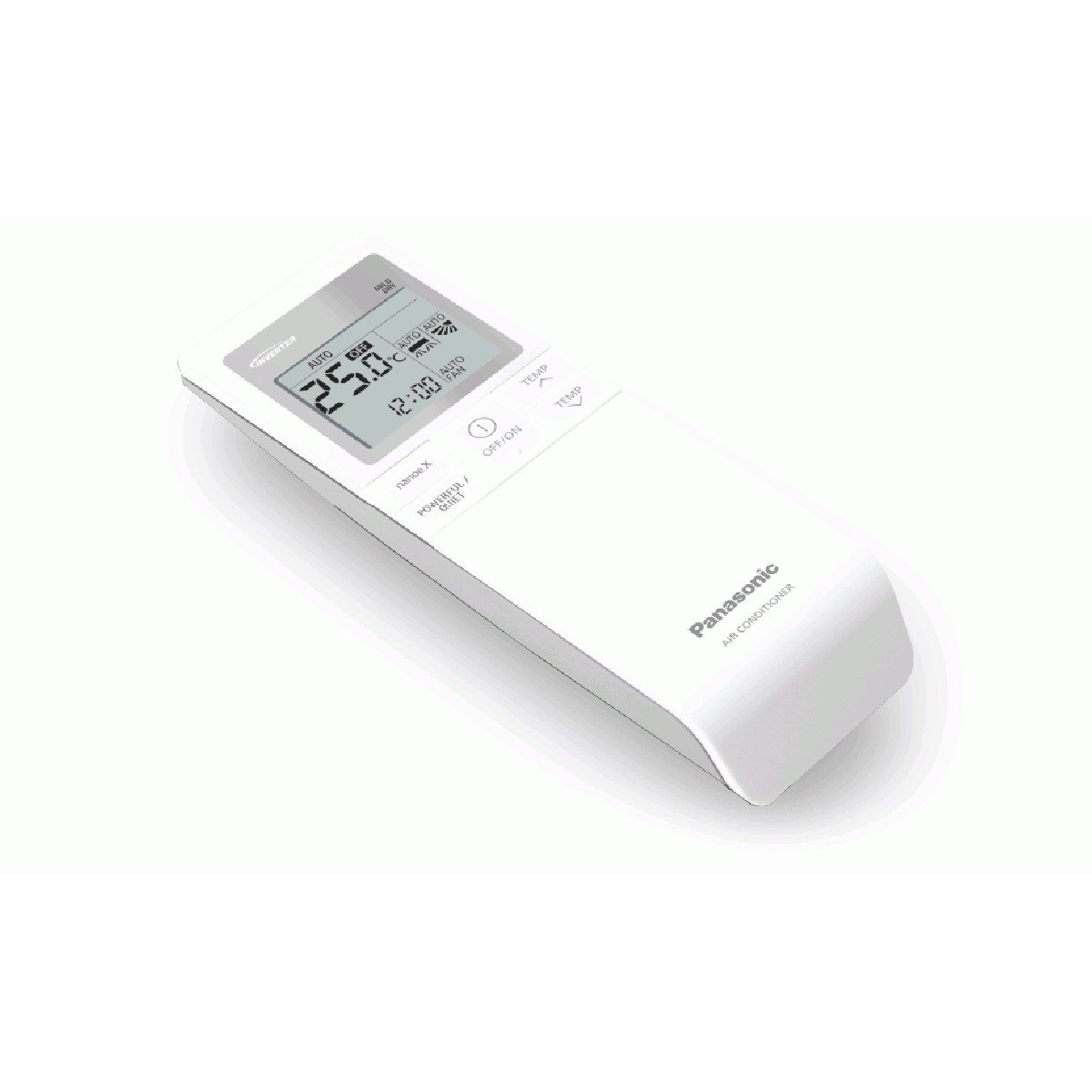

Enjoy innovative, handy design with the new, elegant backlit Sky remote control
With quick access to key operations and a sliding cover that offers more options, controlling settings has become simple and intuitive. At 58.9mm wide and 164.7mm long, the Sky remote fits comfortably in your hand.
Screen and LED backlight
The Sky remote displays its settings in a better light thanks to the new backlit screen. Now you can program the settings without having to turn on the lights
Original Sliding Cover
A smooth sliding cover not only enhances the clean lines of the remote, but keeps the buttons free from dirt and stains.
Punctual Temperature Control
The Sky remote control allows you to set the temperature in 0.5°C increments. Enjoy more precise temperature regulation and savour exclusive comfort.
Nanoe TM Better Air Quality for Life
Let Panasonic take care of your indoor air quality with nanoe™ X, the technology that inhibits a wide variety of bacteria, viruses, pollutants and preserves and neutralizes the environment. This patented technology is designed to improve air quality in both residential and commercial environments.
Nanoe™ X deodorizes and inhibits certain bacteria and viruses
Nanoe™ X produces 10 times more* OH radicals. The new nanoe™ X device produces 10 times more OH radicals (4.8 trillion) than the regular nanoe™ device. The higher amounts of OH radicals in nanoe™ X result in exceptional effects in inhibiting bacteria, viruses and allergens and in deodorizing
How nanoe™ X keeps the air fresh and clean
• Nanoe™ X reaches bacteria
• OH radicals steal hydrogen from bacteria
• OH radicals transform the hydrogen released by the bacteria into water, inhibiting bacterial activity
A small gesture for the future
Not everyone is ready for change. Panasonic, however, believes that technological development can improve people's lives. For this reason, a new line of air conditioners in R32 has been designed, an absolutely innovative refrigerant: it is easy to install, has a low environmental impact and allows you to save energy. The result? Greater well-being for people and the planet. Welcome R32!
Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
