Technical features
Internal units

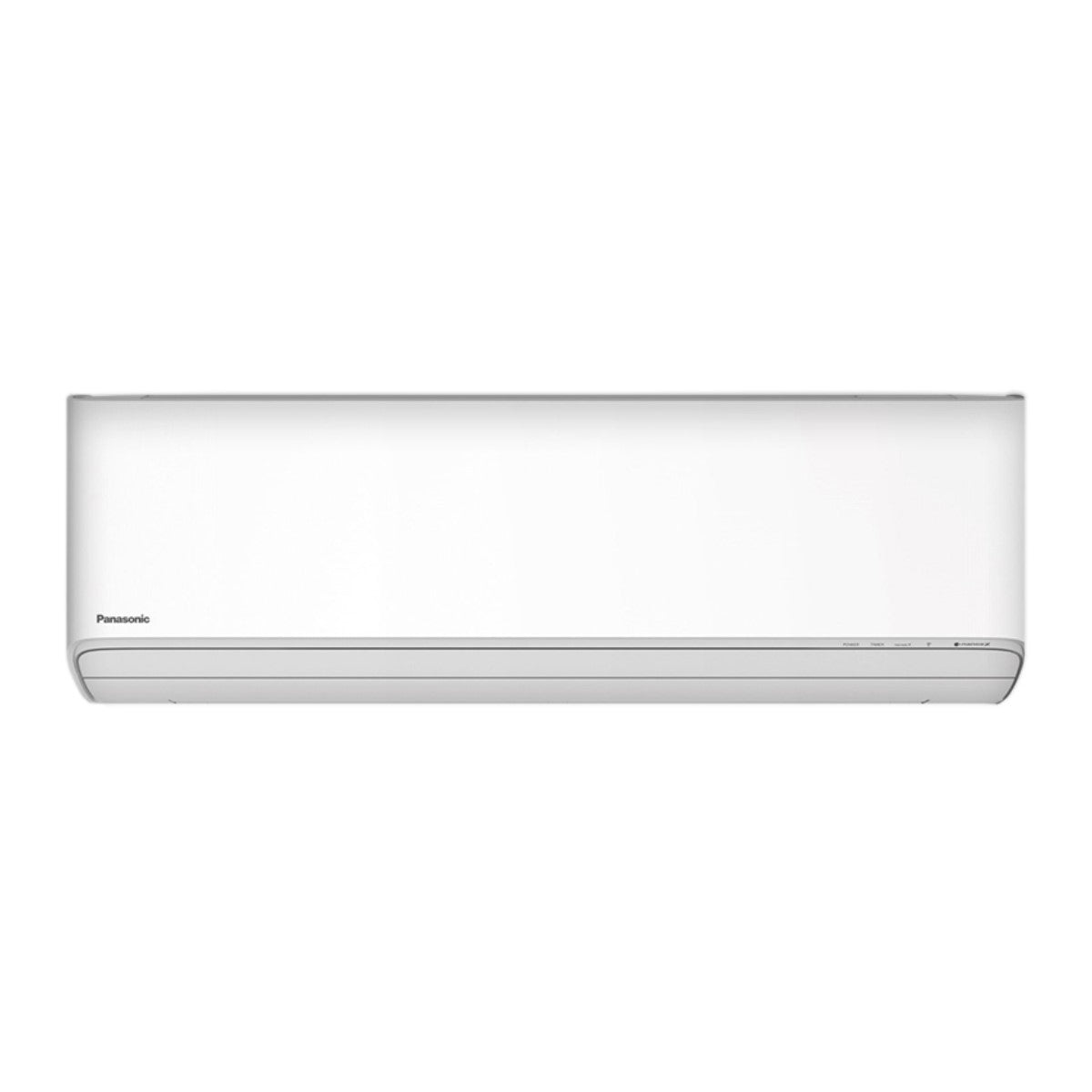

1) Model
- Indoor unit catalog code: 1x CS-Z25ZKEW
- Power: 9000 Btu
- Color : White
- Cooling capacity: 2.50 kW
- Heating capacity: 2.80 kW
- Air flow rate : 12.4 ~ 13.0 m 3 /min
- Sound pressure level : 19~39 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Dimensions (HxWxD): 295x870x229 mm
- Weight: 10.0 Kg
- Built-in Wi-Fi
2) Model
- Indoor unit catalog code: 1x CS-Z50ZKEW
- Power: 18000 Btu
- Color : White
- Cooling capacity : 4.20 kW
- Heating capacity: 4.11 kW
- Air flow rate: 14.5~ 15.4m3 /min
- Sound pressure level : 19~51 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 12.70 mm (1/2")
- Dimensions (HxWxD): 295x870x229 mm
- Weight: 10.0 Kg
- Built-in Wi-Fi

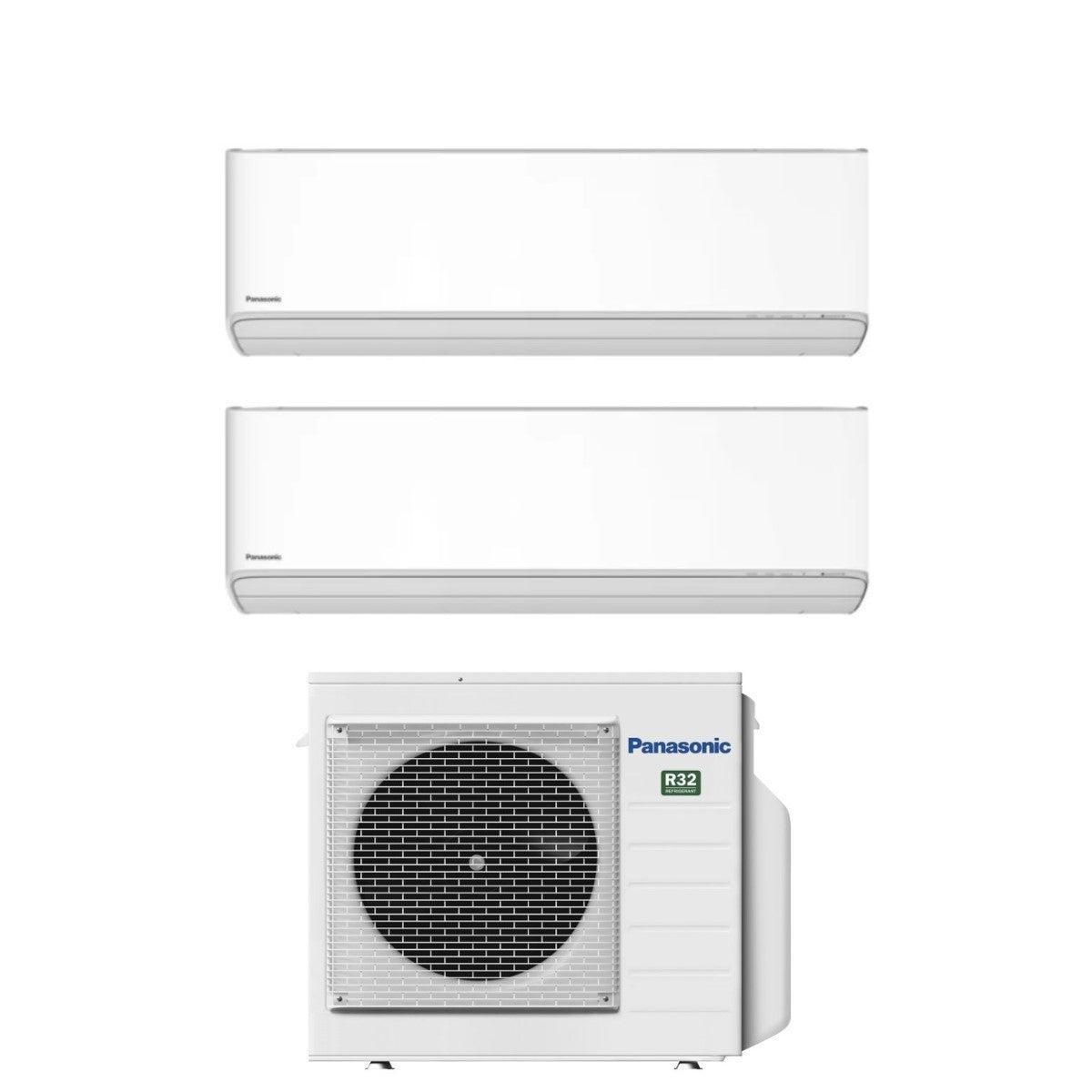

External unit
- Outdoor unit catalog code: CU-3Z68TBE
- Maximum number of connectable indoor units: Up to 3 indoor units
Energy efficiency
- SEER : 8,00
- SCOP : 4.20
- Energy efficiency class in cooling: A++
- Energy efficiency class in heating: A+
- Annual energy consumption cooling: 298 kWh/a
- Annual heating energy consumption: 1733 kWh/a
Performance
- Cooling capacity: 6.80 kW
- Heating capacity: 8.50 kW
- Cooling absorption: 1.86 kW
- Heating absorption: 2.15 kW
- Sound pressure level : 51~52 dB(A)
Electrical data
- Power supply (V/Hz/F) : 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- Cooling: -10° ~ 46° C
- Heating: -15° ~ 24° C
Installation data
- Liquid tube diameter: 6.35mm (1/4") x3
- Gas pipe diameter: 9.52 mm (3/8") x3
- Maximum pipe length: 60 m
- Maximum height difference between internal unit and external unit: 15 m
Dimensions and weight
- External unit dimensions (HxWxD): 795x875x320 mm
- External unit weight: 71.0 Kg
5 Years Compressor Warranty
5 year warranty on the compressors of the outdoor unit of the entire range for five years
Panasonic offers the widest range of Multi Split systems
2 types of Multi Split from 3.5 to 9.0 kW for 5 indoor units connected to a single outdoor unit. If the air conditioning requirements exceed the scope of a single room, Panasonic offers a very wide range of models with the possibility of connecting up to 5 indoor units to a single outdoor unit
Complete flexibility up to 9.0 kW and up to 5 rooms with a wide range of indoor units including high performance Etherea indoor units, energy efficiency class up to A+++ / A++
Why a Multi Split is a better solution than multiple separate units
- A single compact outdoor unit
- Greater comfort at home as each room has its own internal heating unit
- Much more powerful than a single unit
- More efficient as units always run at full capacity
- Possibility to connect all types of internal units, such as wall-mounted and console models, depending on individual needs
Solution with Multi Split
With one outdoor unit, up to five indoor units can be connected. Each room or area is equipped with one indoor unit. Extremely increased comfort levels. Only one outdoor unit is installed on the roof

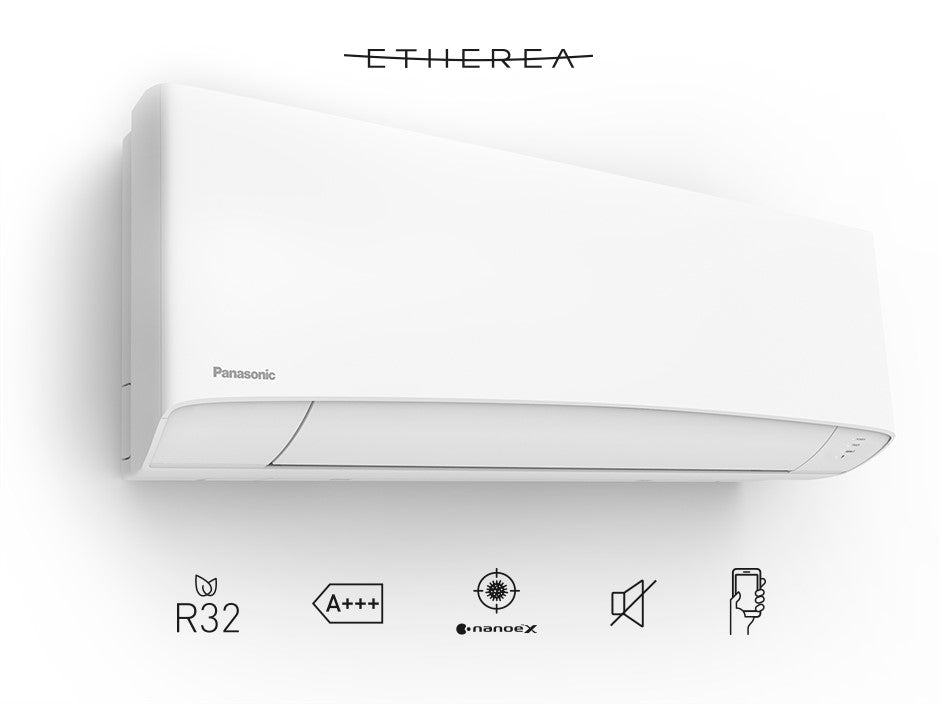

Panasonic Etherea Efficiency. Respect for the environment. Healthy air.
Let Panasonic take care of your indoor air quality
Built-in Wi-Fi
The new Etherea indoor units have been designed with an integrated wireless LAN module, compatible with the Panasonic Comfort Cloud APP . Remote control of your system:
• Turning the indoor unit on and off
• Heating and cooling operating modes
• Weekly timer setting (up to 6 events per day, 42 in a week)
• Error code notification
• Advanced functions (e.g. nanoe™ X function)
Compatibility with voice control systems
Unlimited control, full access to the features of your air conditioners. Improving your comfort is now a breeze thanks to our Panasonic Comfort Cloud and Voice Control enabled air conditioner
Performance Etherea maximum energy class. Benefit from lower bills while contributing to environmental protection

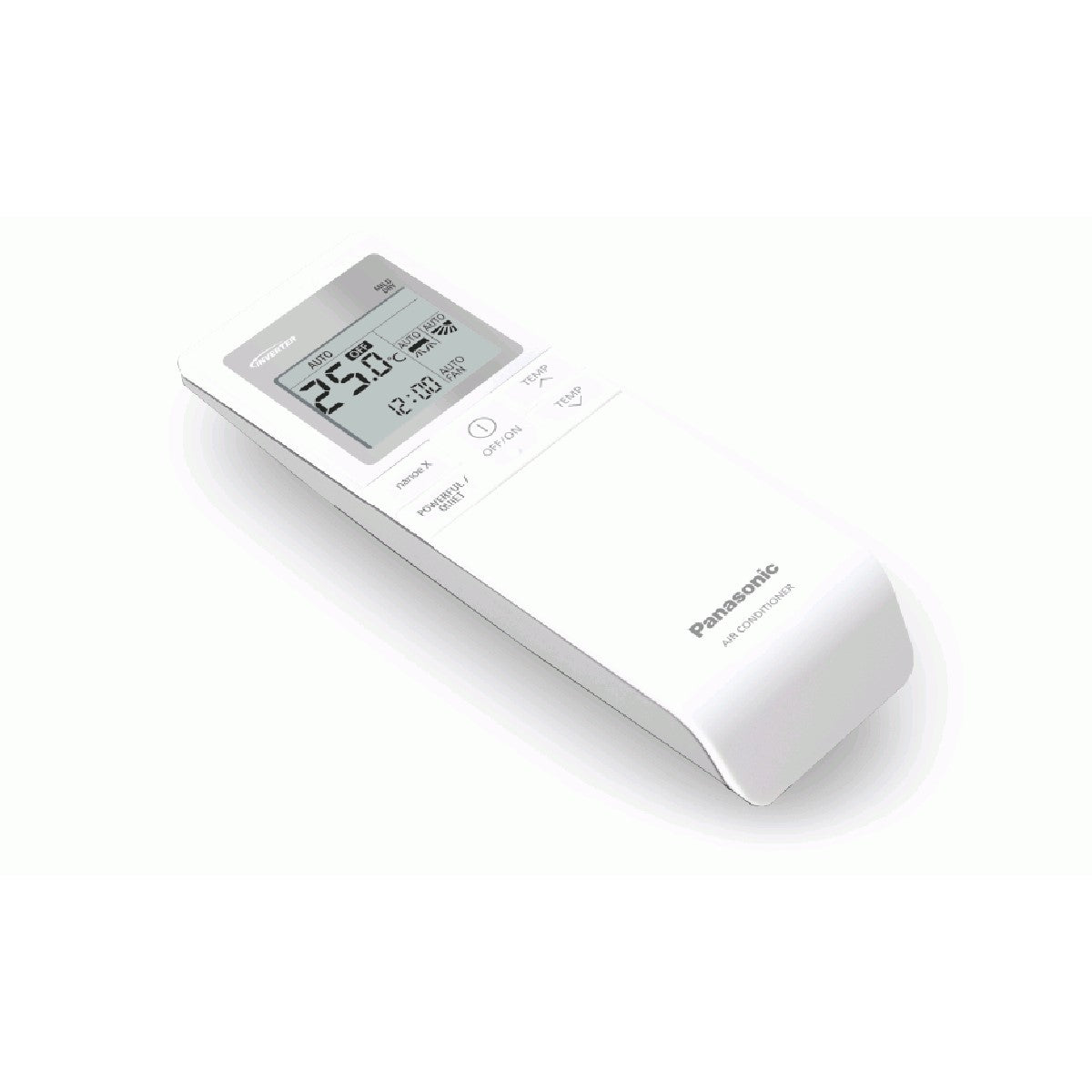

Enjoy innovative, handy design with the new, elegant backlit Sky remote control
With quick access to key operations and a sliding cover that offers more options, controlling settings has become simple and intuitive. At 58.9mm wide and 164.7mm long, the Sky remote fits comfortably in your hand.
Screen and LED backlight
The Sky remote displays its settings in a better light thanks to the new backlit screen. Now you can program the settings without having to turn on the lights
Original sliding cover
A smooth sliding cover not only enhances the clean lines of the remote, but keeps the buttons free from dirt and stains.
Punctual temperature control
The Sky remote control allows you to set the temperature in 0.5°C increments. Enjoy more precise temperature regulation and savour exclusive comfort.
Nanoe TM Better Air Quality for Life
Let Panasonic take care of your indoor air quality with nanoe™ X, the technology that inhibits a wide variety of bacteria, viruses, pollutants and preserves and neutralizes the environment. This patented technology is designed to improve air quality in both residential and commercial environments.
Nanoe™ X deodorizes and inhibits certain bacteria and viruses
Nanoe™ X produces 10 times more* OH radicals. The new nanoe™ X device produces 10 times more OH radicals (4.8 trillion) than the regular nanoe™ device. The higher amounts of OH radicals in nanoe™ X result in exceptional effects in inhibiting bacteria, viruses and allergens and in deodorizing
How nanoe™ X keeps the air fresh and clean
• Nanoe™ X reaches bacteria
• OH radicals steal hydrogen from bacteria
• OH radicals transform the hydrogen released by the bacteria into water, inhibiting bacterial activity
A small gesture for the future
Not everyone is ready for change. Panasonic, however, believes that technological development can improve people's lives. For this reason, a new line of air conditioners in R32 has been designed, an absolutely innovative refrigerant: it is easy to install, has a low environmental impact and allows you to save energy. The result? Greater well-being for people and the planet. Welcome R32!
Product Warranty : The warranty on this item is 24 months from the date of purchase.
