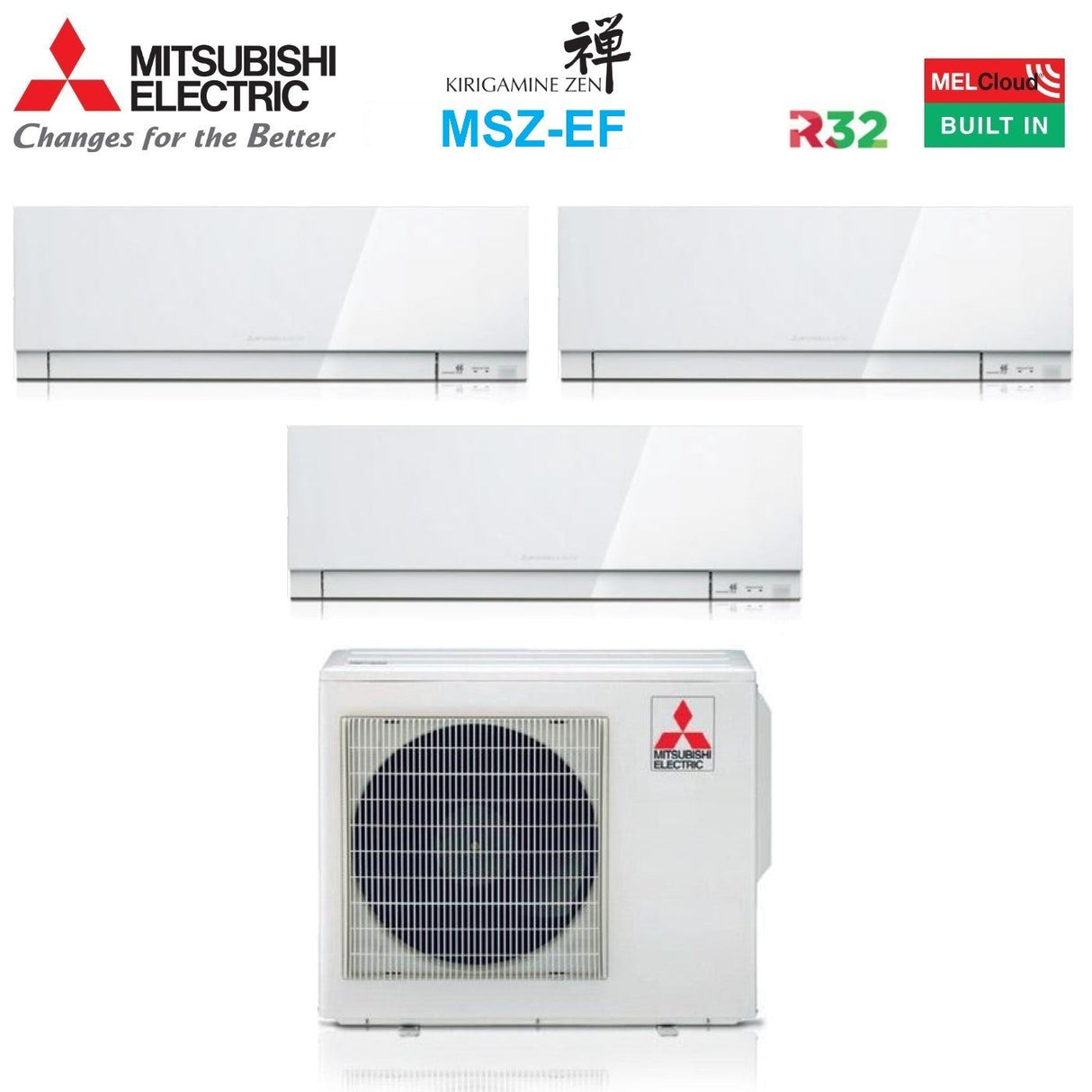

Mitsubishi Electric Trial Split Inverter Air Conditioner KIRIGAMINE ZEN WHITE MSZ-EF 9+9+18 series with MXZ-3F54VF R-32 Integrated Wi-Fi White Color 9000+9000+18000

Description

The Product Is Coming The Last Week Of January


Technical Features

Internal units

1) Model:

  • Internal Unit Catalog Code: 2x MSZ-EF25VGKW
  • Power: 9000 Btu
  • Cooling Capacity : 2.5 kW
  • Heating capacity: 3.2 kW
  • Treated Air : 4.0 ~ 11.9 m 3 /min
  • Sound pressure level : 19~45 dB(A)
  • Liquid Pipe Diameter: 6.35mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 299x885x195 mm
  • Indoor Unit Weight: 11.5 kg
  • Built-in Wi-Fi

2) Model:

  • Internal Unit Catalog Code: 1x MSZ-EF50VGKB
  • Power: 18000 Btu
  • Cooling Capacity : 5.0 kW
  • Heating capacity: 5.8 kW
  • Treated Air: 5.8 ~ 14.6 m 3 /min
  • Sound pressure level : 30~49 dB(A)
  • Liquid Pipe Diameter: 6.35mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 299x885x195 mm
  • Indoor Unit Weight: 11.5 kg
  • Built-in Wi-Fi

External Unit

Model:

  • External Unit Catalog Code: MXZ-3F54VF2/3
  • Max indoor units: up to 3 indoor units

Energy Efficiency:

  • SEER : 8.52
  • SCOP : 4.61
  • Energy Efficiency Class in Cooling: A+++
  • Energy Efficiency Class in Heating: A++
  • Annual energy consumption in Cooling: 222 kWh/a
  • Annual energy consumption in heating: 1520 kWh/a

Performance:

  • Cooling capacity: 5.4 kW
  • Heating capacity: 7.0 kW
  • Cooling Power Consumption: 1.32 kW
  • Heating absorption: 1.4 kW
  • Sound power level: 60 dB(A)
  • Sound pressure level : 46~50 dB(A)

Characteristics:

  • Power supply (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas: R-32
  • Guaranteed temperature range:
  • - Cooling: -10° ~ 46° C
  • - Heating: -15° ~ 24° C
Installation Data:
  • Liquid Tube Diameter: 6.35mm (1/4") x3
  • Gas pipe diameter: 9.52 mm (3/8") x3
  • Maximum pipe length: 50 m
  • Maximum height difference between internal unit and external unit: 15 m internal unit above
  • Maximum height difference between internal unit and external unit: 10 m internal unit below

Dimensions:

  • External Unit Dimensions (HxWxD): 710x840x330 mm
  • External Unit Weight: 58.0 Kg

Multisplit DC Inverter

The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner, based on the cooling or heating demand.

Compared to traditional fixed-speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the advantage of comfort and electricity consumption.

High seasonal efficiency

Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the accurate design of the components used, energy efficiency reaches extraordinary levels. The entire range of multisplit air conditioners (MXZ-D) reaches high efficiency values ​​even on a seasonal basis.

Maximum Silence for Maximum Comfort

DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).

Efficiency

Thanks to careful design and the introduction of R32 refrigerant, the efficiency of the new multisplit external units has increased significantly, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.

Connectivity

The extraordinary connectivity available with the new outdoor units allows to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to most of the indoor unit range of the Residential and Commercial Line, whether they are wall mounted units, ceiling cassettes or ducted.

Silence

The new MXZ-F multi-split outdoor units reach a new level of operating silence, reducing noise emission by up to 4dB compared to the previous model in cooling mode and by up to 3dB in heating mode.

R32: reduced environmental impact

Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce significantly fewer equivalent tons of CO2 into the environment.


Automatic noise reduction mode

By setting this function, it is possible to automatically decrease the noise of the outdoor unit as the internal loads to be satisfied decrease, such as during night-time cooling.

Auto-correct links
Simply press a button (MXZ-3E/F to MXZ-6D) or activate a single indoor unit (MXZ-2E/F) to ensure proper connection between indoor units and outdoor unit. In case of connection error, the system will automatically correct it.

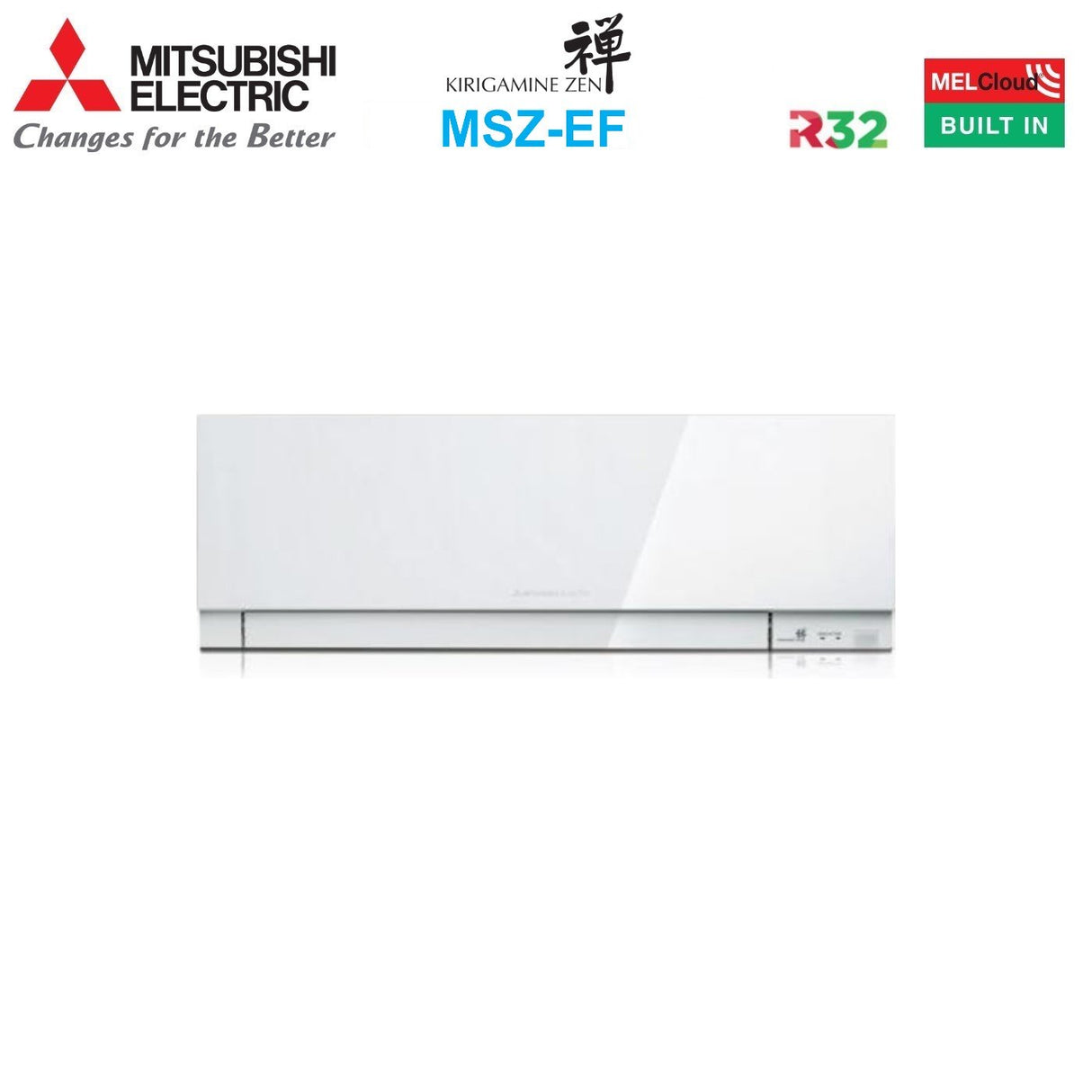

Mitsubishi Electric Kirigamine Zen MSZ-EF

Top design and compact size

An impeccably elegant design , colours that adapt to any type of interior, high quality materials and compact dimensions: this is the new Kirigamine Zen from Mitsubishi Electric. An exclusive style combined with high technological content and performance.


The R32 refrigerant gas complies with European directives on the reduction of the greenhouse effect, having a lower GWP than R410A and not damaging the ozone layer.

The advantages?

  • High energy efficiency
  • Reduction of the amount of refrigerant gas used
  • Reduced environmental impact
  • Easily chargeable and recoverable as a pure gas
  • Low toxicity and flammability

Silver ion air purifier filter

The irregular surface of the purifying filter is more effective in capturing dust and simple and regular cleaning keeps it in perfect efficiency for over 10 years, allowing it to neutralize bad odors thanks to the deodorizing power. The silver ion air purifying filter supplied is able to guarantee even cleaner and healthier air.

MELCloud integrated

The new MSZ-EF (in the VGK version) offers the user experience of MELCloud integrated into the machine. Ready to be configured and used, it allows the user to remotely manage, thanks to the Wi-Fi controller, all the functions of the air conditioner.

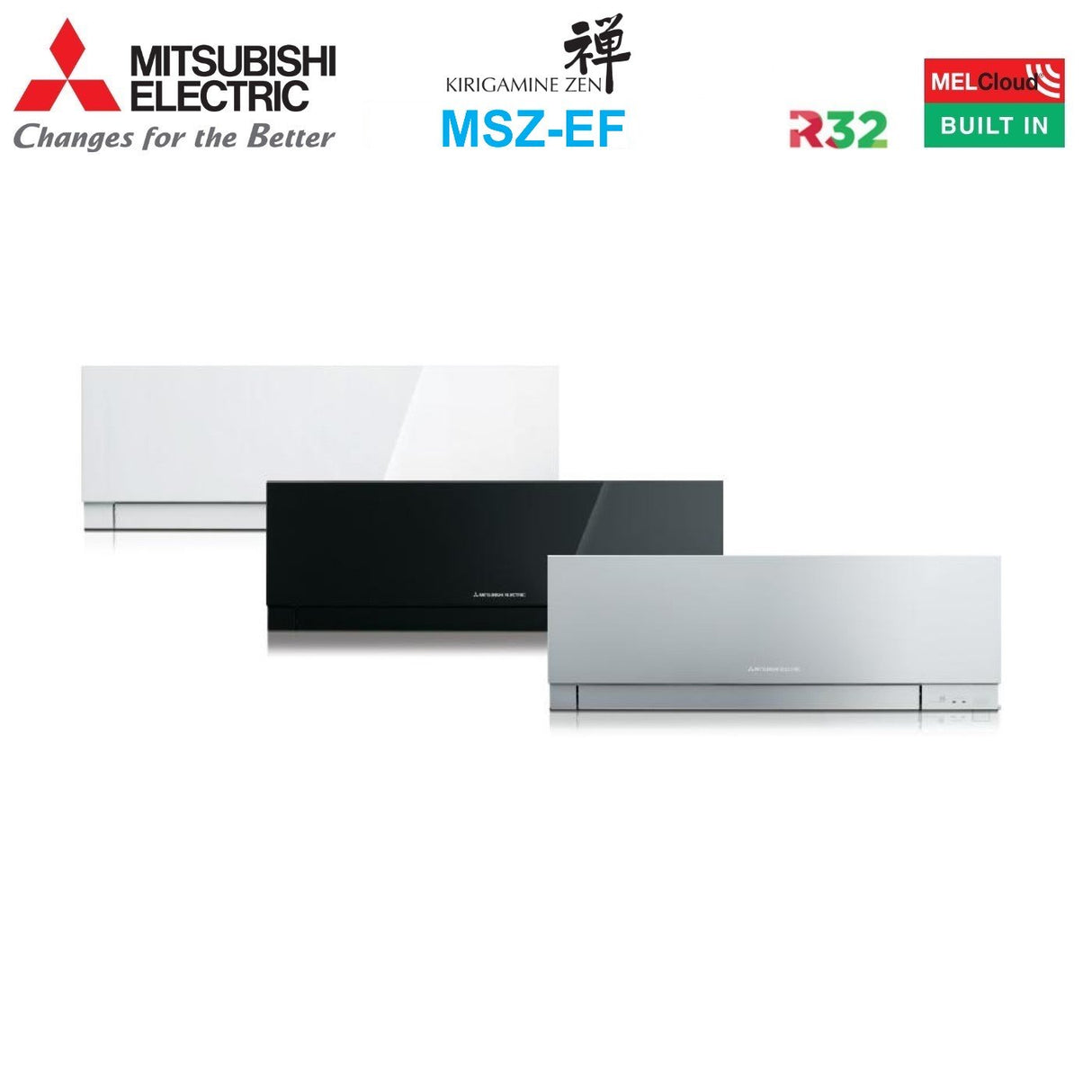

Color is elegance

The elegance of the Kirigamine Zen also comes from its color. Defined shades, sober colors, clean shapes enclose Mitsubishi Electric technology in a high-quality air conditioner.


Elegant remote controls

The new Kirigamine Zen let themselves be commanded with elegance.

The new backlit remote controls are even more beautiful. In two colors (black and white), elegant and easy to use, they enrich with a touch of design the user experiences of the Kirigamine Zen lines.


Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
