icon Air Conditioner Mitsubishi Electric Trial Split Inverter Series Kirigamine Zen Silver Msz-Ef 12+12+18 With Mxz-3f68vf R-32 Integrated Wi-Fi Color Silver 12000+12000+18000 | CaldaieMurali

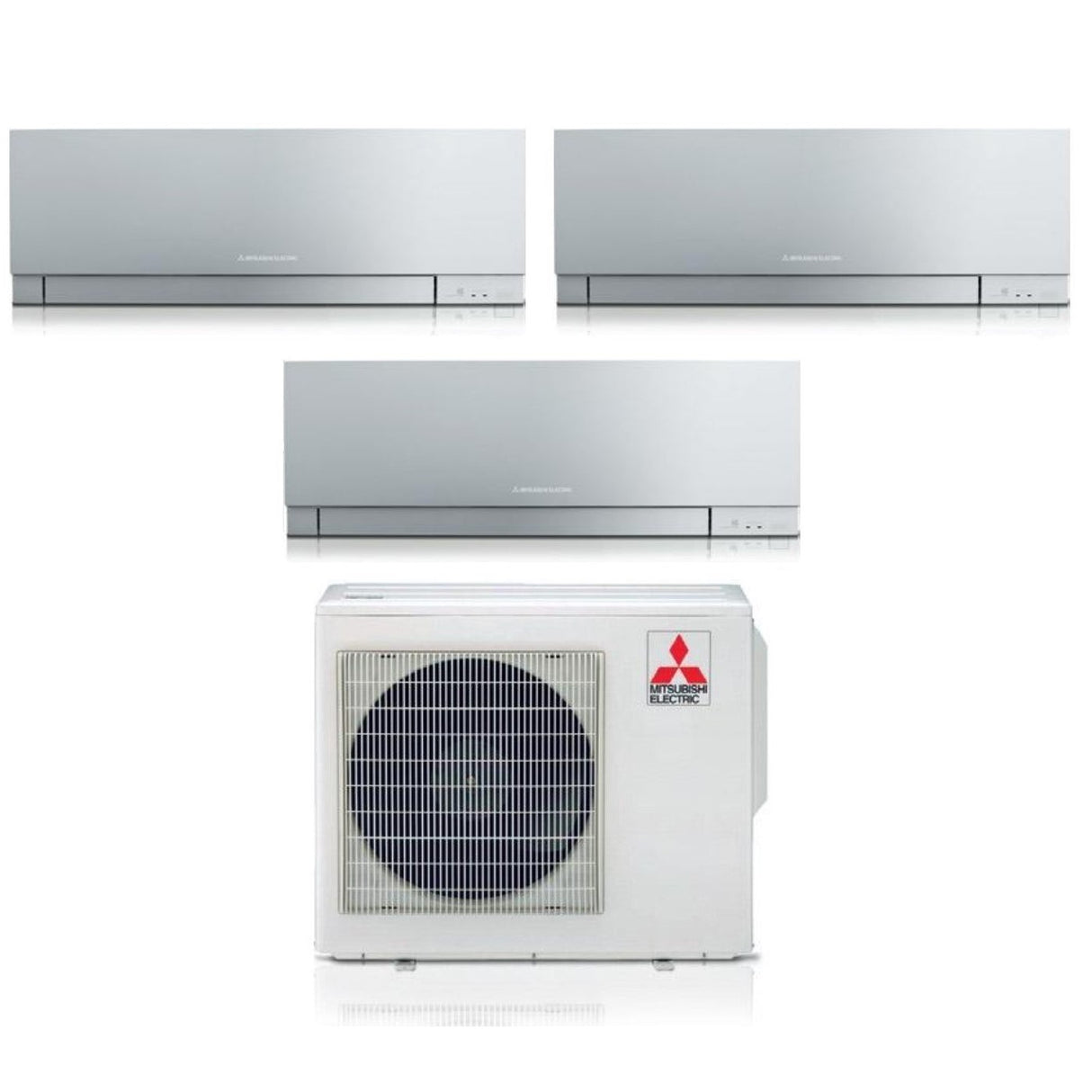

Air Conditioner Mitsubishi Electric Trial Split Inverter Series Kirigamine Zen Silver Msz-Ef 12+12+18 With Mxz-3f68vf R-32 Integrated Wi-Fi Color Silver 12000+12000+18000

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features

Indoor units

1) Model:

  • Internal Unit Catalog Code: 2x MSZ-EF35VGKS
  • Power : 12000 Btu
  • Cooling Capacity : 3.5 kW
  • Heating Capacity : 4.0 kW
  • Treated Air : 4,0 ~ 12,7 m 3 /min
  • Sound pressure level : 21~46 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 299x885x195 mm
  • Indoor Unit Weight: 11.5 kg
  • Integrated Wi-Fi

2) Model:

  • Indoor Unit Catalog Code : 1x MSZ-EF50VGKS
  • Power : 18000 Btu
  • Cooling Capacity : 5.0 kW
  • Heating Capacity : 5.8 kW
  • Treated Air : 5,8 ~ 14,6 m 3 /min
  • Sound Pressure Level : 30~49 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 299x885x195 mm
  • Indoor Unit Weight: 11.5 kg
  • Integrated Wi-Fi

Outdoor Unit

Model:

  • Catalog code Outdoor Unit : MXZ-3F68VF2/3
  • Max indoor units: up to 3 indoor units

Energy efficiency:

  • SEER: 7.96
  • SCOP: 4.12
  • Energy Efficiency Class in Cooling : A++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption in Cooling : 299 kWh/a
  • Annual energy consumption in Heating : 2312 kWh/a

Performance:

  • Cooling Capacity: 6.8 kW
  • Heating Capacity: 8.6 kW
  • Cooling absorption: 1.84 kW
  • Heating absorption: 1.91 kW
  • Sound power level : 63 dB(A)
  • Sound pressure level : 48~53 dB(A)

Characteristics:

  • Power (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas : R-32
  • Guaranteed temperature range:
  • - Cooling: -10° ~ 46°C
  • - Heating: -15° ~ 24° C
Installation data:
  • Pipe diameter Liquid : 6.35 mm (1/4") x3
  • Gas pipe diameter : 9.52 mm (3/8") x3
  • Maximum piping length: 60 m
  • Maximum difference in height Internal Unit / External Unit: 15 m External Unit Above
  • Maximum difference in height Internal Unit / External Unit: 10 m External Unit Below

Dimensions:

  • External Unit Dimensions (HxWxD): 710x840x330 mm
  • Weight of Outdoor Unit: 58.0 Kg

Multi-split DC Inverter

The Inverter system is an electronic device that allows the speed of the compressor to be varied efficiently and, consequently, the power supplied by the air conditioner, based on the cooling or heating demand.

Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying sudden changes, to the full advantage of comfort and electricity consumption.

High seasonal efficiency

Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) achieves high efficiency values ​​even on a seasonal basis.

Maximum Silence for Maximum Comfort

The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).

Efficiency

Thanks to careful planning and the introduction of R32 refrigerant, the efficiency of the new multi-split outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.

Connectivity

The extraordinary connectivity available with the new external units allows to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to most of the indoor unit range of the Residential and Commercial Line, whether they are wall mounted, ceiling cassette or ducted.

Quietness

The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing the sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

R32: reduced environmental impact

Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tons of CO2 into the environment.


Automatic noise reduction mode

By setting this function, it is possible to automatically decrease the noise level of the external unit as the internal loads to be satisfied decrease, such as for example during night cooling.

Auto-correct links
It is enough to press a button (MXZ-3E/F to MXZ-6D) or activate only one indoor unit (MXZ-2E/F) to ensure the correct connection between indoor and outdoor units. In the event of a connection error, the system will automatically correct it

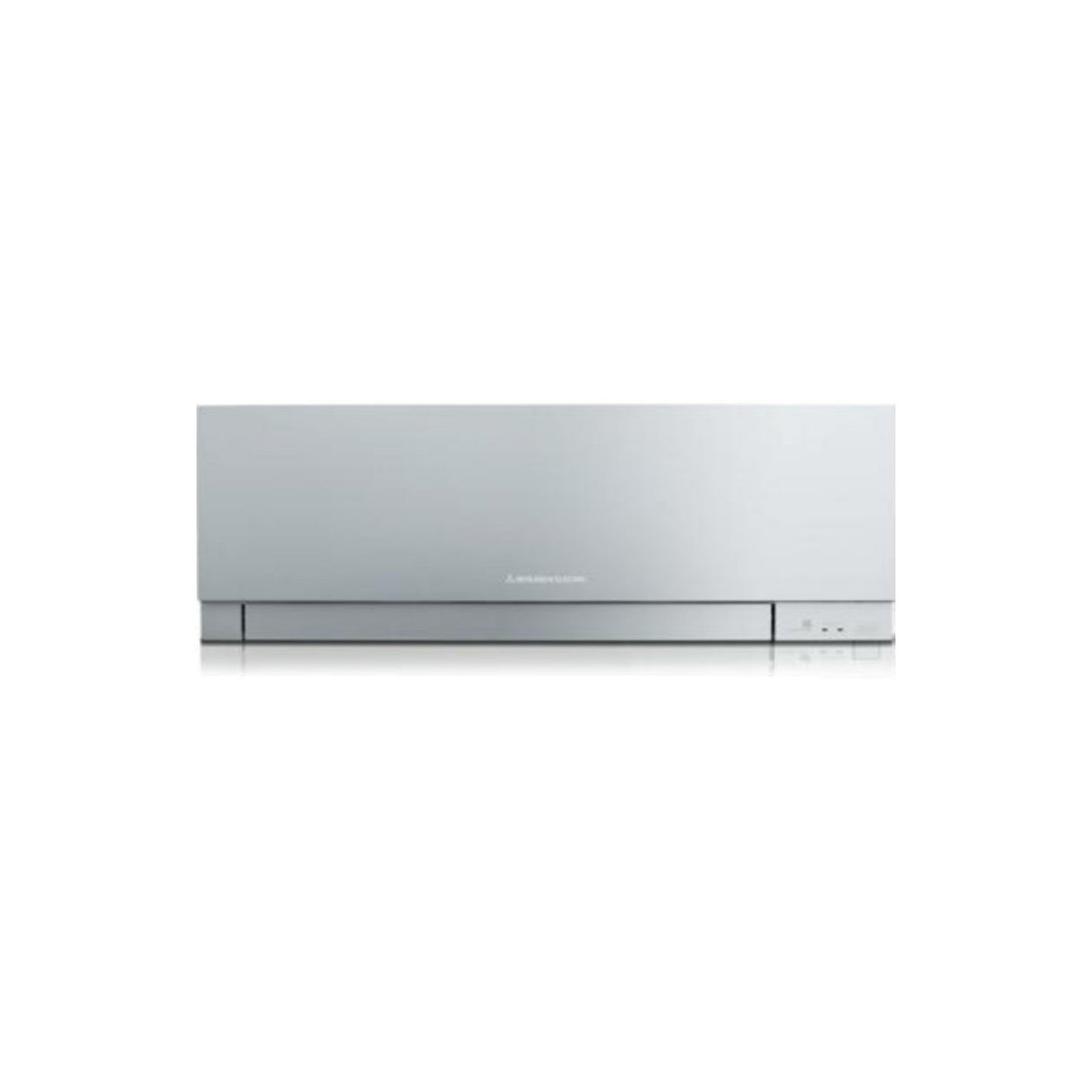

Mitsubishi Electric Kirigamine Zen MSZ-EF

Top design and compact size

A design of impeccable elegance , colors that adapt to any kind of interior, precious materials and compact dimensions: it is Kirigamine Zen new from Mitsubishi Electric. An exclusive style combined with a high technological content and performance


The R32 refrigerant gas complies with the European directives on the reduction of the greenhouse effect, presenting a lower GWP than R410A and not damaging the ozone layer.

The advantages?

  • High energy efficiency
  • Reduction of the quantity of refrigerant gas used
  • Reduced environmental impact
  • Easily loaded and recoverable as pure gas
  • Low toxicity and flammability

Silver ion air purifier filter

The irregular surface of the purifying filter is more effective in capturing dust and simple and regular cleaning keeps it in perfect working order for over 10 years, allowing you to neutralize bad odors thanks to its deodorizing power. The supplied silver ion air purifying filter is able to guarantee even cleaner and healthier air.

Integrated MELCloud

The new MSZ-EF (in the VGK version) offers the user experience of MELCloud integrated into the machine. Ready to be configured and used, it allows the user to remotely manage all the air conditioner functions thanks to the Wi-Fi controller.

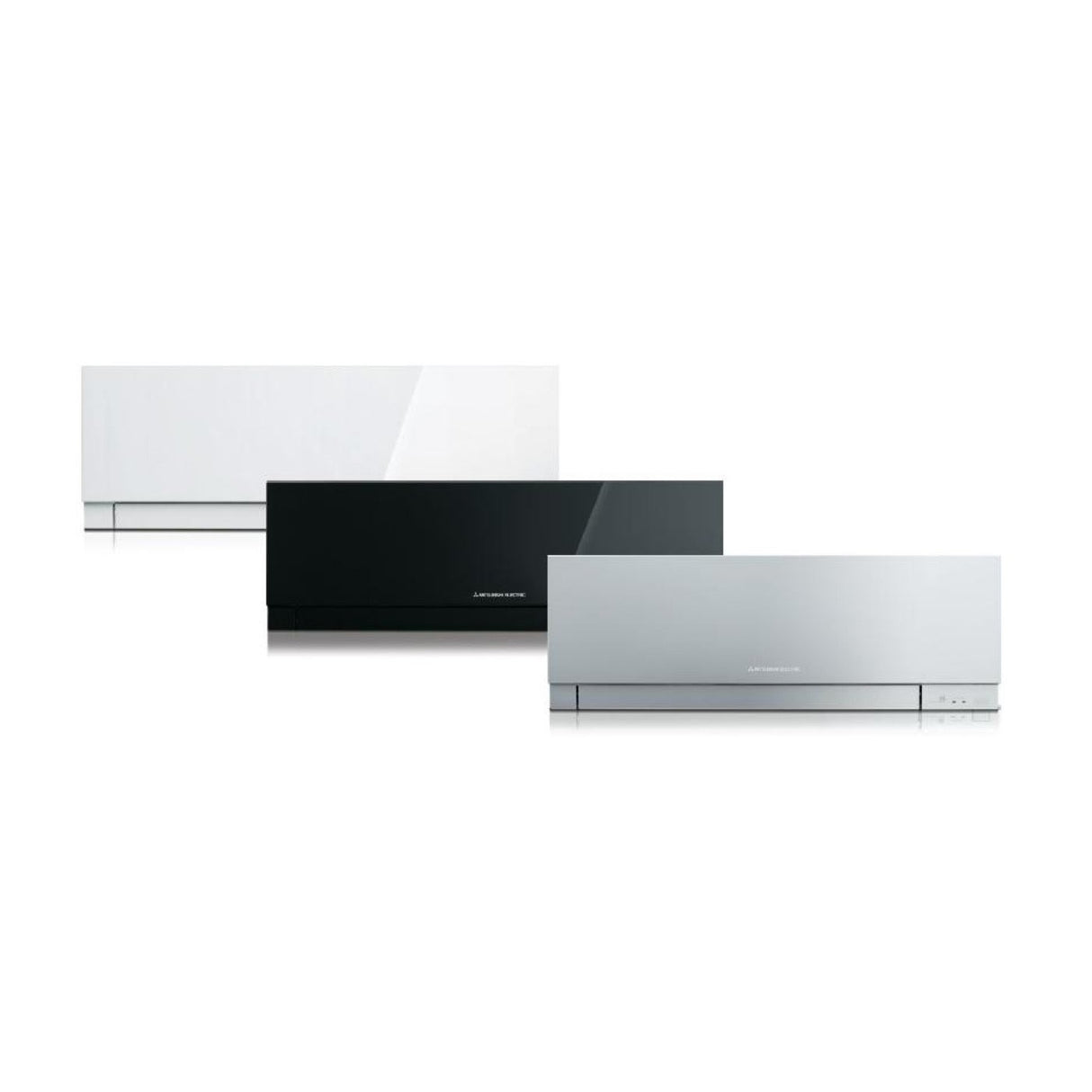

Color is elegance

The elegance of Kirigamine Zen also passes through the colour. Defined colors, sober colors, clean shapes enclose the Mitsubishi Electrci technology in a precious air conditioner.


Elegant remote controls

The new Kirigamine Zen let themselves be commanded with elegance.

The new remote controls, backlit, are even more beautiful. In two colors (black and white), elegant and easy to use, they enrich the user experiences of the Kirigamine Zen lines with a touch of design.


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Air Conditioner Mitsubishi Electric Trial Split Inverter Series Kirigamine Zen Silver Msz-Ef 12+12+18 With Mxz-3f68vf R-32 Integrated Wi-Fi Color Silver 12000+12000+18000

Product form

Technical features Indoor units 1) Model: Internal Unit Catalog Code: 2x MSZ-EF35VGKS Power : 12000 Btu Cooling Capacity : 3.5... Read more

€3.356,00 Incl. VAT

    Description

    Technical features

    Indoor units

    1) Model:

    • Internal Unit Catalog Code: 2x MSZ-EF35VGKS
    • Power : 12000 Btu
    • Cooling Capacity : 3.5 kW
    • Heating Capacity : 4.0 kW
    • Treated Air : 4,0 ~ 12,7 m 3 /min
    • Sound pressure level : 21~46 dB(A)
    • Pipe diameter Liquid : 6.35 mm (1/4")
    • Gas pipe diameter: 9.52 mm (3/8")
    • Internal Unit Dimensions (HxWxD): 299x885x195 mm
    • Indoor Unit Weight: 11.5 kg
    • Integrated Wi-Fi

    2) Model:

    • Indoor Unit Catalog Code : 1x MSZ-EF50VGKS
    • Power : 18000 Btu
    • Cooling Capacity : 5.0 kW
    • Heating Capacity : 5.8 kW
    • Treated Air : 5,8 ~ 14,6 m 3 /min
    • Sound Pressure Level : 30~49 dB(A)
    • Pipe diameter Liquid : 6.35 mm (1/4")
    • Gas pipe diameter: 9.52 mm (3/8")
    • Internal Unit Dimensions (HxWxD): 299x885x195 mm
    • Indoor Unit Weight: 11.5 kg
    • Integrated Wi-Fi

    Outdoor Unit

    Model:

    • Catalog code Outdoor Unit : MXZ-3F68VF2/3
    • Max indoor units: up to 3 indoor units

    Energy efficiency:

    • SEER: 7.96
    • SCOP: 4.12
    • Energy Efficiency Class in Cooling : A++
    • Heating Energy Efficiency Class: A+
    • Annual energy consumption in Cooling : 299 kWh/a
    • Annual energy consumption in Heating : 2312 kWh/a

    Performance:

    • Cooling Capacity: 6.8 kW
    • Heating Capacity: 8.6 kW
    • Cooling absorption: 1.84 kW
    • Heating absorption: 1.91 kW
    • Sound power level : 63 dB(A)
    • Sound pressure level : 48~53 dB(A)

    Characteristics:

    • Power (V/Hz/Φ) : 220~240/50/1
    • Refrigerant gas : R-32
    • Guaranteed temperature range:
    • - Cooling: -10° ~ 46°C
    • - Heating: -15° ~ 24° C
    Installation data:
    • Pipe diameter Liquid : 6.35 mm (1/4") x3
    • Gas pipe diameter : 9.52 mm (3/8") x3
    • Maximum piping length: 60 m
    • Maximum difference in height Internal Unit / External Unit: 15 m External Unit Above
    • Maximum difference in height Internal Unit / External Unit: 10 m External Unit Below

    Dimensions:

    • External Unit Dimensions (HxWxD): 710x840x330 mm
    • Weight of Outdoor Unit: 58.0 Kg

    Multi-split DC Inverter

    The Inverter system is an electronic device that allows the speed of the compressor to be varied efficiently and, consequently, the power supplied by the air conditioner, based on the cooling or heating demand.

    Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying sudden changes, to the full advantage of comfort and electricity consumption.

    High seasonal efficiency

    Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) achieves high efficiency values ​​even on a seasonal basis.

    Maximum Silence for Maximum Comfort

    The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).

    Efficiency

    Thanks to careful planning and the introduction of R32 refrigerant, the efficiency of the new multi-split outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.

    Connectivity

    The extraordinary connectivity available with the new external units allows to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to most of the indoor unit range of the Residential and Commercial Line, whether they are wall mounted, ceiling cassette or ducted.

    Quietness

    The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing the sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

    R32: reduced environmental impact

    Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tons of CO2 into the environment.


    Automatic noise reduction mode

    By setting this function, it is possible to automatically decrease the noise level of the external unit as the internal loads to be satisfied decrease, such as for example during night cooling.

    Auto-correct links
    It is enough to press a button (MXZ-3E/F to MXZ-6D) or activate only one indoor unit (MXZ-2E/F) to ensure the correct connection between indoor and outdoor units. In the event of a connection error, the system will automatically correct it


    Mitsubishi Electric Kirigamine Zen MSZ-EF

    Top design and compact size

    A design of impeccable elegance , colors that adapt to any kind of interior, precious materials and compact dimensions: it is Kirigamine Zen new from Mitsubishi Electric. An exclusive style combined with a high technological content and performance


    The R32 refrigerant gas complies with the European directives on the reduction of the greenhouse effect, presenting a lower GWP than R410A and not damaging the ozone layer.

    The advantages?

    • High energy efficiency
    • Reduction of the quantity of refrigerant gas used
    • Reduced environmental impact
    • Easily loaded and recoverable as pure gas
    • Low toxicity and flammability

    Silver ion air purifier filter

    The irregular surface of the purifying filter is more effective in capturing dust and simple and regular cleaning keeps it in perfect working order for over 10 years, allowing you to neutralize bad odors thanks to its deodorizing power. The supplied silver ion air purifying filter is able to guarantee even cleaner and healthier air.

    Integrated MELCloud

    The new MSZ-EF (in the VGK version) offers the user experience of MELCloud integrated into the machine. Ready to be configured and used, it allows the user to remotely manage all the air conditioner functions thanks to the Wi-Fi controller.

    Color is elegance

    The elegance of Kirigamine Zen also passes through the colour. Defined colors, sober colors, clean shapes enclose the Mitsubishi Electrci technology in a precious air conditioner.


    Elegant remote controls

    The new Kirigamine Zen let themselves be commanded with elegance.

    The new remote controls, backlit, are even more beautiful. In two colors (black and white), elegant and easy to use, they enrich the user experiences of the Kirigamine Zen lines with a touch of design.


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 75.0 kg
    • classe energetica raffreddamento: A+++
    • classe energetica riscaldamento: A++
    • gas: R-32
    • marca: MITSUBISHI ELECTRIC
    • modello: EF-VGKS 12+12+18 68
    • potenza btu: 12000+12000+18000
    • superficie riscaldabile mq: 35/35/50
