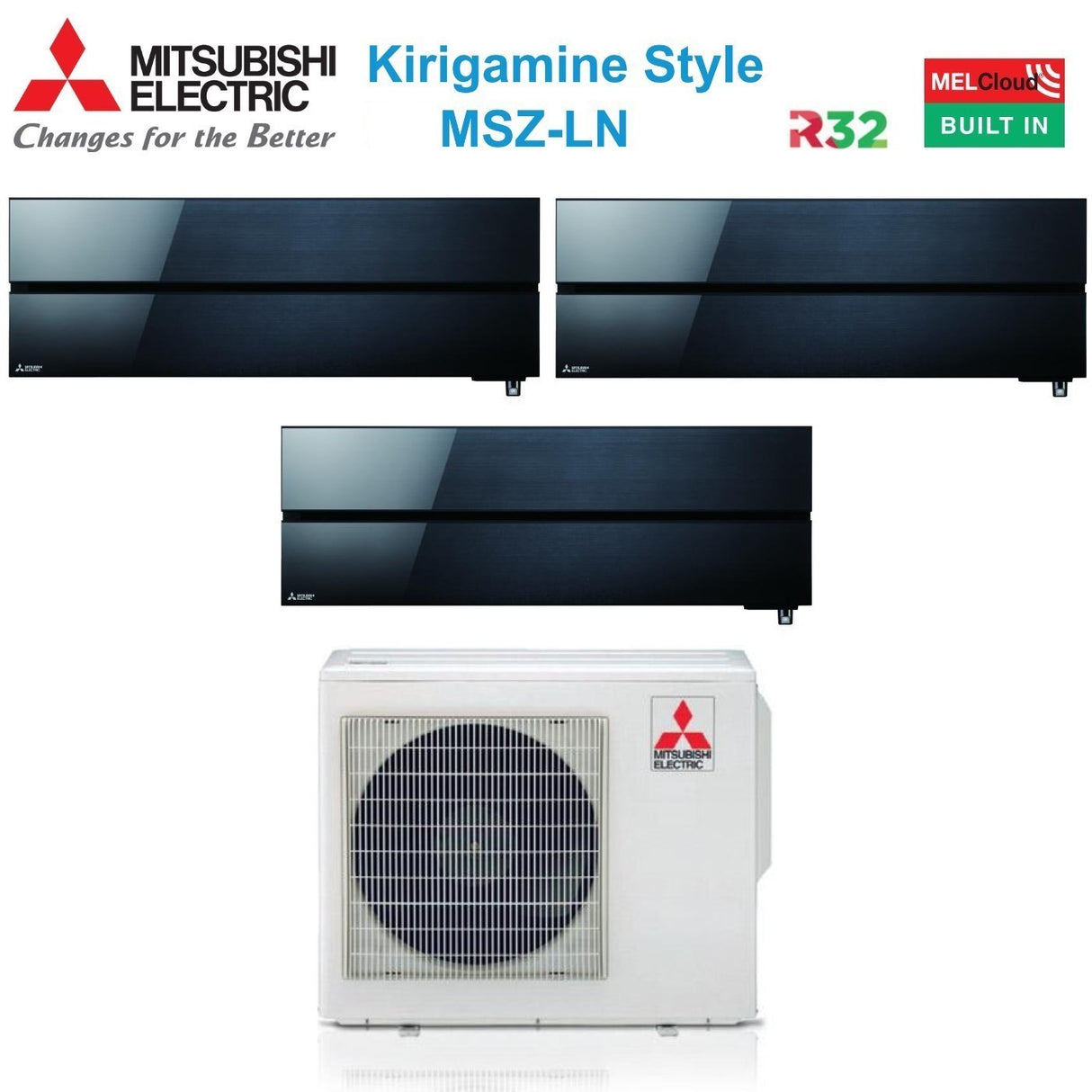

icon Air Conditioner Mitsubishi Electric Trial Split Inverter Series Kirigamine Style Msz-Ln 9+12+12 With Mxz-3f68vf Onyx Black R-32 Integrated Wi-Fi Color Black 9000+12000+12000 | CaldaieMurali

Air Conditioner Mitsubishi Electric Trial Split Inverter Series Kirigamine Style Msz-Ln 9+12+12 With Mxz-3f68vf Onyx Black R-32 Integrated Wi-Fi Color Black 9000+12000+12000

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features

Indoor units

1) Model:

  • Internal Unit Catalog Code : 1x MSZ-LN25VGB
  • Power : 9000 Btu
  • Cooling Capacity : 2.5 kW
  • Heating Capacity : 3.2 kW
  • Treated Air : 4,0 ~ 14,4 m 3 /min
  • Sound Power Level : 58 dB(A)
  • Sound pressure level : 19~45 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 307x890x233 mm
  • Indoor Unit Weight: 15.5 kg
  • Integrated Wi-Fi

2) Model:

  • Internal Unit Catalog Code: 2x MSZ-LN35VGB
  • Power : 12000 Btu
  • Cooling Capacity : 3.5 kW
  • Heating Capacity : 4.0 kW
  • Treated Air : 4,3 ~ 13,7 m 3 /min
  • Sound Power Level : 58 dB(A)
  • Sound pressure level : 19~45 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 307x890x233 mm
  • Indoor Unit Weight: 15.5 kg
  • Integrated Wi-Fi

Outdoor Unit

Model:

  • Catalog code Outdoor Unit : MXZ-3F68VF2/3
  • Max indoor units: up to 3 indoor units

Energy efficiency:

  • SEER: 7.96
  • SCOP: 4.12
  • Energy Efficiency Class in Cooling : A++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption in Cooling : 299 kWh/a
  • Annual energy consumption in Heating : 2312 kWh/a

Performance:

  • Cooling Capacity: 6.8 kW
  • Heating Capacity: 8.6 kW
  • Cooling absorption: 1.84 kW
  • Heating absorption: 1.91 kW
  • Sound power level : 63 dB(A)
  • Sound pressure level : 48~53 dB(A)

Characteristics:

  • Power (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas : R-32
  • Guaranteed temperature range:
  • - Cooling: -10° ~ 46°C
  • - Heating: -15° ~ 24° C
Installation Data:
  • Pipe diameter Liquid : 6.35 mm (1/4") x3
  • Gas pipe diameter : 9.52 mm (3/8") x3
  • Maximum piping length: 60 m
  • Maximum difference in height Internal Unit / External Unit: 15 m External Unit Above
  • Maximum difference in height Internal Unit / External Unit: 10 m External Unit Below

Dimensions:

  • External Unit Dimensions (HxWxD): 710x840x330 mm
  • Weight of Outdoor Unit: 58.0 Kg

Multi-split DC Inverter

The Inverter system is an electronic device that allows the speed of the compressor to be varied efficiently and, consequently, the power supplied by the air conditioner, based on the cooling or heating demand.

Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying sudden changes, to the full advantage of comfort and electricity consumption.

High seasonal efficiency

Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) achieves high efficiency values ​​even on a seasonal basis.

Maximum Silence for Maximum Comfort

The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).

Efficiency

Thanks to careful planning and the introduction of R32 refrigerant, the efficiency of the new multi-split outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.

Connectivity

The extraordinary connectivity available with the new external units allows to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to most of the indoor unit range of the Residential and Commercial Line, whether they are wall mounted, ceiling cassette or ducted.

Quietness

The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing the sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

R32: reduced environmental impact

Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tons of CO2 into the environment.


Automatic noise reduction mode

By setting this function, it is possible to automatically decrease the noise level of the external unit as the internal loads to be satisfied decrease, such as for example during night cooling.

Auto-correct links
It is enough to press a button (MXZ-3E/F to MXZ-6D) or activate only one indoor unit (MXZ-2E/F) to ensure the correct connection between indoor and outdoor units. In the event of a connection error, the system will automatically correct it

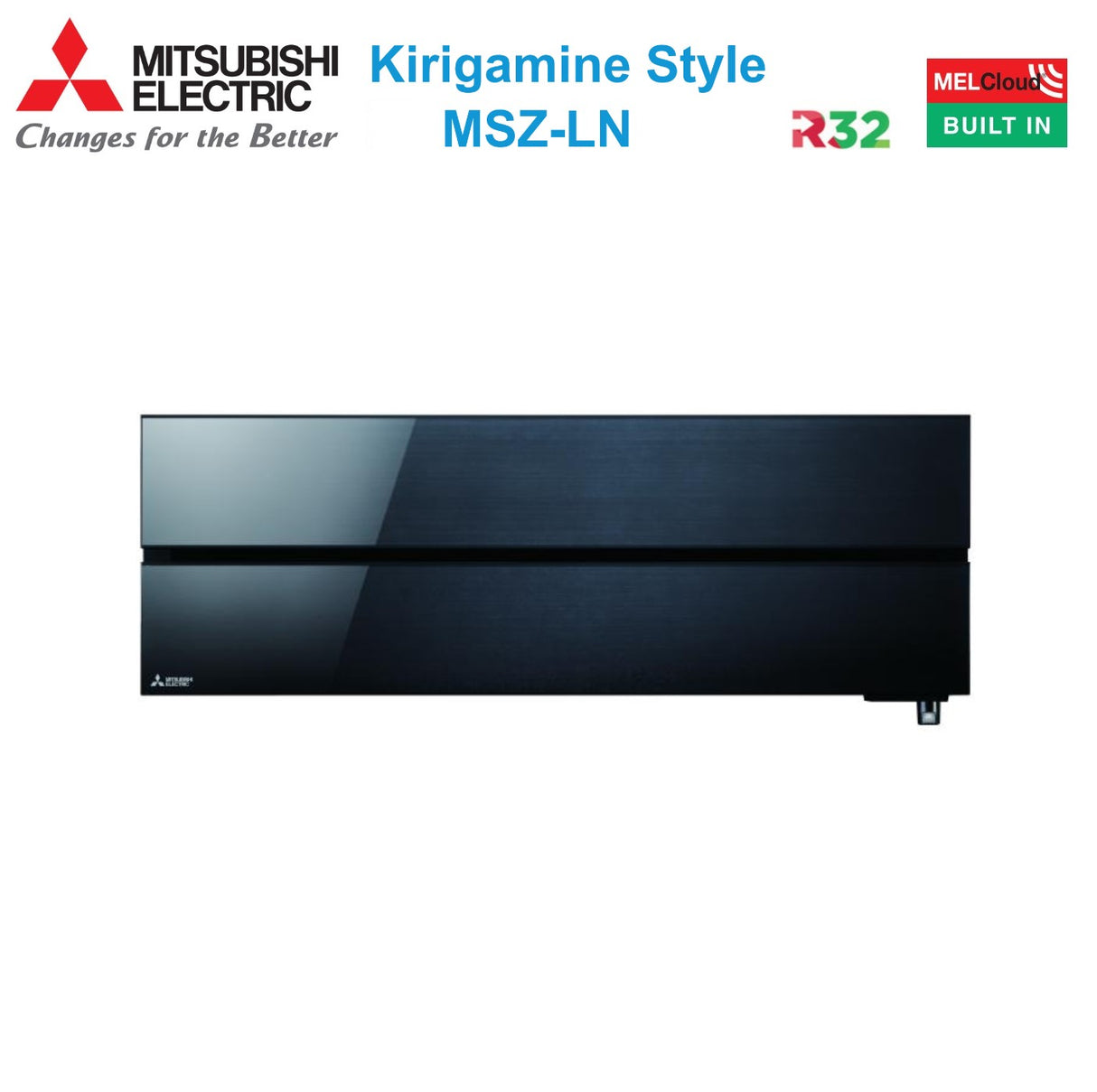

Mitsubishi Electric MSZ-LN Series Kirigamine Style For your luxury

Kirigamine Style


Elegant design

Handcrafted paint technology creates a refined design, giving the finish rich color and a high-quality feel. The new wall-mounted indoor units of the MSZ-LN series combine elegant and refined design with unparalleled performance. The new benchmark for air quality and distribution, for silence and efficiency has arrived!

Design Elegante LN


Air distribution

The totally revolutionary geometry of the double deflector guarantees optimal air distribution; it is possible to independently direct the outgoing air flows from the right and left side of the unit.

Distribuzione Aria LN

The double flaps work independently, distributing pleasant air flows to people in the room.

Flat LN

Personal comfort

The i-see sensor 3D infrared sensor uses advanced technologies to offer personalized comfort by monitoring the temperature of the room.

3D i-see sensor

The 3D i-see sensor presence sensor, integrated in the MSZ-LN units, has new functions compared to the one installed in the Kirigamine MSZ-FH series for an increase in indoor comfort. Thanks to the new implementations, not only is it possible to direct the flow directly/indirectly, but functions are available that "learn" the habits of the occupants and optimize the efficient and comfortable operation of the unit. The even airflow function, for example, "records" the occupancy profile of the room, creating a mapping that allows the most frequented areas to be optimally air-conditioned based on history.

See Sensor LN

Silent operation

Environmental comfort is also linked to the sound level and is especially important in bedrooms or studios. The Kirigamine line allows you to guarantee the ideal climate all year round with a sound level that is virtually imperceptible to the human ear.

The 19dB(A)2 achieved by the Kirigamine Style model is quieter than the noise generated by leaves rustling in the wind, making the air conditioner effectively inaudible to the occupants of the room.

This is why Kirigamine Style is particularly suitable for domestic environments such as bedrooms and living areas, where we spend most of our time and carry out our daily activities.

Funzionamento Silenzioso LN


Healthy environment

Mitsubishi Electric's exclusive coating prevents the accumulation of dust and grease.

Advanced filtration

The MSZ-LN units' Quad Plus Plasma filtration system achieves a new record in the level of air cleanliness. It is in fact capable of retaining particles up to PM2.5, i.e. with a diameter of less than 2.5 μm.

This distinctive feature makes the unit ideal for households particularly attentive to air quality or for installation in rooms with often compromised ambient air (e.g. rooms overlooking busy areas, in cities near production activities...) .

Quad Plus Plasma

This distinctive feature makes the unit ideal for households particularly attentive to air quality or for installation in environments with often compromised ambient air (e.g. rooms overlooking trafficked areas, in cities, near production activities...). Through the use of Plasma Quad Plus technology, the unit is able to eliminate bacteria and viruses thanks to a technology that exploits an electric field and a series of electric discharges through which the air introduced into the room passes. With Plasma Quad Plus technology, 99% of the bacteria present in a 25m3 room is neutralized in just 115 minutes.

Plasma Quad Plus


Dual Barrier Coating

With the MSZ-LN unit, Mitsubishi Electric introduces another revolutionary technology: Double Barrier Coating.

Barrier Coating

During operation, the dust and impurities introduced during the air conditioning operations are deposited on the internal components, especially the battery and fan, increasing the machine's consumption by up to 18%.

With Double Barrier Coating the internal components of MSZ-LN are treated with a second protective layer which prevents the deposit of dust and impurities even after long periods of time, reducing consumption and eliminating the need for unit maintenance in relation to this problem.


MELCloud - Energy consumption monitoring

The ability to manage and monitor the air conditioning system remotely is a consolidated solution in the Mitsubishi Electric product range thanks to the MELCloud platform. It allows you to promptly adjust the air conditioning systems from Smartphones and Tablets via a dedicated app.

The new MSZ-LN units are not only compatible with MELCloud, but are already designed incorporating the Wi-Fi interface for connection to the network, which makes them ready for the Cloud solution without the need for additional components. One of the new features that MSZ-LN is already equipped with is the ability to monitor electricity consumption via the MELCloud® application, to always have efficiency under control.

Features and benefits of WiFi control

  • On / Off
  • Mode (Auto/Heat/Cool/Fan)
  • Ventilation speed
  • Programmable weekly timer
  • Flaps angle adjustment
  • Room temperature detection and setting
  • Weather information of the installation site

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Air Conditioner Mitsubishi Electric Trial Split Inverter Series Kirigamine Style Msz-Ln 9+12+12 With Mxz-3f68vf Onyx Black R-32 Integrated Wi-Fi Color Black 9000+12000+12000

Product form

Technical features Indoor units 1) Model: Internal Unit Catalog Code : 1x MSZ-LN25VGB Power : 9000 Btu Cooling Capacity :... Read more

€3.220,00 Incl. VAT

    Description

    Technical features

    Indoor units

    1) Model:

    • Internal Unit Catalog Code : 1x MSZ-LN25VGB
    • Power : 9000 Btu
    • Cooling Capacity : 2.5 kW
    • Heating Capacity : 3.2 kW
    • Treated Air : 4,0 ~ 14,4 m 3 /min
    • Sound Power Level : 58 dB(A)
    • Sound pressure level : 19~45 dB(A)
    • Pipe diameter Liquid : 6.35 mm (1/4")
    • Gas pipe diameter: 9.52 mm (3/8")
    • Internal Unit Dimensions (HxWxD): 307x890x233 mm
    • Indoor Unit Weight: 15.5 kg
    • Integrated Wi-Fi

    2) Model:

    • Internal Unit Catalog Code: 2x MSZ-LN35VGB
    • Power : 12000 Btu
    • Cooling Capacity : 3.5 kW
    • Heating Capacity : 4.0 kW
    • Treated Air : 4,3 ~ 13,7 m 3 /min
    • Sound Power Level : 58 dB(A)
    • Sound pressure level : 19~45 dB(A)
    • Pipe diameter Liquid : 6.35 mm (1/4")
    • Gas pipe diameter: 9.52 mm (3/8")
    • Internal Unit Dimensions (HxWxD): 307x890x233 mm
    • Indoor Unit Weight: 15.5 kg
    • Integrated Wi-Fi

    Outdoor Unit

    Model:

    • Catalog code Outdoor Unit : MXZ-3F68VF2/3
    • Max indoor units: up to 3 indoor units

    Energy efficiency:

    • SEER: 7.96
    • SCOP: 4.12
    • Energy Efficiency Class in Cooling : A++
    • Heating Energy Efficiency Class: A+
    • Annual energy consumption in Cooling : 299 kWh/a
    • Annual energy consumption in Heating : 2312 kWh/a

    Performance:

    • Cooling Capacity: 6.8 kW
    • Heating Capacity: 8.6 kW
    • Cooling absorption: 1.84 kW
    • Heating absorption: 1.91 kW
    • Sound power level : 63 dB(A)
    • Sound pressure level : 48~53 dB(A)

    Characteristics:

    • Power (V/Hz/Φ) : 220~240/50/1
    • Refrigerant gas : R-32
    • Guaranteed temperature range:
    • - Cooling: -10° ~ 46°C
    • - Heating: -15° ~ 24° C
    Installation Data:
    • Pipe diameter Liquid : 6.35 mm (1/4") x3
    • Gas pipe diameter : 9.52 mm (3/8") x3
    • Maximum piping length: 60 m
    • Maximum difference in height Internal Unit / External Unit: 15 m External Unit Above
    • Maximum difference in height Internal Unit / External Unit: 10 m External Unit Below

    Dimensions:

    • External Unit Dimensions (HxWxD): 710x840x330 mm
    • Weight of Outdoor Unit: 58.0 Kg

    Multi-split DC Inverter

    The Inverter system is an electronic device that allows the speed of the compressor to be varied efficiently and, consequently, the power supplied by the air conditioner, based on the cooling or heating demand.

    Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying sudden changes, to the full advantage of comfort and electricity consumption.

    High seasonal efficiency

    Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) achieves high efficiency values ​​even on a seasonal basis.

    Maximum Silence for Maximum Comfort

    The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).

    Efficiency

    Thanks to careful planning and the introduction of R32 refrigerant, the efficiency of the new multi-split outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.

    Connectivity

    The extraordinary connectivity available with the new external units allows to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to most of the indoor unit range of the Residential and Commercial Line, whether they are wall mounted, ceiling cassette or ducted.

    Quietness

    The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing the sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

    R32: reduced environmental impact

    Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tons of CO2 into the environment.


    Automatic noise reduction mode

    By setting this function, it is possible to automatically decrease the noise level of the external unit as the internal loads to be satisfied decrease, such as for example during night cooling.

    Auto-correct links
    It is enough to press a button (MXZ-3E/F to MXZ-6D) or activate only one indoor unit (MXZ-2E/F) to ensure the correct connection between indoor and outdoor units. In the event of a connection error, the system will automatically correct it


    Mitsubishi Electric MSZ-LN Series Kirigamine Style For your luxury

    Kirigamine Style


    Elegant design

    Handcrafted paint technology creates a refined design, giving the finish rich color and a high-quality feel. The new wall-mounted indoor units of the MSZ-LN series combine elegant and refined design with unparalleled performance. The new benchmark for air quality and distribution, for silence and efficiency has arrived!

    Design Elegante LN


    Air distribution

    The totally revolutionary geometry of the double deflector guarantees optimal air distribution; it is possible to independently direct the outgoing air flows from the right and left side of the unit.

    Distribuzione Aria LN

    The double flaps work independently, distributing pleasant air flows to people in the room.

    Flat LN

    Personal comfort

    The i-see sensor 3D infrared sensor uses advanced technologies to offer personalized comfort by monitoring the temperature of the room.

    3D i-see sensor

    The 3D i-see sensor presence sensor, integrated in the MSZ-LN units, has new functions compared to the one installed in the Kirigamine MSZ-FH series for an increase in indoor comfort. Thanks to the new implementations, not only is it possible to direct the flow directly/indirectly, but functions are available that "learn" the habits of the occupants and optimize the efficient and comfortable operation of the unit. The even airflow function, for example, "records" the occupancy profile of the room, creating a mapping that allows the most frequented areas to be optimally air-conditioned based on history.

    See Sensor LN

    Silent operation

    Environmental comfort is also linked to the sound level and is especially important in bedrooms or studios. The Kirigamine line allows you to guarantee the ideal climate all year round with a sound level that is virtually imperceptible to the human ear.

    The 19dB(A)2 achieved by the Kirigamine Style model is quieter than the noise generated by leaves rustling in the wind, making the air conditioner effectively inaudible to the occupants of the room.

    This is why Kirigamine Style is particularly suitable for domestic environments such as bedrooms and living areas, where we spend most of our time and carry out our daily activities.

    Funzionamento Silenzioso LN


    Healthy environment

    Mitsubishi Electric's exclusive coating prevents the accumulation of dust and grease.

    Advanced filtration

    The MSZ-LN units' Quad Plus Plasma filtration system achieves a new record in the level of air cleanliness. It is in fact capable of retaining particles up to PM2.5, i.e. with a diameter of less than 2.5 μm.

    This distinctive feature makes the unit ideal for households particularly attentive to air quality or for installation in rooms with often compromised ambient air (e.g. rooms overlooking busy areas, in cities near production activities...) .

    Quad Plus Plasma

    This distinctive feature makes the unit ideal for households particularly attentive to air quality or for installation in environments with often compromised ambient air (e.g. rooms overlooking trafficked areas, in cities, near production activities...). Through the use of Plasma Quad Plus technology, the unit is able to eliminate bacteria and viruses thanks to a technology that exploits an electric field and a series of electric discharges through which the air introduced into the room passes. With Plasma Quad Plus technology, 99% of the bacteria present in a 25m3 room is neutralized in just 115 minutes.

    Plasma Quad Plus


    Dual Barrier Coating

    With the MSZ-LN unit, Mitsubishi Electric introduces another revolutionary technology: Double Barrier Coating.

    Barrier Coating

    During operation, the dust and impurities introduced during the air conditioning operations are deposited on the internal components, especially the battery and fan, increasing the machine's consumption by up to 18%.

    With Double Barrier Coating the internal components of MSZ-LN are treated with a second protective layer which prevents the deposit of dust and impurities even after long periods of time, reducing consumption and eliminating the need for unit maintenance in relation to this problem.


    MELCloud - Energy consumption monitoring

    The ability to manage and monitor the air conditioning system remotely is a consolidated solution in the Mitsubishi Electric product range thanks to the MELCloud platform. It allows you to promptly adjust the air conditioning systems from Smartphones and Tablets via a dedicated app.

    The new MSZ-LN units are not only compatible with MELCloud, but are already designed incorporating the Wi-Fi interface for connection to the network, which makes them ready for the Cloud solution without the need for additional components. One of the new features that MSZ-LN is already equipped with is the ability to monitor electricity consumption via the MELCloud® application, to always have efficiency under control.

    Features and benefits of WiFi control

    • On / Off
    • Mode (Auto/Heat/Cool/Fan)
    • Ventilation speed
    • Programmable weekly timer
    • Flaps angle adjustment
    • Room temperature detection and setting
    • Weather information of the installation site

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 75.0 kg
    • classe energetica raffreddamento: A+++
    • classe energetica riscaldamento: A++
    • gas: R-32
    • marca: MITSUBISHI ELECTRIC
    • modello: LN-VGB 9+12+12 68
    • potenza btu: 9000+12000+12000
    • superficie riscaldabile mq: 25/35/35
