Technical Features
Internal units
Model:
- Internal Unit Catalog Code: 5x MSZ-LN25VGV
- Power: 9000 Btu
- Cooling Capacity : 2.5 kW
- Heating capacity: 3.2 kW
- Treated Air : 4.0 ~ 14.4 m 3 /min
- Sound Power Level: 58 dB(A)
- Sound pressure level : 19~45 dB(A)
- Liquid Pipe Diameter: 6.35mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 307x890x233 mm
- Indoor Unit Weight: 15.5 kg
- Built-in Wi-Fi
External Unit
Model:
- External Unit Catalog Code: MXZ-5F102VF2/3
- Max indoor units: up to 5 indoor units
Energy Efficiency:
- SEER : 8.21
- SCOP : 4.65
- Energy Efficiency Class in Cooling: A++
- Energy Efficiency Class in Heating: A++
- Annual energy consumption in Cooling: 436 kWh/a
- Annual energy consumption in heating: 2205 kWh/a
Performance:
- Cooling capacity: 10.2 kW
- Heating capacity: 10.5 kW
- Cooling Power Consumption: 2.8 kW
- Heating absorption: 2.28 kW
- Sound power level: 65 dB(A)
- Sound pressure level : 52~56 dB(A)
Characteristics:
- Power supply (V/Hz/Φ) : 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46° C
- - Heating: -15° ~ 24° C
Installation Data:
- Liquid Pipe Diameter: 6.35mm (1/4") x5
- Gas Pipe Diameter: 12.70mm (1/2") x1 + 9.52mm (3/8") x4
- Maximum pipe length: 80 m
- Maximum height difference between internal unit and external unit: 15 m
Dimensions:
- External Unit Dimensions (HxWxD): 796x950x330 mm
- External Unit Weight: 62.0 Kg

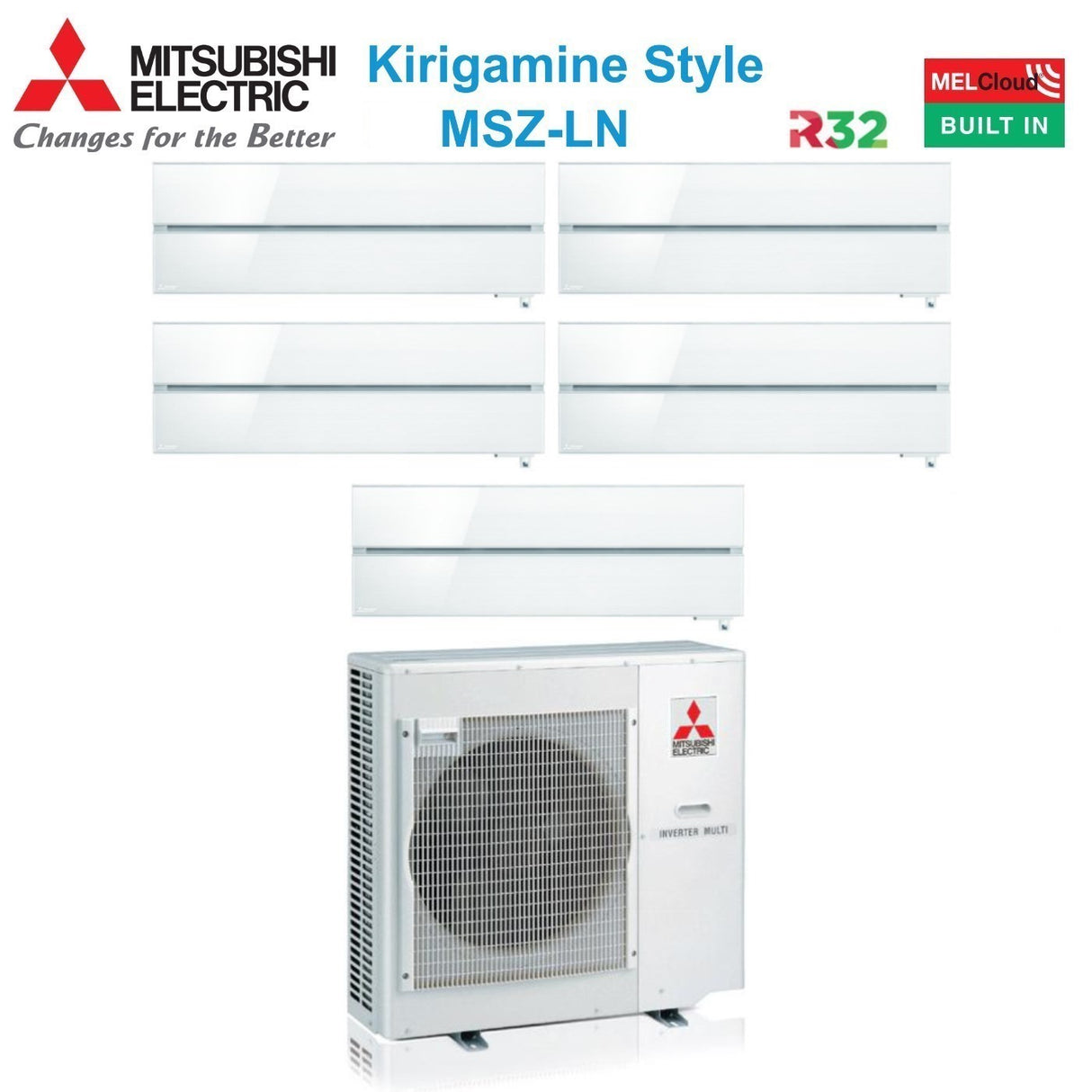

Multisplit DC Inverter
The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner, based on the cooling or heating demand.
Compared to traditional fixed-speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the advantage of comfort and electricity consumption.
High seasonal efficiency
Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the accurate design of the components used, energy efficiency reaches extraordinary levels. The entire range of multisplit air conditioners (MXZ-D) reaches high efficiency values even on a seasonal basis.
Maximum Silence for Maximum Comfort
DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).
Efficiency
Thanks to careful design and the introduction of R32 refrigerant, the efficiency of the new multisplit external units has increased significantly, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.
Connectivity
The extraordinary connectivity available with the new outdoor units allows to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to most of the indoor unit range of the Residential and Commercial Line, whether they are wall mounted units, ceiling cassettes or ducted.
Silence
The new MXZ-F multi-split outdoor units reach a new level of operating silence, reducing noise emission by up to 4dB compared to the previous model in cooling mode and by up to 3dB in heating mode.
R32: reduced environmental impact
Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce significantly fewer equivalent tons of CO2 into the environment.
Automatic noise reduction mode
By setting this function, it is possible to automatically decrease the noise of the outdoor unit as the internal loads to be satisfied decrease, such as during night-time cooling.
Auto-correct links
Simply press a button (MXZ-3E/F to MXZ-6D) or activate a single indoor unit (MXZ-2E/F) to ensure proper connection between indoor units and outdoor unit. In case of connection error, the system will automatically correct it.

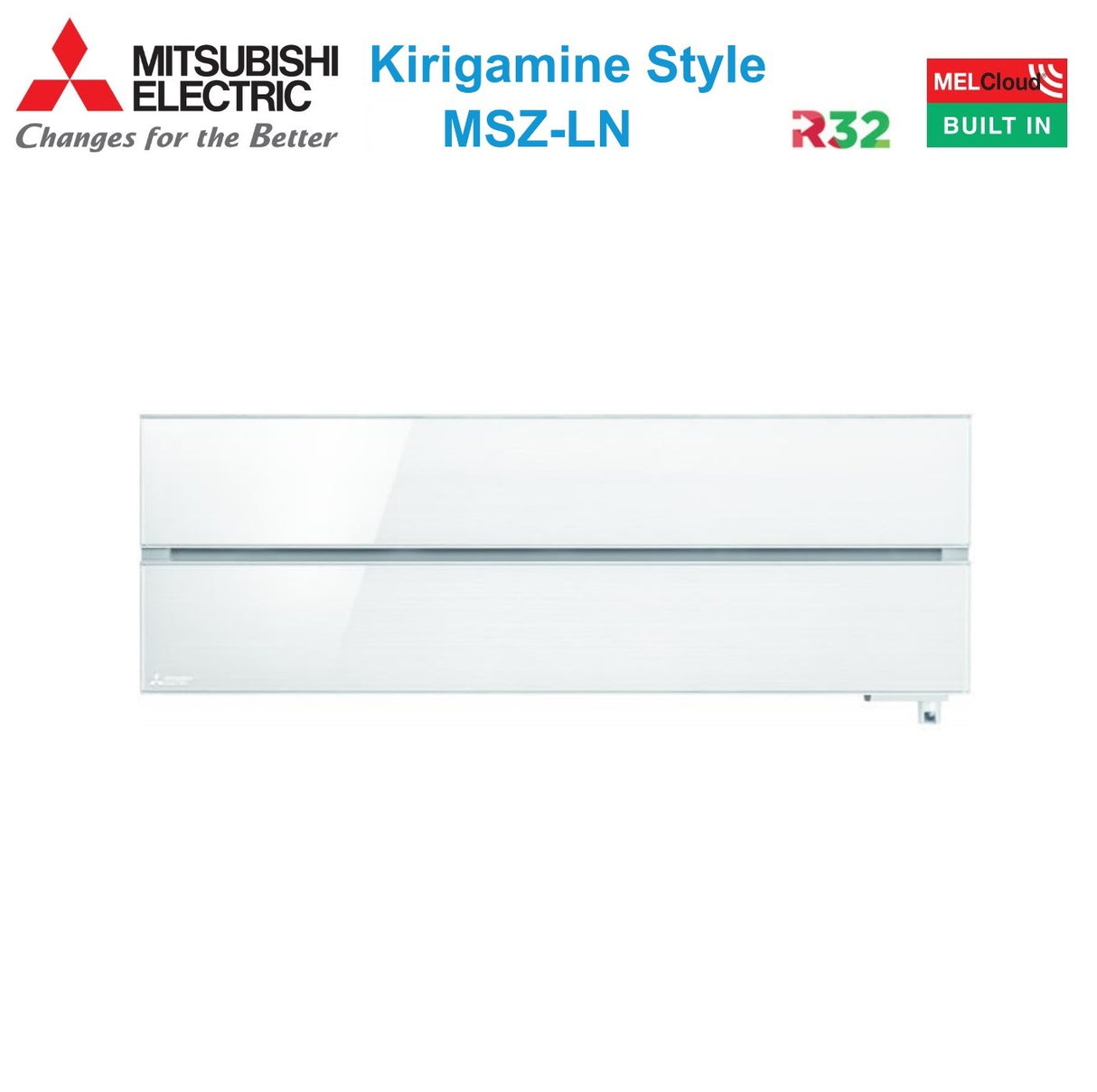

Mitsubishi Electric MSZ-LN Series Kirigamine Style For Your Luxury
Elegant Design
The hand-painted technology creates a refined design, giving the finish an intense color and a high-quality feel. The new MSZ-LN series wall- mounted indoor units combine elegant and refined design with unmatched performance. The new benchmark for air quality and distribution, for silence and efficiency has arrived!
Air distribution
The totally revolutionary geometry of the double deflector guarantees optimal air distribution; it is possible to independently direct the air flows coming out from the right and left side of the unit.
The double flaps work independently, distributing pleasant air flows to people in the room.
Personal comfort
The i-see sensor 3D infrared sensor uses advanced technologies to provide personalized comfort by monitoring room temperature.
3D i-see sensor
The 3D i-see sensor presence sensor, integrated in the MSZ-LN units, presents new functions compared to the one installed in the Kirigamine MSZ-FH series for an increase in internal comfort. Thanks to the new implementations, not only is it possible to direct the flow directly/indirectly, but functions are available that “learn” the habits of the occupants and optimize the efficient and comfortable operation of the unit. The even airflow function, for example, “records” the occupancy profile of the room, creating a mapping that allows optimal air conditioning of the most frequented areas based on the history.
Silent operation
Environmental comfort is also linked to the sound level and is especially important in bedrooms or studies. The Kirigamine line allows you to guarantee the ideal climate all year round with a sound level virtually imperceptible to the human ear.
The 19dB(A)2 achieved by the Kirigamine Style model is quieter than the noise generated by the rustling of leaves in the wind, making the air conditioner virtually inaudible to the room's occupants.
This is why Kirigamine Style is particularly suitable for domestic environments such as the bedroom and living area, where we spend most of our time and carry out our daily activities.
Healthy environment
Mitsubishi Electric's exclusive coating prevents the accumulation of dust and grease.
Advanced filtration
The Plasma Quad Plus filtration system of the MSZ-LN units reaches a new record in the level of air cleanliness. It is in fact capable of retaining particles up to PM2.5, i.e. with a diameter of less than 2.5 μm.
This distinctive feature makes the unit ideal for families who are particularly attentive to air quality or for installation in environments where ambient air is often compromised (e.g. rooms overlooking busy areas, in cities near production activities, etc.).
Plasma Quad Plus
This distinctive feature makes the unit ideal for families who are particularly attentive to air quality or for installation in environments where the ambient air is often compromised (e.g. Rooms overlooking traffic areas, in the city, near production activities, etc.). Through the use of Plasma Quad Plus technology, the unit is able to eliminate bacteria and viruses thanks to a technology that uses an electric field and a series of electric discharges through which the air introduced into the environment passes. With Plasma Quad Plus technology, 99% of the bacteria present in a 25m3 room are neutralized in just 115 minutes.
Dual Barrier Coating
With the MSZ-LN unit Mitsubishi Electric introduces another revolutionary technology: Double Barrier Coating.
During operation, dust and impurities introduced during air conditioning operations settle on the internal components, especially the battery and fan, increasing the machine's consumption by up to 18%.
With Double Barrier Coating the internal components of MSZ-LN are treated with a second protective layer that prevents the deposit of dust and impurities even after long periods of time, reducing consumption and eliminating the need for maintenance of the unit in relation to this problem.
MELCloud - Energy Consumption Monitoring
The ability to manage and monitor the air conditioning system remotely is a consolidated solution in the Mitsubishi Electric product range thanks to the MELCloud platform. It allows you to punctually adjust the air conditioning systems from Smartphone and Tablet via a dedicated app.
The new MSZ-LN units are not only compatible with MELCloud, but are already designed to incorporate the Wi-Fi interface for connection to the network, which makes them already prepared for the Cloud solution without the need for additional components. One of the new features that the MSZ-LN is already equipped with is the ability to monitor electricity consumption via the MELCloud® application, to always have efficiency under control.
WiFi Control Features and Benefits
- On / Off
- Mode (Auto/Heat/Cool/Fan)
- Ventilation speed
- Programmable weekly timer
- Fin tilt adjustment
- Room temperature detection and setting
- Weather information for the installation location
