AREA OCCASIONI Air Conditioner Mitsubishi Electric Inverter Plus Line MSZ-AY / AP series 12000 Btu MSZ-AY35VGKP+MUZ-AP35VG Class A+++/A++ Integrated Wi-Fi R-32

€760,00 VAT included
Tax included Shipping calculated at checkout.

How shipping works

Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:

  • Standard Shipping: Estimated delivery within 2 to 5 business days
  • Premium Shipping: Guaranteed delivery within 24 business hours
  • Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours

    See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.

    For more details on Premium Shipping, please visit the Premium Shipping page.

Customer service

Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.

Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.

Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.

Description

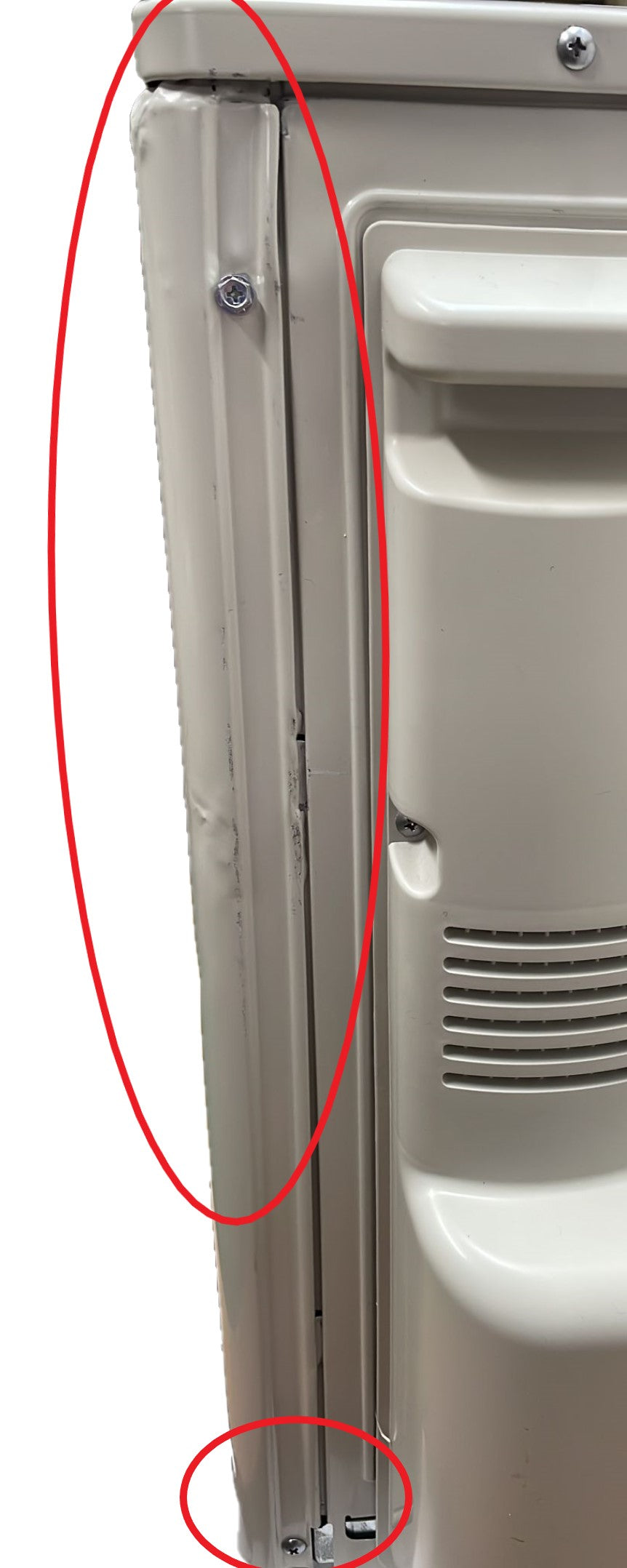

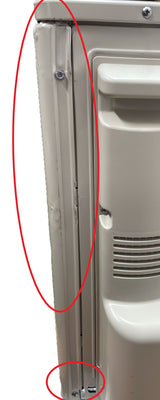

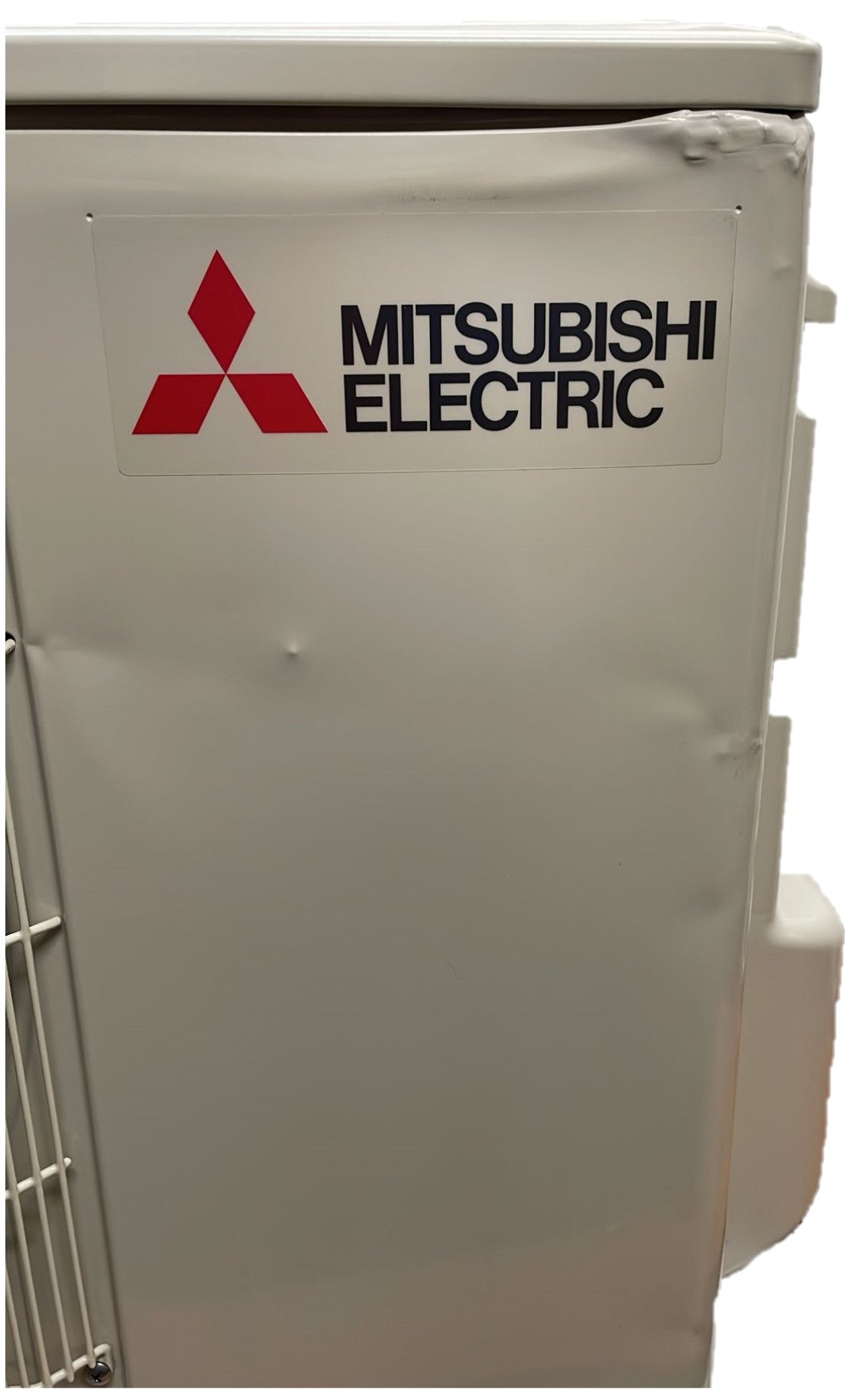

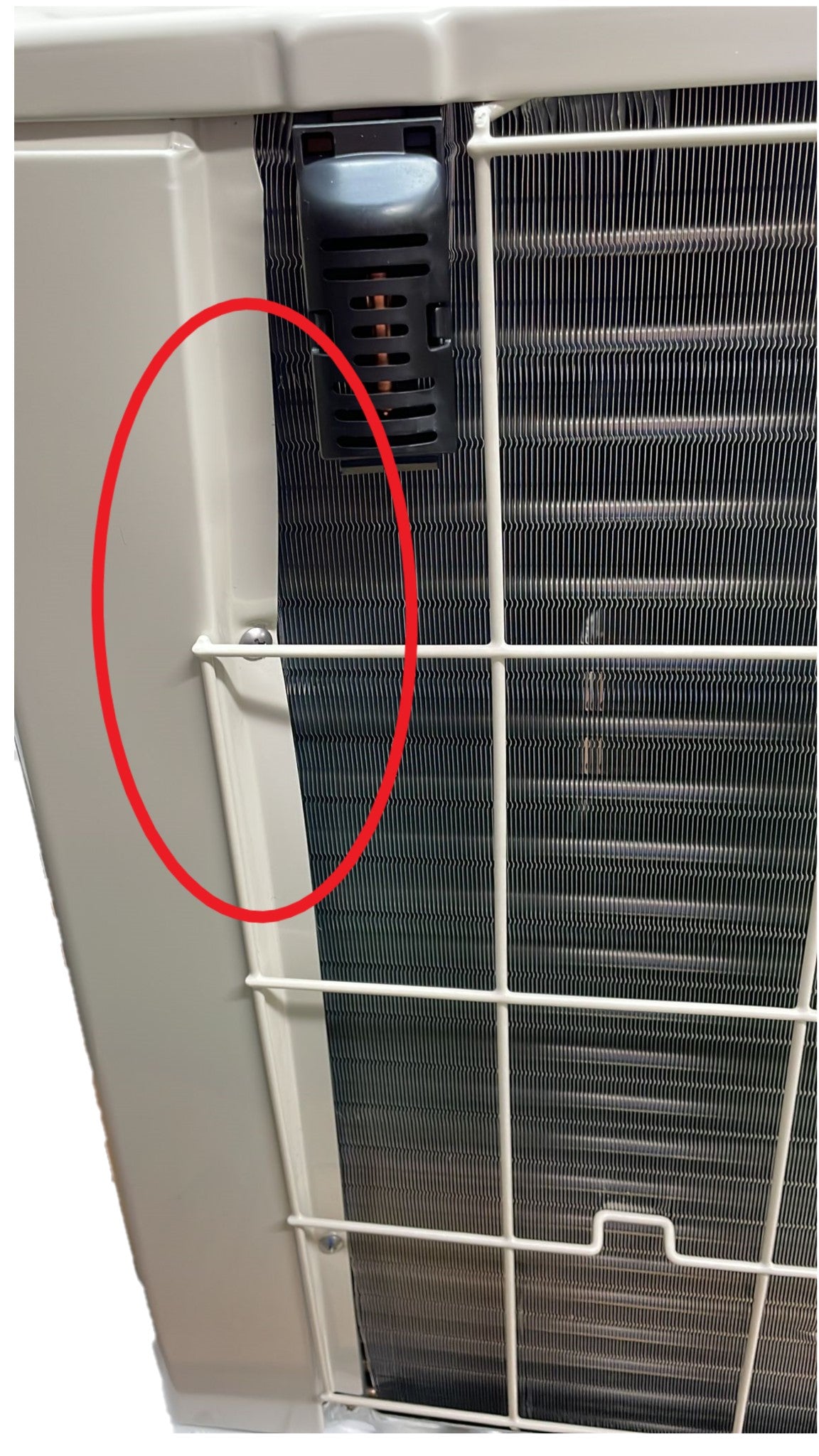

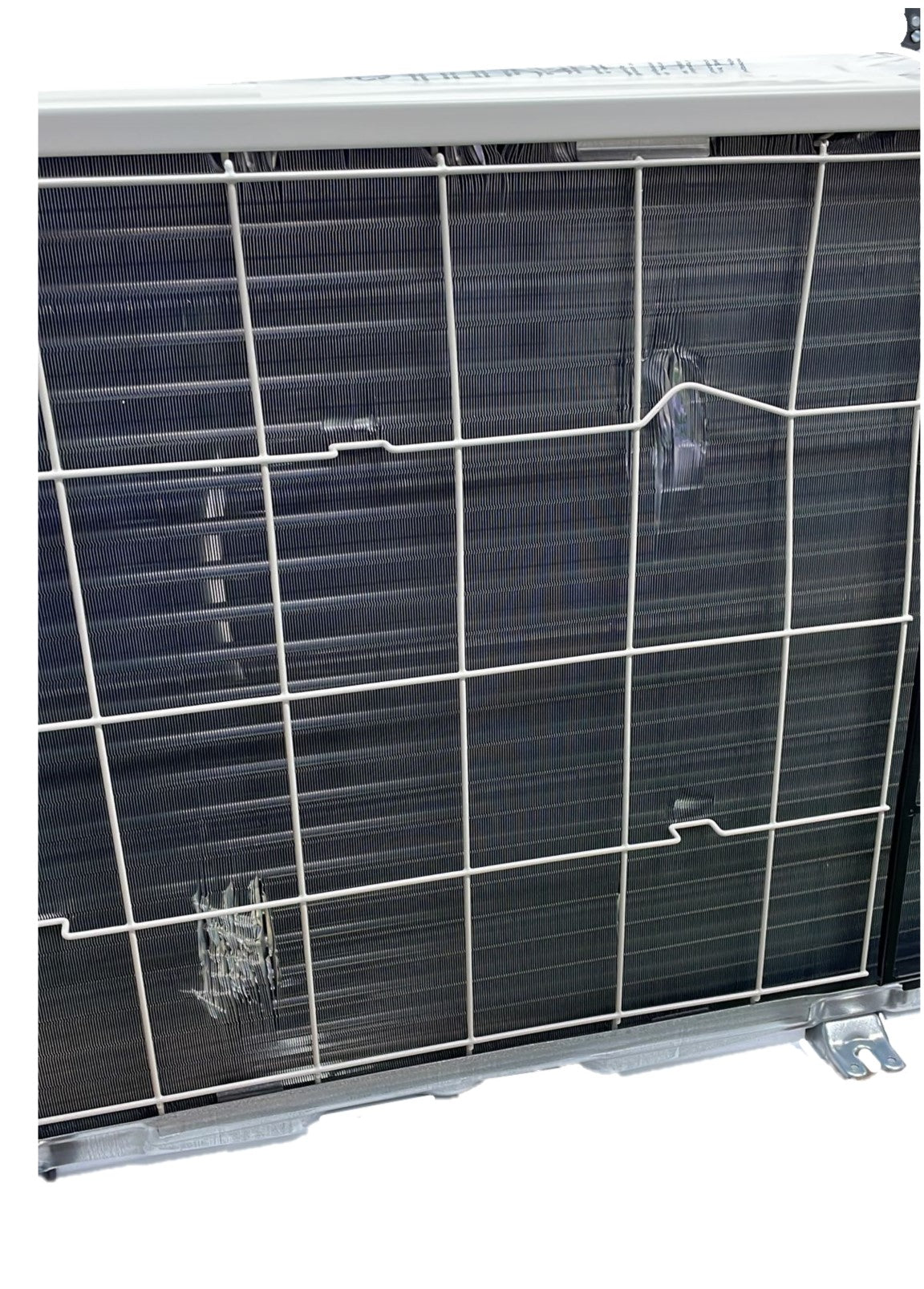

ATTENTION THE PRODUCT IS NEW AND WORKING, BUT THE EXTERNAL UNIT HAS SOME DENTS ON THE FRONT SIDE, A DENT NEAR THE FITTINGS, IT HAS AN INDENTION ON THE BACK SIDE, THE COOLING FINS ARE DAMAGED AND THE PACKAGING IS WORN (FOR MORE INFORMATION SEE PHOTO NEXT TO THE MAIN IMAGE)

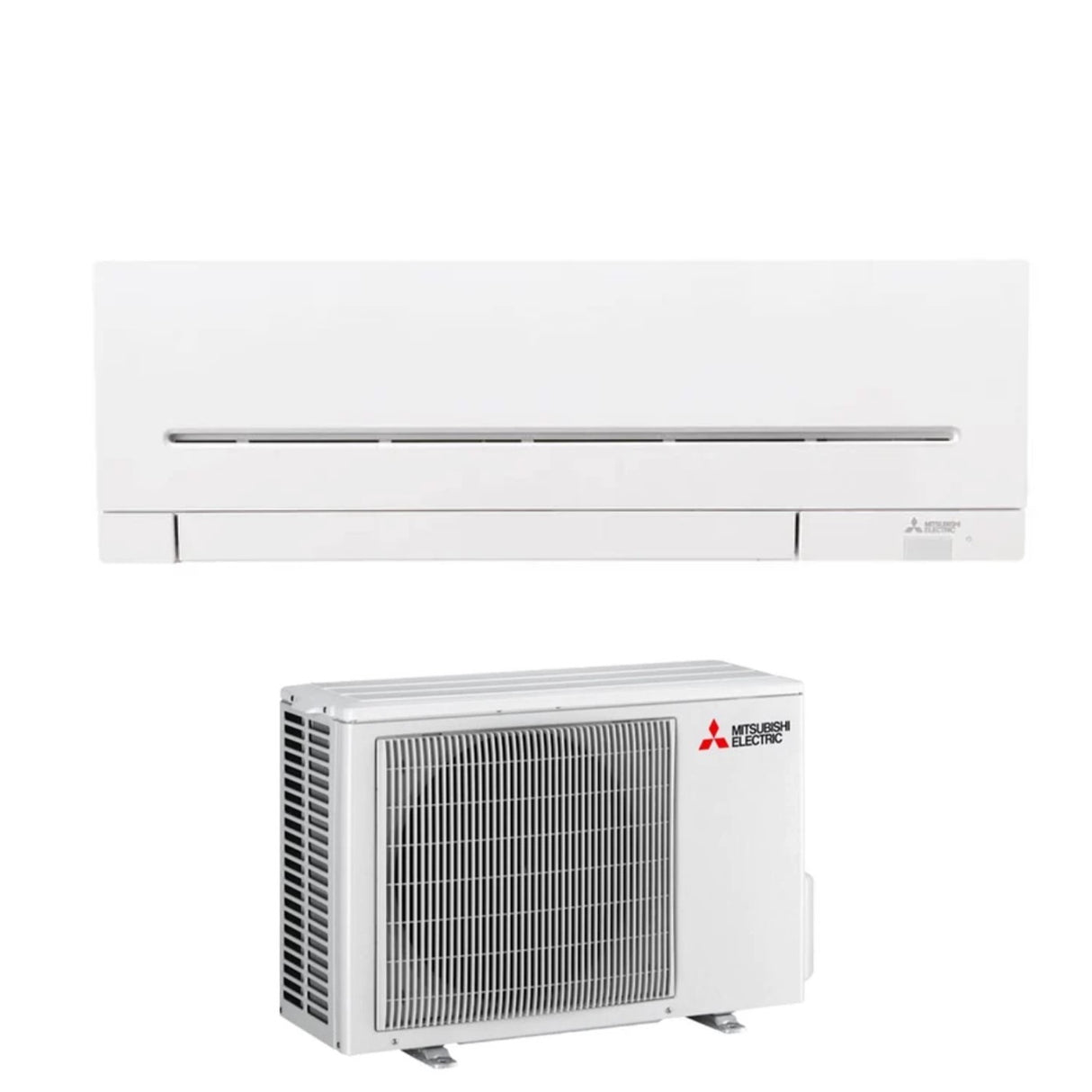

Mitsubishi Electric Btu MSZ-AY35VGKP+MUZ-AP35VG Air Conditioner Class A+++/A++ Wi-Fi Integrated R-32


Model:
  • Indoor Unit Catalog Code: MSZ-AY35VGKP
  • External Unit Catalog Code: MUZ-AP35VG
  • Power: 12000 Btu
  • Built-in Wi-Fi

Energy Efficiency:

  • SEER: 8.6
  • SCOP: 4.7
  • Energy Efficiency Class in Cooling: A+++
  • Energy Efficiency Class in Heating: A++
  • Annual energy consumption in Cooling: 142 kWh/a
  • Annual energy consumption in heating: 862 kWh/a

Performance

  • Cooling capacity: 3.5 kW
  • Heating capacity: 4.0 kW
  • Indoor unit sound pressure: 18 - 42 dB(A)
  • External unit sound pressure: 49/50 dB(A)
Electrical data
  • Power supply (V,Hz,Ø) : 220~240/50/1
  • Refrigerant gas: R-32
  • Operating range :
    - Cooling: -10° ~ +46° C
    - Heating: -20 ~ +24° C
Installation Data
  • Liquid Pipe Diameter: 6.35mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Maximum length of pipes: 20 m
  • Maximum height difference between internal unit and external unit: 12 m

Dimensions and Weight

  • Internal Unit Dimensions (HxWxD): 299x798x245 mm
  • Internal Unit Weight: 11 Kg
  • External Unit HxWxD (mm): 550 x 800 x 285; 35kg
  • External Unit Weight: 27 kg

New MSZ-AY Series

The new MSZ-AY model represents a new standard in the world of residential air conditioning. With a renewed aesthetic, quality materials with a “velvety” finish, careful attention to comfort with its sound pressure of only 18dBA and the equipment of the active filtration device “Plasma Quad Plus”, MSZ-AY encloses the best Mitsubishi Electric technology in ultra-compact dimensions.



Self-cleaning mode

The new «Self Clean» function on the MSZ-AY allows you to dry the internal unit at the end of the cooling cycle, preventing the formation of mould and bad odours.

Quad PIUS Plasma Filter supplied

The Plasma Quad PLUS system is an active filtration system capable of inhibiting up to 99% of viruses, bacteria, mold and PM2.5 present in the air, up to 98% of allergens and pollen and up to 99.7% of mites and dust.

Optional V Blocking air purifying filter

V Blocking is a new purifying filter that improves the previous silver ion filtering system, adding an antiviral action capable of inhibiting viruses, bacteria, mold and allergens.

Efficiency

Thanks to careful design and the introduction of R32 refrigerant, the efficiency of the new MSZ-AY units has increased significantly, reaching class A+++ in cooling (sizes 25 and 35) and A++ in heating across the entire lineup.

Dual Barrier Coating

With the MSZ-AY unit, Mitsubishi Electric introduces another revolutionary technology: Dual Barrier Coating. During operation, dust and impurities introduced during air conditioning operations settle on the internal components, especially the battery and fan, increasing the machine's consumption by up to 18%.
With Dual Barrier Coating, the internal components of the MSZ-AY are treated with a second protective layer that prevents the accumulation of dust and impurities even after long periods of time, reducing consumption and eliminating the need for maintenance of the unit in relation to this problem.

Silent operation

Environmental comfort is also linked to noise levels and is especially important in bedrooms or studies. The Kirigamine line allows you to guarantee the ideal climate all year round with a noise level that is virtually imperceptible to the human ear. The 18dB(A) achieved by the MSZ-AY model is quieter than the noise generated by the rustling of leaves in the wind, making the air conditioner virtually inaudible to the occupants of the room.
This is why MSZ-AY is particularly suitable for domestic environments such as the bedroom and living area, where we spend most of our time and carry out our daily activities.

Night Mode: maximum discretion and silence

By activating the Night Mode function from the remote control, you can set the air conditioner to operate at night:

* LED brightness reduction
* Deactivate "beep" sound
* 3dB reduction in external unit noise emission

Air distribution

Thanks to the presence of the motorized louver, it is possible to direct the air flow to achieve maximum comfort in the room in every operating mode (sizes 25-50). Furthermore, the horizontal flow eliminates annoying air currents towards the occupants.

MELCIoud integrated

The new MSZ-AY offers the user experience of MelCloud integrated into the air conditioner, allowing the user to remotely manage, thanks to the Wi-Fi controller, the main functions of the air conditioner and monitor its operation and energy consumption.
Furthermore, thanks to the new integrated wifi adapter, connecting to the router is even easier!

Backlit remote control

The backlit remote control allows for easy viewing even at night.


Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Technical Data Sheet

  • peso: 35.0 kg
  • classe energetica raffreddamento: A+++
  • classe energetica riscaldamento: A++
  • gas: R-32
  • marca: MITSUBISHI ELECTRIC
  • metri quadri : 25-40 m2
  • modello: AO_1086_1
  • potenza btu: 12000
  • superficie riscaldabile mq: 35
