Technical features
Indoor units
1) Model
- Indoor Unit Catalog Code: 1x AS20S2SF1FA-MB3
- Indoor Unit Commercial Code: 2501300C2
- Power: 7000 btu/h
- Cooling Capacity : 2.0 kW
- Heating Capacity : 2.5 kW
- Treated Air: 600 m 3 /h
- Sound Power Level : 53 dB(A)
- Sound Pressure Level : 16~38 dB(A)
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (LxPxH): 856x197x300 mm
- Indoor Unit Weight: 9.5 Kg
- Integrated Wi-Fi
- Black colour
2) Model
- Internal Unit Catalog Code: 1x AS25S2SF1FA-MB3
- Indoor Unit Commercial Code: 2501301C2
- Power: 9000 btu/h
- Cooling Capacity : 2.6 kW
- Heating Capacity : 3.2 kW
- Treated Air: 600 m 3 /h
- Sound Power Level : 53 dB(A)
- Sound Pressure Level : 16~38 dB(A)
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (LxPxH): 856x197x300 mm
- Indoor Unit Weight: 9.5 Kg
- Integrated Wi-Fi
- Black colour
3) Model
- Internal Unit Catalog Code: 1x AS35S2SF1FA-MB3
- Indoor Unit Commercial Code: 2501302C2
- Power: 12000 btu/h
- Cooling Capacity : 3.5 kW
- Heating Capacity : 4.2 kW
- Treated Air: 650 m 3 /h
- Sound Power Level : 55 dB(A)
- Sound pressure level : 17~39 dB(A)
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (LxPxH): 856x197x300 mm
- Indoor Unit Weight: 9.5 Kg
- Integrated Wi-Fi
- Black colour
4) Model
- Indoor Unit Catalog Code : 1x AS50S2SF1FA-MB3
- Indoor Unit Commercial Code: 2501305C2
- Power: 18000 btu/h
- Cooling Capacity : 5.2 kW
- Heating Capacity : 6.0 kW
- Treated Air: 900 m 3 /h
- Sound Power Level : 57 dB(A)
- Sound Pressure Level : 28~41 dB(A)
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 12.70 mm (1/2")
- Internal Unit Dimensions (LxPxH): 999x225x323 mm
- Indoor Unit Weight: 12.0 Kg
- Integrated Wi-Fi
- Black colour
Outdoor Unit
Model:
- Catalog code Outdoor Unit: 4U85S2SR3FA
- Outdoor Unit Commercial Code: 2502327B2
- Max indoor units: up to 4 indoor units
Energy efficiency:
- SEER : 7.0
- SCOP : 4.0
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A+
- Annual energy consumption in Cooling : 456 kWh/a
- Annual energy consumption in Heating : 2503 kWh/a
Performance:
- Cooling Capacity: 8.5 kW
- Heating Capacity: 9.6 kW
- Std cooling absorption: 2.5 kW
- Std heating absorption: 2.4 kW
- Sound power level : 68 dB(A)
- Sound pressure level : 55 dB(A)
Characteristics:
- Power (V/Hz/Φ) : 220~240/50/1
- Refrigerant gas : R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46°C
- - Heating: -15° ~ 24° C
Installation data
- Pipe diameter Liquid : 6.35 mm (1/4") x4
- Gas pipe diameter : 9.52 mm (3/8") x3 + 12.70 mm (1/2") x1
- Maximum Piping Length: 70 m
- Maximum height difference Indoor Unit / Outdoor Unit: 15 m
Dimensions:
- External Unit Dimensions (LxPxH): 890x340x700 mm
- Weight of Outdoor Unit: 61.0 Kg

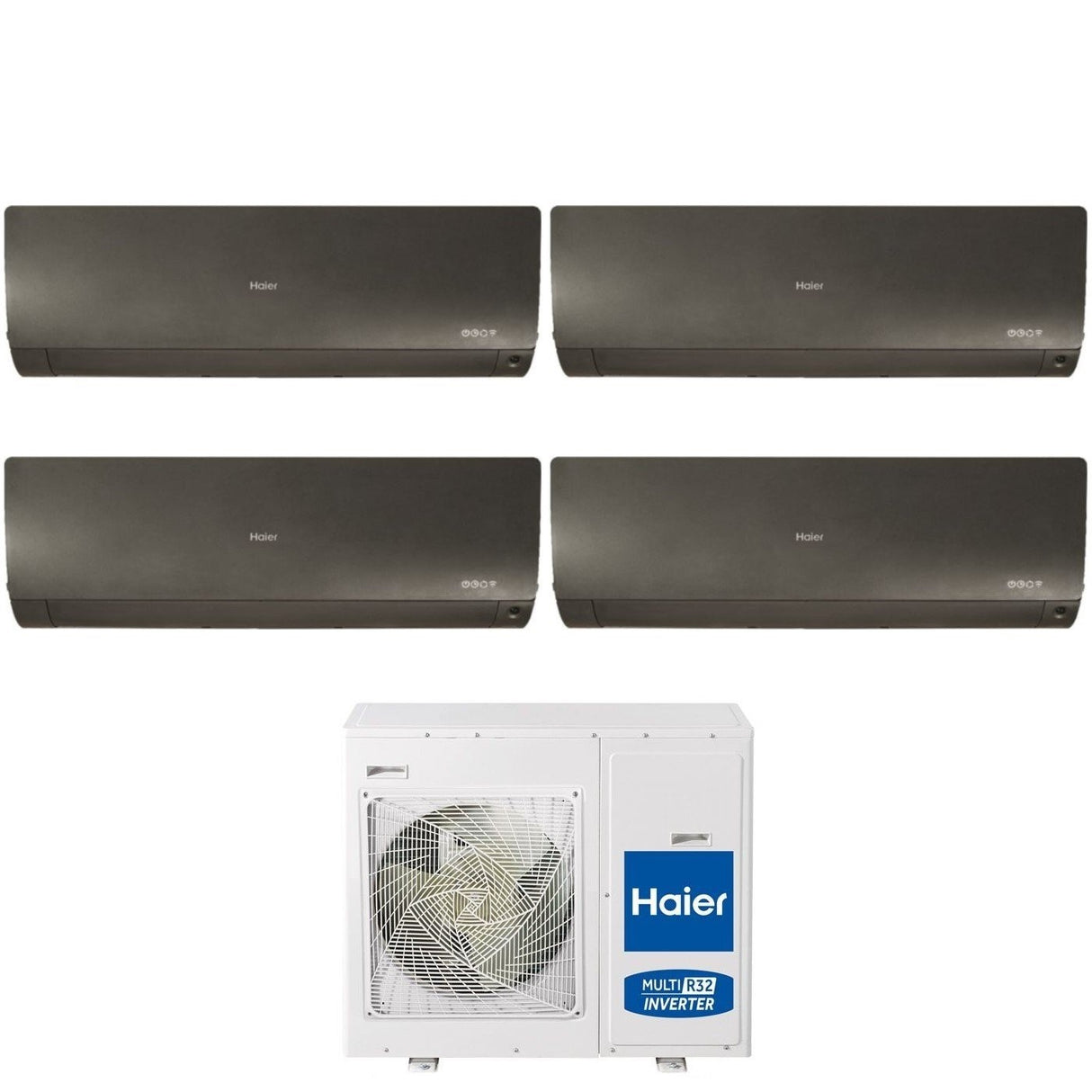

R-32 Multisplit Haier
The earth, everyone's home. Let's protect it!
Compared to 100 years ago, the global temperature has increased by almost 0.5°C (from 1981 to 1990 +0.48°C). Global warming has attracted the attention of all countries, the main cause of the temperature increase is the release of greenhouse gases into the atmosphere. To remedy the situation, the Montreal Protocol was signed in 1987 and the Kyoto Protocol in 1997. In 2009, the European Union introduced the F-Gas regulation and it was approved in December 2013. The new rules came into force in May 2014 and January 2015. Without the rules indicated by the F-Gas regulation, we would produce 150,000 tons of CO2 per year.
Very low environmental impact refrigerant
Haier offers products that comply with the requirements of the European Union's environmental protection standards. To avoid dangerous damage to the environment, Europe is working to reduce greenhouse gas emissions and improve energy efficiency. Units with R32 refrigerant contain less gas and having a lower GWP than R410A units have a lower impact on global warming.
GWP = Global Warming Potential
The global warming potential (GWP, in Italian global warming potential) is the measure of how much a molecule of a certain greenhouse gas impacts on the greenhouse effect; the index is based on a relative scale which compares each gas with carbon dioxide, whose GWP has the value 1 by definition. Each GWP value is calculated for a specific time interval.
In terms of comparison, the GWP of the R32 refrigerant is equivalent to a value of 675, while the GWP of the R410A refrigerant corresponds to a value of 2088.

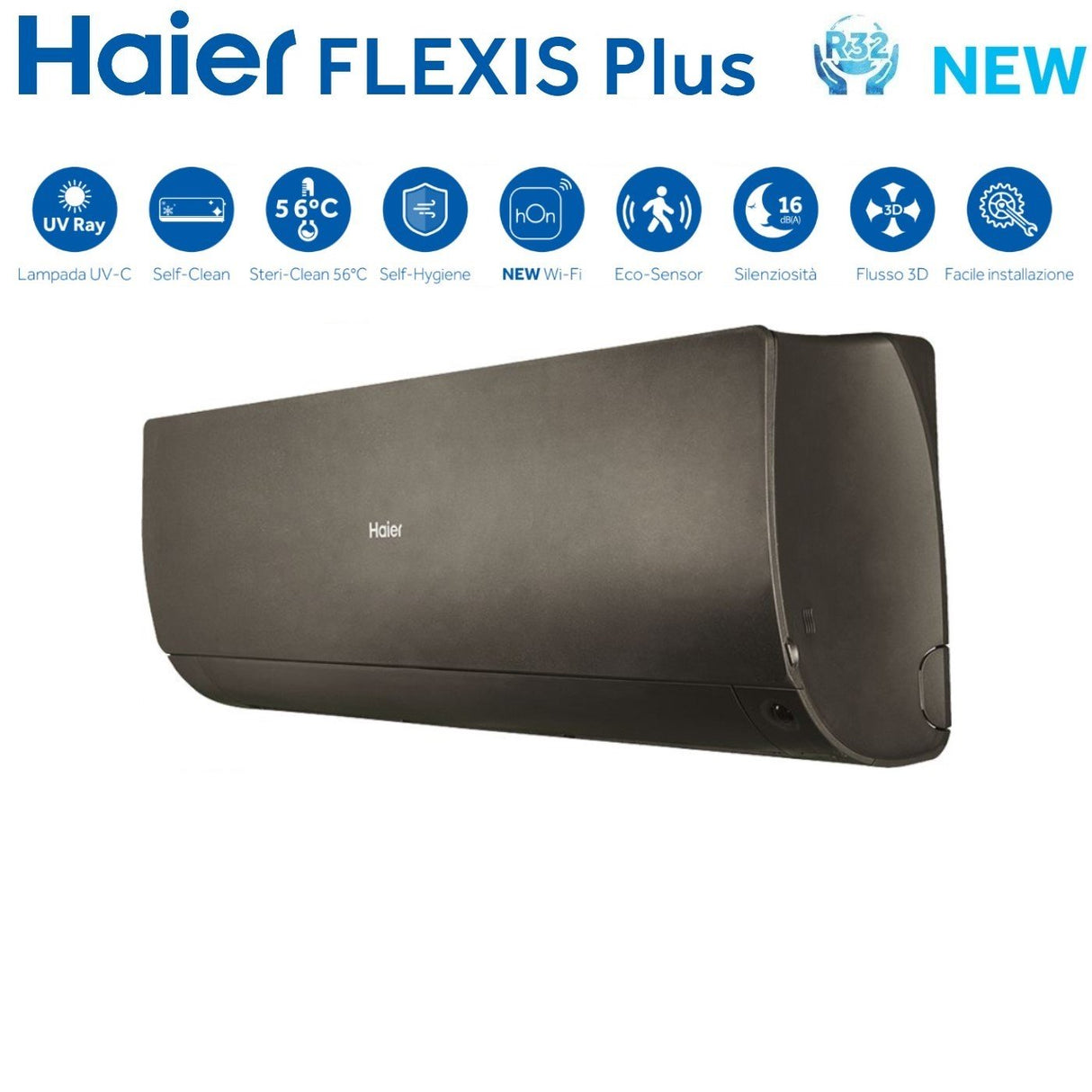

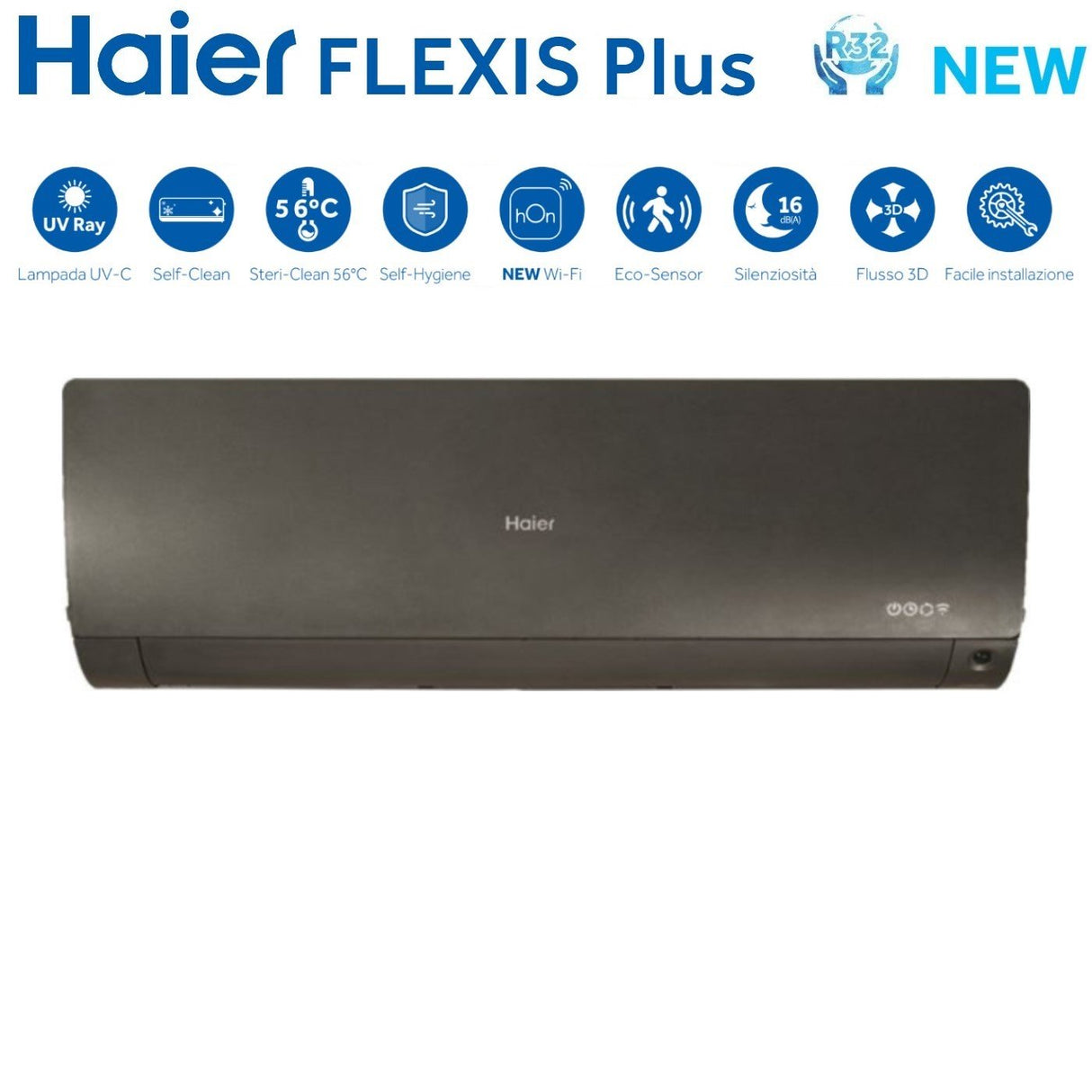

Haier FLEXIS PLUS
Purification
The Flexis Plus unit of Haier Air Conditioners is equipped with a "UVC Generator Module", a module that generates ultraviolet rays. Subjected to laboratory tests, the module has been shown to be able to inhibit the Sars-Cov-2 (Covid-19) virus with an efficiency of up to 99.998% .
Testing was carried out by Texcell, a global contract research organization. The informative study shows that, inside a 45L container (0.045m3), the module installed on Haier air conditioners manages to inactivate and reduce the concentration of the Sars-Cov-2 virus by 99.998% in 1 hour
Smart
With the Haier "hOn" application, you can control all the appliances of the Haier group in your Smart Home from your smartphone or tablet with a single app. Furthermore, through hOn, all the basic functions , purification functions and much more can be managed. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa and therefore also allows voice control
Comfort
Low sound level: 16 db(A) A low noise level ensures peace of mind thanks to the optimized design of the fan, air ducts and motor.
3D Airflow Continuous movement of the vertical and horizontal louvers directs the airflow anywhere in the room
Disinfection
Steri-Clean technology removes bacteria and viruses from the heat exchanger by bringing the evaporator temperature to 56°C for 30 minutes .
Offers additional purification with Self-Clean and Self-Hygiene technologies
Plus Product
• UV-C Lamp purification
• Self Clean
• Steri-Clean 56°C
• Self Hygiene
• Wi-Fi control with hOn App to remotely control the air conditioner
• Double motion sensor
• Low sound level
• 3D airflow: continuous movement of the horizontal and vertical deflectors
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
