Galletti Fan Coil Fan Coil Model Flat S 33 Kw 2.21
Galletti Fan Coil Fan Coil Model Flat S 33 Kw 2.21 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Come funziona la spedizione
Come funziona la spedizione
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
ATTENTION ! Compulsory accessory Condensate collection tray
Technical features
- Model : Flat S 33
- Total Output : 1.41 ~ 2.32 kW
- Sensitive Output : 1.02 ~ 1.69 kW
- Class : D
- Water Flow : 243 ~ 399 l/h
- Pressure Loss : 3 ~ 7 kPa
- Total Output : 1.81 ~ 2.88 kW
- Sensitive Output : 1.52 ~ 2.40 kW
- Class : D
- Water Flow : 264 ~ 417 l/h
- Pressure Loss : 3 ~ 7 kPa
Performance
- Power supply (V,Hz, Ø) : 230/50/1
- Nominal Air Flow : 200 ~ 340 m 3 /h
- Absorbed Power : 23 ~ 37 kW
- Sound Power Level : 32 ~ 46 dB(A)
- Dimensions (HxW): 874x1160 mm
- Weight : 23Kg

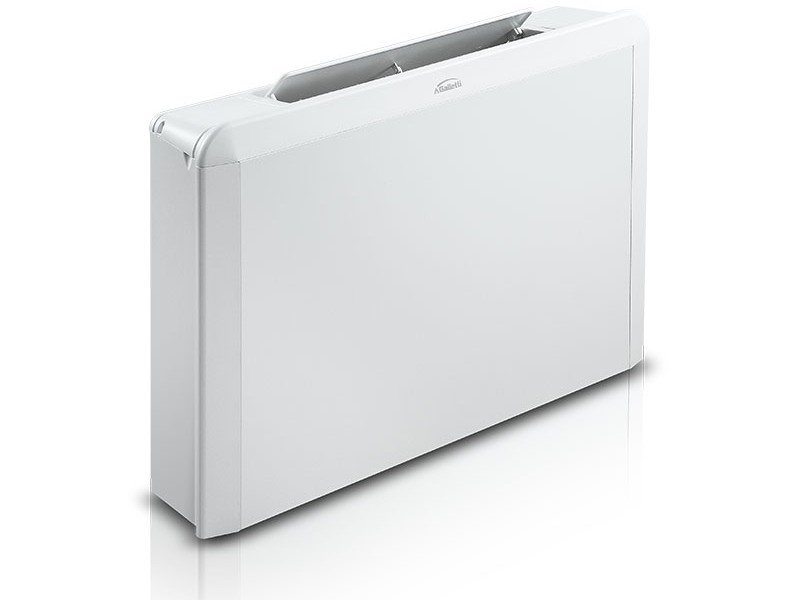

Galletti Flat S fan coil
FLAT S by Galletti represents the new generation of fan coils and was designed with the aim of offering performance and design at the top of its category.
FLAT S also means innovation in terms of design, to guarantee absolutely excellent sound performance with the advantage of an exclusive design that goes well with both residential and commercial use.
Design covering cabinet in RAL9010 color only 17 cm deep, front panel in sheet steel, sides, upper grille and side doors made in UV stabilized ABS. The upper grille consists of a flap and adjustable fins. The flap is equipped with a microswitch which interrupts the operation of the unit when it is placed in the closed position. High efficiency heat exchange coil, in copper tube and aluminum fins. Double intake centrifugal fans, made of antistatic ABS with airfoil blades and staggered modules. Electric motor with 3 or 6 speeds, mounted on anti-vibration supports. Regenerable air filter that can be easily removed for maintenance operations. Control panels, available as an accessory
Air filter
Regenerable filter made of honeycomb polypropylene, easily removable for maintenance operations
Electric motor
Mounted on anti-vibration supports, with permanently inserted capacitor and thermal protection of the windings, it is directly coupled to the fans. It is available with both 3 and 6 (On request) rotation speeds to meet all specific requests in terms of performance, silence, electricity consumption
Fans
Double inlet centrifuges, statically and dynamically balanced, are made of antistatic ABS with airfoil blades and staggered modules. The fans are housed in a high efficiency ABS scroll
Mobile Cover

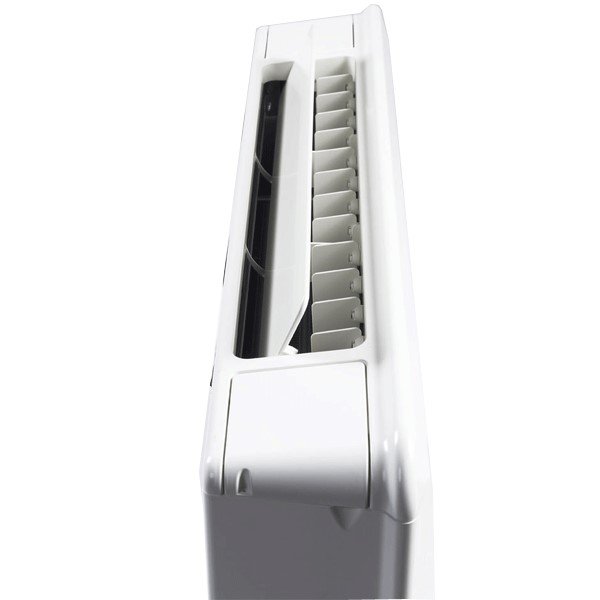

Design cover cabinet in RAL9010 color, only 17 cm deep, front panel in sheet steel. Sides, upper grille and side doors made of UV stabilized ABS to keep the color unchanged over time. The upper grille consists of a flap and adjustable fins. The flap is equipped with a microswitch which interrupts the operation of the unit when it is placed in the closed position
Structure
Made of thick galvanized steel sheet, thermally and acoustically insulated with class 1 self-extinguishing panels
Heat Exchange Battery
High efficiency in copper tube and aluminum fins, it is equipped with brass manifolds and vent valve. The hydraulic connections are reversible during installation. On request, it is possible to mount an additional coil for 4-pipe systems
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 50.0 kg
- marca: Cockerels
- modello: Flat S 33
- potenza in kw: 3
