Fujitsu Air Conditioner Cassette 4 Way Series Eco Kr Circular Flow 36000 Btu R-32 Cod. 3ngf88630 White Auxg36krlb - New

Description

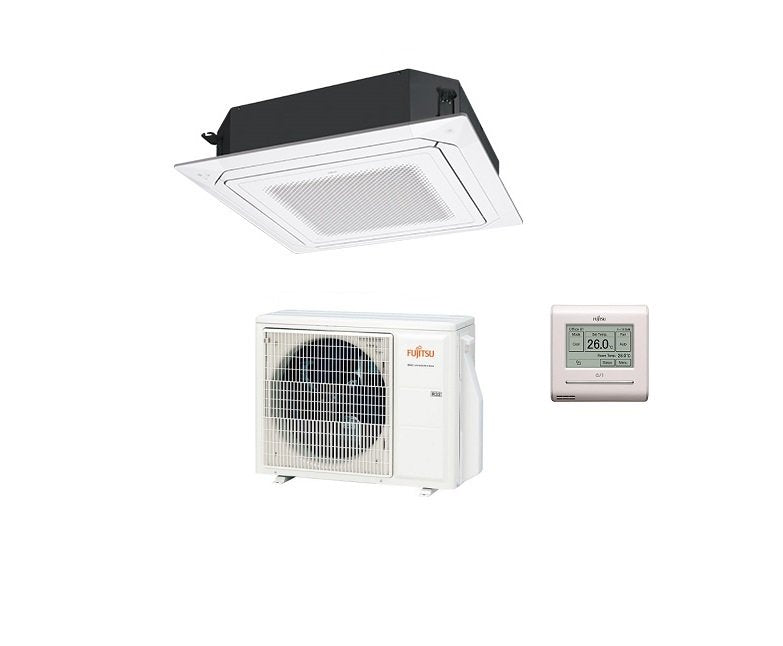

Fujitsu Air Conditioner 4-Way Cassette ECO KR Circular Flow series 36000 Btu R-32 cod. 3NGF88630 White AUXG36KRLB - NEW


Model:

  • Indoor unit catalog code : AUXG36KRLB
  • Indoor unit catalog code : AOYG36KATA
  • Kit code: 3NGF88630
  • Remote control and grill included

Energy efficiency:

  • Cold power (kW) 9.5(2.8-10.6)
  • Hot power (kW) 10.0(2.7-10.8)
  • SEER 6.1
  • SCOP 4.0
  • class A++
  • class A+

Performance:

  • Dehumidification l/h: 3.3
  • Absorbed power in cooling/heating (kW): 3.06/2.58
  • Indoor unit sound pressure (Hi/Mi/Lo/Qu) (dB-A): 44/41/38/34
  • Indoor unit sound power dB(A): 58/58
  • External unit sound pressure (max) dB(A): 55/55
  • Outdoor unit sound power (max) dB(A): 70/70

Electrical data:

  • Power supply (V/Hz/Φ) : single phase, ~230V, 50Hz

Characteristics:

  • Refrigerant gas : R-32
  • Pipes for liquid/gas connections (mm): 9.52/15.88
  • Piping Max. length IU/EU: 30(30)
  • Piping Max height difference: 30 metres
  • Operating range:
    -Cooling: -10~46°C
    -Heating: -15~24°C

Dimensions:

  • Indoor Unit HxLxP (mm) : 288×840×840 ; 29kg
  • Outdoor Unit HxLxP (mm) : 788×940×320; 52kg

KR ECO CIRCULAR FLOW series

Circular flow system

The Circular flow system present inside the new cassette models allows the supply air to be distributed 360° thanks to the exclusive shape of the fins without interruptions

Uniform temperature distribution

The flow of air conditioning reaches every corner of the room ensuring a uniform temperature with a high degree of comfort

Individual flap control (* Only for Wired - Touch Panel (UTY-RNRYZ1) )

Each flap can be controlled individually through the Touch panel remote control in order to enjoy maximum comfort regardless of the shape of the room.

Presence sensor for energy saving (optional)

The energy saving function is activated automatically if there are no people in the room. 2 energy saving modes can be selected.

Functions Air conditioning

  • Up-down movement of the flaps Automatic opening and closing of the flaps.
  • Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
  • Automatic Restart In the event of a momentary power failure, the air conditioner restarts automatically when the power returns.
  • Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates in heating or cooling
  • Limiting the modification of the room temperature The minimum and maximum room temperature values ​​can be set for further energy savings while respecting the comfort of the occupants.
  • Can be connected to an external air intake system.
  • Energy saving Control system for energy saving.
  • Blue Fin Blue Fin treatment.
  • Can be connected to a channel distribution system
  • Temperature auto-return The room temperature automatically returns to the previously set temperature.
  • Individual control of the flaps Each flap can be controlled individually through the Touch Panel remote control in order to enjoy maximum comfort regardless of the shape of the room.
  • Weekly timer ON-OFF functions can be set freely on a daily and weekly basis.
  • Filter status indicator Allows you to check the cleanliness of the filters.
  • ON-OFF input
  • Auto off timer Stops operation automatically after the set time has elapsed since the start of operation

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

Fujitsu Air Conditioner Cassette 4 Way Series Eco Kr Circular Flow 36000 Btu R-32 Cod. 3ngf88630 White Auxg36krlb - New

Product form

Fujitsu Air Conditioner 4-Way Cassette ECO KR Circular Flow series 36000 Btu R-32 cod. 3NGF88630 White AUXG36KRLB - NEW Model:... Read more

€2.160,00 Incl. VAT

    Description

    Fujitsu Air Conditioner 4-Way Cassette ECO KR Circular Flow series 36000 Btu R-32 cod. 3NGF88630 White AUXG36KRLB - NEW


    Model:

    • Indoor unit catalog code : AUXG36KRLB
    • Indoor unit catalog code : AOYG36KATA
    • Kit code: 3NGF88630
    • Remote control and grill included

    Energy efficiency:

    • Cold power (kW) 9.5(2.8-10.6)
    • Hot power (kW) 10.0(2.7-10.8)
    • SEER 6.1
    • SCOP 4.0
    • class A++
    • class A+

    Performance:

    • Dehumidification l/h: 3.3
    • Absorbed power in cooling/heating (kW): 3.06/2.58
    • Indoor unit sound pressure (Hi/Mi/Lo/Qu) (dB-A): 44/41/38/34
    • Indoor unit sound power dB(A): 58/58
    • External unit sound pressure (max) dB(A): 55/55
    • Outdoor unit sound power (max) dB(A): 70/70

    Electrical data:

    • Power supply (V/Hz/Φ) : single phase, ~230V, 50Hz

    Characteristics:

    • Refrigerant gas : R-32
    • Pipes for liquid/gas connections (mm): 9.52/15.88
    • Piping Max. length IU/EU: 30(30)
    • Piping Max height difference: 30 metres
    • Operating range:
      -Cooling: -10~46°C
      -Heating: -15~24°C

    Dimensions:

    • Indoor Unit HxLxP (mm) : 288×840×840 ; 29kg
    • Outdoor Unit HxLxP (mm) : 788×940×320; 52kg

    KR ECO CIRCULAR FLOW series

    Circular flow system

    The Circular flow system present inside the new cassette models allows the supply air to be distributed 360° thanks to the exclusive shape of the fins without interruptions

    Uniform temperature distribution

    The flow of air conditioning reaches every corner of the room ensuring a uniform temperature with a high degree of comfort

    Individual flap control (* Only for Wired - Touch Panel (UTY-RNRYZ1) )

    Each flap can be controlled individually through the Touch panel remote control in order to enjoy maximum comfort regardless of the shape of the room.

    Presence sensor for energy saving (optional)

    The energy saving function is activated automatically if there are no people in the room. 2 energy saving modes can be selected.

    Functions Air conditioning

    • Up-down movement of the flaps Automatic opening and closing of the flaps.
    • Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
    • Automatic Restart In the event of a momentary power failure, the air conditioner restarts automatically when the power returns.
    • Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates in heating or cooling
    • Limiting the modification of the room temperature The minimum and maximum room temperature values ​​can be set for further energy savings while respecting the comfort of the occupants.
    • Can be connected to an external air intake system.
    • Energy saving Control system for energy saving.
    • Blue Fin Blue Fin treatment.
    • Can be connected to a channel distribution system
    • Temperature auto-return The room temperature automatically returns to the previously set temperature.
    • Individual control of the flaps Each flap can be controlled individually through the Touch Panel remote control in order to enjoy maximum comfort regardless of the shape of the room.
    • Weekly timer ON-OFF functions can be set freely on a daily and weekly basis.
    • Filter status indicator Allows you to check the cleanliness of the filters.
    • ON-OFF input
    • Auto off timer Stops operation automatically after the set time has elapsed since the start of operation

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

    Data sheetData sheet
    • peso: 80.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: Fujitsu
    • metri quadri : 100 - 130 m2
    • modello: 3NGF88150
    • potenza btu: 36000
    • superficie riscaldabile mq: 100
