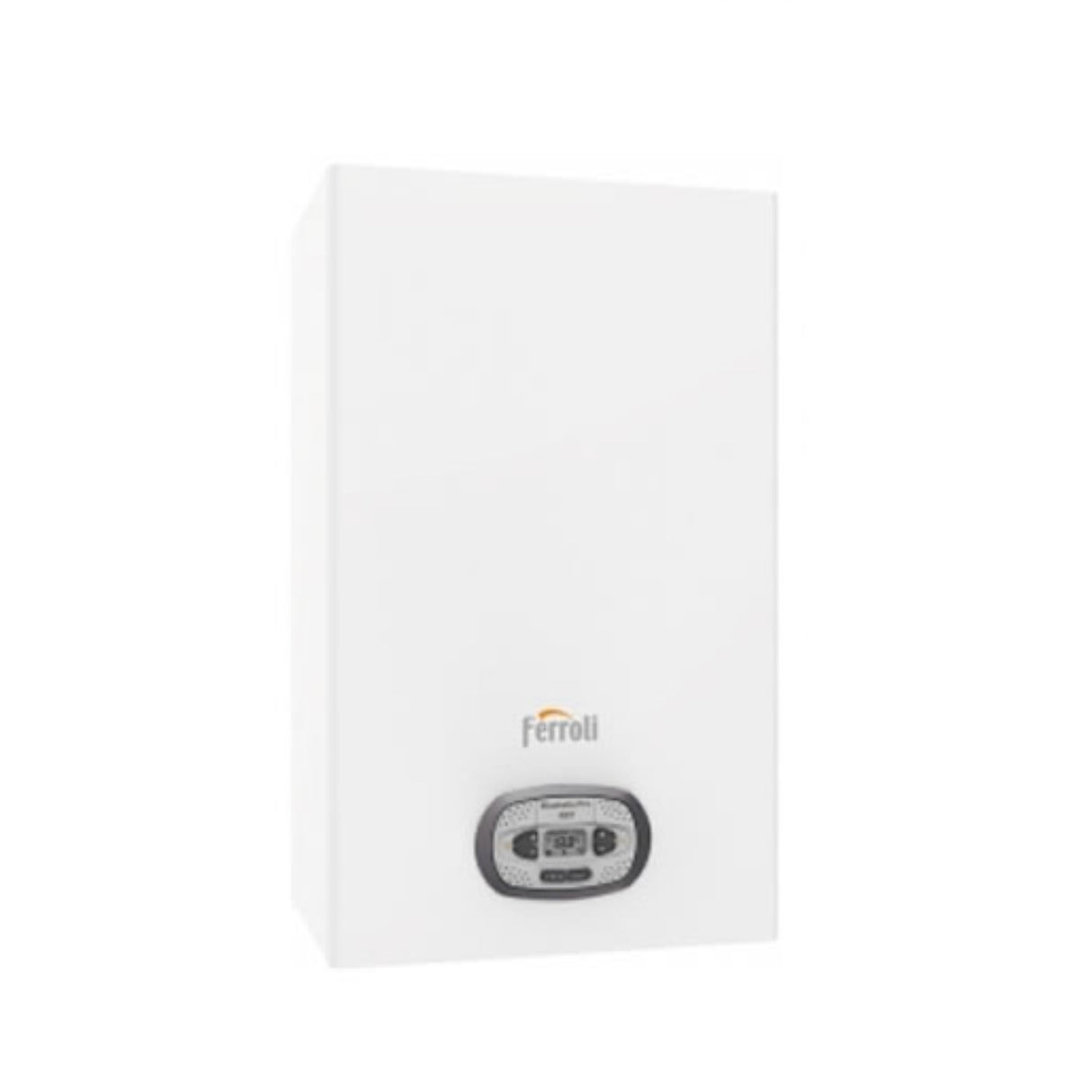

Offer Ferroli Condensing Boiler Bluehelix Pro Rrt 24 C Lox Nox Methane Or Lpg 0t3b2hwa Complete With Smoke Exhaust Kit - New

ATTENTION Natural gas, LPG, Propane air Ready through a simple configuration the boiler is able to operate on natural gas, LPG and propane air without the use of additional conversion kits. For info, contact the local authorized assistance center in advance

Technical features

• Model : Bluehelix Pro RRT 24 C

• Heating energy efficiency class: A
• Sanitary energy efficiency class XL profile: A
• NOx class : 6

Characteristics of heating/DHW operation:

• Heating Thermal Power: 20 kW
• Thermal Power in Sanitary: 24 kW
• Maximum Heating Power 80°C - 60°C : 20 kW
• Useful Thermal Efficiency 80°C - 60°C: 98.1%
• Useful Thermal Efficiency 50°C - 30°C : 106.1%
• Domestic hot water production Δt 30°C: 11.5 l/min
• Domestic hot water production Δt 25°C: 13.8 l/min
• Power supply: methane or LPG

• Extremely Compact Dimensions (HxWxD): 600x400x320 mm
• Weight : 29Kg

Ferroli BLUEHELIX PRO RRT boiler Ecological wall-hung condensing boilers with Ferroli Thermobalance™ DUAL combustion cell .. Evolution Continues

With attention to aesthetics and silence, it continues the tradition of appreciation of the previous "Bluehelix Pro" series. The range of generators is equipped with the tested primary heat exchanger for heating and domestic hot water in very thick stainless steel integrated in a single component, INOX DUAL . Designed and built according to the new ErP directives for eco-compatible design and labelling. BLUEHELIX PRO RRT achieves one of the highest energy efficiency in its category both in space heating, ηs 94% (Class A ErP, scale from G to A++), and in domestic water heating, ηwh 93% . Furthermore, when combined with the external probe and the Romeo remote timer control or the new Connect control, it reaches system energy class A+ (scale from G to A+++).

Extended Warranty with the "5 Year Carefree" Formula

The quality of BLUEHELIX PRO RRT is unquestionable, and Ferroli is ready to put it to the test by offering its customers an extended warranty coverage which also ensures periodic maintenance and legal checks

The New Design for Comfort

The particularly careful design of BLUEHELIX PRO RRT has made it possible to achieve significant values ​​in terms of silence and acoustic comfort , so much so that it could almost be difficult to distinguish the background noise of a home from the noise produced by the boiler during normal operation. Even the boiler on/off transients have been optimized as a function of acoustic comfort, so that the customer will no longer have the hassle of understanding whether the boiler is on or off from its noise as with older generations of boilers. The planning also took care of the design, creating a precious mantle in 3 removable pieces , which descends to cover the connections of the pipes .

PRO RRT Inside view

Innovative Thermal Unit Ferroli ThermoBalance ^TM in its 5 Elements

Ferroli has oriented the design of the combustion cell and the BLUEHELIX PRO RRT heat exchanger in order to maximize the functional advantages and the constructive sturdiness , as well as the simplicity of maintenance . The single-pipe design, both in the DHW and heating circuits, ensures that any air bubbles in the system do not get trapped in the exchanger, and makes it as easy as possible to clean it with chemical washing, unlike spiral exchangers with double parallel circuit (more common) in which if only one of the circuits is clogged, chemical washing is much more laborious

1. Exchanger: DUAL single-circuit stainless steel exchanger with high passages , resistant to clogging and easy to clean, capable of condensing even in sanitary production

2. Burner door : Self-cooled burner door without insulating panel

3. Burner : Exclusive special stainless steel hemispherical burner with long-life gasket

4. Gas Adaptive : Intelligent " Gas-adaptive " system derived from industrial boilers, which monitors and self-stabilises combustion as the gas + flue conditions vary

5. Fan : Offset fan, to facilitate maintenance of the boiler without disassembly. Integrated smoke anti-reflux clapper for connection to CCS (compliant with UNI 7129)

The Combustion Cell Engine

The tube that makes up the BLUEHELIX PRO RRT exchanger is made of stainless steel , a material that allows for the creation of an extremely smooth surface , therefore less susceptible to encrusting agents and deposits.

Full Condensation

The exchanger of the THERMOBALANCE™ DUAL thermal unit of Bluehelix PRO RRT is made using a concentric spiral without joints or welds. An additional pipe for the preparation of domestic hot water is inserted inside the main spiral, which serves the heating system. The latter is not bound to the main coil but remains immersed in the primary system fluid. The integration in a single block, both of the domestic hot water exchanger and of the primary one, reduces the average operating temperatures especially during the production of domestic hot water thus favoring the phenomenon of condensation. Therefore, unlike most of the products in its category, BLUEHELIX PRO RRT is able to condense even during the production of domestic hot water, reaching energy efficiencies among the highest not only in room heating (ηs 94%) but also in domestic water heating (ηwh 93%). The geometry of the exchanger, particularly generous in the useful passage sections both on the heating circuit and on the domestic hot water circuit, allows the exchanger of the THERMOBALANCE™ DUAL heating unit to operate almost at maximum design efficiency even in conditions of possible partial blockage. The serpentine conformation contrasts the deposit of impurities not only due to the regularity of the path crossed by the water, but also due to the "centrifugal" effect (SELF CLEANING) imprinted on the water itself on the walls of the serpentine. Furthermore, the absence of parallel circuits , both on the heating and DHW side, makes any chemical washing operations of the exchanger and the elimination of any air present in the system circuit extremely easy.

Connect The new remote control

New wireless remote control available as an accessory for home comfort management also from a smartphone using the connect app (iOS and Android) . Maximizes room comfort with delivery temperature modulation through the Room Climatic Compensation (CCA) and External Climatic Compensation (CCE) functions via the external temperature detectable directly from the internet (or from an optional external probe). It improves the average seasonal efficiency in space heating by +4%.

External Climatic Compensation

By reading the external temperature (from the internet or from the optional external probe) the system is able to vary the system temperature according to the external temperature measured on the basis of configurable climatic curves, thus guaranteeing the user maximum room comfort as the the external climatic conditions

Environmental Compensation

The modulating function of CONNECT allows modulation of the boiler power as the set room temperature value is reached. This improves the quality of comfort by eliminating heat peaks with consequent energy savings

Panel Boiler Control , Commands and Functions

The control and management electronics allow the user to customize the operation of the appliance in order to manage the environmental comfort according to one's needs . The key control panel and the simple LCD display make the programming operations for the production of hot water, both for domestic hot water and for heating, extremely easy and intuitive. Thanks to the remote connection via bus, this can also be done directly from the Romeo remote control. The card is protected by an easily accessible fuse thanks to the dedicated flap and the electrical connections benefit from a robust and large box, with easily accessible connectors and numerous cable ties. The boiler is also set up to connect a second room thermostat to the dedicated terminals to manage multi-zone mixing systems

MC ₂ Multi Combustion Control

The electronics control the flame ionization current in order to ensure optimal combustion as the air density or gas quality varies. The relationship between the air/gas ratio (λ) and the flame ionization signal is used to control the air-gas ratio itself and therefore the combustion. MC ₂ : Multi Combustion Control , the new combustion system with patented gas-adaptive technology improves the adaptability of use to varying conditions of the gas network (e.g. fluctuations or reduced pressures)

Easy Maintenance Hassle-free maintenance

At the time of the first maintenance, the technician can appreciate the care with which every detail has been designed to facilitate his work. Thanks to the maximum accessibility of the main components, the THERMOBALANCETM DUAL heating unit allows maintenance to be carried out with maximum precision and speed. Some examples:

• Internal accessibility is favored by the 3-piece mantle with removable side panels

• The electrical box of the electronic card can be easily extracted from the chassis and hooked laterally, leaving free access to the internal parts

• The fan, offset from the burner and placed underneath, must not be disassembled to access the steel burner-exchanger unit

• The burner door is totally self-air-cooled and therefore does not require an insulating panel, avoiding the risk that this could be damaged or broken during disassembly for cleaning

• The burner can be disassembled by loosening just 3 bolts leaving free access to the stainless steel exchanger

• The exchanger with extra-large passages is designed to challenge the hardest waters and is easy to clean thanks to the non-manifolded single-pipe circuit, both on the DHW and heating circuits

• The domestic hot water inlet filter can be extracted very easily directly from the inside without having to remove the boiler hydraulic connections

Simplified Replacement Flue outlet ø 50 mm

The new boiler can also be installed with 50mm diameter ducting outlets. Particularly important in the replacement market in the frequent case of collective flues that require "heavy" ducting where it is necessary to have a high fume expulsion capacity even with reduced diameters

Collective under pressure

FPS: Fume Protection System. The flue clapet valve (installed as standard) allows easy connection to pressurized collective flue systems (e.g. in renovations), in accordance with the UNI 7129 standard . For installers, the solution of the pressurized collective flue is more economical (reduction of of fireplaces)

Comfort and Safety

Functions The designers have thought of a series of functions capable of guaranteeing the quality of the domestic water, the best delivery of power to the heating system combined with a longer life for the appliance

Stop and go function

With the use of sanitary mixing taps, short or very short dispensing for quick rinses involve the start of the boiler ignition procedure which usually ends immediately. The continuation of these " false starts " can, in the long run, compromise the average life of the product. For this reason BLUEHELIX PRO RRT provides an electronic parameter through which it is possible to delay burner ignition (Stop and Go) by activating it only in the face of actual withdrawals of domestic hot water

Sun Easy function

BLUEHELIX PRO RRT has been designed to be easily inserted into systems made with the latest technologies. The SUN EASY system makes use of electronics that simplify the combination with solar panels with both natural and forced circulation. Through a sensor placed on the DHW circuit, it continuously monitors the temperature of the water preheated by the solar panels, foreseeing the ignition of the burner only if the latter falls below the level necessary to guarantee optimal comfort for the user

Self-Cleaning function

The generous cross-section of the exchanger pipes , both on the plant and sanitary side, allows for a large passage of water . Furthermore, the "centrifugal" effect given to the water by the coil shape of the single-circuit exchanger generates a self-cleaning effect on the walls which counteracts the deposit of impurities . Finally, the absence of circuits in parallel, both on the heating and DHW sides, makes any chemical washing operations of the exchanger and the elimination of any air present in the system circuit extremely easy .

Outdoor installation - Antifreeze function

To make the most of the available space, the new BLUEHELIX PRO RRT 24C boiler can be installed recessed into the wall thanks to the special kit; for more critical installations, in completely uncovered places not protected from atmospheric agents, the "painted cabinet" kit is also available. In the event that the temperature in the boiler drops to 5°C, the burner automatically lights up and the circulator is activated in order to protect the appliance from damage caused by frost . This function is active with the boiler powered by the gas circuit and under electrical voltage

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: Methane/LPG
• marca: Ferroli
• metri quadri : 120
• modello: 0T3B2HWA
• potenza in kw: 24
• potenza nominale: 24
• superficie riscaldabile mq: 120
