Air-Water Hydronic Heat Pump Beretta Hydro Unit M 008 Single-Phase R-32 20191952

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

ATTENTION ! IN CASE OF NO IMMEDIATE AVAILABILITY, THE PRODUCT WILL BE ORDERED AND SHIPPED IN 10 WORKING DAYS

FREE FIRST START-UP

Technical features

  • Model : HYDRO UNIT M 008
  • Product code : 20191952
  • Optional REC10MH command

Energy efficiency

  • Energy class in heating at 35° C: A+++
  • Energy class in heating at 55° C: A++
  • Heating COP with water set at 35°C: 5.15
  • Heating COP with water set at 45°C: 3.85
  • Heating COP with water set at 55°C: 3.18
  • EER cooling with water set at 7°C: 3.35
  • EER cooling with water set at 18°C: 5.05
Performance

Heating
  • Useful power in heating with water set at 35° C: 8.40 kW
  • Useful power in heating with water set at 45° C: 8.10 kW
  • Useful power in heating with water set at 55° C: 7.50 kW
  • Absorbed power with water set at 35° C: 1.63 kW
  • Absorbed power with water set at 45° C: 2.10 kW
  • Absorbed power with water set at 55° C: 2.36 kW
Cooling down
  • Useful power in cooling with water set at 7 °C: 7.45 kW
  • Useful power in cooling with water set at 18 °C: 8.30 kW
  • Absorbed power with water set at 7° C: 2.22 kW
  • Absorbed power with water set at 18° C: 1.64 kW
Technical data
  • Hydronic circuit maximum operating pressure: 3 bar
  • Maximum absorbed power: 0.043 kW
  • System expansion tank: 8 litres
Sound data
  • Sound power : 59 dB(A)
  • Sound pressure : 48.5 dB(A)

Electrical data

  • Power supply (V,Hz, Ø) : 220~240/50/1
  • Refrigerant gas : R32

Dimensions and weight

  • Dimensions (LxHxP): 1295x945x526 mm
  • Empty weight: 121.0 kg

Beretta HYDRO UNIT M Inverter Monoblock Air-Water Hydronic Heat Pumps

These units are used for both heating and cooling applications as well as domestic hot water tanks. They can be combined with fan coil units, underfloor heating applications, low temperature high efficiency radiators, domestic hot water tanks and solar kits, all of which are field powered. A wired controller is supplied with the unit. The backup heater, available as an accessory, can increase the heating capacity in cold outside temperatures. The backup heater also serves as a backup in the event of a malfunction and as a freeze protection of the outdoor water pipes during the winter.

Efficiency and sustainability

The heat pumps of the HYDRO UNIT M series use R32 as the refrigerant gas, a gas with a lower Global Warming Potential than the traditional gases used. The design of a new sealed circuit for fluorinated gases, the use of R32, reduced load volumes, lower CO2 emissions and increased energy efficiency are the characteristics that differentiate HYDRO UNIT M and increase its sustainability environmental.

Quietness

The low noise level is guaranteed by the construction features used and can be further reduced thanks to the silent mode programming, available to the customer

Antifreeze function

The HYDRO UNIT M heat pump is foreseen for outdoor installation and equipped with the ANTIFREEZE function for the protection of the entire hydraulic circuit. This customer-programmable function activates automatically whenever the water temperature in the system drops below a pre-set value, ensuring the protection of the entire system

Better performance

The ten models available offer powers from 4 kW to 16 kW , with fast response to requests and reduced energy consumption which guarantee energy class A+++ up to 35°C and A++ up to 55°C

HP KEYMARK Certified

The design meets the requirements of the voluntary European HP KEYMARK certification

Easy and flexible

Installing HYDRO UNIT M is easy thanks to the hydronic kit that comes with the monobloc and which contains all the essential components. HYDRO UNIT M is flexible thanks to its ability to respond quickly to the real needs of the environments to be served

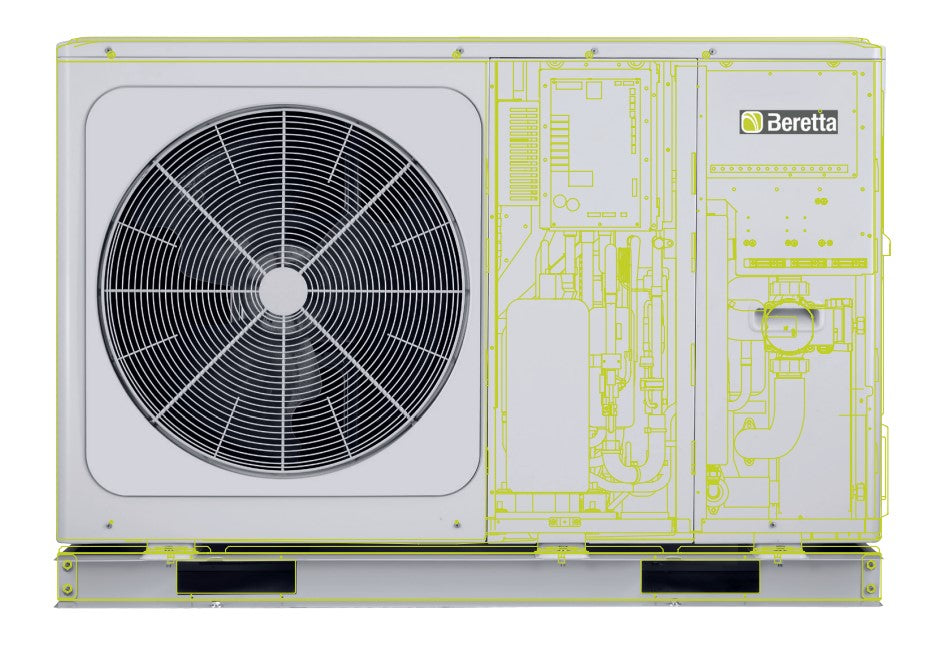

Functional elements Beretta Hydro Unit M

Hydro Unit M

Inverter Control Board Maximizes power under critical load conditions and provides stability and efficiency at part loads

AISI 316 steel plate heat exchanger : protected with closed cell anti-condensation insulation, it offers high heat exchange efficiency

Control board Operating parameters constantly analyzes the ambient temperature and the water temperature to activate the different components and meet the demand

Hydronic module Including low consumption circulator, expansion vessel, automatic vent valve and safety valve

Electronic expansion valve Optimizes the flow of the refrigerant fluid in every situation

Twin rotary compressor Inverter System design including DC twin rotary compressor, fan motor and pump ensures precise motor speed control for the right power needed to perfectly match actual load and save energy

Fan Special design of the blade and its edge that allows optimizing the flow surface, improving efficiency and reducing fan noise

Heat exchange coil With extended surface and aluminum fins


Install more Hydro Unit M

HYDRO UNIT M offers the possibility of connecting up to six units to each other for the heating, cooling and domestic hot water needs of small condominiums and light commercial contexts. Each of the units responds individually to the demands of the environment in which it is installed

Install Hydro Unit M

Easily manage the plant

Advanced remote control

This module, present in every HYDRO UNIT M installation, has a multilingual display and allows you to:

  • Manage up to six units connected in cascade
  • Activate the programmed functions such as the Antifreeze function and the Vacation function, for the serenity of the family

REC10MH management module

Designed for full-electric and hybrid applications, this module is installed inside the home and allows the user to easily manage the entire system. If the system is equipped with a Hybrid distribution system, REC10MH allows you to manage the multi-zone system to optimize the operation of the system. The module is equipped with a color display and a multilingual menu

USB

Each HYDRO UNIT M is equipped with a USB port to connect the USB flash memory to update the unit firmware


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Air-Water Hydronic Heat Pump Beretta Hydro Unit M 008 Single-Phase R-32 20191952

Product form

ATTENTION ! IN CASE OF NO IMMEDIATE AVAILABILITY, THE PRODUCT WILL BE ORDERED AND SHIPPED IN 10 WORKING DAYS  ... Read more

€3.200,00 Incl. VAT

    Description

    ATTENTION ! IN CASE OF NO IMMEDIATE AVAILABILITY, THE PRODUCT WILL BE ORDERED AND SHIPPED IN 10 WORKING DAYS

    FREE FIRST START-UP

    Technical features

    • Model : HYDRO UNIT M 008
    • Product code : 20191952
    • Optional REC10MH command

    Energy efficiency

    • Energy class in heating at 35° C: A+++
    • Energy class in heating at 55° C: A++
    • Heating COP with water set at 35°C: 5.15
    • Heating COP with water set at 45°C: 3.85
    • Heating COP with water set at 55°C: 3.18
    • EER cooling with water set at 7°C: 3.35
    • EER cooling with water set at 18°C: 5.05
    Performance

    Heating
    • Useful power in heating with water set at 35° C: 8.40 kW
    • Useful power in heating with water set at 45° C: 8.10 kW
    • Useful power in heating with water set at 55° C: 7.50 kW
    • Absorbed power with water set at 35° C: 1.63 kW
    • Absorbed power with water set at 45° C: 2.10 kW
    • Absorbed power with water set at 55° C: 2.36 kW
    Cooling down
    • Useful power in cooling with water set at 7 °C: 7.45 kW
    • Useful power in cooling with water set at 18 °C: 8.30 kW
    • Absorbed power with water set at 7° C: 2.22 kW
    • Absorbed power with water set at 18° C: 1.64 kW
    Technical data
    • Hydronic circuit maximum operating pressure: 3 bar
    • Maximum absorbed power: 0.043 kW
    • System expansion tank: 8 litres
    Sound data
    • Sound power : 59 dB(A)
    • Sound pressure : 48.5 dB(A)

    Electrical data

    • Power supply (V,Hz, Ø) : 220~240/50/1
    • Refrigerant gas : R32

    Dimensions and weight

    • Dimensions (LxHxP): 1295x945x526 mm
    • Empty weight: 121.0 kg

    Beretta HYDRO UNIT M Inverter Monoblock Air-Water Hydronic Heat Pumps

    These units are used for both heating and cooling applications as well as domestic hot water tanks. They can be combined with fan coil units, underfloor heating applications, low temperature high efficiency radiators, domestic hot water tanks and solar kits, all of which are field powered. A wired controller is supplied with the unit. The backup heater, available as an accessory, can increase the heating capacity in cold outside temperatures. The backup heater also serves as a backup in the event of a malfunction and as a freeze protection of the outdoor water pipes during the winter.

    Efficiency and sustainability

    The heat pumps of the HYDRO UNIT M series use R32 as the refrigerant gas, a gas with a lower Global Warming Potential than the traditional gases used. The design of a new sealed circuit for fluorinated gases, the use of R32, reduced load volumes, lower CO2 emissions and increased energy efficiency are the characteristics that differentiate HYDRO UNIT M and increase its sustainability environmental.

    Quietness

    The low noise level is guaranteed by the construction features used and can be further reduced thanks to the silent mode programming, available to the customer

    Antifreeze function

    The HYDRO UNIT M heat pump is foreseen for outdoor installation and equipped with the ANTIFREEZE function for the protection of the entire hydraulic circuit. This customer-programmable function activates automatically whenever the water temperature in the system drops below a pre-set value, ensuring the protection of the entire system

    Better performance

    The ten models available offer powers from 4 kW to 16 kW , with fast response to requests and reduced energy consumption which guarantee energy class A+++ up to 35°C and A++ up to 55°C

    HP KEYMARK Certified

    The design meets the requirements of the voluntary European HP KEYMARK certification

    Easy and flexible

    Installing HYDRO UNIT M is easy thanks to the hydronic kit that comes with the monobloc and which contains all the essential components. HYDRO UNIT M is flexible thanks to its ability to respond quickly to the real needs of the environments to be served


    Functional elements Beretta Hydro Unit M

    Hydro Unit M

    Inverter Control Board Maximizes power under critical load conditions and provides stability and efficiency at part loads

    AISI 316 steel plate heat exchanger : protected with closed cell anti-condensation insulation, it offers high heat exchange efficiency

    Control board Operating parameters constantly analyzes the ambient temperature and the water temperature to activate the different components and meet the demand

    Hydronic module Including low consumption circulator, expansion vessel, automatic vent valve and safety valve

    Electronic expansion valve Optimizes the flow of the refrigerant fluid in every situation

    Twin rotary compressor Inverter System design including DC twin rotary compressor, fan motor and pump ensures precise motor speed control for the right power needed to perfectly match actual load and save energy

    Fan Special design of the blade and its edge that allows optimizing the flow surface, improving efficiency and reducing fan noise

    Heat exchange coil With extended surface and aluminum fins


    Install more Hydro Unit M

    HYDRO UNIT M offers the possibility of connecting up to six units to each other for the heating, cooling and domestic hot water needs of small condominiums and light commercial contexts. Each of the units responds individually to the demands of the environment in which it is installed

    Install Hydro Unit M

    Easily manage the plant

    Advanced remote control

    This module, present in every HYDRO UNIT M installation, has a multilingual display and allows you to:

    • Manage up to six units connected in cascade
    • Activate the programmed functions such as the Antifreeze function and the Vacation function, for the serenity of the family

    REC10MH management module

    Designed for full-electric and hybrid applications, this module is installed inside the home and allows the user to easily manage the entire system. If the system is equipped with a Hybrid distribution system, REC10MH allows you to manage the multi-zone system to optimize the operation of the system. The module is equipped with a color display and a multilingual menu

    USB

    Each HYDRO UNIT M is equipped with a USB port to connect the USB flash memory to update the unit firmware


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 99.0 kg
    • alimentazione: Single phase
    • gas: R-32
    • marca: BERETTA
    • modello: HYDRO _UNIT_M_008
    • potenza in kw: 8
    • tipologia : Hydronics
