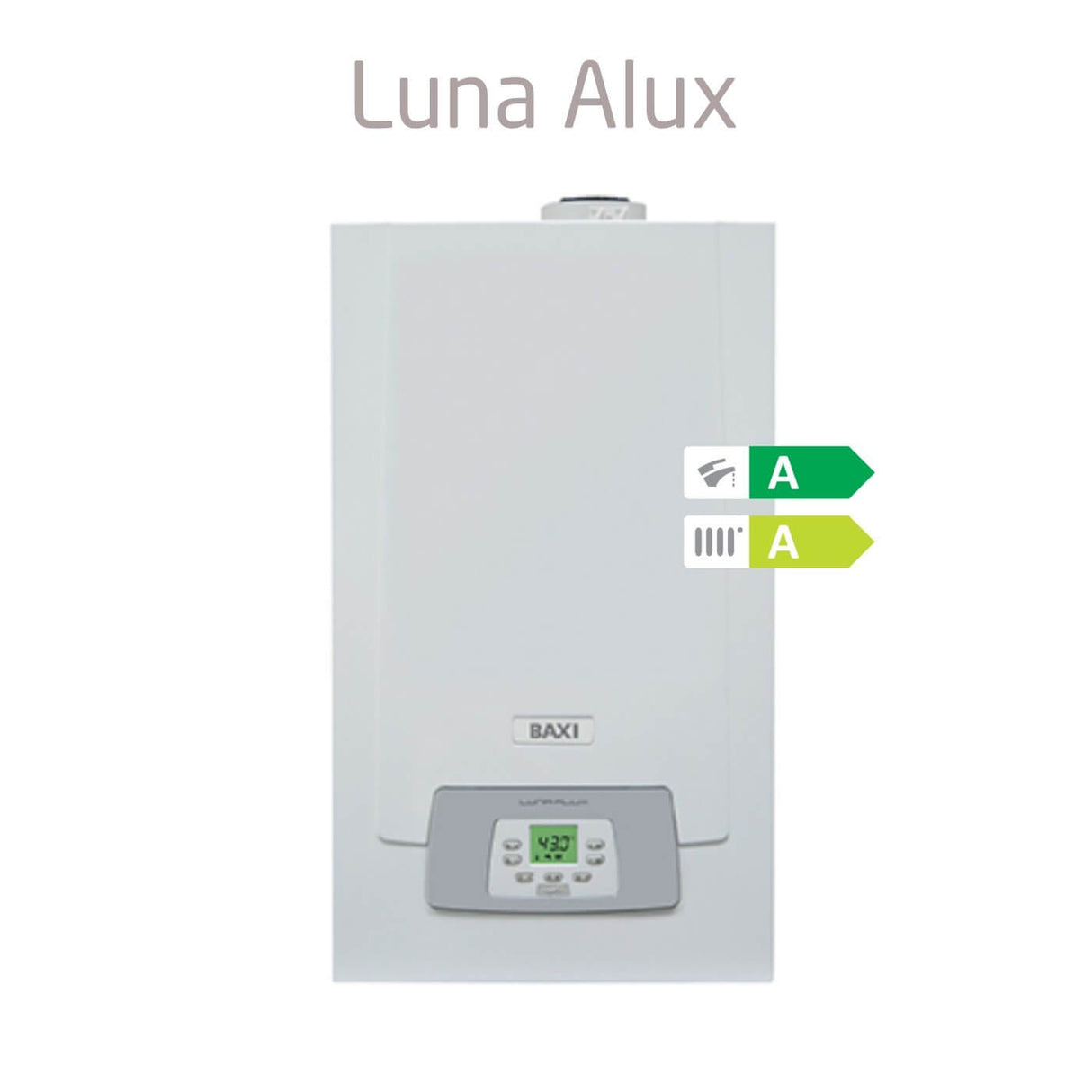

Baxi Luna Alux 24 Ga Natural Gas Condensing Boiler Complete With Smoke Exhaust Kit

Technical features

• Model : Luna Alux 24 Ga
• ErP energy efficiency class (heating and DHW): A
• Load profile: XL
• DHW nominal heat input kW 24.7
• Heating nominal heat input kW 20.6
• Sanitary nominal thermal power kW 24
• Energy efficiency (92/42/EEC) ****
• Efficiency at 100% Pn (80-60°C): 97.7%
• Efficiency at 100% Pn (50-30°C): 105.5%
• Expansion/pre-charge vessel capacity l/bar 8/0.8
• Sanitary water temperature adjustment °C 35-60
• Sanitary water production ∆T 25°C l/min 13.8
• Degree of protection: IPX5D
• NOx class (EN 483) 5
• Dimensions ( HxWxD ) : 763 x 450 x 345 mm
• Weight : 42Kg
• Power supply: methane

Wall-hung gas condensing boilers ideal for replacing old systems with cast iron/lamellar steel radiators

The new condensing range Luna Alux is divided into two models, 24 and 33 kW for heating and instant domestic hot water production. Luna Alux was designed in compliance with the requirements of the Ecodesign and Labeling Directives. The labeling directive (2010/30/EU) requires the labeling of products according to a decreasing energy scale that goes from A++ to G starting from 09/26/2015 and from A+++ to D from 09/26/2019. The label was created to allow the final consumer, by providing true and comparable data, to make informed choices by targeting high-efficiency products.

Exclusive design aluminum heat exchanger

Luna Alux is the new Baxi condensing boiler equipped with a corrosion-resistant aluminum-silicon alloy exchanger which makes this boiler particularly solid.
The exchanger, designed and produced on an exclusive Baxi design, has been studied with large water passage sections to make the boiler particularly suitable for replacement in old heating systems with cast iron or lamellar steel radiators

In these types of systems, the replacement of the existing boiler with a new LUNA ALUX:

• Significantly lowers the risk of clogging due to impurities in the system water

• Makes operation particularly quiet

Digital control panel

The Luna Alux range of boilers is equipped with a digital control panel with backlit LCD display, easy to use thanks to dedicated and independent keys to adjust the temperature of the domestic hot water and the heating. The display allows you to view all the information and set the operating parameters in a clear and immediate way.

Efficiency and savings

Wide modulation range:

Hydraulic group in brass

Baxi has chosen to maintain quality in its components.
The brass hydraulic group, in fact, is a guarantee of:

• Robustness
• Greater durability
• Recyclability

Wide modulation range 1:7

greater efficiency given by fewer starts and stops: with a high modulation ratio, the reduction of continuous on/off cycles leads to a significant reduction in consumption (by 8-10%) and an equal reduction in polluting emissions • power adjustment produced at the dissipated power thus avoiding excessive overheating/cooling of rooms A

Gas Adaptive Control

The innovative GAC (Gas Adaptive Control) automatic combustion control system guarantees a wide modulation range up to 1:10: high efficiency and energy savings are ensured as the boiler is able to adjust the thermal power produced to the actual power dissipated from the building avoiding excessive heating/cooling of the building.

High efficiency total modulation pump

The Alux range is equipped with a high-efficiency, fully modulated circulation pump. The pump is equipped with a permanent magnet motor with a variable rotation speed controlled by the boiler board. The high efficiency total modulation pump allows:

• Lower electricity consumption
• Better performance
• Greater durability

Characteristics:

• Wide modulation range 1:7 greater efficiency and silence
• GAC (gas adaptive control): automatic combustion control to constantly maintain the maximum efficiency values ​​(operation on methane only)
• High efficiency circulation pump with total modulation
• Aluminum-silicon alloy exchanger with large water passage sections
• Hydraulic group in brass
• 10 liter expansion vessel (mod. 33)
• Easy maintenance thanks to front access to components
• Digital control panel with large backlit LCD display
• Arrangement for combination with the Baxi integrated solar system
• Electronic system deaeration function to facilitate air removal during initial ignition

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: Methane
• marca: Baxi
• metri quadri : 120
• modello: Luna Alux 24 Metano
• potenza in kw: 24
• potenza nominale: 24
• superficie riscaldabile mq: 120
