Technical features Dimensions External Diameter: 14 mm Thickness : 1mm Roll length : 50m Minimum Coating Thickness: 10 mm Burst Pressure: 32.06 MPa Working Pressure : 8.01 MPa Water Content: 0.113 l/m SMISOL® Frio Fears neither heat nor cold It is the copper pipe produced according to the EN 12735-1 standard (and ASTM B 68/M), and is pre-insulated in closed cell expanded polyethylene of regular dimensions and uniformly distributed (UNI EN 14114). It is distributed in rolls, having the dimensions of the pipe diameter in millimeters. The insulating sheath is produced in full compliance with the European Regulation EEC/EU 2037/2000 which imposes the use of expanded insulating sheaths without the use of CFCs and HCFCs, gases harmful to health and the environment. The thickness of the sheath is also sized in such a way as to satisfy the multiple needs of this application sector. In consideration of the particular specificity of the field of use, special attention is paid to the external protective film in polyethylene aimed at preventing the formation of condensation on the external wall of the product. Inner surface The internal surface of the copper tube is shiny, clean and dry , fundamental characteristics of a product normally available on the market for industrial use. This peculiarity allows to obtain an integrated system with the terminal elements of the system. The particular internal cleanliness of SMISOL® Frio is safeguarded by closing the ends of each roll with caps, directly during production. External Protection Covering in closed cell expanded polyethylene with an average value of the resistance factor to the diffusion of water vapor "µ" greater than 15000 . The insulating sheath is produced in full compliance with the European Regulation EEC/EU 2037/2000 which imposes the use of expanded insulating sheaths without the use of CFC and HCFC, gases harmful to health and the environment and has a fire behavior class BL-s1-d0 according to EN 13501-1. Coating Features Thermal conductivity : λ ≤0.040 W/m°C. Average value of the resistance factor to the diffusion of water vapor "µ" greater than 15000. Average density of the coating: 33 kg/m3. Free from ammonia residues. Excellent resistance to external chemical agents. Non flammable class BL-s1-d0 according to EN 13501-1 Free from CFC and HCFC (Reg. CEE/UE 2037/2000) Directions For Design To avoid possible condensation phenomena on the pipe, it is necessary to check the environmental conditions in which the product is installed: relative humidity of the environment, temperature of the environment and of the fluid inside the pipe. In this regard, verification through the Psychrometric diagram is recommended Fields of Use Refrigeration. Transport of heat transfer liquids for multifunctional systems Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

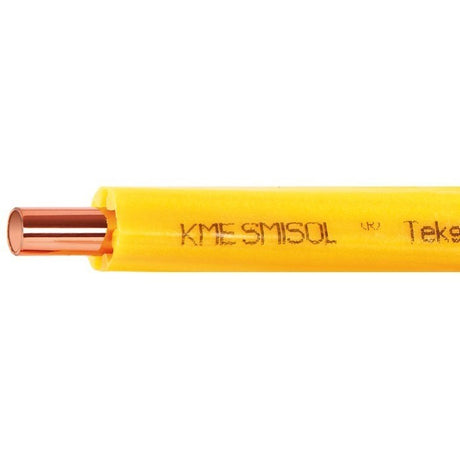

Technical features Dimensions External Diameter: 22 mm Thickness : 1mm External diameter of the tube: 32 mm Roll length : 25 m Burst Pressure: 20.40 MPa Working Pressure: 5.10 MPa Water Content: 0.314 l/m SMISOL® Tekgas Practical and Safe SMISOL® Tekgas is the copper pipe produced according to the EN 1057 standard, coated during production with a special low-density closed-cell structure polyethylene sheath, manufactured in the sizes required by UNI 7129. Thanks to the particularity of the coating, co-extruded continuously on the copper pipe, and in the presence of spacers wound in a helical direction with respect to the axis of the pipe, it is particularly suitable for the transport of liquid and gaseous fuels. Spacers ensure that the sheath has an internal diameter that is 10 mm larger than the external diameter of the pipe. This geometric peculiarity allows the pipe to be used for crossing walls and floors without adding an additional metal sheath in full compliance with UNI 7129-1 which states in point 4.4.1.5: "When crossing perimeter and external walls, bricks blocks, perforated bricks and prefabricated panels, the gas supply pipe must not have joints, with the exception of the inlet and outlet joints and must be protected with a gas-tight through sheath. The sheath can be indifferently metal or polymeric material, the sheath must have an internal diameter greater than 10 mm compared to the external diameter of the pipe. This pipe can be laid concealed even in critical situations where the walls contain cavities (for example perforated bricks) this is always possible thanks to the polymeric sheath that continuously wraps the copper pipe, during installation it is sufficient to drown SMISOL® Tekgas in 15 mm of cement mortar to comply with the provisions of UNI 7129-1 point 4.5.5.5 and point 4.5.5.6. The helical shape of the spacers ensures that the interspace between the pipe and the sheath remains constant even in the 90° bends, avoiding crushing, in this way in the event of a leak, the danger of the formation of gas pockets is avoided. The in-line coating process ensures high malleability, superior to similar products on the market. In order to preserve this exclusive feature, the rolls of SMISOL®Tekgas have a very large winding diameter which, with the characteristics already described, make them a practical and particularly professional product at the same time. Furthermore, to protect the final consumer, in compliance with EU Regulation 305/2011 for construction products (CPR) , the copper pipes manufactured by SCT according to EN1057 are marked with the CE mark . A further guarantee of compliance with current legislation is given by obtaining the UNI-IGQ quality mark Internal Protection During production, it is subjected to a patented treatment of passivation and stabilization of the internal wall . SMISOL®Tekgas copper pipe has a carbon residue C < 0.06 mg/dm2, much lower than that required by the EN 1057 standard, which establishes a carbon content C ≤ 0.20 mg/dm2 External Protection The low-density closed-cell polyethylene coating protects the pipe from attacks exerted from the outside by building materials (e.g. quick-setting cement) and from damage caused by knocks during transport to the construction site. It complies with the reg. CEE/UE 2037/2000 and has a fire behavior of class BLs1d0 (EN 13501-1) and class 1 (DM 26/06/84) Folding With reference to the bending methods using a special tube bender, it should be noted that the matrices and counter matrices to be used can differ significantly according to the brand and model used. For any information and clarification, you can contact us on the toll-free number or e-mail address listed on the cover Coating Features Covered in closed cell low density polyethylene. Helically wound spacers. Air gap: 5 mm min. Excellent resistance to external chemical agents. Ink marking every metre. Class 1 non-flammable Behavior in fire: BLs1d0 (EN 13501-1) and class 1 (DM 26/06/84) Fields of Use Distribution of liquid and gaseous fuels with particular reference to masonry structures where the use of non-metallic sheath pipes is necessary In compliance with and within the limits established by the regulations Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Dimensions External Diameter: 16 mm Thickness : 1mm Roll length : 50m Minimum Coating Thickness: 1.5 mm Burst Pressure: 26.14 MPa Working Pressure : 6.54 MPa Water Content: 0.15 l/m Foma Plast Coated Pipes for Sanitary Uses PLAST coated copper pipe is produced using the most modern drawing technologies; the in-line control on 100% of the production and the constant verification of the dimensional characteristics guarantee maximum safety. This guarantee of quality allows us to supply the copper tube in accordance with the specific requests of the customer, according to various standardized regulations and, if required, according to the European standard CE EN 1057. The same care and attention are employed in the choice of materials and in the coating production processes ensuring maximum protection from attacks exerted by the materials used for the construction We also recall that copper is a metal whose chemical-physical characteristics are essential for energy saving and is also applied in green building Characteristics of the Copper Pipe Alloy: Copper Cu-DHP 99.90 min. Dimensions and tolerances: upon specific request by the customer according to various standardized regulations or, if required, according to the European standard CE EN 1057. Carbon residue: < 0.20 mg / dm² Physical state: Annealed (R 220 according to EN 1057 standard) Excellent corrosion resistance Made according to the prescriptions of the DPR n. 1095/68 Usage Water and sanitation systems Compressed air systems Non-buried gas systems Coating characteristics Stellar PVC coating PVC coating with a special "star" sheath Ivory Coating Thickness: 1.5mm approx. Fire resistance: self-extinguishing Marking: lasered every metre Odorless and non-toxic Excellent plasticity and abrasion resistance Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

Read more less

Technical features Dimensions External Diameter: 12 mm Thickness : 1mm Roll length : 50m Minimum Coating Thickness: 1.5 mm Burst Pressure: 37.40 MPa Working Pressure : 9.35 MPa Water Content: 0.079 l/m SMISOL® Gas Resistant and non-permeable It is the copper pipe produced according to the EN 1057 standard covered during production with a special sheath with a full (non-star) section in polyvinyl chloride (PVC) in compliance with the UNI 10823 standard. The properties of SMISOL®Gas in terms of melting point, resistance to fire and pressure, impermeability to gas and absolute sealing of brazing and joints, become indispensable in the case of domestic distribution of combustible gas, where safety guarantees are essential and obligatorily provided for by the technical standards and by the provisions of the law. Furthermore, to protect the final consumer, in compliance with EU Regulation 305/2011 for construction products (CPR) , the copper pipes manufactured by SCT according to EN1057 are marked with the CE mark . A further guarantee of compliance with current legislation is given by obtaining the UNI-IGQ quality mark Internal Protection During production, it is subjected to a patented treatment of passivation and stabilization of the internal wall . The SMISOL®Gas copper pipe has a carbon residue C < 0.06 mg/dm2 , much lower than that required by the EN 1057 standard, which establishes a carbon content C ≤ 0.20 mg/dm2 External Protection Coating in stabilized polyvinyl resin, tested and guaranteed. The coating protects against external attacks from building materials (e.g. quick-setting concrete) and against damage caused by impacts during transport to the construction site. It allows use in the field of underground pipes , as indicated by the same UNI 10823 standard: "the coating is obtained through extrusion, without welding, in continuous, externally and internally smooth, with uniform nominal thickness, adhering to the external wall of the copper pipe for its entire surface to guarantee the absence of residual air pockets and prevent them from slipping off”. It is tested online in order to guarantee the electrical insulation resistance which, as required by the UNI 10823 standard, must be equal to or greater than 100 MΩm2, furthermore it satisfies the requirements of the UNI 7129 regarding the omission of the installation of the required dielectric joint for underground sections with a length not exceeding 3 m Coating Features Coating in special stabilized PVC resin. Full section (non-stellar) according to UNI 10823. Minimum thickness coating thickness: 1.5 mm (continuously checked with laser gauge). Sheath produced with top quality virgin granulate. Excellent resistance to external chemical agents. Ink marking every metre. Electrical insulation resistance: ≥ 100 MΩm2 (UNI 10823) Fields of Use Distribution of liquid and gaseous fuels with particular reference to underground installation In compliance with and within the limits established by the regulations Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Dimensions External Diameter: 12 mm Thickness : 1mm Roll length : 50m Minimum Coating Thickness: 1.5 mm Burst Pressure: 34.85 MPa Working Pressure : 8.71 MPa Water Content: 0.08 l/m Foma Plast Coated Pipes for Sanitary Uses PLAST coated copper pipe is produced using the most modern drawing technologies; the in-line control on 100% of the production and the constant verification of the dimensional characteristics guarantee maximum safety. This guarantee of quality allows us to supply the copper tube in accordance with the specifications requested by the customer, according to various standardized regulations and, if required, according to the European standard CE EN 1057. The same care and attention are employed in the choice of materials and in the coating production processes ensuring maximum protection from attacks exerted by the materials used for the construction We also recall that copper is a metal whose chemical-physical characteristics are essential for energy saving and is also applied in green building Characteristics of the Copper Pipe Alloy: Copper Cu-DHP 99.90 min. Dimensions and tolerances: upon specific request by the customer according to various standardized regulations or, if required, according to the European standard CE EN 1057. Carbon residue: < 0.20 mg / dm² Physical state: Annealed (R 220 according to EN 1057 standard) Excellent corrosion resistance Made according to the prescriptions of the DPR n. 1095/68 Usage Water and sanitation systems Compressed air systems Non-buried gas systems Coating characteristics Stellar PVC coating PVC coating with a special "star" sheath Ivory Coating Thickness: 1.5mm approx. Fire resistance: self-extinguishing Marking: lasered every metre Odorless and non-toxic Excellent plasticity and abrasion resistance Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

Read more less

Technical features Dimensions External Diameter: 18 mm Thickness : 1mm Roll length : 50m Minimum Coating Thickness: 1.5 mm Burst Pressure: 23.23 MPa Working Pressure : 5.81 MPa Water Content: 0.2011 l/m Foma Plast Gas Coated Copper Pipes for Gas Plumbing PLAST insulated copper pipe is produced using the most modern drawing technologies; the in-line control on 100% of the production and the constant verification of the dimensional characteristics guarantee maximum safety. This guarantee of quality allows us to supply the copper tube in accordance with the specific requests of the customer, according to various standardized regulations or, if required, according to the European standard CE EN 1057. The same care and attention are employed in the choice of materials and in the coating production processes ensuring maximum protection from attacks exerted by the materials used for the construction. We also recall that copper is a metal whose chemical-physical characteristics are essential for energy saving and is also applied in green building Characteristics of the Copper Pipe Alloy: Copper Cu-DHP 99.90 min. Dimensions and tolerances: upon specific request by the customer according to various standardized regulations or, if required, according to the European standard CE EN 1057. according to the standard EN 1057 Carbon residue: < 0.20 mg / dm² Physical state: Annealed (R 220) Excellent corrosion resistance Made according to the prescriptions of the DPR n. 1095/68 Jobs Domestic use gas systems (UNI CIG 7129) Liquid fuel distribution systems (UNI CIG 7129) Water and sanitation systems Compressed air systems Coating characteristics PVC coating with smooth sheath adhering to the pipe made according to the UNI 10823 standard Yellow color Coating Thickness: 1.5mm approx. Fire resistance: self-extinguishing Marking: lasered every metre Odorless and non-toxic Excellent plasticity and abrasion resistance Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

Read more less

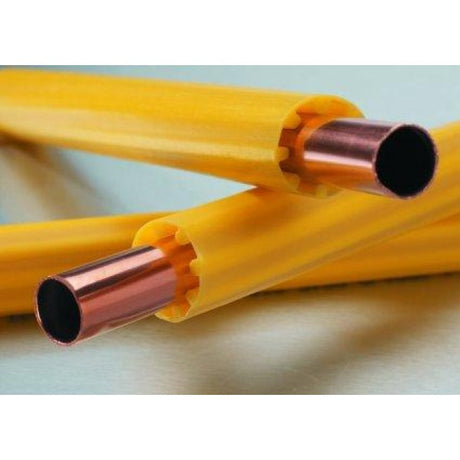

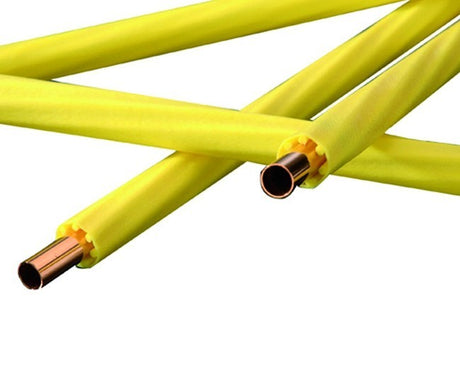

Technical features Dimensions External Diameter: 22 mm Thickness : 1mm Dimensions Outside Diameter of the Tube: 34 mm Roll length : 25 m Burst Pressure: 28.51 MPa Working Pressure : 7.13 MPa Water Content: 0.2835 l/m Foma Special Gas Coated Copper Pipes for Gas Plumbing This special pre-sheathed copper pipe, created for the distribution of liquid and gaseous fuels, is particularly suitable for insertion into masonry structures, where it is necessary to use sheaths of plastic material. The advantage of using this product is made evident by the type of structure with which this sheath is made, since it is high-density closed-cell expanded polyethylene with seven spacers, which, during the production phase, are given a twist so as to make them a spiral; this allows the pipe to be bent without the sheath channels being interrupted, thus facilitating the evacuation of any leaks. The copper pipe contained is produced according to the customer's requests, according to various standardized regulations or, if required, according to the European standard CE EN 1057 and the dimensional range complies with the provisions of UNI CIG 7129, which in point 3.3.1.4 prescribes , for the crossing of solid walls, perforated and prefabricated panels, that the pipe is protected, without joints and welds, with a through sheath walled up with mortar and cement. Characteristics of the Copper Pipe Alloy: Copper Cu-DHP 99.90 min. Dimensions and tolerances: upon specific request by the customer according to various standardized regulations or, if required, according to the European standard CE EN 1057. Carbon residue: < 0.20 mg / dm² Physical state: Annealed (R 220 according to EN 1057 standard) Excellent corrosion resistance Jobs Liquid and gaseous fuels GAS systems for domestic use Coating characteristics Coating in high density closed cell polyethylene Complies with EEC/EU 2037/2000 regulation for environmental protection Yellow color Helically wound spacers Air gap: 5mm. minimum Fire resistance: Class 1 self-extinguishing Excellent resistance to atmospheric agents Marking: in ink Odorless and non-toxic Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

Read more less

Technical features Dimensions External Diameter: 22 mm Thickness : 1mm Roll length : 25m Minimum Coating Thickness: 1.5 mm Burst Pressure: 20.40 MPa Working Pressure: 5.10 MPa Water Content: 0.314 l/m SMISOL® Gas Resistant and non-permeable It is the copper pipe produced according to the EN 1057 standard covered during production with a special sheath with a full (non-star) section in polyvinyl chloride (PVC) in compliance with the UNI 10823 standard. The properties of SMISOL®Gas in terms of melting point, resistance to fire and pressure, impermeability to gas and absolute sealing of brazing and joints, become indispensable in the case of domestic distribution of combustible gas, where safety guarantees are essential and obligatorily provided for by the technical standards and by the provisions of the law. Furthermore, to protect the final consumer, in compliance with EU Regulation 305/2011 for construction products (CPR) , the copper pipes manufactured by SCT according to EN1057 are marked with the CE mark . A further guarantee of compliance with current legislation is given by obtaining the UNI-IGQ quality mark Internal Protection During production, it is subjected to a patented treatment of passivation and stabilization of the internal wall . The SMISOL®Gas copper pipe has a carbon residue C < 0.06 mg/dm2 , much lower than that required by the EN 1057 standard, which establishes a carbon content C ≤ 0.20 mg/dm2 External Protection Coating in stabilized polyvinyl resin, tested and guaranteed. The coating protects against external attacks from building materials (e.g. quick-setting concrete) and against damage caused by impacts during transport to the construction site. It allows use in the field of underground pipes , as indicated by the same UNI 10823 standard: "the coating is obtained through extrusion, without welding, in continuous, externally and internally smooth, with uniform nominal thickness, adhering to the external wall of the copper pipe for its entire surface to guarantee the absence of residual air pockets and prevent them from slipping off”. It is tested online in order to guarantee the electrical insulation resistance which, as required by the UNI 10823 standard, must be equal to or greater than 100 MΩm2, furthermore it satisfies the requirements of the UNI 7129 regarding the omission of the installation of the required dielectric joint for underground sections with a length not exceeding 3 m Coating Features Coating in special stabilized PVC resin. Full section (non-stellar) according to UNI 10823. Minimum thickness coating thickness: 1.5 mm (continuously checked with laser gauge). Sheath produced with top quality virgin granulate. Excellent resistance to external chemical agents. Ink marking every metre. Electrical insulation resistance: ≥ 100 MΩm2 (UNI 10823) Fields of Use Distribution of liquid and gaseous fuels with particular reference to underground installation In compliance with and within the limits established by the regulations Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Dimensions External Diameter: 14 mm Thickness : 0.8mm Roll length : 50m Minimum Coating Thickness: 6 mm Burst Pressure: 25.65 MPa Working Pressure : 6.41 MPa Water Content: 0.1208 l/m SMISOL® 8 Versatile and professional SCT, with the expansion of its production range to 0.8 mm thickness , aims to offer the market a product with the best possible quality/price ratio; ensuring ease of installation and technical performance, as well as total compliance with current standards. SMISOL®8 contains a copper tube with a special internal passivation treatment, which perfectly complies with the EN 1057 standard and is CE marked as required by EU Regulation 305/2011 . Even the new dimensional range of SMISOL ® 8 has the UNI-IGQ Quality mark , which guarantees its compliance with current legislation. Offering SCT pipes with the UNI-IGQ brand means providing your customers with a further added value given by the certainty of an independent and recognized quality brand Field of Use Hot and cold drinking water Heating Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Dimensions External Diameter: 18 mm Thickness : 1mm Roll length : 50m Minimum Coating Thickness: 1.5 mm Burst Pressure: 24.93 MPa Working Pressure : 6.23 MPa Water Content: 0.201 l/m SMISOL® Gas Resistant and non-permeable It is the copper pipe produced according to the EN 1057 standard covered during production with a special sheath with a full (non-star) section in polyvinyl chloride (PVC) in compliance with the UNI 10823 standard. The properties of SMISOL®Gas in terms of melting point, resistance to fire and pressure, impermeability to gas and absolute sealing of brazing and joints, become indispensable in the case of domestic distribution of combustible gas, where safety guarantees are essential and obligatorily provided for by the technical standards and by the provisions of the law. Furthermore, to protect the final consumer, in compliance with EU Regulation 305/2011 for construction products (CPR) , the copper pipes manufactured by SCT according to EN1057 are marked with the CE mark . A further guarantee of compliance with current legislation is given by obtaining the UNI-IGQ quality mark Internal Protection During production, it is subjected to a patented treatment of passivation and stabilization of the internal wall . The SMISOL®Gas copper pipe has a carbon residue C < 0.06 mg/dm2 , much lower than that required by the EN 1057 standard, which establishes a carbon content C ≤ 0.20 mg/dm2 External Protection Coating in stabilized polyvinyl resin, tested and guaranteed. The coating protects against external attacks from building materials (e.g. quick-setting concrete) and against damage caused by impacts during transport to the construction site. It allows use in the field of underground pipes , as indicated by the same UNI 10823 standard: "the coating is obtained through extrusion, without welding, in continuous, externally and internally smooth, with uniform nominal thickness, adhering to the external wall of the copper pipe for its entire surface to guarantee the absence of residual air pockets and prevent them from slipping off”. It is tested online in order to guarantee the electrical insulation resistance which, as required by the UNI 10823 standard, must be equal to or greater than 100 MΩm2, furthermore it satisfies the requirements of the UNI 7129 regarding the omission of the installation of the required dielectric joint for underground sections with a length not exceeding 3 m Coating Features Coating in special stabilized PVC resin. Full section (non-stellar) according to UNI 10823. Minimum thickness coating thickness: 1.5 mm (continuously checked with laser gauge). Sheath produced with top quality virgin granulate. Excellent resistance to external chemical agents. Ink marking every metre. Electrical insulation resistance: ≥ 100 MΩm2 (UNI 10823) Fields of Use Distribution of liquid and gaseous fuels with particular reference to underground installation In compliance with and within the limits established by the regulations Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Dimensions External Diameter: 16 mm Thickness : 1mm Roll length : 50m Minimum Coating Thickness: 1.5 mm Burst Pressure: 28.05 MPa Working Pressure : 7.01 MPa Water Content: 0.154 l/m SMISOL® Gas Resistant and non-permeable It is the copper pipe produced according to the EN 1057 standard covered during production with a special sheath with a full (non-star) section in polyvinyl chloride (PVC) in compliance with the UNI 10823 standard. The properties of SMISOL®Gas in terms of melting point, resistance to fire and pressure, impermeability to gas and absolute sealing of brazing and joints, become indispensable in the case of domestic distribution of combustible gas, where safety guarantees are essential and obligatorily provided for by the technical standards and by the provisions of the law. Furthermore, to protect the final consumer, in compliance with EU Regulation 305/2011 for construction products (CPR) , the copper pipes manufactured by SCT according to EN1057 are marked with the CE mark . A further guarantee of compliance with current legislation is given by obtaining the UNI-IGQ quality mark Internal Protection During production, it is subjected to a patented treatment of passivation and stabilization of the internal wall . The SMISOL®Gas copper pipe has a carbon residue C < 0.06 mg/dm2 , much lower than that required by the EN 1057 standard, which establishes a carbon content C ≤ 0.20 mg/dm2 External Protection Coating in stabilized polyvinyl resin, tested and guaranteed. The coating protects against external attacks from building materials (e.g. quick-setting concrete) and against damage caused by impacts during transport to the construction site. It allows use in the field of underground pipes , as indicated by the same UNI 10823 standard: "the coating is obtained through extrusion, without welding, in continuous, externally and internally smooth, with uniform nominal thickness, adhering to the external wall of the copper pipe for its entire surface to guarantee the absence of residual air pockets and prevent them from slipping off”. It is tested online in order to guarantee the electrical insulation resistance which, as required by the UNI 10823 standard, must be equal to or greater than 100 MΩm2, furthermore it satisfies the requirements of the UNI 7129 regarding the omission of the installation of the required dielectric joint for underground sections with a length not exceeding 3 m Coating Features Coating in special stabilized PVC resin. Full section (non-stellar) according to UNI 10823. Minimum thickness coating thickness: 1.5 mm (continuously checked with laser gauge). Sheath produced with top quality virgin granulate. Excellent resistance to external chemical agents. Ink marking every metre. Electrical insulation resistance: ≥ 100 MΩm2 (UNI 10823) Fields of Use Distribution of liquid and gaseous fuels with particular reference to underground installation In compliance with and within the limits established by the regulations Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Read more less

Technical features Dimensions External Diameter: 14 mm Thickness : 1mm Roll length : 50m Minimum Coating Thickness: 1.5 mm Burst Pressure: 32.06 MPa Working Pressure : 8.01 MPa Water Content: 0.113 l/m SMISOL® Gas Resistant and non-permeable It is the copper pipe produced according to the EN 1057 standard covered during production with a special sheath with a full (non-star) section in polyvinyl chloride (PVC) in compliance with the UNI 10823 standard. The properties of SMISOL®Gas in terms of melting point, resistance to fire and pressure, impermeability to gas and absolute sealing of brazing and joints, become indispensable in the case of domestic distribution of combustible gas, where safety guarantees are essential and obligatorily provided for by the technical standards and by the provisions of the law. Furthermore, to protect the final consumer, in compliance with EU Regulation 305/2011 for construction products (CPR) , the copper pipes manufactured by SCT according to EN1057 are marked with the CE mark . A further guarantee of compliance with current legislation is given by obtaining the UNI-IGQ quality mark Internal Protection During production, it is subjected to a patented treatment of passivation and stabilization of the internal wall . The SMISOL®Gas copper pipe has a carbon residue C < 0.06 mg/dm2 , much lower than that required by the EN 1057 standard, which establishes a carbon content C ≤ 0.20 mg/dm2 External Protection Coating in stabilized polyvinyl resin, tested and guaranteed. The coating protects against external attacks from building materials (e.g. quick-setting concrete) and against damage caused by impacts during transport to the construction site. It allows use in the field of underground pipes , as indicated by the same UNI 10823 standard: "the coating is obtained through extrusion, without welding, in continuous, externally and internally smooth, with uniform nominal thickness, adhering to the external wall of the copper pipe for its entire surface to guarantee the absence of residual air pockets and prevent them from slipping off”. It is tested online in order to guarantee the electrical insulation resistance which, as required by the UNI 10823 standard, must be equal to or greater than 100 MΩm2, furthermore it satisfies the requirements of the UNI 7129 regarding the omission of the installation of the required dielectric joint for underground sections with a length not exceeding 3 m Coating Features Coating in special stabilized PVC resin. Full section (non-stellar) according to UNI 10823. Minimum thickness coating thickness: 1.5 mm (continuously checked with laser gauge). Sheath produced with top quality virgin granulate. Excellent resistance to external chemical agents. Ink marking every metre. Electrical insulation resistance: ≥ 100 MΩm2 (UNI 10823) Fields of Use Distribution of liquid and gaseous fuels with particular reference to underground installation In compliance with and within the limits established by the regulations Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
