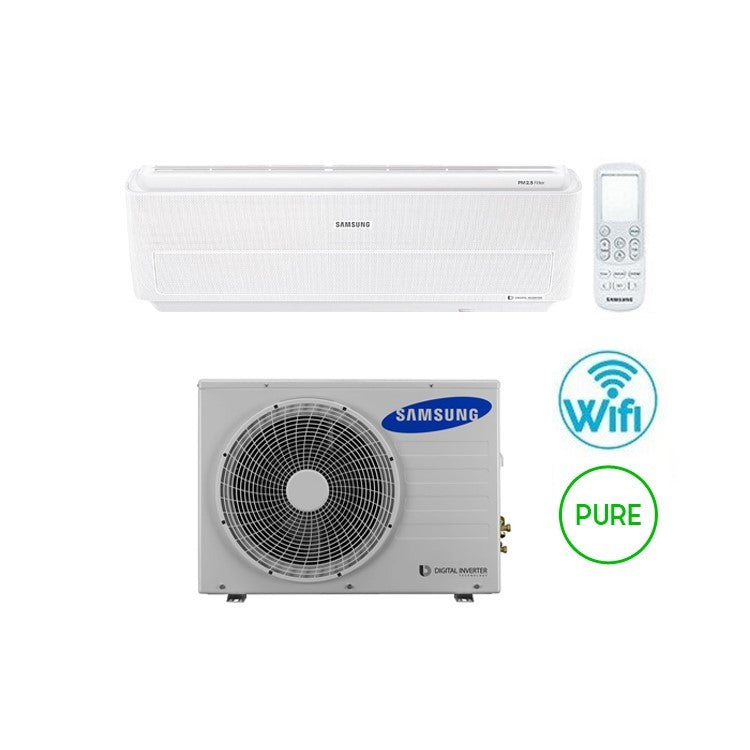

Samsung Air Conditioner Inverter Series Windfree Pure 9000 Btu Ar09nxcxaw Wi-Fi R-32 Class A++

Technical features

SEER: 7.2;
SCOP: 4.6;
Energy Class in Cooling: A++;
Heating Energy Class: A++;
Power: 9000 BTUs;
Covered area: from 15 to 25 m2;

Cooling performance:
Capacity: 2.75kW;
Operating range: -10~46°C;

Heating performance:
Capacity: 3.2kW;
Operating range: -15~24°C;

Noise level:
Sound power level IU: 54 db(A);
Sound pressure level IU (min.max): 19/37 db(A);
Sound power level EU: 63 db(A);
Sound pressure level EU: 46 db(A);

Technical data:
Dehumidification: 1.0 l/hr;
Power supply (V/Hz/Φ): 220-240V/50Hz/1;
Refrigerant gas: R32;
Liquid/Gas Piping:6.35 (1/4) / 9.52 (3/8) mm/inch;
Pipe length Max: 15 m;
Max height difference (U. Internal/U. External): 8 m;

Composed of:
Indoor Unit: AR09NXCXAWKNEU ;
External Unit: AR09NXCXAWKXEU ;

Dimensions

Indoor Unit (WxHxD): 828x267x265 mm; Weight: 9.4Kg;
Outdoor Unit (WxHxD): 660x475x242 mm; Weight: 22.8Kg;

General characteristics

Samsung Windfree Light air conditioners are designed to make the most of it and give you maximum comfort with extremely low consumption, reaching very high levels of energy efficiency (A++). Designed with innovative and elegant lines, to satisfy any need, with a backlit LED display to view the temperature or the functions you want, it is also managed by a high-tech 8-pole inverter, which in addition to ensuring effectiveness and efficiency, allows for less vibration and noise, cooling environments more quickly and also reducing consumption. Designed to last over time and to withstand the most extreme temperatures, the outdoor units and its components are protected by a particular anti-corrosion and anti-mould protection, and its BLDC (double rotation) compressor, in turn made up of 2 cams and the two balancing weights, so as to obtain very low levels of vibrations, and be extremely silent.

Your well-being can be programmed even when you are not at home, by connecting the air conditioner via the integrated Wi-Fi module it is possible to manage the air conditioner easily from your Smartphone or tablet even when the heat suddenly breaks out and you are not at home, in fact by downloading the a special Samsung Smart Home App allows you to activate the air conditioning, to create the ideal climate to better enjoy moments of relaxation when you return home. Downloadable on all Android or IOS platforms. Finally, a particular feature of this air conditioner is its extreme silence and the R32 ecological gas, which appears to work at pressures similar to R410 gas, but simplifies the recharging operations and the tools used for installing the system are the same ones used for systems with R410A gas (with the exception of checking the compatibility of the pressure gauge, leak detector and recuperator). It also complies with European regulations that will come into force in a few years.

Windfree can be recognized by its particular triangle shape which favors being 38% faster, guaranteeing you maximum comfort even faster.

Thanks to the wider return and delivery vents and the more powerful air flow, guaranteed by a larger and special-shaped fan, the air conditioner allows you to quickly cool the room, and also consists of 21,000 micro-holes from which the air comes out. air to make the air conditioner seem off but with exceptional comfort.

Functions:

2 COOL: this is the function that increases the cooling capacity by 25% by rapidly reducing the room temperature, and once the desired temperature has been reached, it directs the flow upwards;
Auto Change Over: this is the function that allows you to maintain the temperature constantly in both cooling and heating;

Smart function (Wi Fi): this is the function that allows you, through the special integrated Wi Fi card, to manage your air conditioner even when you are not at home, comfortably with your smartphone or tablet by downloading the appropriate app;

Auto: this is the special function, which starts automatically once the air conditioner is switched off, eliminates humidity in the internal unit, preventing the proliferation of mould, bacteria and bad odours. ;
Dehumidification: it is the function that eliminates the humidity present in the environment, making it comfortable;
Sleep function: this is the function that allows you to sleep peacefully, automatically regulating the temperature without sudden changes when you wake up.

Auto Mode: this is the function that, by pressing the appropriate button, moves the flaps. The flaps distribute the air flow uniformly and rapidly in the desired direction;
Econo: this is the function, ideal for conditioning a single area, with significant energy and economic savings.

Advantages:
Ecological uses the new R32 ecological gas;
Backlit LED display for quick viewing of both temperature and functions;
Wide range of frequency control by adjusting the frequency according to the change of ambient temperature;
T triangular design allows for a larger impeller, a wider intake grille and a larger delivery surface. The room is cooled faster and more evenly. ;
PM 2.5 filter of Samsung air conditioners is located on the outside, on the top. So it's easier to pull out, clean and put back without having to open any lid or pull hard to detach it, also a feature of the Pure series is that the entire filter covers the entire air intake capturing 99% of ultra-fine dust. thin in 100 minutes;

• peso: 35.0 kg
• gas: R-32
• marca: Samsung
• modello: CLIMAT_210210 copy
• potenza btu: 9000
• superficie riscaldabile mq: 25
