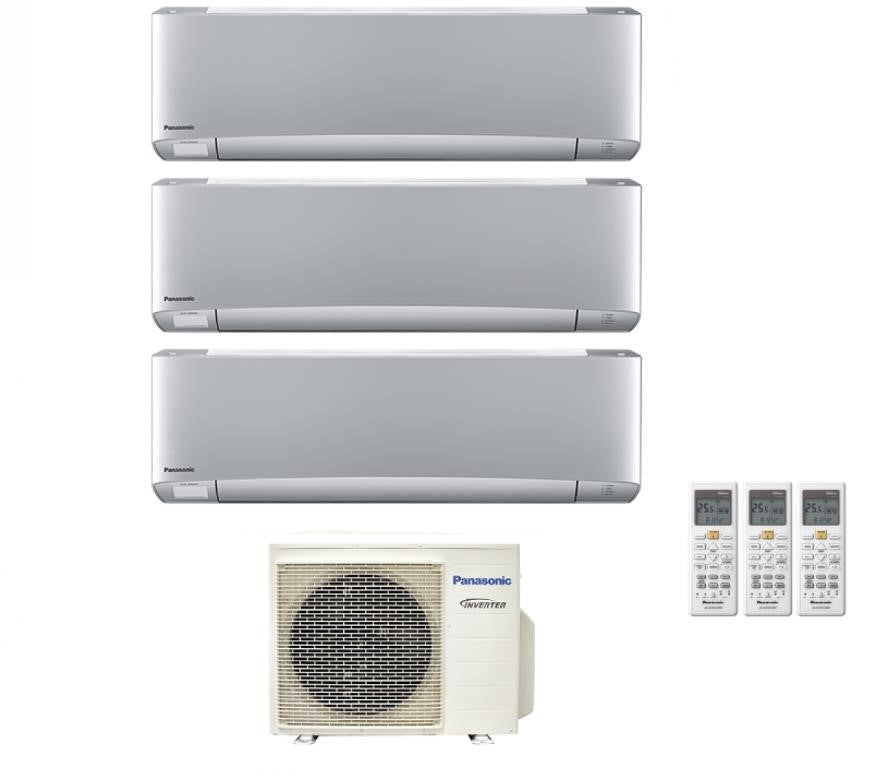

Panasonic Trial Split Inverter Air Conditioner Etherea Silver Series 12+12+12 With Cu-3z68tbe R-32 Integrated Wi-Fi 12000+12000+12000 Silver

Panasonic Trial Split Inverter Air Conditioner Etherea Silver Series 12+12+12 with CU-3Z68TBE R-32 Integrated Wi-Fi 12000+12000+12000 Silver

Technical features

INDOOR UNITS

1) Model:

• Indoor unit catalog number: 3 x CS-XZ35VKEW
• Technology: INVERTER ErP (compliant with Community Regulation 629/2011/EU)
• Power 12000 btu
• Color : Silver
• Internal unit dimensions (HxWxD): 295x919x194 ; 10 Kgs

OUTDOOR UNIT

Model:

• Catalog code : CU-3Z68TBE
• Max indoor units that can be combined: 3

Energy efficiency:

• SEER (W/W) : 8.0
• SCOP (W/W) : 4.2
• Energy Efficiency Class (Cool) : A+++
• Energy Efficiency Class (Heating) : A+
• Consumption in cooling (kWh): 298
• Heating consumption (kWh): 1733

Performance:

• Cooling Capacity (kW) : 6.8
• Heating Capacity (kW): 8.5
• Sound pressure level¹ Cooling / Heating (Hi)dB(A) 51/52

Electrical data:

• Operating range:
• - Cooling: -10 / +46 °C
  - Heating: -15 / +24 °C

Dimensions and weight

• Outdoor Unit HxWxD (mm): 795x875x320; 71kg

General characteristics

ETHEREA R-32

R-32 refrigerant: more efficient and environmentally friendly

Panasonic air conditioners are designed to ensure a comfortable climate inside the home of its customers. The entire residential range is efficient and eco-sustainable, thanks to the R32 refrigerant. Living according to your sustainable lifestyle is now easier than ever.

Surprisingly slim design

An innovative design that fits perfectly with modern environments. We have selected the best materials to offer a refined design. Now available in silver and matte white modes.

Maximize energy savings with the new models

The sensors of the Econavi system automatically adjust the power of the airflow allowing you to save energy efficiently, without sacrificing comfort and convenience.


Plus product

R32 refrigerant. The heat pumps use the new R32 refrigerant thus enabling a reduction in the value of the heating potential.

Econavi. The intelligent sensors of the Econavi system detect the intensity of sunlight, human movements, activity levels or the absence of people and automatically adjust the power and direction of the air flow. With the Econavi system you can save up to 38%.

The inverter ensures greater efficiency, better comfort. More precise thermoregulation, which avoids peaks and keeps the temperature more constant with lower energy consumption.

nanoe™ . The nanoe™ purification system uses nanoparticles. It neutralizes both airborne and adhesive microorganisms, such as bacteria, viruses and moulds, and ensures effective cleaning of the air in the environment.

Super Quiet. Thanks to the Super Quiet technology, our air conditioners ensure extremely silent operation. The sound pressure level of the indoor unit is only 19 dB(A), valid for Z20/Z25/Z35 models.

Mild Dry Cooling function. This function helps to prevent the room humidity from dropping rapidly (relative humidity is maintained at a level 10% higher than with the cooling function). It is ideal when you sleep with the air conditioning on.

Aerowings . More comfort with Aerowings. Wide ventilation flow. Two flaps improve the direction of the airflow.

Internet Control. This new generation system provides the possibility of remote control via the internet of the air conditioner or heat pump unit from anywhere, using a smartphone equipped with an Android or iOS operating system, a tablet or a PC.

Easy control via BMS. The communication port is integrated in the indoor unit, and allows connectivity and management via a building management system

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 75.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: Panasonic
• modello: CLIMAT_ETS121212
• potenza btu: 12000+12000+12000
• superficie riscaldabile mq: 35/35/35
