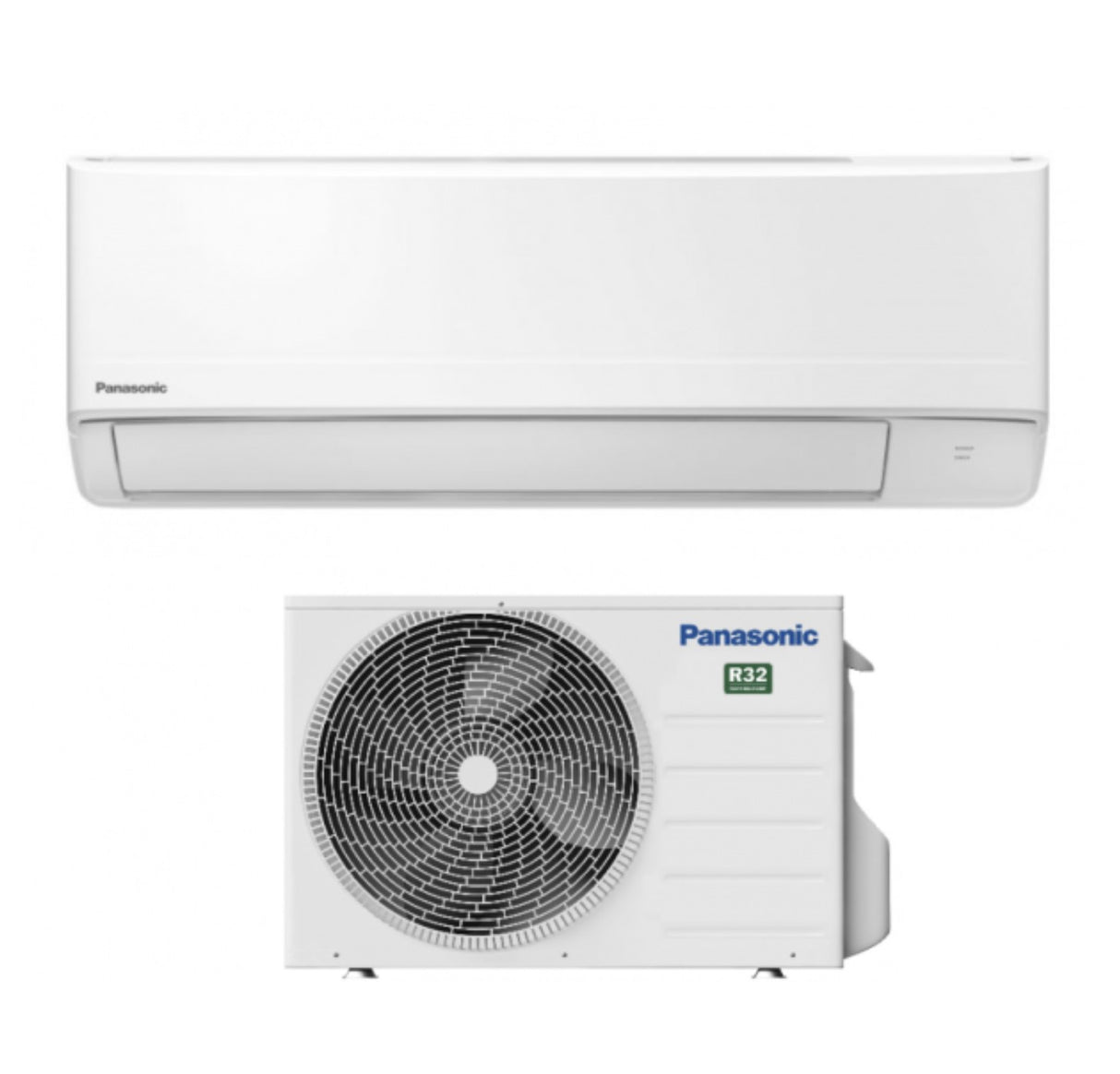

Panasonic Inverter Air Conditioner FZ Series 12000 Btu CS-FZ35WKE R-32 Wi-Fi Optional - New

Technical Features

• Indoor unit catalog code: CS-FZ35WKE
• Outdoor unit catalog code: CU-FZ35WKE
• Power: 12000 Btu
• Optional Wi-Fi card (Code CZ-TACG1 )
• Optional Wired Control (Code CZ-RD514C)

Energy Efficiency

• SEER : 6.10
• SCOP : 4.20
• Energy Efficiency Class in Cooling: A++
• Energy Efficiency Class in Heating: A+
• Annual Energy Consumption in Cooling: 195 kWh/a
• Annual Energy Consumption in Heating: 800 kWh/a

• Cooling capacity: 3.4 kW
• Heating capacity: 3.84 kW
• Treated Air Internal Unit: 10.8 ^m3 /min
• Sound Power Level Indoor Unit: 54 dB(A)
• Sound Power Level Outdoor Unit: 64 dB(A)
• Sound pressure level Indoor unit : 20~38 dB(A)
• Sound pressure level Outdoor unit: 48 dB(A)

Electrical Data

• Power supply (V,Hz,Ø) : 220~240/50/1
• Refrigerant gas: R32
• Operating range
• - Cooling: -10° ~ 43°C
• - Heating: -15° ~ 24°C

Installation Data

• Liquid Pipe Diameter: 6.35mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Maximum length of pipes: 15 m
• Maximum height difference between internal unit and external unit: 15 m

Dimensions and Weight

• Internal Unit Dimensions (HxWxD): 290x779x209 mm
• Internal Unit Weight: 8 Kg
• External Unit Dimensions (HxWxD): 542x780x289 mm
• External Unit Weight: 25 Kg

5 Years Compressor Warranty

5 year warranty on the compressors of the outdoor unit of the entire range for five years

Panasonic New FZ Unit, Compact and Efficient

• Compact and elegant design: only 779 mm wide

• Healthier air with the PM2.5 filter

• Super quiet operation! Only 20 dB(A) sound pressure

• Greater comfort with Aerowings

• High energy saving: A++ / A+

• Optional Wifi with CZ-TACG1 Wifi Kit for remote management via Panasonic Comfort Cloud App

• Compatibility with voice control systems

• These units can be installed by reusing R410A and R22 refrigerant pipes

The Ideal Air Conditioner to Install in Small Spaces

New Super Compact Design

The new FZ indoor units are only 779 mm wide. This extends installation opportunities, including narrow spaces above the door.

PM2.5 Filter

PM2.5 particulate matter is an air pollutant made up of dust, dirt, cigarette smoke and droplets. The filter captures PM2.5 particles including health-threatening pollutants, house dust and pollen.

Greater airflow control with Aerowings

The Aerowings function, equipped with two independent wings, ensures greater control of the airflow in the upper direction. Without Aerowings, with direct airflow, the direction of the flow never changes, so you can easily start to feel too cold as you are subjected to continuous exposure to a flow of cold air.

Optional Wi-Fi compatible with Voice Assistance

With the optional CZ-TACG1 device and the Panasonic Comfort Cloud Application you can manage all the functions of up to 200 units from your smartphone, access energy statistics, set programming and define different access permissions for other users. Compatible with Google Assistant and Amazon Alexa

A small gesture for the future

Not everyone is ready for change. Panasonic, however, believes that technological development can improve people's lives. For this reason, a new line of air conditioners in R32 has been designed, an absolutely innovative refrigerant: it is easy to install, has a low environmental impact and allows you to save energy. The result? Greater well-being for people and the planet. Welcome R32!

R32 Refrigerant

The new generation of air conditioners with R32 refrigerant is an innovation in every sense. Can we list them?

1. Ease of installation

• Easy to install, like the models with R410A refrigerant. (Just remember to check that the pressure gauge and vacuum pump are compatible with R32 refrigerant)

• The refrigerant is 100% pure, making it easier to recycle or reuse

2. Respect for the environment

• Zero impact on the ozone layer

• Impact on global warming reduced by approximately 75%

3. Increase efficiency

• Cost reduction and greater savings: Refrigerant charge reduction by 30%

• Higher efficiency A+++ than R410A

New Voice Control. Words are worth more than actions

Unlimited control, full access to the features of your air conditioners. Improving your comfort is now a breeze thanks to our Panasonic Comfort Cloud and Voice Control enabled air conditioner

Operate the Air with Your Voice

Enjoy the convenience of accessing these four basic operations with just your voice.

Turn the air conditioning on and off Improve your sleep with greater control

Easily turn the air conditioning on and off when preparing a comfortable space for little ones

Change Mode Get some extra help during a hectic day

Conveniently switch the air conditioning operation mode to cooling and heating or auto when your hands are busy

Adjust the Temperature Simple and immediate control at any time

Adjust the temperature with a simple voice command

Check Current Status Hands-free comfort for the whole family

Easy access for seniors to check the settings and current working status of the air conditioner

Manage More with Your Voice

Simplify your daily routines by grouping them into single actions

Set your routine with a Custom Command

With the Routines function, you can customize voice commands and control multiple devices, including our network-enabled air conditioners.

How to Set It Up

To synchronize with Voice Assistant, you must first register your air conditioner on Panasonic Comfort Cloud

Convenient centralized control. Intelligent control. Temperature control anytime, anywhere

Panasonic Comfort Cloud

Advanced smartphone control for the residential range

Control the operation of your air-to-air heat pump with Panasonic Comfort Cloud and additional functions available only through the Cloud, anywhere and anytime.

New possibilities, new applications

Families : Multiple users can be set. In the case of second homes, these can be pre-cooled or pre-heated remotely. It is also possible to remotely turn off the air conditioning system if someone forgets and leaves the system on

Multi-property : you can manage up to 200 units with a single smartphone, monitoring the consumption of each system and remotely viewing error codes for quick and better maintenance

Small and medium-sized offices : the owner can easily control the office premises and give access to their staff to each individual unit. The owner has the ability to know where energy waste for heating and cooling may occur and adopt the best solutions

Remote control of your system

With Panasonic Comfort Cloud you can manage:

• Turning the indoor unit on and off

• Heating and cooling operating modes

• Weekly timer setting (up to 6 events per day, 42 in a week)

• Error code notification

Energy monitoring and statistics

Monitoring the energy consumption of each unit during operation is the key to reducing the cost of your energy bill. Panasonic Comfort Cloud stores the energy consumption* of each unit, which can then be displayed in simple and impactful statistical graphs. This function is available for VKE, TKE and UKE generation models. With the weekly timer, you can adjust the operation to optimize energy consumption

Scalability and user management

Additional units and workstations can be easily incorporated, as can the inclusion of different users with different access permissions. This makes it possible to better manage the family home, a second home, as well as offering opportunities for the management of small / medium sized offices or multi-property

• Up to 200 units. Up to 10 sites (20 units per site)

• The master user can authorize use to other users with permissions limited to individual units and their configuration

Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: Panasonic
• metri quadri : 25-40 m2
• modello: CS-FZ35WKE
• potenza btu: 12000
• superficie riscaldabile mq: 35
