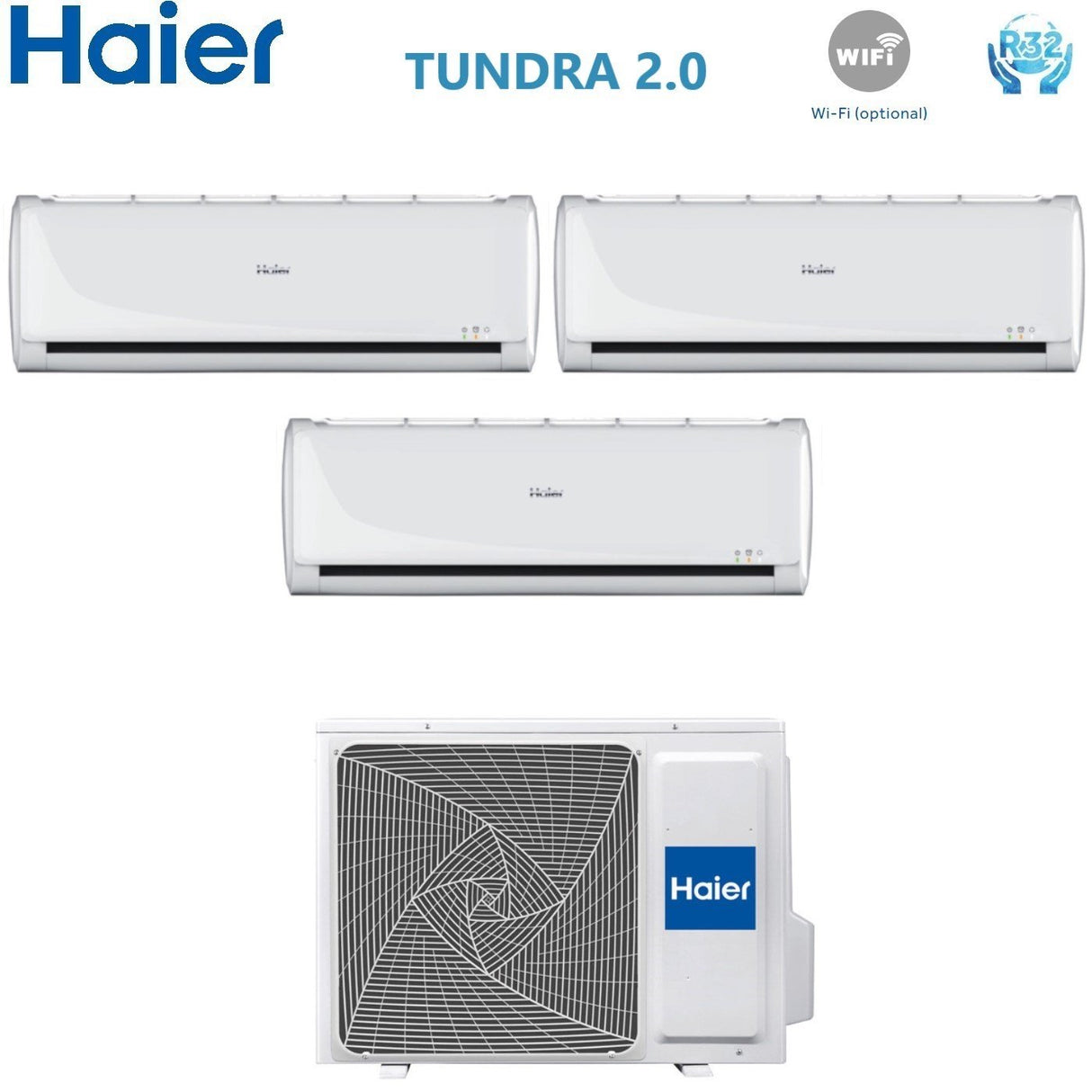

Haier Trial Split Inverter Air Conditioner Tundra 2.0 Series 7+7+12 With 3u70s2sr2fa R-32 Wi-Fi Optional 7000+7000+12000

Technical features

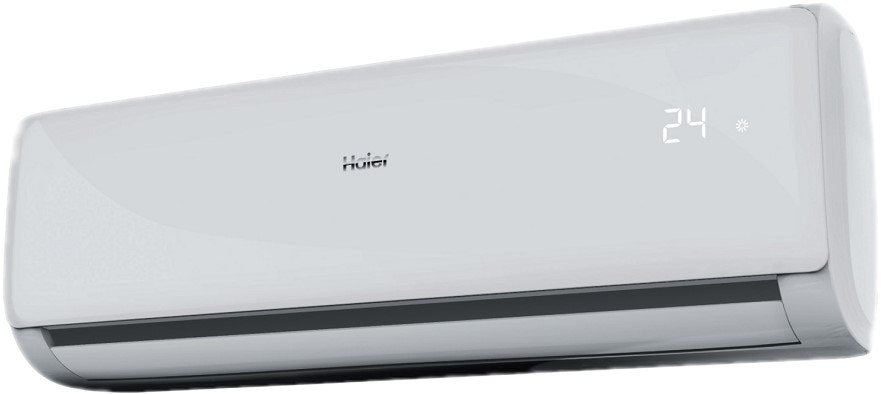

Indoor units

1) Model

• Indoor Unit Catalog Code : 2x AS20TADHRA-1
• Power: 7000 btu/h
• Cooling Capacity : 2.0 kW
• Heating Capacity : 2.3 kW
• Treated Air : 500 m ³ /h
• Sound Power Level : 54 dB(A)
• Sound Pressure Level : 20~38 dB(A)
• Pipe diameter Liquid : 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Internal Unit Dimensions (LxPxH): 820x195x280 mm
• Indoor Unit Weight: 8.4 Kg
• Optional Wi-Fi Card (Code KZW-W002 )
• Remote Control Included : ( Code YR-HE )

2) Model

• Indoor Unit Catalog Code : 1x AS35TADHRA-1
• Power: 12000 btu/h
• Cooling Capacity : 3.6 kW
• Heating Capacity : 3.7 kW
• Treated air : 550 m ³ /h
• Sound Power Level : 56 dB(A)
• Sound Pressure Level : 22~39 dB(A)
• Pipe diameter Liquid : 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Internal Unit Dimensions (LxPxH): 820x195x280 mm
• Indoor Unit Weight: 8.4 Kg
• Optional Wi-Fi Card (Code KZW-W002 )
• Remote Control Included : ( Code YR-HE )

Outdoor Unit

Model:

• Catalog code Outdoor Unit: 3U70S2SR2FA
• Max indoor units: up to 3 indoor units

Energy efficiency:

• SEER : 7.5
• SCOP : 4.2
• Cooling Energy Efficiency Class: A++
• Heating Energy Efficiency Class: A+
• Annual energy consumption Cooling : 371 kWh/a
• Annual energy consumption Heating : 1920 kWh/a

Performance:

• Cooling Capacity: 7.0 kW
• Heating Capacity: 7.6 kW
• Std cooling absorption: 1.66 kW
• Std heating absorption: 1.86 kW
• Sound power level : 66 dB
• Sound pressure level : 53 dB(A)

Characteristics:

• Power (V/Hz/Φ) : 220~240/50/1
• Refrigerant gas : R-32
• Pipe diameter Liquid : 6.35 mm (1/4") x3
• Gas pipe diameter : 9.52 mm (3/8") x3
• Maximum Piping Length: 60 m
• Maximum Single Piping Length Indoor Unit / Outdoor Unit Line : 25 m
• Maximum height difference Indoor Unit / Outdoor Unit: 15 m
• Guaranteed temperature range:
• - Cooling: -10° ~ 46°C
• - Heating: -15° ~ 24° C

Dimensions:

• External Unit Dimensions (LxPxH): 890x340x700 mm
• Weight of Outdoor Unit: 54 Kg

Haier Tundra 2.0

Quietness

The use of DC Inverter fans and design optimization decrease the noise level of the indoor units.

The optimized air flow guarantees the maximum silence of the air conditioner. Does the noise caused by your air conditioner bother you? Haier air conditioners have an advanced noise control system with an optimized design of the air ducts and cross-flow fan.

Facilitated installation

Reduction of installation time, more work space in the phase of connecting the pipes

Development of advanced component, system and control technologies to ensure greater comfort for customers and professional users

Wi-Fi Optional

Allows you to set the air conditioner remotely even when you are away.

Imagine that you are running home in the middle of summer or you are lying on the sofa, but you cannot find the remote control. What you want is to be able to easily control your air conditioner wherever you are and at any time with "Haier Smart Air 2" directly from your phone or tablet

• Low noise level

• Intelligent Air: automatically directs the deflectors in order to best distribute the flow according to the set mode

• Wi-Fi control (OPTIONAL) to remotely control the air conditioner

• Easy installation

Find the Ideal Solution for Multiple Environments

Discover some examples of ideal combinations for two, three, four and five rooms

Trial Examples of Solutions

Some examples of solutions available for three environments with different sizes

• peso: 75.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: HAIER
• modello: Tundra 7+7+12 70
• potenza btu: 7000+7000+12000
• superficie riscaldabile mq: 20/20/35
